KW-016-064-S3 (Each)

Name: Woodruff Keys - 1.59x6.35x2.8 mm 303 Stainless Steel - Stainless Steel 303 Similar to A2, 304, 18-8 Key - KW-016-064-S3
Brand: ExaktKey
SKU: KW016064S3
Price: 3.32 AUD
Availability: InStock

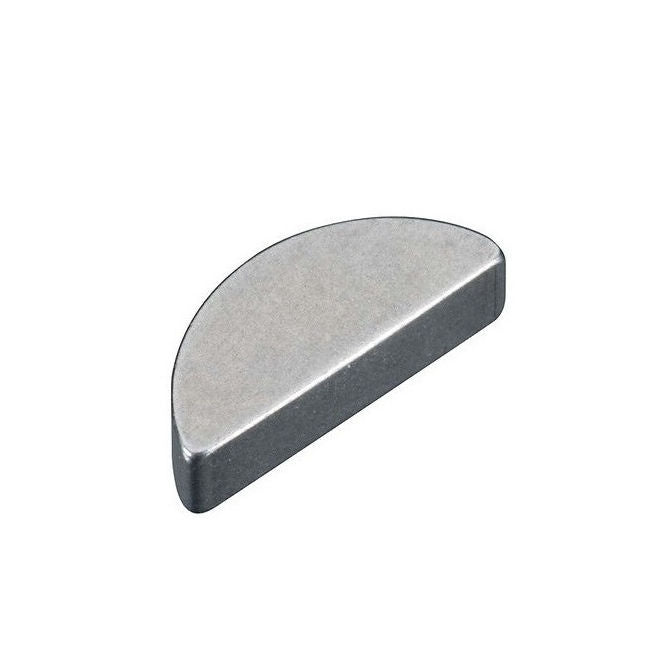

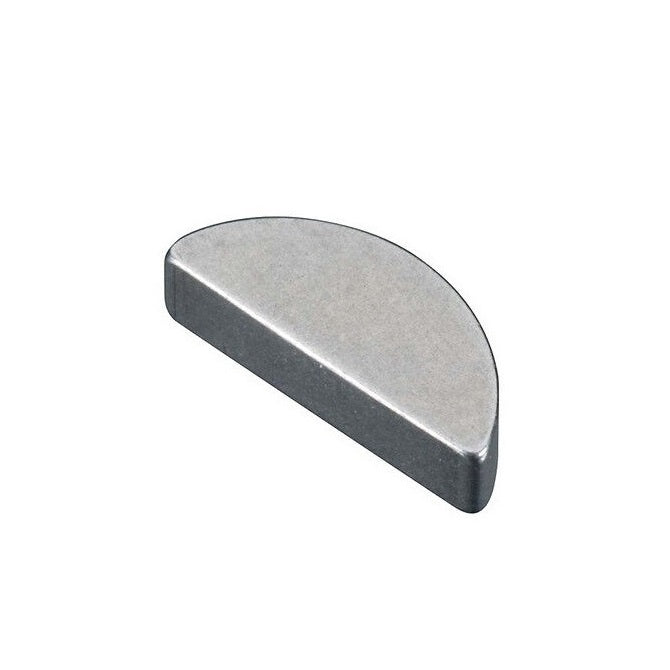

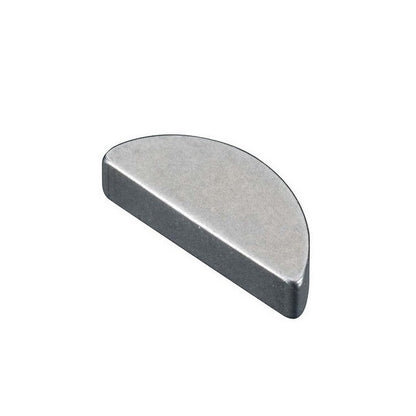

Woodruff Keys - 1.59x6.35x2.8 mm 303 Stainless Steel - Stainless Steel 303 Similar to A2, 304, 18-8 Key

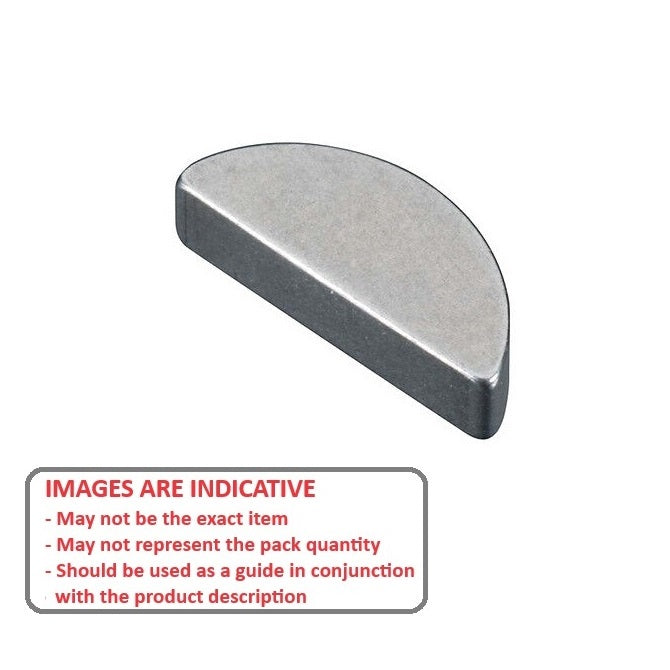

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

ExaktKey

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Keys - Woodruff - 303 Stainless Steel

Additional resources:
Keysteel Catalogue PDF

Price:

$3.32 AUD

~~$5.68 AUD~~ $3.32 AUD

Each

Excludes GST and overseas Taxes & Duties

Qty: 10 available now

Order 50 or more
for $2.99 AUD Each

Product Details

Additional stock available from USA subject to Prior Sale = 1326

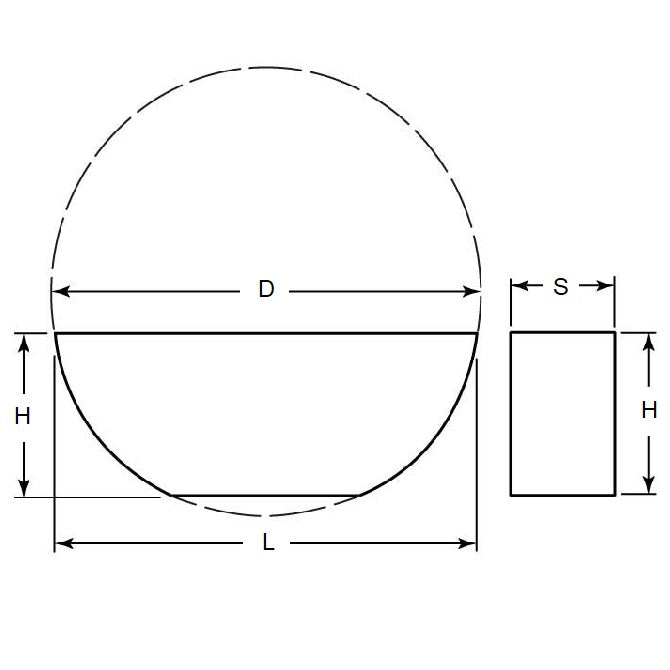

Thickness (S): 1.59mm
_{+/- 0.025}
_{(1.59mm is 0.063 in.)}

Stainless Steel 303 (Similar to A2, 304, 18-8)

Thickness (S): 1.59mm
_{+/- 0.025}
_{(1.59mm is 0.063 in.)}
Basis Diameter (D): 6.35mm
_{+/- 0.250}
_{(6.35mm is 0.25 in.)}
Approx. Height (H): 2.8mm
_{(2.8mm is 0.11 in.)}

Brand: ExaktKey
Country of Origin: US

Product Compliance and Data

Similar to

WOODRUFF 202-SS
Huyett® WKS-201
NoCor® WKS-201
202SS
WKS201
A9X490208
A9X49-0208

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
