DP016-010-303-1 (50 Pcs)

Dowel Pins - 1.588x9.53x9.53 mm Standard - Stainless Steel 303/304 Similar to A2, 18-8 HRB80

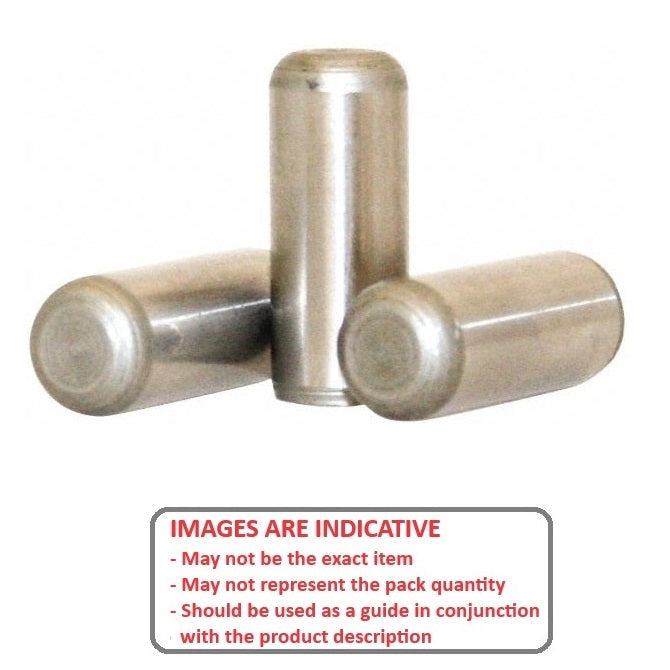

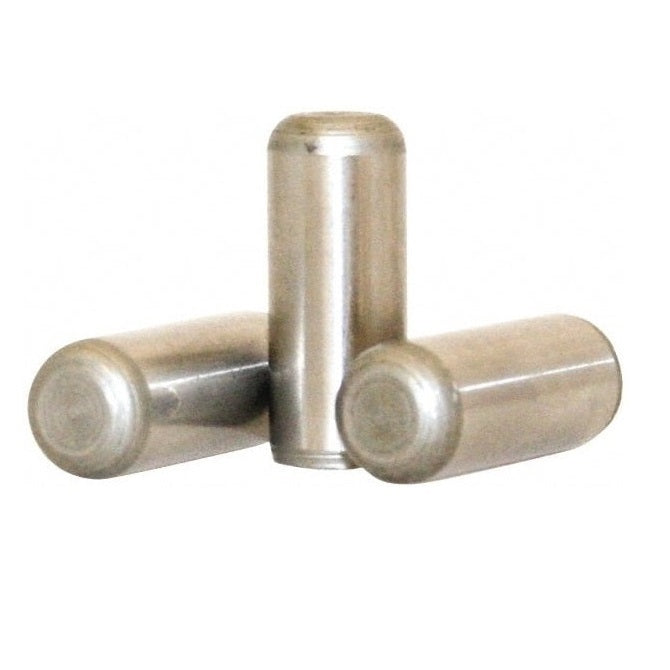

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Dowel Pins - 1.588x9.53x9.53 mm - Stainless Steel 303/304 Similar to A2, 18-8 HRB80
1 4

NoCor

Store: Minibearings - Miniature Bearings Australia - Online, Collection, Retail, Distributors, Wholesale Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$3.00 AUD
$5.70 AUD $3.00 AUD
per 50
Qty: 93 packs (4650 pcs) available now
Order 50 or more packs (2500 pcs) for $2.70 AUD per 50
Only 93 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 1.588mm
+ 0.002 / + 0.008
(1.588mm is 0.063 in.)

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Length (L): 9.53mm
    +/- 0.254
    (9.53mm is 0.375 in.)
  • Approx. Overall Length: 9.53mm
    +/- 0.254
    (9.53mm is 0.375 in.)

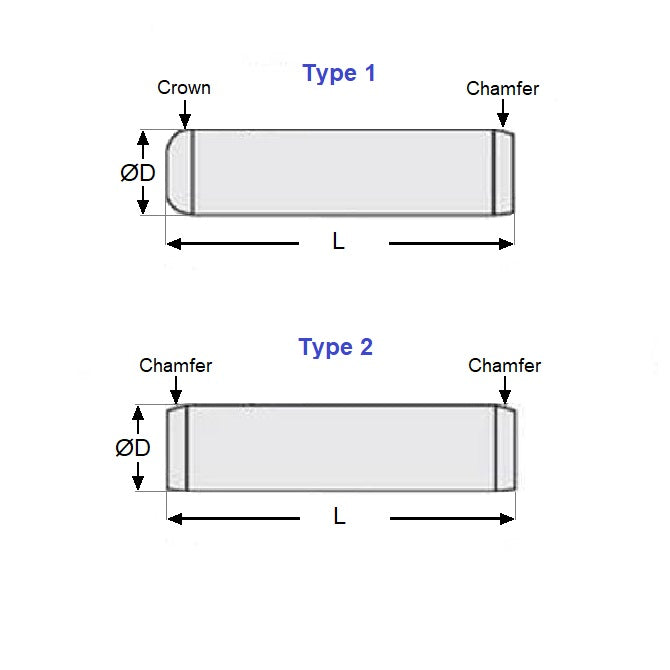

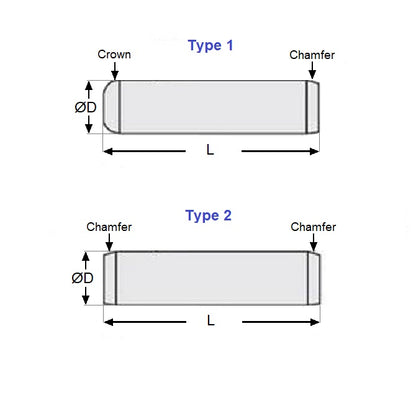

  • Type: 1 (Chamfer One End)
  • Chamfer: 0.30 x 15 Deg
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: TW

Alternative Parts Include: DOWS30630375, DOWS3-063-0375, A9X310212, A9X31-0212, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
