ECL-0012-0014-C (PK-100)

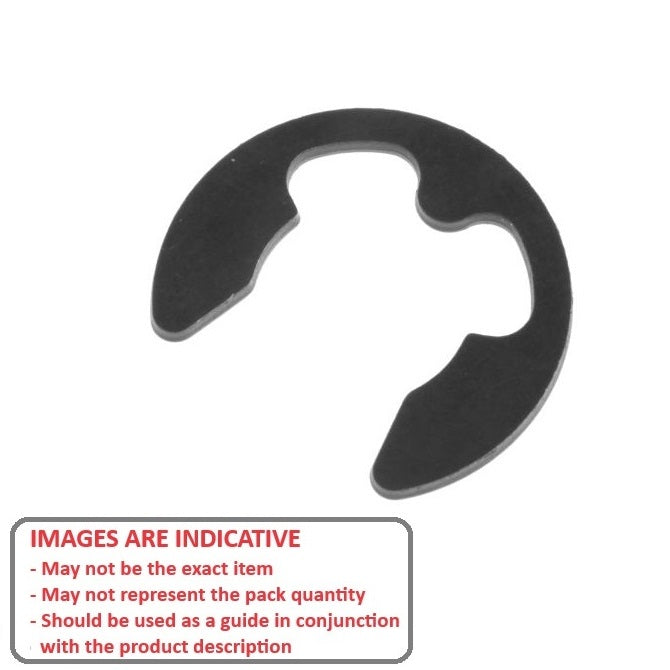

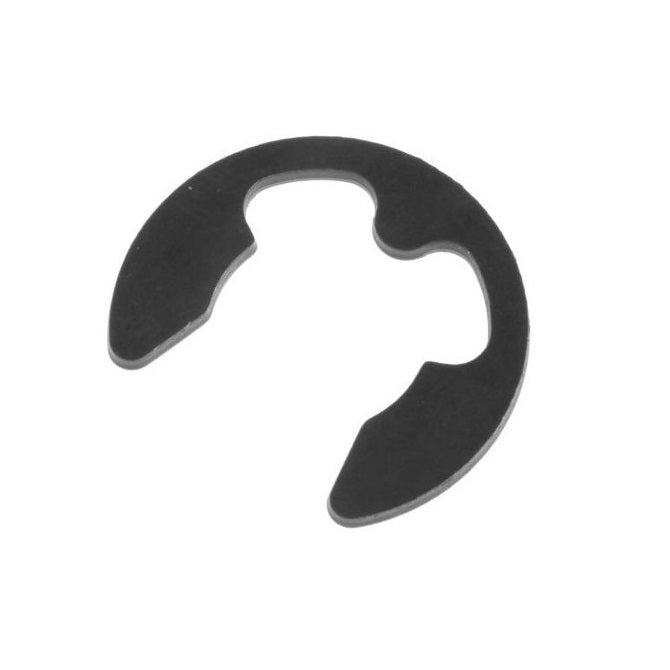

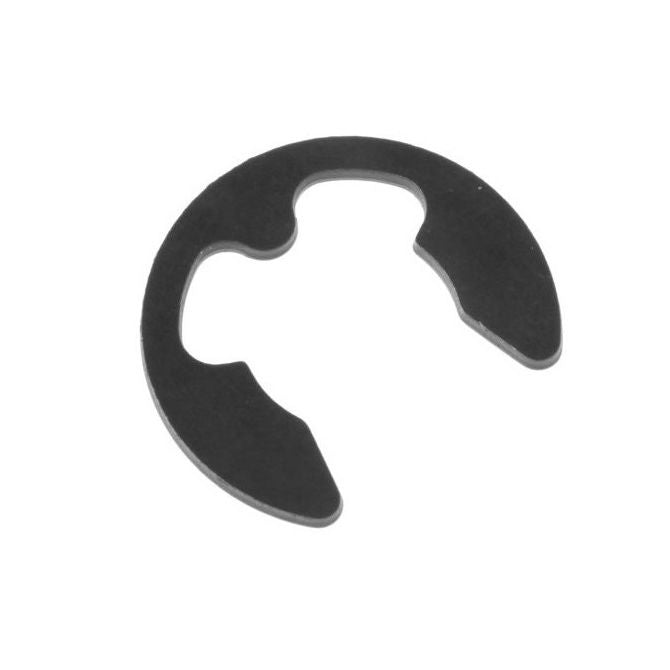

E-Clips Retaining Rings - 1.4x1.2x0.3 mm Basic - Carbon Steel E-Clip
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Assortment Kits
E-Clip Applicators
Order 50 or more packs of 100 (5000 pcs)
for $4.37 AUD per 100 pack
Couldn't load pickup availability
1.4x1.2x0.3 mm E-Clips Retaining Rings - Carbon Steel - Sold per pack of 100:
Base Category: Retaining Rings - E-Clips
Top Level Category: Retaining Rings - E-Clips - Basic - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 10650

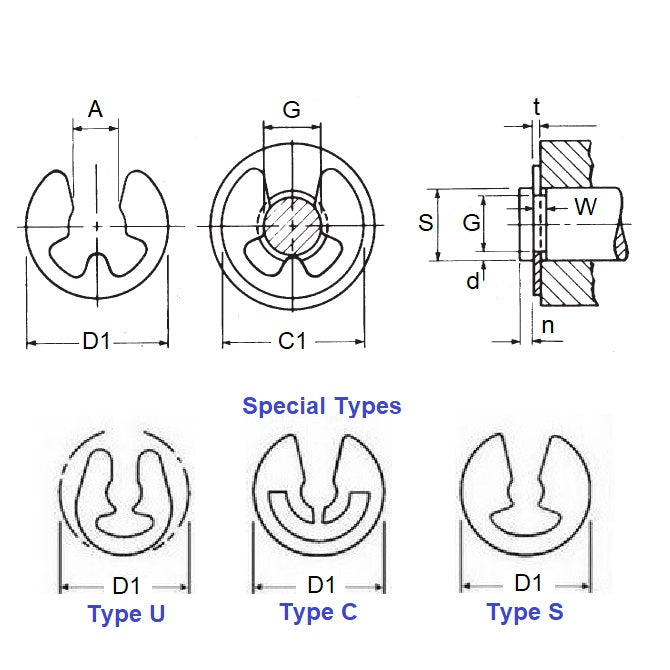

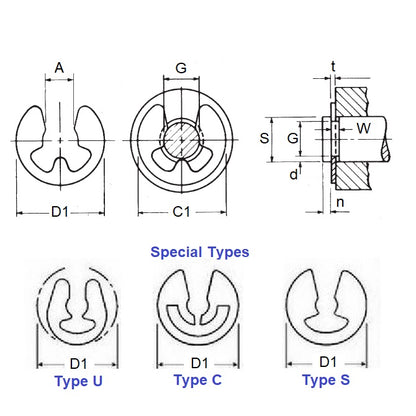

Minimum Rec. Shaft Dia (S): 1.40mm
+ 0.60 / - 0.00
(1.40mm is 0.055 in.)
Carbon Steel
- Minimum Rec. Shaft Dia (S): 1.40mm
+ 0.60 / - 0.00
(1.40mm is 0.055 in.)
- Groove Dia. (Dg): 1.20mm
+ 0.00 / - 0.06
(1.20mm is 0.047 in.)
- Clip Thickness (T): 0.30mm
+/- 0.02
(0.30mm is 0.012 in.)
- Clip OD Loose (D1): 2.90mm
- Groove Width (W): 0.34mm
- Maximum Rec. Shaft Dia (S): 2.00
- Clip OD in groove (C1): 3.25mm
- Loose Clip ID (A): 1.01mm
- Min. Extension (n): 0.60
- Standard: DIN6799
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98543A060
- Huyett® DE-012
- NoCor® DE-012
- Cirteq RA1.2
- DE012
- D15000012
- D1500-0012
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
ECL00120014C, ECL0012
