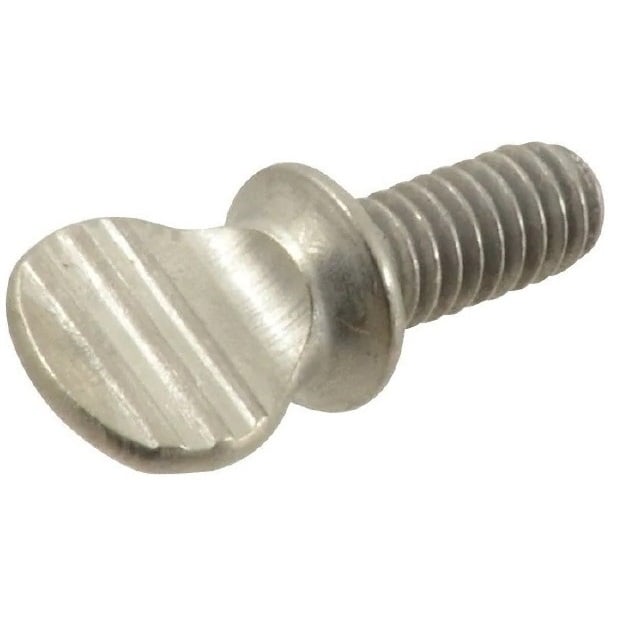

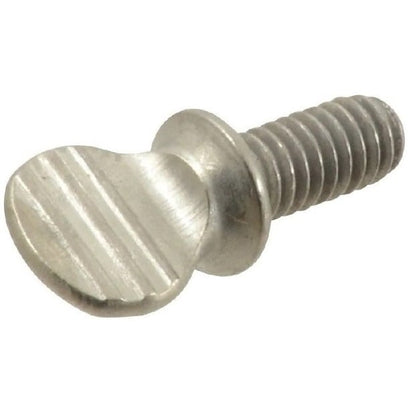

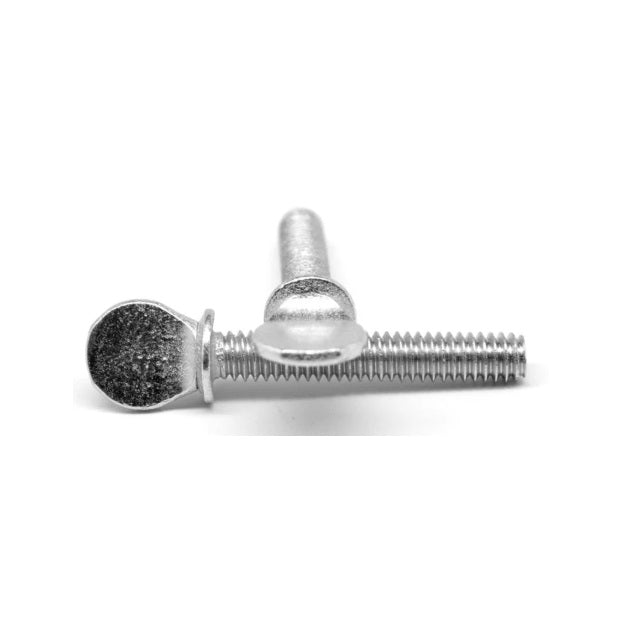

THS064C-051-F-CS-WF

Thumb Screws - 1/4-20 UNC - 6.35mm - 50.8x66.68 mm Flat Key Head - Malleable Iron Screw

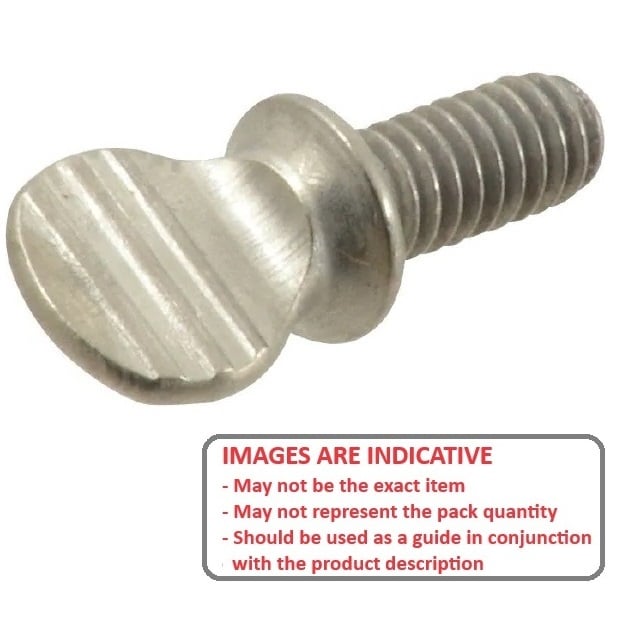

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Thumb Screws - 1/4-20 UNC - 6.35mm - 50.8x66.68 mm Flat Key Head - Malleable Iron
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Thumb Screws and Nuts PDF Quick Guide
PDF Screws Catalogue
Nuts
Price:
$12.95 AUD
$15.55 AUD $12.95 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $11.66 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 06, 2025

Base Category: Screws - Thumb

Top Level Category: Screws - Thumb - Flat Key Head - Washer Face

Product Details

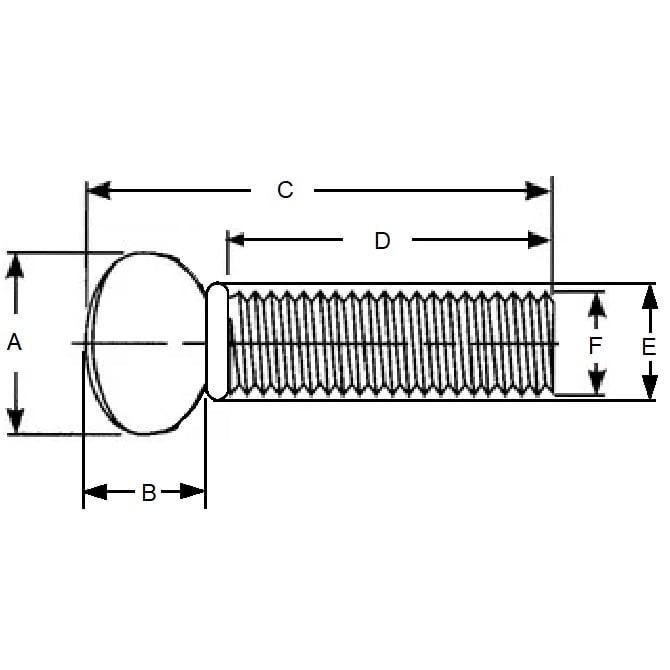

Thread Size (C): 1/4-20 UNC (6.35mm)

Malleable Iron
  • Thread Size (C): 1/4-20 UNC (6.35mm)
  • Thread Length (D): 50.80mm
    (50.80mm is 2 in.)
  • Overall Length (C): 66.68mm
    (66.68mm is 2.625 in.)
  • Head Diameter (A): 20.64mm
  • Head Height (B): 15.88mm
  • Finish: Tumbled
  • Washer Diameter (E): 11.11mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • MIT44
  • MIT-44

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
