SS015F-0024-S4 (50 Pcs)

Standard Cup Point Socket Set Screws - 0-80 UNF - 1.52mm - 2.4 mm 304 Stainless Steel DIN916 - Stainless Steel 304 Similar to A2, 18-8 HRB80 Screw

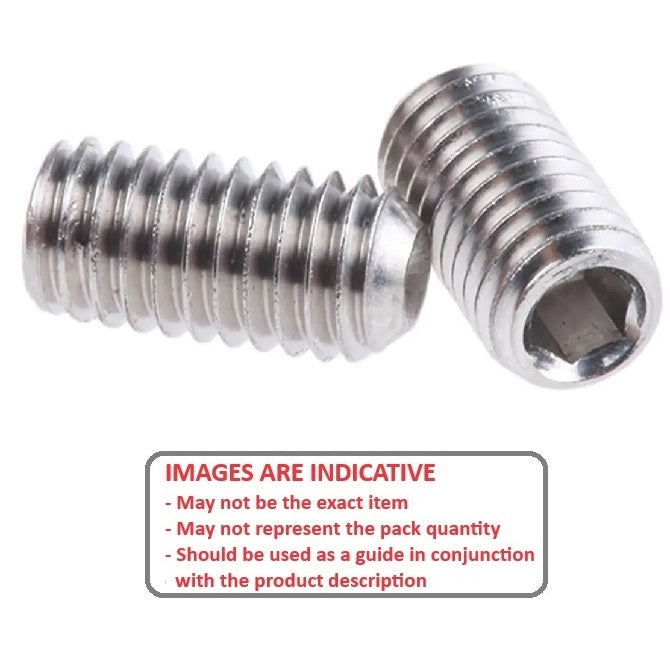

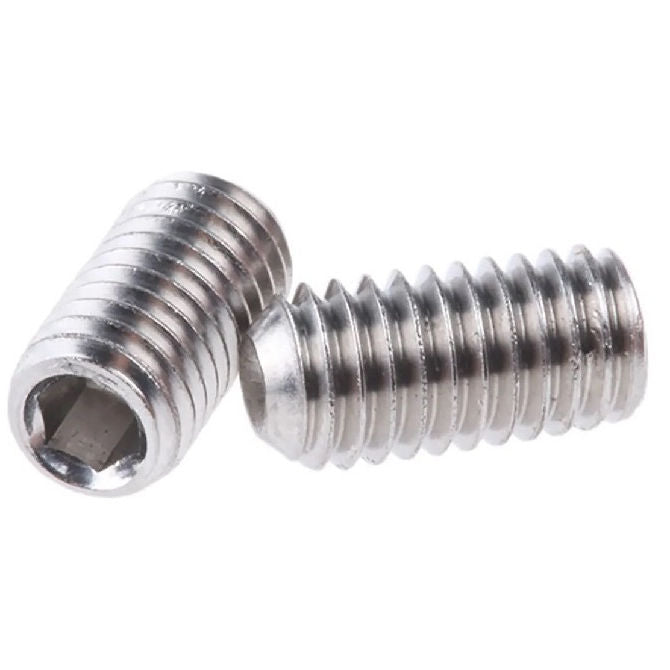

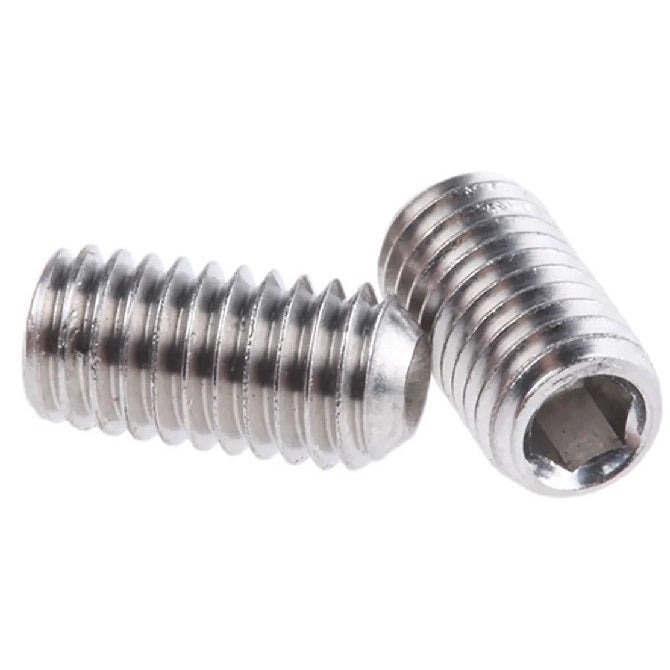

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Standard Cup Point Socket Set Screws - 0-80 UNF - 1.52mm - 2.4 mm 304 Stainless Steel DIN916 - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Socket Set Screws Master PDF
Assortment Kits
Price:
$8.00 AUD
$15.20 AUD $8.00 AUD
per 50
Qty: 9 packs (450 pcs) available now
Only 9 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Socket Set Screws - Standard Cup Point

Top Level Category: Socket Set Screws - Standard Cup Point - 304 Stainless Steel DIN916

Product Details

Thread Size: 0-80 UNF (1.52mm)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Thread Length (L): 2.4mm
    (2.4mm is 0.094 in.)
  • Type: Standard Cup Point
  • Hex Key Size: 0.70
  • Pitch: 0.318mm
  • Threads Per Inch: 80TPI

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 92311A051
  • A9X17008003
  • A9X17-008003

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
