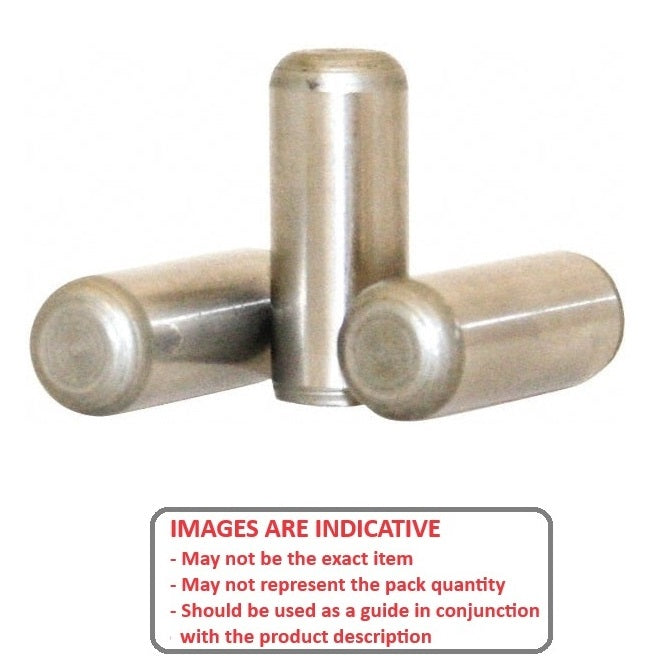

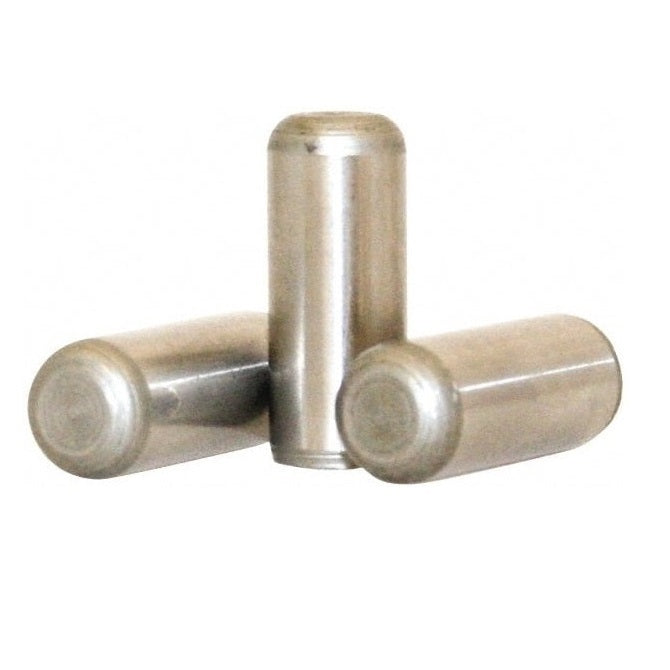

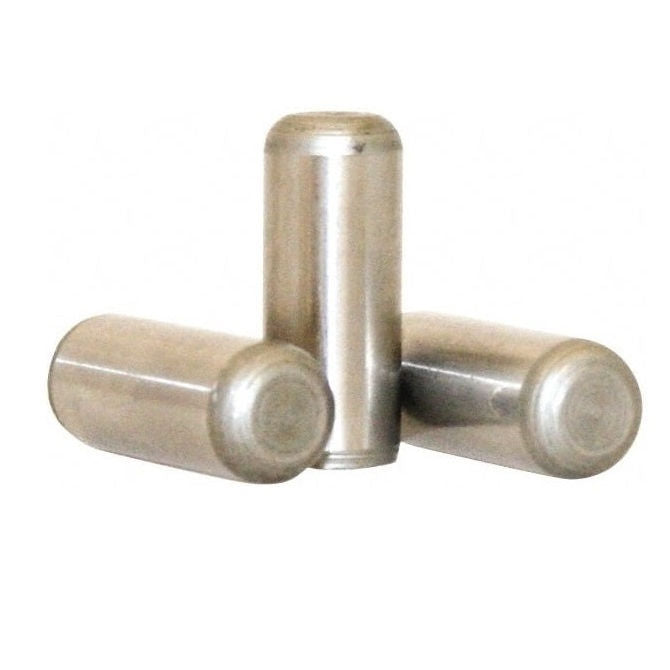

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Dowel Pins - 0.792 mm x 3.18 mm x 3.18 mm
DP007-003-303-1 (500 Pcs)

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$460.59 AUD
$460.59 AUD
per 500
Out Of Stock
Order 50 or more (25000 pcs) for $414.53 AUD per 500
Pre-Order now! Backorders for more than the stock quantity are expected before Mar 28, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 0.792mm
+ 0.002 / + 0.008

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Length (L): 3.18mm
    +/- 0.254
  • Overall Length: 3.18mm
    +/- 0.254

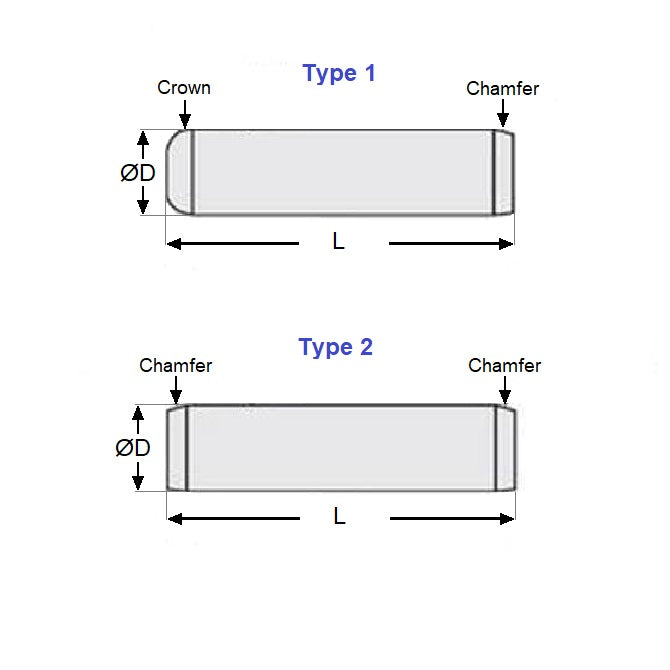

  • Type: 1 (See diagram)
  • Chamfer: 0.16 x 15 Deg
  • Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: IN

Alternatives: A9X31-0104, DOWS3-031-0125

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
