Collection: Washers - Disc Spring - Standard

Washers -> Disc Spring -> Standard

There are 372 products in the sub-categories of Washers - Disc Spring - Standard. Scroll down or follow the link to Washers - Disc Spring - Standard in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

Disc Spring Washers - 4.76x2.38x0.25 mm - Spring Steel AISI C1095

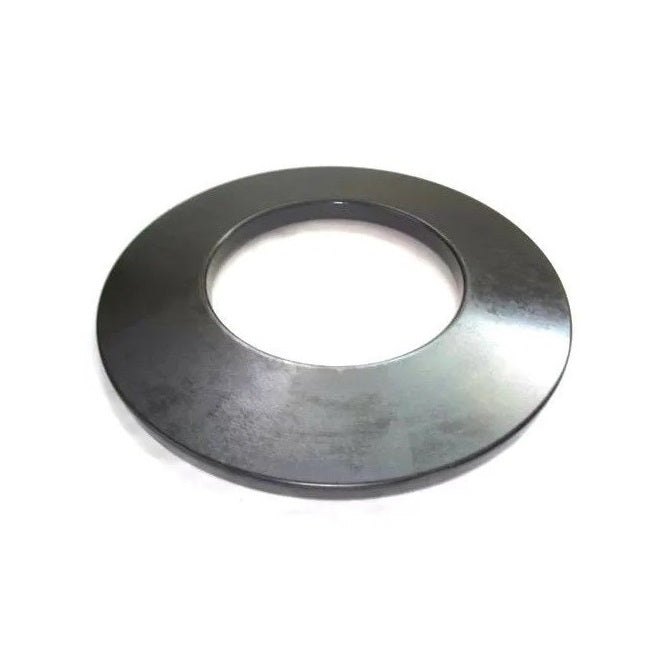

Washers - Disc Spring - Standard - Carbon Steel

A selection of Carbon Steel Standard Disc Spring Washers. Includes disc springs...

Washers - Disc Spring - Standard - Carbon Steel

Disc Spring Washers - 10x5x0.5 mm - Plastic

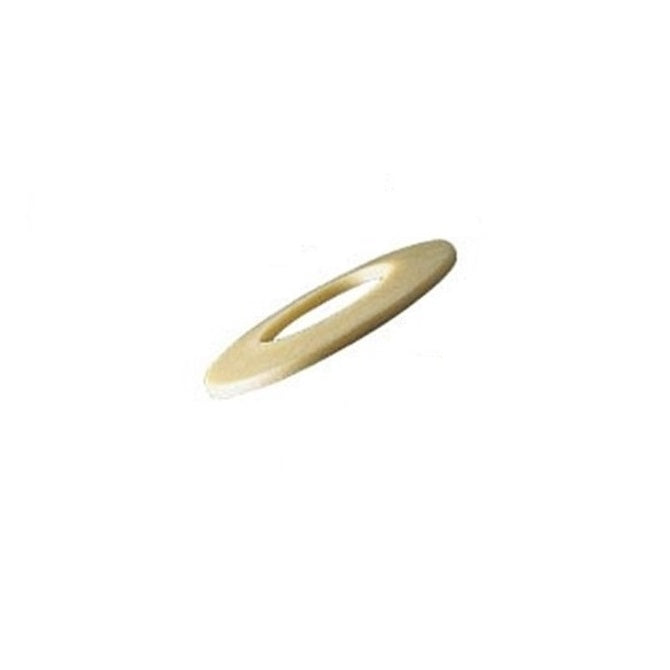

Washers - Disc Spring - Standard - Plastic

A selection of Plastic Standard Disc Spring Washers. Not for constant spring...

Washers - Disc Spring - Standard - Plastic

Disc Spring Washers - 4.76x2.38x0.25 mm - Stainless Steel 302/304 Similar to A2, 18-8

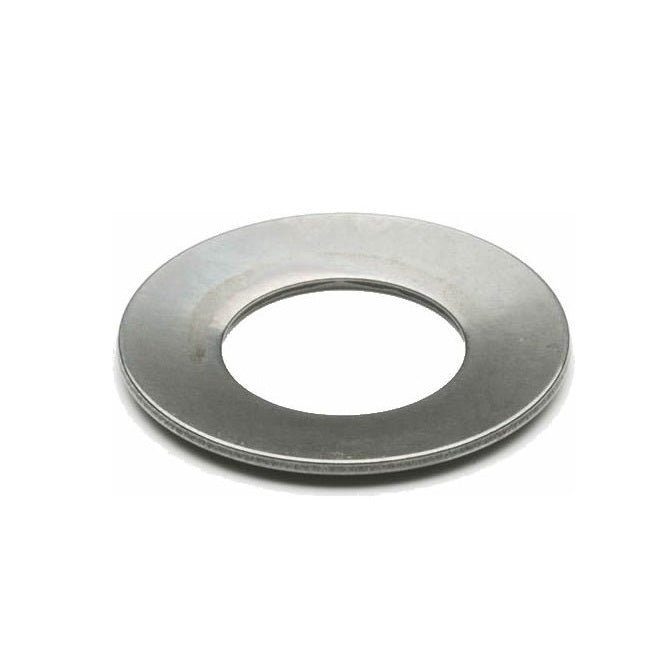

Washers - Disc Spring - Standard - Stainless Steel

A selection of Stainless Steel Standard Disc Spring Washers. Includes disc springs...

Washers - Disc Spring - Standard - Stainless Steel

Category Details

This category includes various types of disc spring washers.

Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Washers - Disc Spring - Standard category on the Small Parts & Bearings online store.

Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0024-D-005-003-S2 Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 272 Available Now \| Further orders can be expected around Fri, Nov 28, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Each Quantity Required 272 Available Now. Backorder if more than 272.
Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)	Load to flatten 12.41 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0024-D-005-003-S2 Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 272 Available Now \| Further orders can be expected around Fri, Nov 28, 2025 Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per Each Quantity Required 272 Available Now. Backorder if more than 272.
W0024-D-005-003-S2 --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer W0024-D-005-003-S2 --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Regular price $3.68 AUD Regular price Sale price $3.68 AUD Unit price per 272 Available Now
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Carbon Spring Steel AISI C1095 Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0024-D-005-003-C Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)	Load to flatten 12.41 kg
Material: Carbon Spring Steel AISI C1095 Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0024-D-005-003-C Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
W0024-D-005-003-C --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer W0024-D-005-003-C --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 6.00 mm (Equiv. 0.236 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.10 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.34 mm	Load at L1 12.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-006-003-S17 (50 Pcs) Disc Spring Washers - 6x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 6.00 mm (Equiv. 0.236 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.10 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.34 mm Load at L1: 12.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-006-003-S17 (50 Pcs) Disc Spring Washers - 6x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0030-D-006-003-S17 (50 Pcs) --- Disc Spring Washers - 6x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Sale W0030-D-006-003-S17 (50 Pcs) --- Disc Spring Washers - 6x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 6.35 mm _{+ 0.01 / + 0.07} (Equiv. 0.25 in.)	Nominal Inside Diameter (B) 3.20 mm _{+ 0.10 / - 0.00} (Equiv. 0.126 in.)	Stock Thickness (C) 0.34 mm (Equiv. 0.013 in.)	Load to flatten 21.43 kg	Loaded Height (L1) 0.43 mm	Load at L1 11.7 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0032-D-006-003-S2 Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 6.35 mm _{+ 0.01 / + 0.07} (Equiv. 0.25 in.)	Nominal Inside Diameter (B) 3.20 mm _{+ 0.10 / - 0.00} (Equiv. 0.126 in.)	Stock Thickness (C) 0.34 mm (Equiv. 0.013 in.)	Load to flatten 21.43 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.43 mm Load at L1: 11.7 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0032-D-006-003-S2 Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
W0032-D-006-003-S2 --- Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer W0032-D-006-003-S2 --- Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Regular price $3.23 AUD Regular price Sale price $3.23 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 6.35 mm _{+ 0.01 / + 0.07} (Equiv. 0.25 in.)	Nominal Inside Diameter (B) 3.20 mm _{+ 0.10 / - 0.00} (Equiv. 0.126 in.)	Stock Thickness (C) 0.34 mm (Equiv. 0.013 in.)	Load to flatten 21.43 kg	Loaded Height (L1) 0.43 mm	Load at L1 11.7 kg
Material: Carbon Spring Steel AISI C1095 Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0032-D-006-003-C Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 6.35 mm _{+ 0.01 / + 0.07} (Equiv. 0.25 in.)	Nominal Inside Diameter (B) 3.20 mm _{+ 0.10 / - 0.00} (Equiv. 0.126 in.)	Stock Thickness (C) 0.34 mm (Equiv. 0.013 in.)	Load to flatten 21.43 kg
Material: Carbon Spring Steel AISI C1095 Loaded Height (L1): 0.43 mm Load at L1: 11.7 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0032-D-006-003-C Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
W0032-D-006-003-C --- Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer W0032-D-006-003-C --- Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer Regular price $2.50 AUD Regular price Sale price $2.50 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 7.94 mm _{+ 0.01 / + 0.07} (Equiv. 0.313 in.)	Nominal Inside Diameter (B) 3.96 mm _{+ 0.10 / - 0.00} (Equiv. 0.156 in.)	Stock Thickness (C) 0.41 mm (Equiv. 0.016 in.)	Load to flatten 33.48 kg	Loaded Height (L1) 0.53 mm	Load at L1 18.3 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S4 (100 Pcs) Disc Spring Washers - 7.94x3.96x0.41 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 08, 2025 Regular price $15.95 AUD Regular price ~~$19.15 AUD~~ Sale price $15.95 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 7.94 mm _{+ 0.01 / + 0.07} (Equiv. 0.313 in.)	Nominal Inside Diameter (B) 3.96 mm _{+ 0.10 / - 0.00} (Equiv. 0.156 in.)	Stock Thickness (C) 0.41 mm (Equiv. 0.016 in.)	Load to flatten 33.48 kg
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80 Loaded Height (L1): 0.53 mm Load at L1: 18.3 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S4 (100 Pcs) Disc Spring Washers - 7.94x3.96x0.41 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 08, 2025 Regular price $15.95 AUD Regular price ~~$19.15 AUD~~ Sale price $15.95 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0040-D-008-004-S4 (100 Pcs) --- Disc Spring Washers - 7.94x3.96x0.41 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Sale W0040-D-008-004-S4 (100 Pcs) --- Disc Spring Washers - 7.94x3.96x0.41 mm Standard - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer Regular price $15.95 AUD Regular price ~~$19.15 AUD~~ Sale price $15.95 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.36 mm	Load at L1 10.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-003-S17 (100 Pcs) Disc Spring Washers - 8x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.36 mm Load at L1: 10.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-003-S17 (100 Pcs) Disc Spring Washers - 8x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0030-D-008-003-S17 (100 Pcs) --- Disc Spring Washers - 8x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Sale W0030-D-008-003-S17 (100 Pcs) --- Disc Spring Washers - 8x3x0.3 mm Standard - Stainless Steel 17-7 PH Washer Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.45 mm	Load at L1 19.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-004-S17 (100 Pcs) Disc Spring Washers - 8x3x0.4 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.45 mm Load at L1: 19.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0030-D-008-004-S17 (100 Pcs) Disc Spring Washers - 8x3x0.4 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0030-D-008-004-S17 (100 Pcs) --- Disc Spring Washers - 8x3x0.4 mm Standard - Stainless Steel 17-7 PH Washer Sale W0030-D-008-004-S17 (100 Pcs) --- Disc Spring Washers - 8x3x0.4 mm Standard - Stainless Steel 17-7 PH Washer Regular price $115.41 AUD Regular price ~~$138.49 AUD~~ Sale price $115.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.36 mm	Load at L1 10.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-003-C (50 Pcs) Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 10.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-003-C (50 Pcs) Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0030-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer Sale W0030-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.45 mm	Load at L1 19.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-004-C (50 Pcs) Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $42.95 AUD Regular price Sale price $42.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 19.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-004-C (50 Pcs) Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $42.95 AUD Regular price Sale price $42.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0030-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer W0030-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer Regular price $42.95 AUD Regular price Sale price $42.95 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.55 mm	Load at L1 36.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-005-C (50 Pcs) Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.55 mm Load at L1: 36.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-008-005-C (50 Pcs) Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0030-D-008-005-C (50 Pcs) --- Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer Sale W0030-D-008-005-C (50 Pcs) --- Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-003-C (10 Pcs) Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Per 10 Quantity Required 3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-003-C (10 Pcs) Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Per 10 Quantity Required 3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-008-003-C (10 Pcs) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Sale W0040-D-008-003-C (10 Pcs) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per 3 Available Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.20 mm (Equiv. 0.008 in.)		Loaded Height (L1) 0.26 mm	Load at L1 4.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-002-C (50 Pcs) Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.20 mm (Equiv. 0.008 in.)
Material: Carbon Steel Loaded Height (L1): 0.26 mm Load at L1: 4.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-002-C (50 Pcs) Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0040-D-008-002-C (50 Pcs) --- Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer Sale W0040-D-008-002-C (50 Pcs) --- Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.45 mm	Load at L1 21.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S17 Disc Spring Washers - 8x4x0.4 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 17, 2025 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.45 mm Load at L1: 21.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-004-S17 Disc Spring Washers - 8x4x0.4 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 17, 2025 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
W0040-D-008-004-S17 --- Disc Spring Washers - 8x4x0.4 mm Standard - Stainless Steel 17-7 PH Washer W0040-D-008-004-S17 --- Disc Spring Washers - 8x4x0.4 mm Standard - Stainless Steel 17-7 PH Washer Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Stainless Steel 17-7 PH Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x4x0.3 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $34.59 AUD Regular price ~~$41.51 AUD~~ Sale price $34.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Stainless Steel 17-7 PH Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0040-D-008-003-S17 (50 Pcs) Disc Spring Washers - 8x4x0.3 mm Standard - Stainless Steel 17-7 PH Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $34.59 AUD Regular price ~~$41.51 AUD~~ Sale price $34.59 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0040-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x4x0.3 mm Standard - Stainless Steel 17-7 PH Washer Sale W0040-D-008-003-S17 (50 Pcs) --- Disc Spring Washers - 8x4x0.3 mm Standard - Stainless Steel 17-7 PH Washer Regular price $34.59 AUD Regular price ~~$41.51 AUD~~ Sale price $34.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.45 mm	Load at L1 21.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 21.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0040-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer Sale W0040-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.300 mm (Equiv. 0.012 in.)			Load at L1 119.00 kg
Material: Carbon Spring Steel 50CrVA Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0042-D-008-003-C (50 Pcs) Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.300 mm (Equiv. 0.012 in.)
Material: Carbon Spring Steel 50CrVA Load at L1: 119.00 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0042-D-008-003-C (50 Pcs) Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0042-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer W0042-D-008-003-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.400 mm (Equiv. 0.016 in.)			Load at L1 210.00 kg
Material: Carbon Spring Steel 50CrVA Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0042-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.400 mm (Equiv. 0.016 in.)
Material: Carbon Spring Steel 50CrVA Load at L1: 210.00 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0042-D-008-004-C (50 Pcs) Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0042-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer W0042-D-008-004-C (50 Pcs) --- Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer Regular price $86.77 AUD Regular price Sale price $86.77 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm (Equiv. 0.02 in.)	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Carbon Spring Steel AISI C1095 Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0048-D-010-005-C Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm (Equiv. 0.02 in.)	Load to flatten 49.11 kg
Material: Carbon Spring Steel AISI C1095 Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0048-D-010-005-C Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
W0048-D-010-005-C --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer W0048-D-010-005-C --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer Regular price $2.14 AUD Regular price Sale price $2.14 AUD Unit price per Out of stock! Backorder Now
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm _{- 0.00 / - 0.08} (Equiv. 0.02 in.)	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0048-D-010-005-S2 Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 2235 Available Now \| Further orders can be expected around Wed, Oct 22, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each Quantity Required 2235 Available Now. Backorder if more than 2235.
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm _{- 0.00 / - 0.08} (Equiv. 0.02 in.)	Load to flatten 49.11 kg
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Category: Washers - Disc Spring - Standard - Stainless Steel
Part Number: W0048-D-010-005-S2 Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer 2235 Available Now \| Further orders can be expected around Wed, Oct 22, 2025 Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per Each Quantity Required 2235 Available Now. Backorder if more than 2235.
W0048-D-010-005-S2 --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer W0048-D-010-005-S2 --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Stainless Steel 302/304 Similar to A2, 18-8 Washer Regular price $4.14 AUD Regular price Sale price $4.14 AUD Unit price per 2235 Available Now
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.39 mm	Load at L1 10.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-003-C (10 Pcs) Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10 Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.39 mm Load at L1: 10.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-003-C (10 Pcs) Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10 Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0030-D-010-003-C (10 Pcs) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Sale W0030-D-010-003-C (10 Pcs) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per 10 Available Now Sale
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.48 mm	Load at L1 18.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-004-C (50 Pcs) Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 18.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-004-C (50 Pcs) Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0030-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer Sale W0030-D-010-004-C (50 Pcs) --- Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.56 mm	Load at L1 28.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-005-C (50 Pcs) Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.68 AUD Regular price ~~$39.22 AUD~~ Sale price $32.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 28.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0030-D-010-005-C (50 Pcs) Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 07, 2025 Regular price $32.68 AUD Regular price ~~$39.22 AUD~~ Sale price $32.68 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
W0030-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer Sale W0030-D-010-005-C (50 Pcs) --- Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer Regular price $32.68 AUD Regular price ~~$39.22 AUD~~ Sale price $32.68 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.48 mm	Load at L1 19.0 kg
Material: Carbon Steel Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-004-C (10 Pcs) Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10 Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 19.0 kg Category: Washers - Disc Spring - Standard - Carbon Steel
Part Number: W0040-D-010-004-C (10 Pcs) Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Per 10 Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-010-004-C (10 Pcs) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Sale W0040-D-010-004-C (10 Pcs) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per 2 Available Now Sale

Country/region

Collection: Washers - Disc Spring - Standard

Category Details

Filter

Filter

Subscribe to our emails
