| Stroke | Thread (C) | Length (A) | Shaft Size (D) | Max. Effective Mass | Max. Nm Per Cycle |

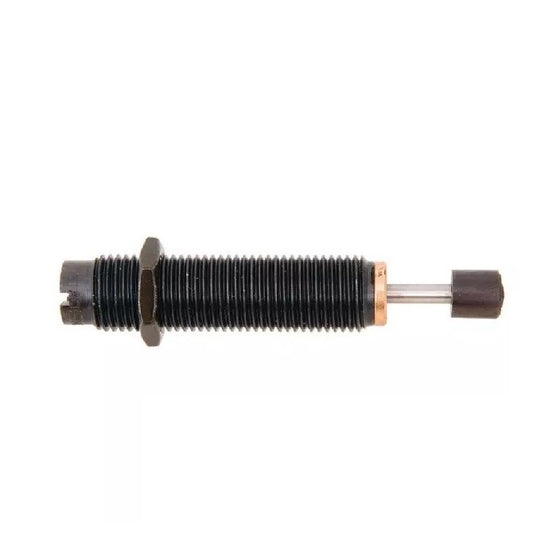

Indicative Image |
|---|---|---|---|---|---|---|
| Hydraulic Shock Absorbers - 60 mm M36x1.5 248 mm Non-Adjustable | ||||||
|
Stroke
60.0
mm |
Thread (C)
M36x1.5
|
Length (A)
248.0
mm |
Shaft Size (D)
10.0
mm |
Max. Effective Mass
400
Kg |
Max. Nm Per Cycle
250
|
|
| Max. Nm Per Hour: 120000 Max Impact Speed: 4.0 m/s Weight: 1030 g Body Length (B): 134 mm Tip Length x Diameter (CxE): 35x26 mm Figure: Figure 4. | ||||||
|
Part Number: AC-3660-1 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Stroke | Thread (C) | Length (A) | Shaft Size (D) |

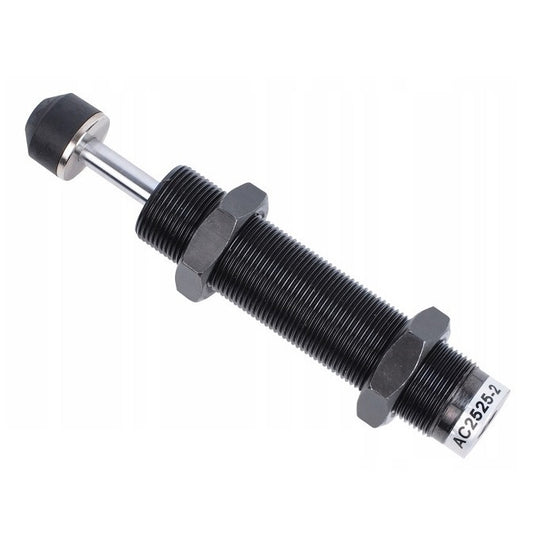

Indicative Image |
||
| Hydraulic Shock Absorbers - 60 mm M36x1.5 248 mm Non-Adjustable | ||||||
|
Stroke
60.0
mm |
Thread (C)
M36x1.5
|
Length (A)
248.0
mm |
Shaft Size (D)
10.0
mm |
|
||
| Max. Effective Mass: 400 Kg Max. Nm Per Cycle: 250 Max. Nm Per Hour: 120000 Max Impact Speed: 4.0 m/s Weight: 1030 g Body Length (B): 134 mm Tip Length x Diameter (CxE): 35x26 mm Figure: Figure 4. | ||||||
|
Part Number: AC-3660-1 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029 |
||||||
| Hydraulic Shock Absorbers - 80 mm M25x1.5 336.5 mm Non-Adjustable | ||||||
|
Stroke
80.0
mm |
Thread (C)
M25x1.5
|
Length (A)
336.5
mm |
Shaft Size (D)
8.0
mm |
Max. Effective Mass
20
Kg |
Max. Nm Per Cycle
150
|
|
| Max. Nm Per Hour: 120000 Max Impact Speed: 4.0 m/s Weight: 535 g Body Length (B): 100 mm Tip Length x Diameter (CxE): 22x19.5 mm Figure: Figure 2. | ||||||
|
Part Number: AC-2580-1 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Hydraulic Shock Absorbers - 80 mm M25x1.5 336.5 mm Non-Adjustable | ||||||
|
Stroke
80.0
mm |
Thread (C)
M25x1.5
|
Length (A)
336.5
mm |
Shaft Size (D)
8.0
mm |
|
||
| Max. Effective Mass: 20 Kg Max. Nm Per Cycle: 150 Max. Nm Per Hour: 120000 Max Impact Speed: 4.0 m/s Weight: 535 g Body Length (B): 100 mm Tip Length x Diameter (CxE): 22x19.5 mm Figure: Figure 2. | ||||||
|
Part Number: AC-2580-1 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029 |
||||||
| Hydraulic Shock Absorbers - 80 mm M25x1.5 336.5 mm Non-Adjustable | ||||||
|
Stroke
80.0
mm |
Thread (C)
M25x1.5
|
Length (A)
336.5
mm |
Shaft Size (D)
8.0
mm |
Max. Effective Mass
200
Kg |
Max. Nm Per Cycle
150
|
|
| Max. Nm Per Hour: 120000 Max Impact Speed: 1.0 m/s Weight: 535 g Body Length (B): 100 mm Tip Length x Diameter (CxE): 22x19.5 mm Figure: Figure 2. | ||||||
|
Part Number: AC-2580-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Hydraulic Shock Absorbers - 80 mm M25x1.5 336.5 mm Non-Adjustable | ||||||
|
Stroke
80.0
mm |
Thread (C)
M25x1.5
|
Length (A)
336.5
mm |
Shaft Size (D)
8.0
mm |
|
||
| Max. Effective Mass: 200 Kg Max. Nm Per Cycle: 150 Max. Nm Per Hour: 120000 Max Impact Speed: 1.0 m/s Weight: 535 g Body Length (B): 100 mm Tip Length x Diameter (CxE): 22x19.5 mm Figure: Figure 2. | ||||||
|
Part Number: AC-2580-3 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029 |
||||||
| Hydraulic Shock Absorbers - 80 mm M25x1.5 336.5 mm Non-Adjustable | ||||||
|
Stroke
80.0
mm |
Thread (C)
M25x1.5
|
Length (A)
336.5
mm |
Shaft Size (D)
8.0
mm |
Max. Effective Mass
50
Kg |
Max. Nm Per Cycle
150
|
|
| Max. Nm Per Hour: 120000 Max Impact Speed: 2.5 m/s Weight: 535 g Body Length (B): 100 mm Tip Length x Diameter (CxE): 22x19.5 mm Figure: Figure 2. | ||||||
|
Part Number: AC-2580-2 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Hydraulic Shock Absorbers - 80 mm M25x1.5 336.5 mm Non-Adjustable | ||||||
|
Stroke
80.0
mm |
Thread (C)
M25x1.5
|
Length (A)
336.5
mm |
Shaft Size (D)
8.0
mm |
|
||
| Max. Effective Mass: 50 Kg Max. Nm Per Cycle: 150 Max. Nm Per Hour: 120000 Max Impact Speed: 2.5 m/s Weight: 535 g Body Length (B): 100 mm Tip Length x Diameter (CxE): 22x19.5 mm Figure: Figure 2. | ||||||
|
Part Number: AC-2580-2 (Each)
Contact Us | Special Order Only - Please contact us if you need a large quantity | Backorder now for delivery around Tue, Feb 27, 2029 |
||||||
