Collection: Rod Ends - Male - Steel - Bronze Lined
Rod Ends -> Male -> Steel -> Bronze LinedThere are 55 products in the sub-categories of Rod Ends - Male - Steel - Bronze Lined. Scroll down or follow the link to Rod Ends - Male - Steel - Bronze Lined in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea
A selection of Ferrobal Narrow Hea Bronze Lined Steel Male Rod Ends....
Rod Ends - Male - Steel - Bronze Lined - Standard
A selection of Standard Bronze Lined Steel Male Rod Ends. Imperial and...
Category Details
This category includes various types of male rod ends.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Rod Ends - Male - Steel - Bronze Lined category on the Small Parts & Bearings online store.
| Eye Size (d1) | Overall Length (L) | Thread Size | Min. Thread Length (l2) | Head Width (W) | Eye Width (W1) |

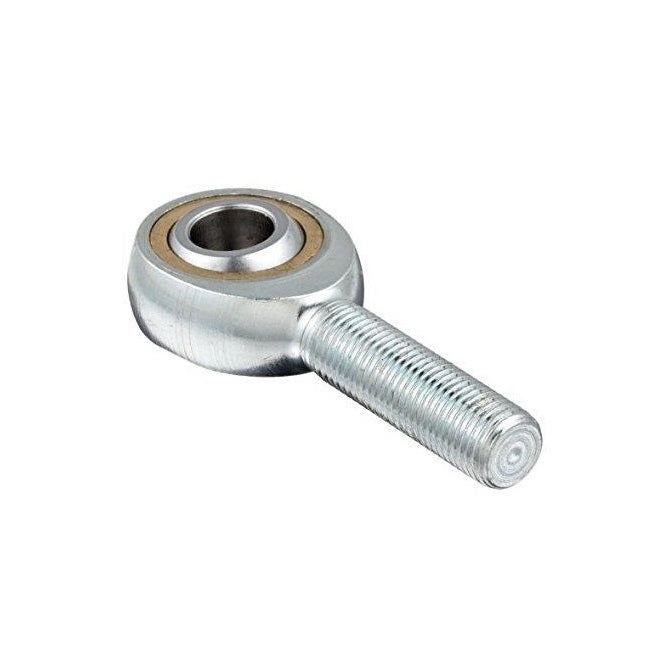

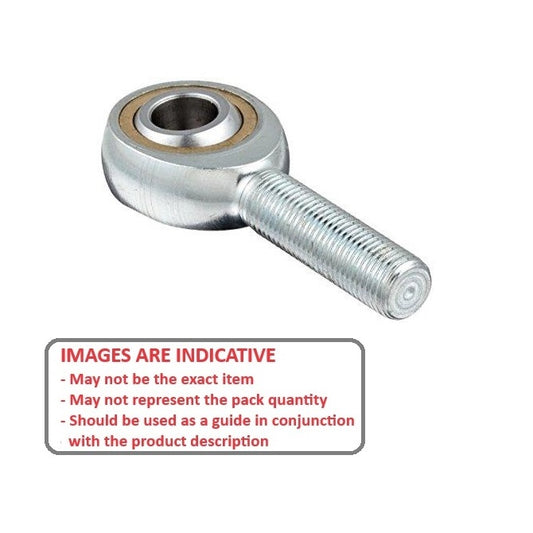

Indicative Image |
|---|---|---|---|---|---|---|
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
33.00
mm (Equiv. 1.299 in.) |
Thread Size
M3x0.5 Left
|
Min. Thread Length (l2)
15.00
mm |
Head Width (W)
4.30
mm |
Eye Width (W1)
6.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 12.00 mm
Centre Height: 27.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-030-L-CB
Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End 8 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
|
||||||
| Eye Size (d1) | Overall Length (L) | Thread Size | Min. Thread Length (l2) |
Indicative Image |
||
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
33.00
mm (Equiv. 1.299 in.) |
Thread Size
M3x0.5 Left
|
Min. Thread Length (l2)
15.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 4.30 mm
Eye Width (W1): 6.00 mm
Head Diameter: 12.00 mm
Centre Height: 27.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-030-L-CB
Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End 8 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
33.00
mm (Equiv. 1.299 in.) |
Thread Size
M3x0.5 Right
|
Min. Thread Length (l2)
15.00
mm |
Head Width (W)
4.50
mm |
Eye Width (W1)
6.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 12.00 mm
Centre Height: 27.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-030-R-CB
Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End 30 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
33.00
mm (Equiv. 1.299 in.) |
Thread Size
M3x0.5 Right
|
Min. Thread Length (l2)
15.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 4.50 mm
Eye Width (W1): 6.00 mm
Head Diameter: 12.00 mm
Centre Height: 27.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-030-R-CB
Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End 30 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
37.00
mm (Equiv. 1.457 in.) |
Thread Size
M4x0.7 Left
|
Min. Thread Length (l2)
17.00
mm |
Head Width (W)
5.30
mm |
Eye Width (W1)
7.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 14.00 mm
Centre Height: 30.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-040-L-CB
Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
37.00
mm (Equiv. 1.457 in.) |
Thread Size
M4x0.7 Left
|
Min. Thread Length (l2)
17.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 5.30 mm
Eye Width (W1): 7.00 mm
Head Diameter: 14.00 mm
Centre Height: 30.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-040-L-CB
Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$24.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
37.00
mm (Equiv. 1.457 in.) |
Thread Size
M4x0.7 Right
|
Min. Thread Length (l2)
17.00
mm |
Head Width (W)
5.30
mm |
Eye Width (W1)
7.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 14.00 mm
Centre Height: 30.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-040-R-CB
Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
37.00
mm (Equiv. 1.457 in.) |
Thread Size
M4x0.7 Right
|
Min. Thread Length (l2)
17.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 5.30 mm
Eye Width (W1): 7.00 mm
Head Diameter: 14.00 mm
Centre Height: 30.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-040-R-CB
Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
39.70
mm (Equiv. 1.563 in.) |
Thread Size
10-32 UNF Left
|
Min. Thread Length (l2)
19.05
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.92
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 15.88 mm
Centre Height: 31.75 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-048-L-CB
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 50 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
39.70
mm (Equiv. 1.563 in.) |
Thread Size
10-32 UNF Left
|
Min. Thread Length (l2)
19.05
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.35 mm
Eye Width (W1): 7.92 mm
Head Diameter: 15.88 mm
Centre Height: 31.75 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-048-L-CB
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 50 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
39.70
mm (Equiv. 1.563 in.) |
Thread Size
10-32 UNF Right
|
Min. Thread Length (l2)
19.05
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.92
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 15.88 mm
Centre Height: 31.75 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-048-R-CB
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End 14 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
39.70
mm (Equiv. 1.563 in.) |
Thread Size
10-32 UNF Right
|
Min. Thread Length (l2)
19.05
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.35 mm
Eye Width (W1): 7.92 mm
Head Diameter: 15.88 mm
Centre Height: 31.75 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-048-R-CB
Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End 14 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
41.00
mm (Equiv. 1.614 in.) |
Thread Size
M5x0.8 Left
|
Min. Thread Length (l2)
20.00
mm |
Head Width (W)
6.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 16.00 mm
Centre Height: 33.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-050-L-CB
Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
41.00
mm (Equiv. 1.614 in.) |
Thread Size
M5x0.8 Left
|
Min. Thread Length (l2)
20.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.00 mm
Eye Width (W1): 8.00 mm
Head Diameter: 16.00 mm
Centre Height: 33.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-050-L-CB
Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
41.00
mm (Equiv. 1.614 in.) |
Thread Size
M5x0.8 Right
|
Min. Thread Length (l2)
20.00
mm |
Head Width (W)
6.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 16.00 mm
Centre Height: 33.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-050-R-CB
Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End 10 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
41.00
mm (Equiv. 1.614 in.) |
Thread Size
M5x0.8 Right
|
Min. Thread Length (l2)
20.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.00 mm
Eye Width (W1): 8.00 mm
Head Diameter: 16.00 mm
Centre Height: 33.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-050-R-CB
Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End 10 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
45.00
mm (Equiv. 1.772 in.) |
Thread Size
M6x1 Left
|
Min. Thread Length (l2)
22.00
mm |
Head Width (W)
6.75
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 18.00 mm
Centre Height: 36.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-060-L-CB
Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
45.00
mm (Equiv. 1.772 in.) |
Thread Size
M6x1 Left
|
Min. Thread Length (l2)
22.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.75 mm
Eye Width (W1): 9.00 mm
Head Diameter: 18.00 mm
Centre Height: 36.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-060-L-CB
Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$6.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
45.000
mm (Equiv. 1.772 in.) |
Thread Size
M6x1.0 Right
|
Min. Thread Length (l2)
36.00
mm |
Head Width (W)
6.75
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 18.00 mm
Centre Height: 36.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-060-R-CB
Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
45.000
mm (Equiv. 1.772 in.) |
Thread Size
M6x1.0 Right
|
Min. Thread Length (l2)
36.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.75 mm
Eye Width (W1): 9.00 mm
Head Diameter: 18.00 mm
Centre Height: 36.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-060-R-CB
Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
45.00
mm (Equiv. 1.772 in.) |
Thread Size
M6x1 Right
|
Min. Thread Length (l2)
22.00
mm |
Head Width (W)
6.75
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 18.00 mm
Centre Height: 36.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-060-R-CB-B
Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
45.00
mm (Equiv. 1.772 in.) |
Thread Size
M6x1 Right
|
Min. Thread Length (l2)
22.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.75 mm
Eye Width (W1): 9.00 mm
Head Diameter: 18.00 mm
Centre Height: 36.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-060-R-CB-B
Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$5.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
49.20
mm (Equiv. 1.937 in.) |
Thread Size
1/4-28 UNF Left
|
Min. Thread Length (l2)
25.40
mm |
Head Width (W)
7.14
mm |
Eye Width (W1)
9.53
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 19.05 mm
Centre Height: 39.67 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-064-L-CB
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
49.20
mm (Equiv. 1.937 in.) |
Thread Size
1/4-28 UNF Left
|
Min. Thread Length (l2)
25.40
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 7.14 mm
Eye Width (W1): 9.53 mm
Head Diameter: 19.05 mm
Centre Height: 39.67 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-064-L-CB
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
49.20
mm (Equiv. 1.937 in.) |
Thread Size
1/4-28 UNF Right
|
Min. Thread Length (l2)
25.40
mm |
Head Width (W)
7.14
mm |
Eye Width (W1)
9.53
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 19.05 mm
Centre Height: 39.67 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-064-R-CB
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End 4 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
49.20
mm (Equiv. 1.937 in.) |
Thread Size
1/4-28 UNF Right
|
Min. Thread Length (l2)
25.40
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 7.14 mm
Eye Width (W1): 9.53 mm
Head Diameter: 19.05 mm
Centre Height: 39.67 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-064-R-CB
Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End 4 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
7.938
mm (Equiv. 0.313 in.) |
Overall Length (L)
58.72
mm (Equiv. 2.312 in.) |
Thread Size
5/16-24 UNF Left
|
Min. Thread Length (l2)
31.75
mm |
Head Width (W)
8.74
mm |
Eye Width (W1)
11.10
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 22.23 mm
Centre Height: 47.63 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-079-L-CB
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
7.938
mm (Equiv. 0.313 in.) |
Overall Length (L)
58.72
mm (Equiv. 2.312 in.) |
Thread Size
5/16-24 UNF Left
|
Min. Thread Length (l2)
31.75
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 8.74 mm
Eye Width (W1): 11.10 mm
Head Diameter: 22.23 mm
Centre Height: 47.63 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-079-L-CB
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$22.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
7.938
mm (Equiv. 0.313 in.) |
Overall Length (L)
58.72
mm (Equiv. 2.312 in.) |
Thread Size
5/16-24 UNF Right
|
Min. Thread Length (l2)
31.75
mm |
Head Width (W)
8.74
mm |
Eye Width (W1)
11.10
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 22.23 mm
Centre Height: 47.63 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-079-R-CB
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
7.938
mm (Equiv. 0.313 in.) |
Overall Length (L)
58.72
mm (Equiv. 2.312 in.) |
Thread Size
5/16-24 UNF Right
|
Min. Thread Length (l2)
31.75
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 8.74 mm
Eye Width (W1): 11.10 mm
Head Diameter: 22.23 mm
Centre Height: 47.63 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-079-R-CB
Male Rod Ends - 7.938x58.72 mm - 5/16-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
53.00
mm (Equiv. 2.087 in.) |
Thread Size
M8x1.25 Left
|
Min. Thread Length (l2)
25.00
mm |
Head Width (W)
9.00
mm |
Eye Width (W1)
12.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 22.00 mm
Centre Height: 42.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-080-L-CB
Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End 1 Available Now | Further orders can be expected around Tue, Sep 30, 2025 Regular price
$4.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
53.00
mm (Equiv. 2.087 in.) |
Thread Size
M8x1.25 Left
|
Min. Thread Length (l2)
25.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 9.00 mm
Eye Width (W1): 12.00 mm
Head Diameter: 22.00 mm
Centre Height: 42.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-080-L-CB
Male Rod Ends - 8x53 mm - M8x1.25 Left - Bronze Lined Steel Rod End 1 Available Now | Further orders can be expected around Tue, Sep 30, 2025 Regular price
$4.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
53.00
mm (Equiv. 2.087 in.) |
Thread Size
M8x1.25 Right
|
Min. Thread Length (l2)
25.00
mm |
Head Width (W)
9.00
mm |
Eye Width (W1)
12.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 22.00 mm
Centre Height: 42.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-080-R-CB
Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End 6 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
53.00
mm (Equiv. 2.087 in.) |
Thread Size
M8x1.25 Right
|
Min. Thread Length (l2)
25.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 9.00 mm
Eye Width (W1): 12.00 mm
Head Diameter: 22.00 mm
Centre Height: 42.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-080-R-CB
Male Rod Ends - 8x53 mm - M8x1.25 Right - Bronze Lined Steel Rod End 6 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$4.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
54.00
mm (Equiv. 2.126 in.) |
Thread Size
M8x1.25 Left
|
Min. Thread Length (l2)
42.00
mm |
Head Width (W)
6.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 22.00 mm
Centre Height: 13.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea |
||||||
|
Part Number: REM-080-L-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$68.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
54.00
mm (Equiv. 2.126 in.) |
Thread Size
M8x1.25 Left
|
Min. Thread Length (l2)
42.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.00 mm
Eye Width (W1): 8.00 mm
Head Diameter: 22.00 mm
Centre Height: 13.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea |
||||||
|
Part Number: REM-080-L-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$68.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
54.00
mm (Equiv. 2.126 in.) |
Thread Size
M8x1.25 Right
|
Min. Thread Length (l2)
42.00
mm |
Head Width (W)
6.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 22.00 mm
Centre Height: 13.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea |
||||||
|
Part Number: REM-080-R-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$61.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
8
mm (Equiv. 0.315 in.) |
Overall Length (L)
54.00
mm (Equiv. 2.126 in.) |
Thread Size
M8x1.25 Right
|
Min. Thread Length (l2)
42.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.00 mm
Eye Width (W1): 8.00 mm
Head Diameter: 22.00 mm
Centre Height: 13.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea |
||||||
|
Part Number: REM-080-R-CB-N
Male Rod Ends - 8x54 mm - M8x1.25 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$61.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
9.525
mm (Equiv. 0.375 in.) |
Overall Length (L)
61.93
mm (Equiv. 2.438 in.) |
Thread Size
3/8-24 UNF Left
|
Min. Thread Length (l2)
31.75
mm |
Head Width (W)
10.31
mm |
Eye Width (W1)
12.70
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 25.40 mm
Centre Height: 49.23 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-095-L-CB
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End 10 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
9.525
mm (Equiv. 0.375 in.) |
Overall Length (L)
61.93
mm (Equiv. 2.438 in.) |
Thread Size
3/8-24 UNF Left
|
Min. Thread Length (l2)
31.75
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 10.31 mm
Eye Width (W1): 12.70 mm
Head Diameter: 25.40 mm
Centre Height: 49.23 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-095-L-CB
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Left - Bronze Lined Steel Rod End 10 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$5.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
9.525
mm (Equiv. 0.375 in.) |
Overall Length (L)
61.93
mm (Equiv. 2.438 in.) |
Thread Size
3/8-24 UNF Right
|
Min. Thread Length (l2)
31.75
mm |
Head Width (W)
10.31
mm |
Eye Width (W1)
12.70
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 25.40 mm
Centre Height: 49.23 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-095-R-CB
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
9.525
mm (Equiv. 0.375 in.) |
Overall Length (L)
61.93
mm (Equiv. 2.438 in.) |
Thread Size
3/8-24 UNF Right
|
Min. Thread Length (l2)
31.75
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 10.31 mm
Eye Width (W1): 12.70 mm
Head Diameter: 25.40 mm
Centre Height: 49.23 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-095-R-CB
Male Rod Ends - 9.525x61.93 mm - 3/8-24 UNF Right - Bronze Lined Steel Rod End 8 Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
10
mm (Equiv. 0.394 in.) |
Overall Length (L)
61.00
mm (Equiv. 2.402 in.) |
Thread Size
M10x1.5 Right
|
Min. Thread Length (l2)
29.00
mm |
Head Width (W)
10.50
mm |
Eye Width (W1)
14.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 26.00 mm
Centre Height: 48.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-100-R-CB (200 Pcs)
Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$4,274.86 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
Eye Size (d1)
10
mm (Equiv. 0.394 in.) |
Overall Length (L)
61.00
mm (Equiv. 2.402 in.) |
Thread Size
M10x1.5 Right
|
Min. Thread Length (l2)
29.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 10.50 mm
Eye Width (W1): 14.00 mm
Head Diameter: 26.00 mm
Centre Height: 48.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-100-R-CB (200 Pcs)
Male Rod Ends - 10x61 mm - M10x1.5 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 04, 2025 Regular price
$4,274.86 AUD
Regular price
Unit price
per
Per 200
|
||||||
|
||||||
|
Eye Size (d1)
10
mm (Equiv. 0.394 in.) |
Overall Length (L)
61.00
mm (Equiv. 2.402 in.) |
Thread Size
M10x1.5 Left
|
Min. Thread Length (l2)
29.00
mm |
Head Width (W)
10.50
mm |
Eye Width (W1)
14.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 26.00 mm
Centre Height: 48.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-100-L-CB (10 Pcs)
Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$115.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
10
mm (Equiv. 0.394 in.) |
Overall Length (L)
61.00
mm (Equiv. 2.402 in.) |
Thread Size
M10x1.5 Left
|
Min. Thread Length (l2)
29.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 10.50 mm
Eye Width (W1): 14.00 mm
Head Diameter: 26.00 mm
Centre Height: 48.00 mm
Grease Nipple: Yes
Category: Rod Ends - Male - Steel - Bronze Lined - Standard |
||||||
|
Part Number: REM-100-L-CB (10 Pcs)
Male Rod Ends - 10x61 mm - M10x1.5 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 30, 2025 Regular price
$115.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
10
mm (Equiv. 0.394 in.) |
Overall Length (L)
62.50
mm (Equiv. 2.461 in.) |
Thread Size
M10x1.5 Left
|
Min. Thread Length (l2)
48.00
mm |
Head Width (W)
7.00
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter: 26.00 mm
Centre Height: 16.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea |
||||||
|
Part Number: REM-100-L-CB-N
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$70.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
10
mm (Equiv. 0.394 in.) |
Overall Length (L)
62.50
mm (Equiv. 2.461 in.) |
Thread Size
M10x1.5 Left
|
Min. Thread Length (l2)
48.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 7.00 mm
Eye Width (W1): 9.00 mm
Head Diameter: 26.00 mm
Centre Height: 16.00 mm
Grease Nipple: No
Category: Rod Ends - Male - Steel - Bronze Lined - Ferrobal Narrow Hea |
||||||
|
Part Number: REM-100-L-CB-N
Male Rod Ends - 10x62.5 mm - M10x1.5 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$70.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
