Collection: Rod Ends - Male - Steel

Rod Ends -> Male -> Steel

There are 102 products in the sub-categories of Rod Ends - Male - Steel. Scroll down or follow the link to Rod Ends - Male - Steel in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

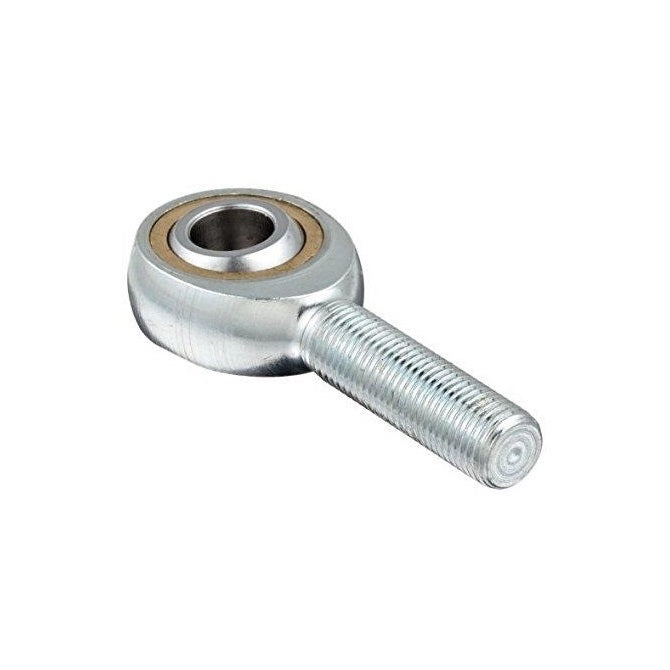

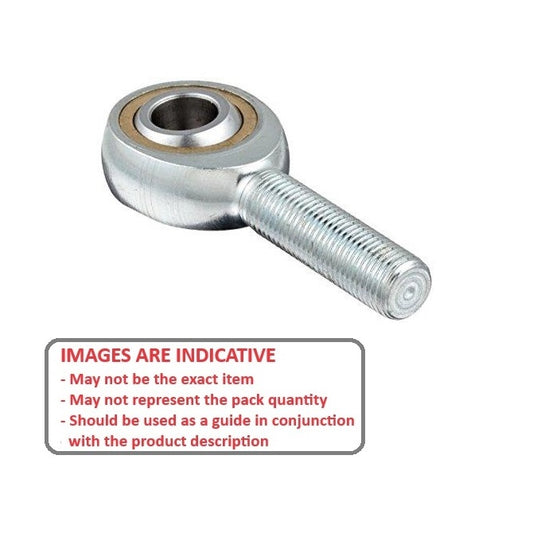

Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel

Rod Ends - Male - Steel - Bronze Lined

This category includes various types of male rod ends.An expanded range may...

Rod Ends - Male - Steel - Bronze Lined

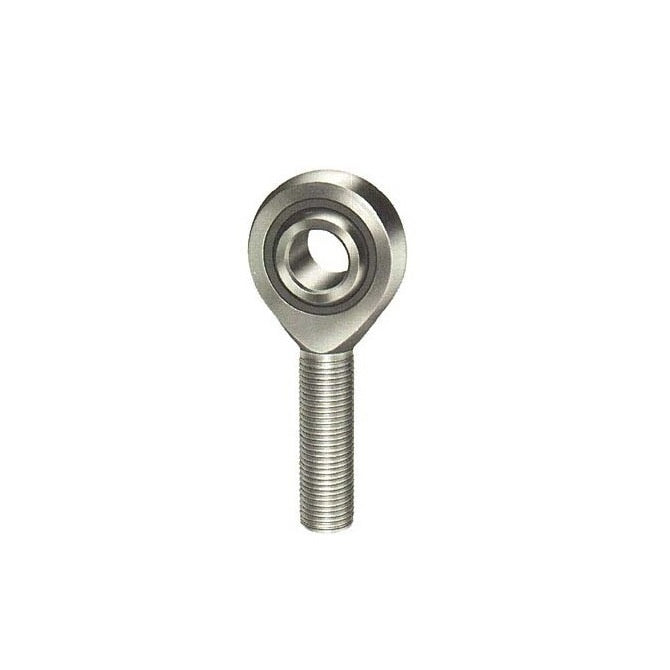

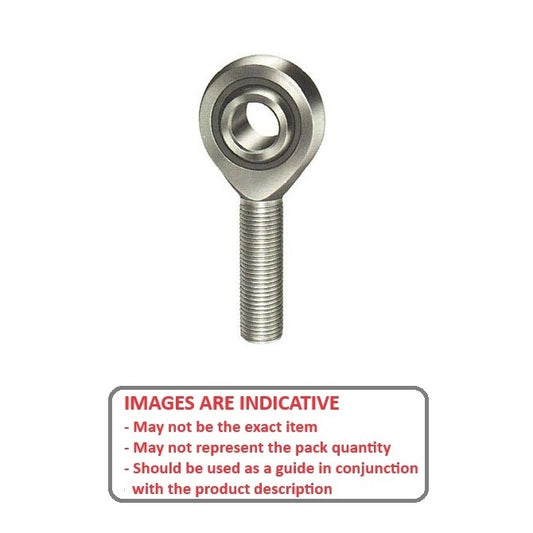

Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with Nylon Raceway

Rod Ends - Male - Steel - Nylon Raceway

A selection of Nylon Raceway Steel Male Rod Ends. Also known as...

Rod Ends - Male - Steel - Nylon Raceway

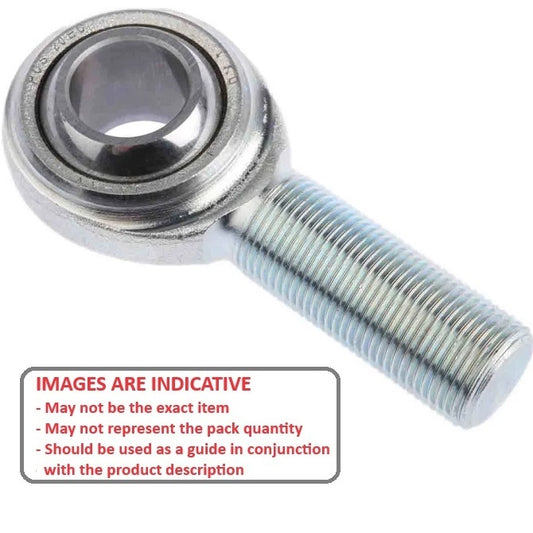

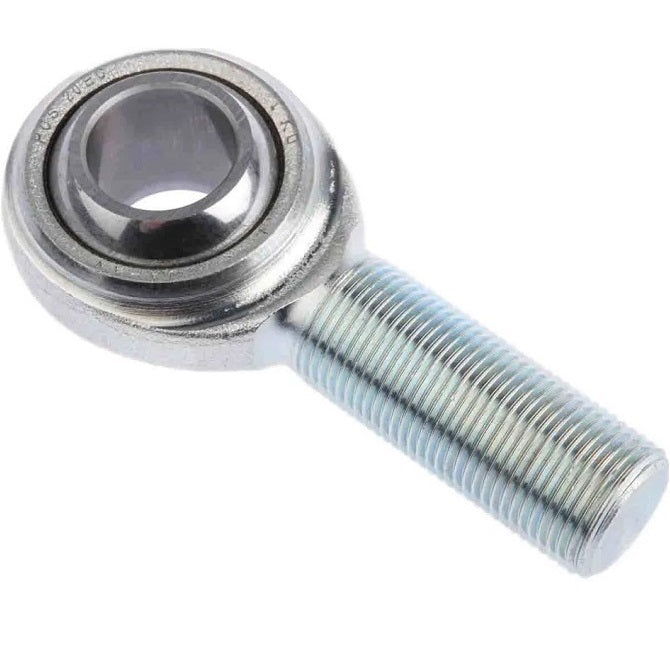

Male Rod Ends - 5x42.5 mm - M5x0.8 Right - Tempered Steel with PTFE

Rod Ends - Male - Steel - Tempered Steel PTFE Lined

A selection of Tempered Steel PTFE Lined Steel Male Rod Ends. Imperial...

Rod Ends - Male - Steel - Tempered Steel PTFE Lined

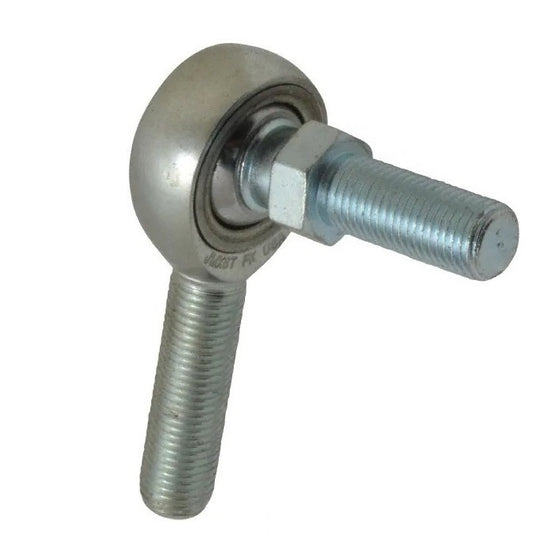

Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway

Rod Ends - Male - Steel - Tight Fit PTFE Lined

A selection of Tight Fit PTFE Lined Steel Male Rod Ends. Imperial...

Rod Ends - Male - Steel - Tight Fit PTFE Lined

Category Details

This category includes various types of male rod ends.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Rod Ends - Male - Steel category on the Small Parts & Bearings online store.

Eye Size (d1)	Overall Length (L)	Thread Size	Min. Thread Length (l2)	Head Width (W)	Eye Width (W1)
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Left	Min. Thread Length (l2) 15.00 mm	Head Width (W) 4.30 mm	Eye Width (W1) 6.00 mm
Material: Bronze Lined Steel Head Diameter: 12.00 mm Centre Height: 27.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-030-L-CB Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
Eye Size (d1)	Overall Length (L)	Thread Size	Min. Thread Length (l2)	Indicative Image
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Left	Min. Thread Length (l2) 15.00 mm
Material: Bronze Lined Steel Head Width (W): 4.30 mm Eye Width (W1): 6.00 mm Head Diameter: 12.00 mm Centre Height: 27.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-030-L-CB Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End 8 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 8 Available Now. Backorder if more than 8.
REM-030-L-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End Sale REM-030-L-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Left - Bronze Lined Steel Rod End Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per 8 Available Now Sale
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Right	Min. Thread Length (l2) 15.00 mm	Head Width (W) 4.50 mm	Eye Width (W1) 6.00 mm
Material: Bronze Lined Steel Head Diameter: 12.00 mm Centre Height: 27.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-030-R-CB Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Eye Size (d1) 3 mm (Equiv. 0.118 in.)	Overall Length (L) 33.00 mm (Equiv. 1.299 in.)	Thread Size M3x0.5 Right	Min. Thread Length (l2) 15.00 mm
Material: Bronze Lined Steel Head Width (W): 4.50 mm Eye Width (W1): 6.00 mm Head Diameter: 12.00 mm Centre Height: 27.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-030-R-CB Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
REM-030-R-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End Sale REM-030-R-CB --- Male Rod Ends - 3x33 mm - M3x0.5 Right - Bronze Lined Steel Rod End Regular price $4.68 AUD Regular price ~~$8.04 AUD~~ Sale price $4.68 AUD Unit price per 30 Available Now Sale
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Left	Min. Thread Length (l2) 17.00 mm	Head Width (W) 5.30 mm	Eye Width (W1) 7.00 mm
Material: Bronze Lined Steel Head Diameter: 14.00 mm Centre Height: 30.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-040-L-CB Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $24.32 AUD Regular price ~~$29.18 AUD~~ Sale price $24.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Left	Min. Thread Length (l2) 17.00 mm
Material: Bronze Lined Steel Head Width (W): 5.30 mm Eye Width (W1): 7.00 mm Head Diameter: 14.00 mm Centre Height: 30.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-040-L-CB Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $24.32 AUD Regular price ~~$29.18 AUD~~ Sale price $24.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-040-L-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Sale REM-040-L-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Left - Bronze Lined Steel Rod End Regular price $24.32 AUD Regular price ~~$29.18 AUD~~ Sale price $24.32 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Right	Min. Thread Length (l2) 17.00 mm	Head Width (W) 5.30 mm	Eye Width (W1) 7.00 mm
Material: Bronze Lined Steel Head Diameter: 14.00 mm Centre Height: 30.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-040-R-CB Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Eye Size (d1) 4 mm (Equiv. 0.157 in.)	Overall Length (L) 37.00 mm (Equiv. 1.457 in.)	Thread Size M4x0.7 Right	Min. Thread Length (l2) 17.00 mm
Material: Bronze Lined Steel Head Width (W): 5.30 mm Eye Width (W1): 7.00 mm Head Diameter: 14.00 mm Centre Height: 30.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-040-R-CB Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
REM-040-R-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End REM-040-R-CB --- Male Rod Ends - 4x37 mm - M4x0.7 Right - Bronze Lined Steel Rod End Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 30 Available Now
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Left	Min. Thread Length (l2) 19.05 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Bronze Lined Steel Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-048-L-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price ~~$9.39 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Left	Min. Thread Length (l2) 19.05 mm
Material: Bronze Lined Steel Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-048-L-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 50 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price ~~$9.39 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 50 Available Now. Backorder if more than 50.
REM-048-L-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End Sale REM-048-L-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Left - Bronze Lined Steel Rod End Regular price $5.50 AUD Regular price ~~$9.39 AUD~~ Sale price $5.50 AUD Unit price per 50 Available Now Sale
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Right	Min. Thread Length (l2) 19.05 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Bronze Lined Steel Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-048-R-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End 14 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each Quantity Required 14 Available Now. Backorder if more than 14.
Eye Size (d1) 4.763 mm (Equiv. 0.188 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Right	Min. Thread Length (l2) 19.05 mm
Material: Bronze Lined Steel Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-048-R-CB Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End 14 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per Each Quantity Required 14 Available Now. Backorder if more than 14.
REM-048-R-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End REM-048-R-CB --- Male Rod Ends - 4.763x39.7 mm - 10-32 UNF Right - Bronze Lined Steel Rod End Regular price $7.50 AUD Regular price Sale price $7.50 AUD Unit price per 14 Available Now
Eye Size (d1) 10-32 UNF (4.76mm) Right Hand mm	Overall Length (L) 19.05 mm (Equiv. 0.75 in.)	Thread Size 11.10 (Equiv. 0.437 in.)	Min. Thread Length (l2) 15.88 mm	Head Width (W) 31.75 mm	Eye Width (W1) 06.35 mm
Head Diameter: 07.93 mm
Part Number: SPM3SRS (50 Pcs) 10-32 UNF - 4.76mm - Right Hand 19.05x11.1 mm / Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Eye Size (d1) 10-32 UNF (4.76mm) Right Hand mm	Overall Length (L) 19.05 mm (Equiv. 0.75 in.)	Thread Size 11.10 (Equiv. 0.437 in.)	Min. Thread Length (l2) 15.88 mm
Head Width (W): 31.75 mm Eye Width (W1): 06.35 mm Head Diameter: 07.93 mm
Part Number: SPM3SRS (50 Pcs) 10-32 UNF - 4.76mm - Right Hand 19.05x11.1 mm / Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Left	Min. Thread Length (l2) 19.05 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Steel with PTFE Lined Raceway Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-048-L-CT (10 Pcs) Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $169.05 AUD Regular price Sale price $169.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Left	Min. Thread Length (l2) 19.05 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-048-L-CT (10 Pcs) Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $169.05 AUD Regular price Sale price $169.05 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
REM-048-L-CT (10 Pcs) --- Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End REM-048-L-CT (10 Pcs) --- Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $169.05 AUD Regular price Sale price $169.05 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Right	Min. Thread Length (l2) 19.05 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Steel PTFE Lined Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-048-R-CT (10 Pcs) Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $173.32 AUD Regular price ~~$207.98 AUD~~ Sale price $173.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 39.70 mm (Equiv. 1.563 in.)	Thread Size 10-32 UNF Right	Min. Thread Length (l2) 19.05 mm
Material: Steel PTFE Lined Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter: 15.88 mm Centre Height: 31.75 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-048-R-CT (10 Pcs) Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $173.32 AUD Regular price ~~$207.98 AUD~~ Sale price $173.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
REM-048-R-CT (10 Pcs) --- Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Sale REM-048-R-CT (10 Pcs) --- Male Rod Ends - 4.826x39.7 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Regular price $173.32 AUD Regular price ~~$207.98 AUD~~ Sale price $173.32 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Left	Min. Thread Length (l2) 20.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 8.00 mm
Material: Bronze Lined Steel Head Diameter: 16.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-050-L-CB Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Left	Min. Thread Length (l2) 20.00 mm
Material: Bronze Lined Steel Head Width (W): 6.00 mm Eye Width (W1): 8.00 mm Head Diameter: 16.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-050-L-CB Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-050-L-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Sale REM-050-L-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Left - Bronze Lined Steel Rod End Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Left	Min. Thread Length (l2) 20.00 mm	Head Width (W) 7.00 mm	Eye Width (W1) 8.00 mm
Material: Steel with PTFE Lined Raceway Head Diameter: 16.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-050-L-CT Male Rod Ends - 5x41 mm - M5x0.8 Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.23 AUD Regular price ~~$6.27 AUD~~ Sale price $5.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Left	Min. Thread Length (l2) 20.00 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 7.00 mm Eye Width (W1): 8.00 mm Head Diameter: 16.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-050-L-CT Male Rod Ends - 5x41 mm - M5x0.8 Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.23 AUD Regular price ~~$6.27 AUD~~ Sale price $5.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-050-L-CT --- Male Rod Ends - 5x41 mm - M5x0.8 Left - Steel with PTFE Lined Raceway Rod End Sale REM-050-L-CT --- Male Rod Ends - 5x41 mm - M5x0.8 Left - Steel with PTFE Lined Raceway Rod End Regular price $5.23 AUD Regular price ~~$6.27 AUD~~ Sale price $5.23 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Right	Min. Thread Length (l2) 20.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 8.00 mm
Material: Bronze Lined Steel Head Diameter: 16.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-050-R-CB Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$7.14 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 41.00 mm (Equiv. 1.614 in.)	Thread Size M5x0.8 Right	Min. Thread Length (l2) 20.00 mm
Material: Bronze Lined Steel Head Width (W): 6.00 mm Eye Width (W1): 8.00 mm Head Diameter: 16.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-050-R-CB Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End 10 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.23 AUD Regular price ~~$7.14 AUD~~ Sale price $4.23 AUD Unit price per Each Quantity Required 10 Available Now. Backorder if more than 10.
REM-050-R-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End Sale REM-050-R-CB --- Male Rod Ends - 5x41 mm - M5x0.8 Right - Bronze Lined Steel Rod End Regular price $4.23 AUD Regular price ~~$7.14 AUD~~ Sale price $4.23 AUD Unit price per 10 Available Now Sale
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 42.500 mm (Equiv. 1.673 in.)	Thread Size M5x0.8 Right	Min. Thread Length (l2) 33.00 mm	Head Width (W) 6.00 mm	Eye Width (W1) 8.00 mm
Material: Tempered Steel with PTFE Head Diameter: 18.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Tempered Steel PTFE Lined
Part Number: REM-050-R-CT (5 Pcs) Male Rod Ends - 5x42.5 mm - M5x0.8 Right - Tempered Steel with PTFE Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 42.500 mm (Equiv. 1.673 in.)	Thread Size M5x0.8 Right	Min. Thread Length (l2) 33.00 mm
Material: Tempered Steel with PTFE Head Width (W): 6.00 mm Eye Width (W1): 8.00 mm Head Diameter: 18.00 mm Centre Height: 33.00 mm Category: Rod Ends - Male - Steel - Tempered Steel PTFE Lined
Part Number: REM-050-R-CT (5 Pcs) Male Rod Ends - 5x42.5 mm - M5x0.8 Right - Tempered Steel with PTFE Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
REM-050-R-CT (5 Pcs) --- Male Rod Ends - 5x42.5 mm - M5x0.8 Right - Tempered Steel with PTFE Rod End REM-050-R-CT (5 Pcs) --- Male Rod Ends - 5x42.5 mm - M5x0.8 Right - Tempered Steel with PTFE Rod End Regular price $21.05 AUD Regular price Sale price $21.05 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Left	Min. Thread Length (l2) 22.00 mm	Head Width (W) 6.75 mm	Eye Width (W1) 9.00 mm
Material: Bronze Lined Steel Head Diameter: 18.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-060-L-CB Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Left	Min. Thread Length (l2) 22.00 mm
Material: Bronze Lined Steel Head Width (W): 6.75 mm Eye Width (W1): 9.00 mm Head Diameter: 18.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-060-L-CB Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-L-CB --- Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Sale REM-060-L-CB --- Male Rod Ends - 6x45 mm - M6x1 Left - Bronze Lined Steel Rod End Regular price $6.05 AUD Regular price ~~$7.25 AUD~~ Sale price $6.05 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.000 mm (Equiv. 1.772 in.)	Thread Size M6x1.0 Right	Min. Thread Length (l2) 36.00 mm	Head Width (W) 6.75 mm	Eye Width (W1) 9.00 mm
Material: Bronze Lined Steel Head Diameter: 18.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-060-R-CB Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.59 AUD Regular price ~~$6.71 AUD~~ Sale price $5.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.000 mm (Equiv. 1.772 in.)	Thread Size M6x1.0 Right	Min. Thread Length (l2) 36.00 mm
Material: Bronze Lined Steel Head Width (W): 6.75 mm Eye Width (W1): 9.00 mm Head Diameter: 18.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-060-R-CB Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5.59 AUD Regular price ~~$6.71 AUD~~ Sale price $5.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-R-CB --- Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Sale REM-060-R-CB --- Male Rod Ends - 6x45 mm - M6x1.0 Right - Bronze Lined Steel Rod End Regular price $5.59 AUD Regular price ~~$6.71 AUD~~ Sale price $5.59 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Right	Min. Thread Length (l2) 22.00 mm	Head Width (W) 6.75 mm	Eye Width (W1) 9.00 mm
Material: Bronze Lined Steel Head Diameter: 18.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-060-R-CB-B Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 45.00 mm (Equiv. 1.772 in.)	Thread Size M6x1 Right	Min. Thread Length (l2) 22.00 mm
Material: Bronze Lined Steel Head Width (W): 6.75 mm Eye Width (W1): 9.00 mm Head Diameter: 18.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-060-R-CB-B Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-R-CB-B --- Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End REM-060-R-CB-B --- Male Rod Ends - 6x45 mm - M6x1 Right - Bronze Lined Steel Rod End Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 46.500 mm (Equiv. 1.831 in.)	Thread Size M6x1.0 Left	Min. Thread Length (l2) 36.00 mm	Head Width (W) 6.70 mm	Eye Width (W1) 9.00 mm
Material: Tempered Steel with PTFE Head Diameter: 20.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Tempered Steel PTFE Lined
Part Number: REM-060-L-CT Male Rod Ends - 6x46.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 46.500 mm (Equiv. 1.831 in.)	Thread Size M6x1.0 Left	Min. Thread Length (l2) 36.00 mm
Material: Tempered Steel with PTFE Head Width (W): 6.70 mm Eye Width (W1): 9.00 mm Head Diameter: 20.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Tempered Steel PTFE Lined
Part Number: REM-060-L-CT Male Rod Ends - 6x46.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-L-CT --- Male Rod Ends - 6x46.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End Sale REM-060-L-CT --- Male Rod Ends - 6x46.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 46.500 mm (Equiv. 1.831 in.)	Thread Size M6x1.0 Right	Min. Thread Length (l2) 36.00 mm	Head Width (W) 6.70 mm	Eye Width (W1) 9.00 mm
Material: Tempered Steel with PTFE Head Diameter: 20.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Tempered Steel PTFE Lined
Part Number: REM-060-R-CT Male Rod Ends - 6x46.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 46.500 mm (Equiv. 1.831 in.)	Thread Size M6x1.0 Right	Min. Thread Length (l2) 36.00 mm
Material: Tempered Steel with PTFE Head Width (W): 6.70 mm Eye Width (W1): 9.00 mm Head Diameter: 20.00 mm Centre Height: 36.00 mm Category: Rod Ends - Male - Steel - Tempered Steel PTFE Lined
Part Number: REM-060-R-CT Male Rod Ends - 6x46.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-060-R-CT --- Male Rod Ends - 6x46.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End Sale REM-060-R-CT --- Male Rod Ends - 6x46.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End Regular price $4.50 AUD Regular price ~~$5.40 AUD~~ Sale price $4.50 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Steel with Nylon Raceway Head Diameter: 19.05 mm Centre Height: 39.68 mm Category: Rod Ends - Male - Steel - Nylon Raceway
Part Number: REM-064-L-CN Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with Nylon Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $19.23 AUD Regular price Sale price $19.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm
Material: Steel with Nylon Raceway Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter: 19.05 mm Centre Height: 39.68 mm Category: Rod Ends - Male - Steel - Nylon Raceway
Part Number: REM-064-L-CN Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with Nylon Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $19.23 AUD Regular price Sale price $19.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-064-L-CN --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with Nylon Raceway Rod End REM-064-L-CN --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with Nylon Raceway Rod End Regular price $19.23 AUD Regular price Sale price $19.23 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Bronze Lined Steel Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-064-L-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm
Material: Bronze Lined Steel Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-064-L-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 04, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REM-064-L-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Sale REM-064-L-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Steel with PTFE Lined Raceway Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-064-L-CT (10 Pcs) Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $204.32 AUD Regular price ~~$245.18 AUD~~ Sale price $204.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Left	Min. Thread Length (l2) 25.40 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-064-L-CT (10 Pcs) Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Sep 27, 2025 Regular price $204.32 AUD Regular price ~~$245.18 AUD~~ Sale price $204.32 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
REM-064-L-CT (10 Pcs) --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REM-064-L-CT (10 Pcs) --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $204.32 AUD Regular price ~~$245.18 AUD~~ Sale price $204.32 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Right	Min. Thread Length (l2) 25.40 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Bronze Lined Steel Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-064-R-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End 4 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Right	Min. Thread Length (l2) 25.40 mm
Material: Bronze Lined Steel Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Bronze Lined
Part Number: REM-064-R-CB Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End 4 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each Quantity Required 4 Available Now. Backorder if more than 4.
REM-064-R-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End REM-064-R-CB --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Bronze Lined Steel Rod End Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 4 Available Now
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Right	Min. Thread Length (l2) 25.40 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Steel PTFE Lined Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-064-R-CT (25 Pcs) Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $2,015.86 AUD Regular price Sale price $2,015.86 AUD Unit price per Per 25 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 49.20 mm (Equiv. 1.937 in.)	Thread Size 1/4-28 UNF Right	Min. Thread Length (l2) 25.40 mm
Material: Steel PTFE Lined Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter: 19.05 mm Centre Height: 39.67 mm Category: Rod Ends - Male - Steel - Tight Fit PTFE Lined
Part Number: REM-064-R-CT (25 Pcs) Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 16, 2025 Regular price $2,015.86 AUD Regular price Sale price $2,015.86 AUD Unit price per Per 25 Quantity Required Backorder: Out of Stock.
REM-064-R-CT (25 Pcs) --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End REM-064-R-CT (25 Pcs) --- Male Rod Ends - 6.35x49.2 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Regular price $2,015.86 AUD Regular price Sale price $2,015.86 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 1/4-28 UNF (6.35mm) Right Hand mm	Overall Length (L) 25.40 mm (Equiv. 1 in.)	Thread Size 14.28 (Equiv. 0.562 in.)	Min. Thread Length (l2) 19.05 mm	Head Width (W) 39.68 mm	Eye Width (W1) 07.14 mm
Head Diameter: 09.53 mm
Part Number: SPM4SRS (50 Pcs) 1/4-28 UNF - 6.35mm - Right Hand 25.4x14.28 mm / Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Eye Size (d1) 1/4-28 UNF (6.35mm) Right Hand mm	Overall Length (L) 25.40 mm (Equiv. 1 in.)	Thread Size 14.28 (Equiv. 0.562 in.)	Min. Thread Length (l2) 19.05 mm
Head Width (W): 39.68 mm Eye Width (W1): 07.14 mm Head Diameter: 09.53 mm
Part Number: SPM4SRS (50 Pcs) 1/4-28 UNF - 6.35mm - Right Hand 25.4x14.28 mm / Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.

Country/region

Collection: Rod Ends - Male - Steel

Category Details

Filter

Filter

Subscribe to our emails
