Collection: Rod Ends - Female - Steel - Plain
Rod Ends -> Female -> Steel -> PlainThere are 111 products in the sub-categories of Rod Ends - Female - Steel - Plain. Scroll down or follow the link to Rod Ends - Female - Steel - Plain in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

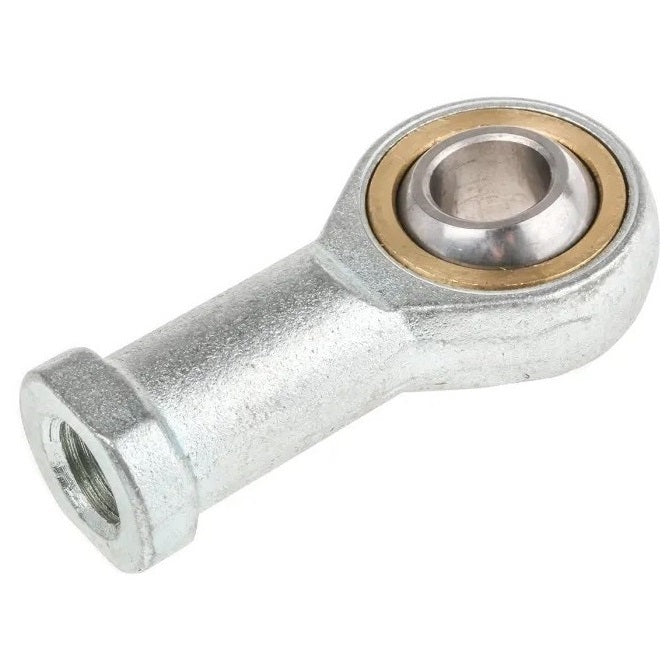

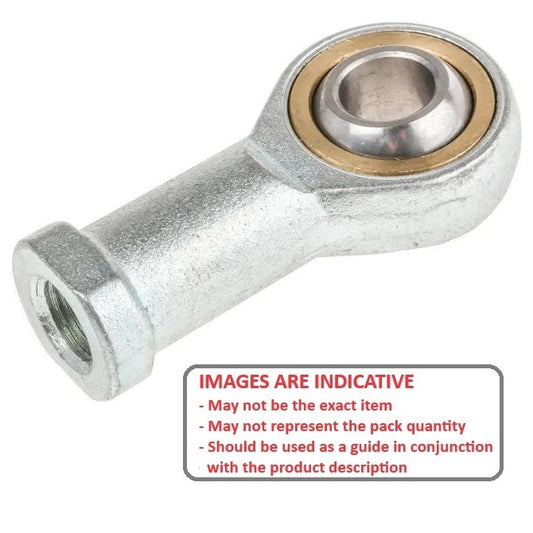

Rod Ends - Female - Steel - Plain - Bronze Lined
A selection of Bronze Lined Plain Steel Female Rod Ends. Imperial and...

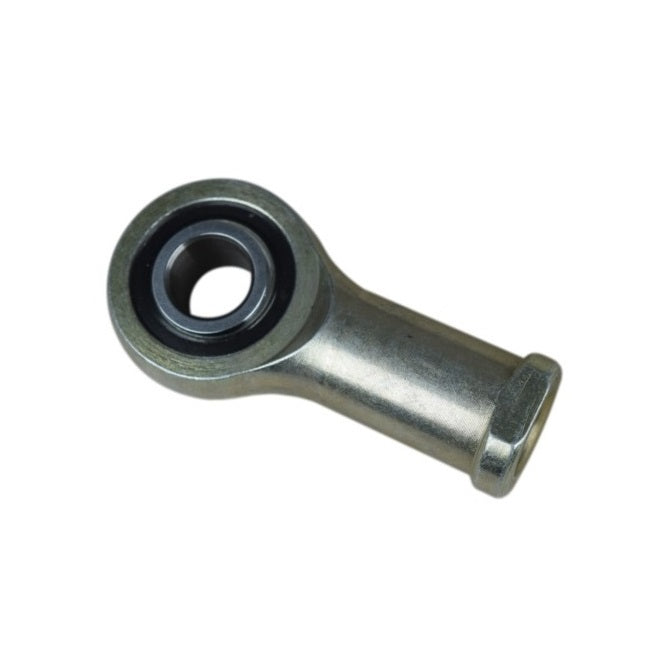

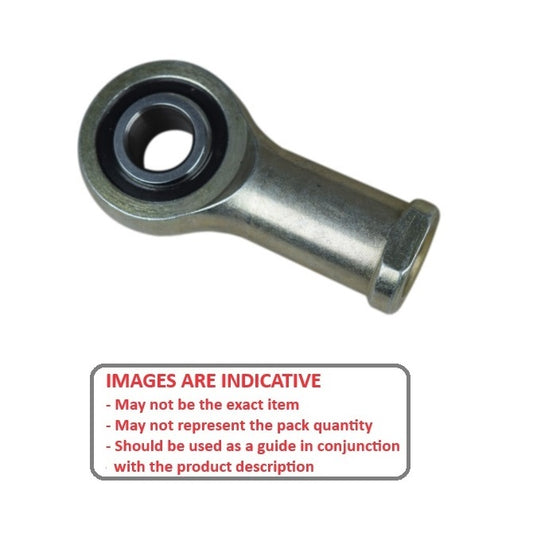

Rod Ends - Female - Steel - Plain - Nylon Raceway
A selection of Nylon Raceway Plain Steel Female Rod Ends. Also known...

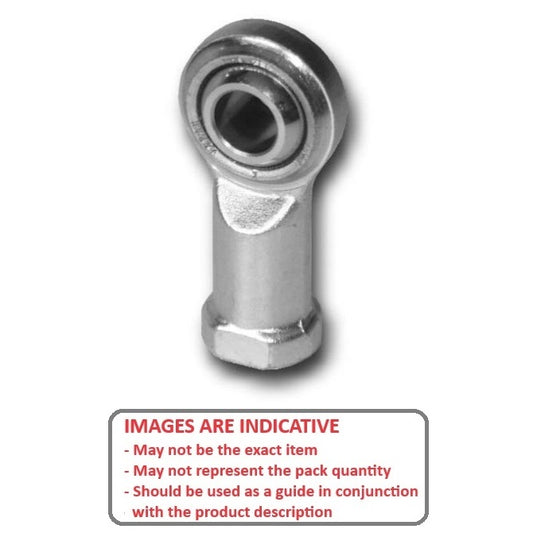

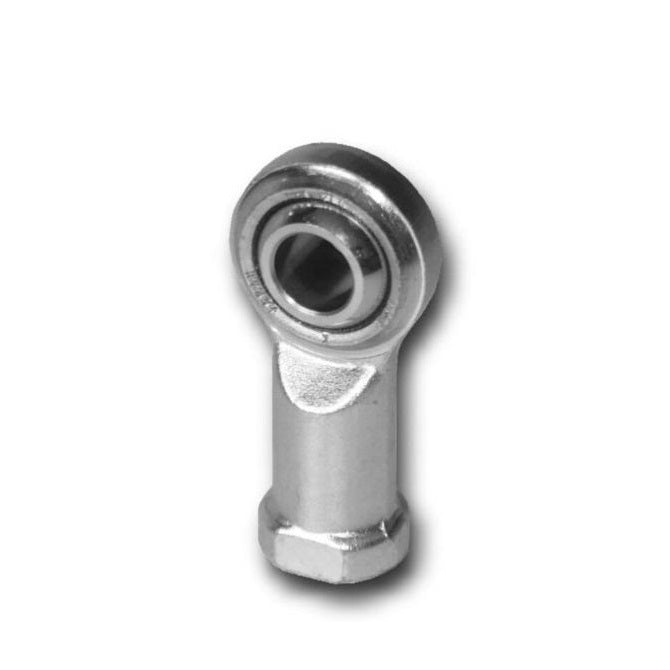

Rod Ends - Female - Steel - Plain - PTFE Lined
This category includes various types of female rod ends.An expanded range may...

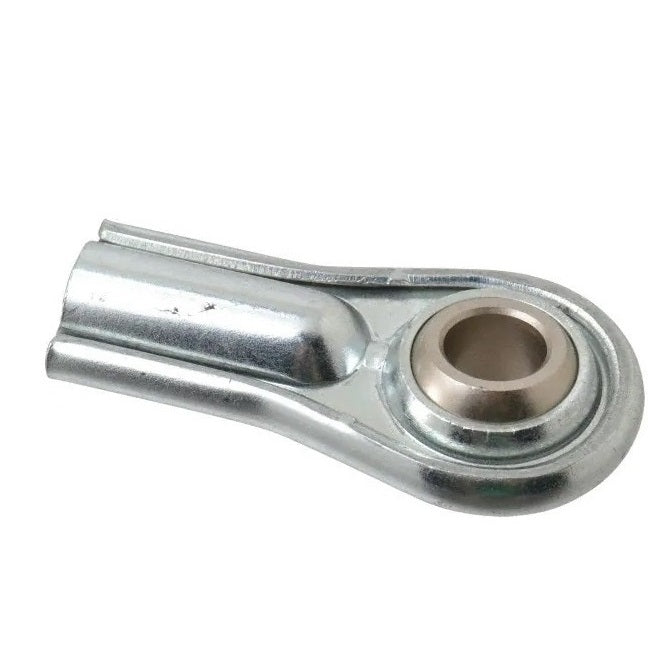

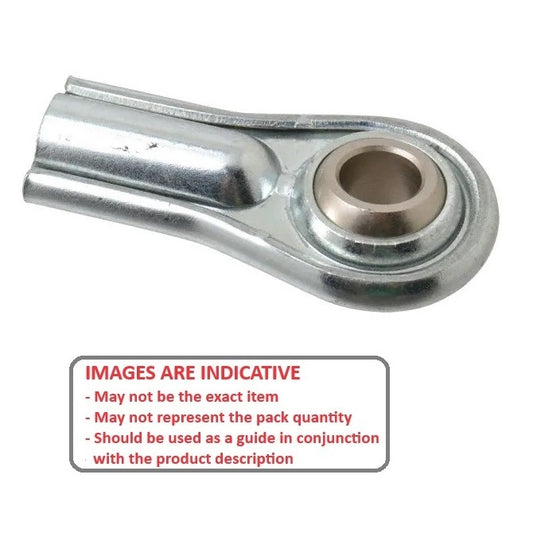

Rod Ends - Female - Steel - Plain - Stamped
A selection of Stamped Plain Steel Female Rod Ends. Economy stamped style...
Category Details
This category includes various types of female rod ends.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Rod Ends - Female - Steel - Plain category on the Small Parts & Bearings online store.
| Eye Size (d1) | Overall Length (L) | Thread Size (T) | Thread Length (l2) | Head Width (W) | Eye Width (W1) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
27.00
mm (Equiv. 1.063 in.) |
Thread Size (T)
M3x0.5 Left
|
Thread Length (l2)
10.00
mm |
Head Width (W)
4.50
mm |
Eye Width (W1)
6.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 12.00 mm
Centre Height (l1): 21.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-030-L-CB
Female Rod Ends - 3x27 mm - M3x0.5 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
|
||||||
| Eye Size (d1) | Overall Length (L) | Thread Size (T) | Thread Length (l2) |
Indicative Image |
||
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
27.00
mm (Equiv. 1.063 in.) |
Thread Size (T)
M3x0.5 Left
|
Thread Length (l2)
10.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 4.50 mm
Eye Width (W1): 6.00 mm
Head Diameter (D): 12.00 mm
Centre Height (l1): 21.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-030-L-CB
Female Rod Ends - 3x27 mm - M3x0.5 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
27.00
mm (Equiv. 1.063 in.) |
Thread Size (T)
M3x0.5 Right
|
Thread Length (l2)
10.00
mm |
Head Width (W)
4.50
mm |
Eye Width (W1)
6.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 12.00 mm
Centre Height (l1): 21.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-030-R-CB (10 Pcs)
Female Rod Ends - 3x27 mm - M3x0.5 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$62.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
3
mm (Equiv. 0.118 in.) |
Overall Length (L)
27.00
mm (Equiv. 1.063 in.) |
Thread Size (T)
M3x0.5 Right
|
Thread Length (l2)
10.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 4.50 mm
Eye Width (W1): 6.00 mm
Head Diameter (D): 12.00 mm
Centre Height (l1): 21.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-030-R-CB (10 Pcs)
Female Rod Ends - 3x27 mm - M3x0.5 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$62.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
31.00
mm (Equiv. 1.22 in.) |
Thread Size (T)
M4x0.7 Right
|
Thread Length (l2)
12.00
mm |
Head Width (W)
5.30
mm |
Eye Width (W1)
7.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 14.00 mm
Centre Height (l1): 24.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-040-R-CB
Female Rod Ends - 4x31 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
31.00
mm (Equiv. 1.22 in.) |
Thread Size (T)
M4x0.7 Right
|
Thread Length (l2)
12.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 5.30 mm
Eye Width (W1): 7.00 mm
Head Diameter (D): 14.00 mm
Centre Height (l1): 24.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-040-R-CB
Female Rod Ends - 4x31 mm - M4x0.7 Right - Bronze Lined Steel Rod End 30 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
31.00
mm (Equiv. 1.22 in.) |
Thread Size (T)
M4x0.7 Left
|
Thread Length (l2)
12.00
mm |
Head Width (W)
5.30
mm |
Eye Width (W1)
7.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 14.00 mm
Centre Height (l1): 24.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-040-L-CB
Female Rod Ends - 4x31 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 05, 2025 Regular price
$23.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4
mm (Equiv. 0.157 in.) |
Overall Length (L)
31.00
mm (Equiv. 1.22 in.) |
Thread Size (T)
M4x0.7 Left
|
Thread Length (l2)
12.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 5.30 mm
Eye Width (W1): 7.00 mm
Head Diameter (D): 14.00 mm
Centre Height (l1): 24.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-040-L-CB
Female Rod Ends - 4x31 mm - M4x0.7 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 05, 2025 Regular price
$23.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Left
|
Thread Length (l2)
14.27
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.92
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-048-L-CB
Female Rod Ends - 4.763x34.93 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 1 Available Now | Further orders can be expected around Fri, Sep 05, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Left
|
Thread Length (l2)
14.27
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.35 mm
Eye Width (W1): 7.92 mm
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-048-L-CB
Female Rod Ends - 4.763x34.93 mm - 10-32 UNF Left - Bronze Lined Steel Rod End 1 Available Now | Further orders can be expected around Fri, Sep 05, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
14.27
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.92
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-048-R-CB
Female Rod Ends - 4.763x34.93 mm - 10-32 UNF Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4.763
mm (Equiv. 0.188 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
14.27
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.35 mm
Eye Width (W1): 7.92 mm
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-048-R-CB
Female Rod Ends - 4.763x34.93 mm - 10-32 UNF Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Left
|
Thread Length (l2)
14.27
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.92
mm |
|
|
Material: Steel with PTFE Lined Raceway
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-048-L-CT
Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$39.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Left
|
Thread Length (l2)
14.27
mm |
|
||
|
Material: Steel with PTFE Lined Raceway
Head Width (W): 6.35 mm
Eye Width (W1): 7.92 mm
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-048-L-CT
Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$39.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
14.27
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.92
mm |
|
|
Material: Steel PTFE Lined
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-048-R-CT
Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$28.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
14.27
mm |
|
||
|
Material: Steel PTFE Lined
Head Width (W): 6.35 mm
Eye Width (W1): 7.92 mm
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.97 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-048-R-CT
Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$28.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
36.50
mm (Equiv. 1.437 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
12.70
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.93
mm |
|
|
Material: Steel Stamped
Head Diameter (D): 19.05 mm
Centre Height (l1): 26.98 mm
Category: Rod Ends - Female - Steel - Plain - Stamped |
||||||
|
Part Number: REF-048-R-CC (50 Pcs)
Female Rod Ends - 4.826x36.5 mm - 10-32 UNF Right - Steel Stamped Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$581.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
36.50
mm (Equiv. 1.437 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
12.70
mm |
|
||
|
Material: Steel Stamped
Head Width (W): 6.35 mm
Eye Width (W1): 7.93 mm
Head Diameter (D): 19.05 mm
Centre Height (l1): 26.98 mm
Category: Rod Ends - Female - Steel - Plain - Stamped |
||||||
|
Part Number: REF-048-R-CC (50 Pcs)
Female Rod Ends - 4.826x36.5 mm - 10-32 UNF Right - Steel Stamped Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$581.95 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
14.28
mm |
Head Width (W)
6.35
mm |
Eye Width (W1)
7.93
mm |
|
|
Material: Steel with Nylon Raceway
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.98 mm
Category: Rod Ends - Female - Steel - Plain - Nylon Raceway |
||||||
|
Part Number: REF-048-R-CN (100 Pcs)
Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel with Nylon Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$1,875.77 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Eye Size (d1)
4.826
mm (Equiv. 0.19 in.) |
Overall Length (L)
34.93
mm (Equiv. 1.375 in.) |
Thread Size (T)
10-32 UNF Right
|
Thread Length (l2)
14.28
mm |
|
||
|
Material: Steel with Nylon Raceway
Head Width (W): 6.35 mm
Eye Width (W1): 7.93 mm
Head Diameter (D): 15.88 mm
Centre Height (l1): 26.98 mm
Category: Rod Ends - Female - Steel - Plain - Nylon Raceway |
||||||
|
Part Number: REF-048-R-CN (100 Pcs)
Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel with Nylon Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$1,875.77 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Left
|
Thread Length (l2)
14.00
mm |
Head Width (W)
6.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-050-L-CB
Female Rod Ends - 5x35 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Left
|
Thread Length (l2)
14.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.00 mm
Eye Width (W1): 8.00 mm
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-050-L-CB
Female Rod Ends - 5x35 mm - M5x0.8 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$5.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Right
|
Thread Length (l2)
14.00
mm |
Head Width (W)
6.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-050-R-CB
Female Rod Ends - 5x35 mm - M5x0.8 Right - Bronze Lined Steel Rod End 1 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Right
|
Thread Length (l2)
14.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.00 mm
Eye Width (W1): 8.00 mm
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-050-R-CB
Female Rod Ends - 5x35 mm - M5x0.8 Right - Bronze Lined Steel Rod End 1 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$3.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Right
|
Thread Length (l2)
14.00
mm |
Head Width (W)
7.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Material: Steel PTFE Lined
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-050-R-CT
Female Rod Ends - 5x35 mm - M5x0.8 Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
5
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Right
|
Thread Length (l2)
14.00
mm |
|
||
|
Material: Steel PTFE Lined
Head Width (W): 7.00 mm
Eye Width (W1): 8.00 mm
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-050-R-CT
Female Rod Ends - 5x35 mm - M5x0.8 Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
5.000
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Left
|
Thread Length (l2)
14.00
mm |
Head Width (W)
7.00
mm |
Eye Width (W1)
8.00
mm |
|
|
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-050-L-CT
Female Rod Ends - 5x35 mm - M5x0.8 Left Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
5.000
mm (Equiv. 0.197 in.) |
Overall Length (L)
35.00
mm (Equiv. 1.378 in.) |
Thread Size (T)
M5x0.8 Left
|
Thread Length (l2)
14.00
mm |
|
||
|
Head Width (W): 7.00 mm
Eye Width (W1): 8.00 mm
Head Diameter (D): 16.00 mm
Centre Height (l1): 27.00 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-050-L-CT
Female Rod Ends - 5x35 mm - M5x0.8 Left Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
39.00
mm (Equiv. 1.535 in.) |
Thread Size (T)
M6x1 Left
|
Thread Length (l2)
14.00
mm |
Head Width (W)
6.75
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 18.00 mm
Centre Height (l1): 30.00 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-060-L-CB
Female Rod Ends - 6x39 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
39.00
mm (Equiv. 1.535 in.) |
Thread Size (T)
M6x1 Left
|
Thread Length (l2)
14.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.75 mm
Eye Width (W1): 9.00 mm
Head Diameter (D): 18.00 mm
Centre Height (l1): 30.00 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-060-L-CB
Female Rod Ends - 6x39 mm - M6x1 Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
39.00
mm (Equiv. 1.535 in.) |
Thread Size (T)
M6x1 Right
|
Thread Length (l2)
14.00
mm |
Head Width (W)
7.00
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Steel PTFE Lined
Head Diameter (D): 18.00 mm
Centre Height (l1): 30.00 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-060-R-CT-B (10 Pcs)
Female Rod Ends - 6x39 mm - M6x1 Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 28, 2025 Regular price
$206.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
39.00
mm (Equiv. 1.535 in.) |
Thread Size (T)
M6x1 Right
|
Thread Length (l2)
14.00
mm |
|
||
|
Material: Steel PTFE Lined
Head Width (W): 7.00 mm
Eye Width (W1): 9.00 mm
Head Diameter (D): 18.00 mm
Centre Height (l1): 30.00 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-060-R-CT-B (10 Pcs)
Female Rod Ends - 6x39 mm - M6x1 Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 28, 2025 Regular price
$206.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
39.00
mm (Equiv. 1.535 in.) |
Thread Size (T)
M6x1 Right
|
Thread Length (l2)
14.00
mm |
Head Width (W)
6.75
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 18.00 mm
Centre Height (l1): 30.00 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-060-R-CB (10 Pcs)
Female Rod Ends - 6x39 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$56.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
39.00
mm (Equiv. 1.535 in.) |
Thread Size (T)
M6x1 Right
|
Thread Length (l2)
14.00
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 6.75 mm
Eye Width (W1): 9.00 mm
Head Diameter (D): 18.00 mm
Centre Height (l1): 30.00 mm
Grease Nipple: Yes
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-060-R-CB (10 Pcs)
Female Rod Ends - 6x39 mm - M6x1 Right - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$56.14 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
40.500
mm (Equiv. 1.594 in.) |
Thread Size (T)
M6x1.0 Right
|
Thread Length (l2)
12.00
mm |
Head Width (W)
6.75
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Tempered Steel with PTFE
Centre Height (l1): 30.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-060-R-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
40.500
mm (Equiv. 1.594 in.) |
Thread Size (T)
M6x1.0 Right
|
Thread Length (l2)
12.00
mm |
|
||
|
Material: Tempered Steel with PTFE
Head Width (W): 6.75 mm
Eye Width (W1): 9.00 mm
Centre Height (l1): 30.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-060-R-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Right - Tempered Steel with PTFE Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$4.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
40.500
mm (Equiv. 1.594 in.) |
Thread Size (T)
M6x1.0 Left
|
Thread Length (l2)
12.00
mm |
Head Width (W)
6.75
mm |
Eye Width (W1)
9.00
mm |
|
|
Material: Tempered Steel with PTFE
Centre Height (l1): 30.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-060-L-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$4.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6
mm (Equiv. 0.236 in.) |
Overall Length (L)
40.500
mm (Equiv. 1.594 in.) |
Thread Size (T)
M6x1.0 Left
|
Thread Length (l2)
12.00
mm |
|
||
|
Material: Tempered Steel with PTFE
Head Width (W): 6.75 mm
Eye Width (W1): 9.00 mm
Centre Height (l1): 30.00 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-060-L-CT
Female Rod Ends - 6x40.5 mm - M6x1.0 Left - Tempered Steel with PTFE Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$4.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Thread Size (T)
1/4-28 UNF Right
|
Thread Length (l2)
17.45
mm |
Head Width (W)
7.14
mm |
Eye Width (W1)
9.53
mm |
|
|
|
Material: Steel with PTFE lined Raceway
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.33 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-064-R-CT-B
Female Rod Ends - 6.35 - mm - 1/4-28 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$29.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Thread Size (T)
1/4-28 UNF Right
|
Thread Length (l2)
17.45
mm |
|
|||
|
Material: Steel with PTFE lined Raceway
Head Width (W): 7.14 mm
Eye Width (W1): 9.53 mm
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.33 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-064-R-CT-B
Female Rod Ends - 6.35 - mm - 1/4-28 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$29.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
33.32
mm (Equiv. 1.312 in.) |
Thread Size (T)
1/4-28 UNF Left
|
Thread Length (l2)
19.05
mm |
Head Width (W)
7.14
mm |
Eye Width (W1)
9.53
mm |
|
|
Material: Steel with Nylon Raceway
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.33 mm
Category: Rod Ends - Female - Steel - Plain - Nylon Raceway |
||||||
|
Part Number: REF-064-L-CN
Female Rod Ends - 6.35x33.32 mm - 1/4-28 UNF Left - Steel with Nylon Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
33.32
mm (Equiv. 1.312 in.) |
Thread Size (T)
1/4-28 UNF Left
|
Thread Length (l2)
19.05
mm |
|
||
|
Material: Steel with Nylon Raceway
Head Width (W): 7.14 mm
Eye Width (W1): 9.53 mm
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.33 mm
Category: Rod Ends - Female - Steel - Plain - Nylon Raceway |
||||||
|
Part Number: REF-064-L-CN
Female Rod Ends - 6.35x33.32 mm - 1/4-28 UNF Left - Steel with Nylon Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 17, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
42.85
mm (Equiv. 1.687 in.) |
Thread Size (T)
1/4-28 UNF Left
|
Thread Length (l2)
19.05
mm |
Head Width (W)
7.14
mm |
Eye Width (W1)
9.53
mm |
|
|
Material: Steel with PTFE Lined Raceway
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.32 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-064-L-CT
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$28.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
42.85
mm (Equiv. 1.687 in.) |
Thread Size (T)
1/4-28 UNF Left
|
Thread Length (l2)
19.05
mm |
|
||
|
Material: Steel with PTFE Lined Raceway
Head Width (W): 7.14 mm
Eye Width (W1): 9.53 mm
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.32 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-064-L-CT
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$28.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
42.85
mm (Equiv. 1.687 in.) |
Thread Size (T)
1/4-28 UNF Left
|
Thread Length (l2)
19.05
mm |
Head Width (W)
7.14
mm |
Eye Width (W1)
9.53
mm |
|
|
Material: Bronze Lined Steel
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.32 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-064-L-CB
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 05, 2025 Regular price
$19.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
42.85
mm (Equiv. 1.687 in.) |
Thread Size (T)
1/4-28 UNF Left
|
Thread Length (l2)
19.05
mm |
|
||
|
Material: Bronze Lined Steel
Head Width (W): 7.14 mm
Eye Width (W1): 9.53 mm
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.32 mm
Grease Nipple: No
Category: Rod Ends - Female - Steel - Plain - Bronze Lined |
||||||
|
Part Number: REF-064-L-CB
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Bronze Lined Steel Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 05, 2025 Regular price
$19.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
42.85
mm (Equiv. 1.687 in.) |
Thread Size (T)
1/4-28 UNF Right
|
Thread Length (l2)
19.05
mm |
Head Width (W)
7.14
mm |
Eye Width (W1)
9.53
mm |
|
|
Material: Steel PTFE Lined
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.32 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-064-R-CT-A
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$28.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Eye Size (d1)
6.35
mm (Equiv. 0.25 in.) |
Overall Length (L)
42.85
mm (Equiv. 1.687 in.) |
Thread Size (T)
1/4-28 UNF Right
|
Thread Length (l2)
19.05
mm |
|
||
|
Material: Steel PTFE Lined
Head Width (W): 7.14 mm
Eye Width (W1): 9.53 mm
Head Diameter (D): 19.05 mm
Centre Height (l1): 33.32 mm
Category: Rod Ends - Female - Steel - Plain - PTFE Lined |
||||||
|
Part Number: REF-064-R-CT-A
Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$28.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
