Rod Ends - Female - Steel - Plain - Stamped

Rod Ends -> Female -> Steel -> Plain -> Stamped

There are 6 products in the sub-categories of Rod Ends - Female - Steel - Plain - Stamped. Browse the Rod Ends - Female - Steel - Plain - Stamped products table.

Category Details

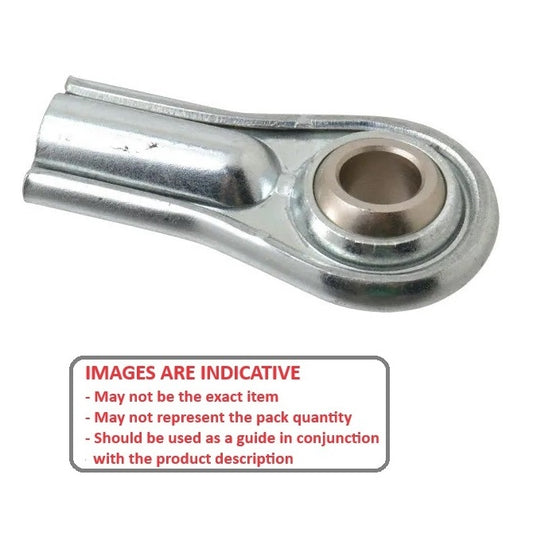

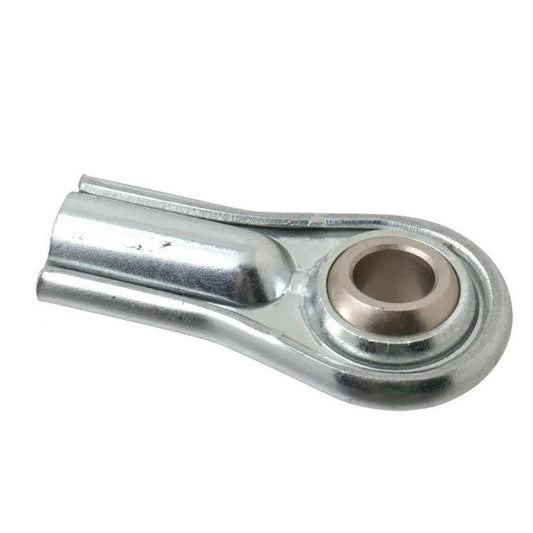

A selection of Stamped Plain Steel Female Rod Ends. Economy stamped style combines high strength with low cost. Also known as Heim Joints

  • An expanded range may be available on special order. Please enquire.
  • Made from low carbon steel and plated for corrosion resistance.
  • Ball is case hardened.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Rod Ends - Female - Steel - Plain - Stamped category on the Small Parts & Bearings online store.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Head Width (W) Eye Width (W1) Indicative
Female Rod Ends - 4.826x36.5 mm - 10-32 UNF Right - Steel Stamped Rod End
Eye Size (d1)
4.826
mm

(Equiv. 0.19 in.)
Overall Length (L)
36.50
mm

(Equiv. 1.437 in.)
Thread Size
10-32 UNF Right

Thread Length (l2)
12.70
mm
Head Width (W)
6.35
mm
Eye Width (W1)
7.93
mm
Female Rod Ends - 4.826x36.5 mm - 10-32 UNF Right - Steel Stamped
Material: Steel Stamped    Head Diameter (D): 19.05 mm    Centre Height (l1): 26.98 mm    Body Width/Flange Width(W2/D3): 7.93 / 11.43 mm
Part Number: REF-048-R-CC (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$581.95 AUD
$581.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Eye Size (d1) Overall Length (L) Thread Size Thread Length (l2) Indicative
Female Rod Ends - 4.826x36.5 mm - 10-32 UNF Right - Steel Stamped Rod End
Eye Size (d1)
4.826
mm

(Equiv. 0.19 in.)
Overall Length (L)
36.50
mm

(Equiv. 1.437 in.)
Thread Size
10-32 UNF Right

Thread Length (l2)
12.70
mm
Female Rod Ends - 4.826x36.5 mm - 10-32 UNF Right - Steel Stamped
Material: Steel Stamped    Head Width (W): 6.35 mm    Eye Width (W1): 7.93 mm    Head Diameter (D): 19.05 mm    Centre Height (l1): 26.98 mm    Body Width/Flange Width(W2/D3): 7.93 / 11.43 mm
Part Number: REF-048-R-CC (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$581.95 AUD
$581.95 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 6.35x44.12 mm - 1/4-28 UNF Right - Steel Stamped Rod End
Eye Size (d1)
6.35
mm

(Equiv. 0.25 in.)
Overall Length (L)
44.12
mm

(Equiv. 1.737 in.)
Thread Size
1/4-28 UNF Right

Thread Length (l2)
17.45
mm
Head Width (W)
7.29
mm
Eye Width (W1)
9.53
mm
Female Rod Ends - 6.35x44.12 mm - 1/4-28 UNF Right - Steel Stamped
Material: Steel Stamped    Head Diameter (D): 21.59 mm    Centre Height (l1): 33.33 mm    Body Width/Flange Width(W2/D3): 9.53 / 13.08 mm
Part Number: REF-064-R-CC (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$22.50 AUD
$27.00 AUD $22.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 6.35x44.12 mm - 1/4-28 UNF Right - Steel Stamped Rod End
Eye Size (d1)
6.35
mm

(Equiv. 0.25 in.)
Overall Length (L)
44.12
mm

(Equiv. 1.737 in.)
Thread Size
1/4-28 UNF Right

Thread Length (l2)
17.45
mm
Female Rod Ends - 6.35x44.12 mm - 1/4-28 UNF Right - Steel Stamped
Material: Steel Stamped    Head Width (W): 7.29 mm    Eye Width (W1): 9.53 mm    Head Diameter (D): 21.59 mm    Centre Height (l1): 33.33 mm    Body Width/Flange Width(W2/D3): 9.53 / 13.08 mm
Part Number: REF-064-R-CC (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$22.50 AUD
$27.00 AUD $22.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 7.938x47.8 mm - 5/16-24 UNF Right - Steel Stamped Rod End
Eye Size (d1)
7.938
mm

(Equiv. 0.313 in.)
Overall Length (L)
47.80
mm

(Equiv. 1.882 in.)
Thread Size
5/16-24 UNF Right

Thread Length (l2)
17.45
mm
Head Width (W)
7.75
mm
Eye Width (W1)
11.10
mm
Female Rod Ends - 7.938x47.8 mm - 5/16-24 UNF Right - Steel Stamped
Material: Steel Stamped    Head Diameter (D): 25.78 mm    Centre Height (l1): 34.93 mm    Body Width/Flange Width(W2/D3): 11.10 / 14.99 mm
Part Number: REF-079-R-CC (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$9.68 AUD
$11.62 AUD $9.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 7.938x47.8 mm - 5/16-24 UNF Right - Steel Stamped Rod End
Eye Size (d1)
7.938
mm

(Equiv. 0.313 in.)
Overall Length (L)
47.80
mm

(Equiv. 1.882 in.)
Thread Size
5/16-24 UNF Right

Thread Length (l2)
17.45
mm
Female Rod Ends - 7.938x47.8 mm - 5/16-24 UNF Right - Steel Stamped
Material: Steel Stamped    Head Width (W): 7.75 mm    Eye Width (W1): 11.10 mm    Head Diameter (D): 25.78 mm    Centre Height (l1): 34.93 mm    Body Width/Flange Width(W2/D3): 11.10 / 14.99 mm
Part Number: REF-079-R-CC (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$9.68 AUD
$11.62 AUD $9.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Left - Steel Stamped Rod End
Eye Size (d1)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
55.55
mm

(Equiv. 2.187 in.)
Thread Size
3/8-24 UNF Left

Thread Length (l2)
22.23
mm
Head Width (W)
10.16
mm
Eye Width (W1)
12.70
mm
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Left - Steel Stamped
Material: Steel Stamped    Head Diameter (D): 28.58 mm    Centre Height (l1): 41.28 mm    Body Width/Flange Width(W2/D3): 12.70 / 18.42 mm
Part Number: REF-095-L-CC (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$1,687.86 AUD
$1,687.86 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Left - Steel Stamped Rod End
Eye Size (d1)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
55.55
mm

(Equiv. 2.187 in.)
Thread Size
3/8-24 UNF Left

Thread Length (l2)
22.23
mm
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Left - Steel Stamped
Material: Steel Stamped    Head Width (W): 10.16 mm    Eye Width (W1): 12.70 mm    Head Diameter (D): 28.58 mm    Centre Height (l1): 41.28 mm    Body Width/Flange Width(W2/D3): 12.70 / 18.42 mm
Part Number: REF-095-L-CC (PK-50)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$1,687.86 AUD
$1,687.86 AUD
Priced, Stocked and Sold Per 50 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Right - Steel Stamped Rod End
Eye Size (d1)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
55.55
mm

(Equiv. 2.187 in.)
Thread Size
3/8-24 UNF Right

Thread Length (l2)
22.23
mm
Head Width (W)
10.16
mm
Eye Width (W1)
12.70
mm
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Right - Steel Stamped
Material: Steel Stamped    Head Diameter (D): 28.58 mm    Centre Height (l1): 41.28 mm    Body Width/Flange Width(W2/D3): 12.70 / 18.42 mm
Part Number: REF-095-R-CC (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$21.14 AUD
$25.36 AUD $21.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Right - Steel Stamped Rod End
Eye Size (d1)
9.525
mm

(Equiv. 0.375 in.)
Overall Length (L)
55.55
mm

(Equiv. 2.187 in.)
Thread Size
3/8-24 UNF Right

Thread Length (l2)
22.23
mm
Female Rod Ends - 9.525x55.55 mm - 3/8-24 UNF Right - Steel Stamped
Material: Steel Stamped    Head Width (W): 10.16 mm    Eye Width (W1): 12.70 mm    Head Diameter (D): 28.58 mm    Centre Height (l1): 41.28 mm    Body Width/Flange Width(W2/D3): 12.70 / 18.42 mm
Part Number: REF-095-R-CC (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$21.14 AUD
$25.36 AUD $21.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Female Rod Ends - 12.7x72.64 mm - 1/2-20 UNF Right - Steel Stamped Rod End
Eye Size (d1)
12.7
mm

(Equiv. 0.5 in.)
Overall Length (L)
72.64
mm

(Equiv. 2.86 in.)
Thread Size
1/2-20 UNF Right

Thread Length (l2)
28.58
mm
Head Width (W)
12.70
mm
Eye Width (W1)
15.88
mm
Female Rod Ends - 12.7x72.64 mm - 1/2-20 UNF Right - Steel Stamped
Material: Steel Stamped    Head Diameter (D): 37.34 mm    Centre Height (l1): 53.98 mm    Body Width/Flange Width(W2/D3): 15.88 / 25.65 mm
Part Number: REF-127-R-CC (Each)
2 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$17.14 AUD
$20.56 AUD $17.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 2 available can be backordered.
Female Rod Ends - 12.7x72.64 mm - 1/2-20 UNF Right - Steel Stamped Rod End
Eye Size (d1)
12.7
mm

(Equiv. 0.5 in.)
Overall Length (L)
72.64
mm

(Equiv. 2.86 in.)
Thread Size
1/2-20 UNF Right

Thread Length (l2)
28.58
mm
Female Rod Ends - 12.7x72.64 mm - 1/2-20 UNF Right - Steel Stamped
Material: Steel Stamped    Head Width (W): 12.70 mm    Eye Width (W1): 15.88 mm    Head Diameter (D): 37.34 mm    Centre Height (l1): 53.98 mm    Body Width/Flange Width(W2/D3): 15.88 / 25.65 mm
Part Number: REF-127-R-CC (Each)
2 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$17.14 AUD
$20.56 AUD $17.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
