| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall Max. (b) | Groove Width (W) |

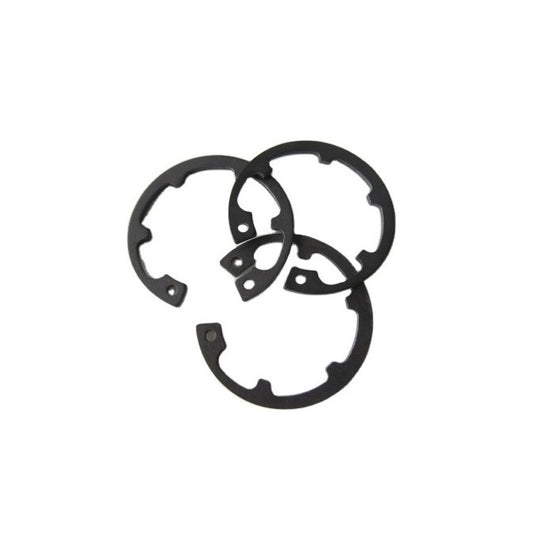

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.75
mm + 0.00 / - 0.06 (Equiv. 1.88 in.) |
Approx. Loose Circlip OD (Dr)
48.11
mm |
Radial Wall Max. (b)
4.30
mm |
Groove Width (W)
1.85
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-045
Internal Retaining Rings - 45x1.75x47.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

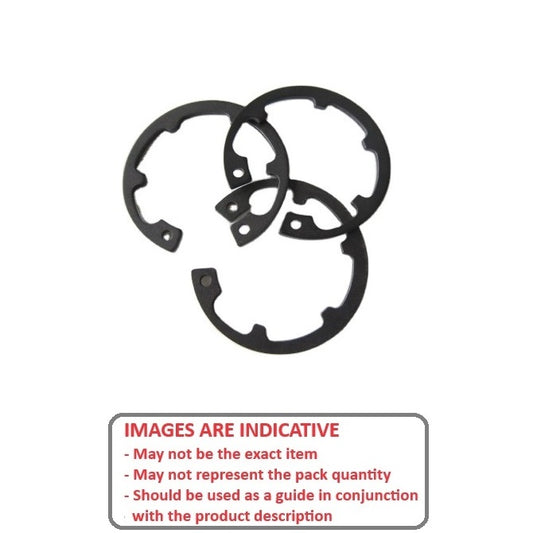

Indicative Image |
||
|
Housing Bore (B)
45.00
mm (Equiv. 1.772 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
47.75
mm + 0.00 / - 0.06 (Equiv. 1.88 in.) |
Approx. Loose Circlip OD (Dr)
48.11
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 4.30 mm Groove Width (W): 1.85 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-045
Internal Retaining Rings - 45x1.75x47.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
47.00
mm (Equiv. 1.85 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
49.75
mm + 0.00 / - 0.06 (Equiv. 1.959 in.) |
Approx. Loose Circlip OD (Dr)
50.04 - 51.60
mm |
Radial Wall Max. (b)
4.50
mm |
Groove Width (W)
1.85
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-047
Internal Retaining Rings - 47x1.75x49.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
47.00
mm (Equiv. 1.85 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
49.75
mm + 0.00 / - 0.06 (Equiv. 1.959 in.) |
Approx. Loose Circlip OD (Dr)
50.04 - 51.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 4.50 mm Groove Width (W): 1.85 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-047
Internal Retaining Rings - 47x1.75x49.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
48.00
mm (Equiv. 1.89 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.30 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
50.80
mm + 0.00 / - 0.06 (Equiv. 2 in.) |
Approx. Loose Circlip OD (Dr)
51.04 - 52.60
mm |
Radial Wall Max. (b)
4.50
mm |
Groove Width (W)
1.85
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-048
Internal Retaining Rings - 48x1.75x50.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
48.00
mm (Equiv. 1.89 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.30 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
50.80
mm + 0.00 / - 0.06 (Equiv. 2 in.) |
Approx. Loose Circlip OD (Dr)
51.04 - 52.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 4.50 mm Groove Width (W): 1.85 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-048
Internal Retaining Rings - 48x1.75x50.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.30
mm + 0.00 / - 0.07 (Equiv. 2.098 in.) |
Approx. Loose Circlip OD (Dr)
53.76 - 55.30
mm |
Radial Wall Max. (b)
4.70
mm |
Groove Width (W)
2.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-050
Internal Retaining Rings - 50x2x53.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
50.00
mm (Equiv. 1.969 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
53.30
mm + 0.00 / - 0.07 (Equiv. 2.098 in.) |
Approx. Loose Circlip OD (Dr)
53.76 - 55.30
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 4.70 mm Groove Width (W): 2.15 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-050
Internal Retaining Rings - 50x2x53.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.30
mm + 0.00 / - 0.07 (Equiv. 2.177 in.) |
Approx. Loose Circlip OD (Dr)
55.76
mm |
Radial Wall Max. (b)
4.70
mm |
Groove Width (W)
2.15
mm |
|
| Material: Carbon Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-052 (125 Pcs)
Internal Retaining Rings - 52x2x55.3 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$201.23 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
52.00
mm (Equiv. 2.047 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
55.30
mm + 0.00 / - 0.07 (Equiv. 2.177 in.) |
Approx. Loose Circlip OD (Dr)
55.76
mm |
|
||
| Material: Carbon Steel Radial Wall Max. (b): 4.70 mm Groove Width (W): 2.15 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-052 (125 Pcs)
Internal Retaining Rings - 52x2x55.3 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$201.23 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.30
mm + 0.00 / - 0.07 (Equiv. 2.295 in.) |
Approx. Loose Circlip OD (Dr)
58.76 - 60.30
mm |
Radial Wall Max. (b)
5.10
mm |
Groove Width (W)
2.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-055
Internal Retaining Rings - 55x2x58.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
55.00
mm (Equiv. 2.165 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
58.30
mm + 0.00 / - 0.07 (Equiv. 2.295 in.) |
Approx. Loose Circlip OD (Dr)
58.76 - 60.30
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 5.10 mm Groove Width (W): 2.15 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-055
Internal Retaining Rings - 55x2x58.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
60.30
mm + 0.00 / - 0.07 (Equiv. 2.374 in.) |
Approx. Loose Circlip OD (Dr)
60.76 - 62.30
mm |
Radial Wall Max. (b)
5.20
mm |
Groove Width (W)
2.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-057
Internal Retaining Rings - 57x2x60.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
57.00
mm (Equiv. 2.244 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
60.30
mm + 0.00 / - 0.07 (Equiv. 2.374 in.) |
Approx. Loose Circlip OD (Dr)
60.76 - 62.30
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 5.20 mm Groove Width (W): 2.15 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-057
Internal Retaining Rings - 57x2x60.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.00
mm (Equiv. 2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
61.30
mm + 0.00 / - 0.07 (Equiv. 2.413 in.) |
Approx. Loose Circlip OD (Dr)
61.76 - 63.30
mm |
Radial Wall Max. (b)
5.30
mm |
Groove Width (W)
2.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-058
Internal Retaining Rings - 58x2x61.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
58.00
mm (Equiv. 2.283 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
61.30
mm + 0.00 / - 0.07 (Equiv. 2.413 in.) |
Approx. Loose Circlip OD (Dr)
61.76 - 63.30
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 5.30 mm Groove Width (W): 2.15 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-058
Internal Retaining Rings - 58x2x61.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.30
mm + 0.00 / - 0.07 (Equiv. 2.492 in.) |
Approx. Loose Circlip OD (Dr)
63.76 - 65.30
mm |
Radial Wall Max. (b)
5.50
mm |
Groove Width (W)
2.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-060
Internal Retaining Rings - 60x2x63.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
60.00
mm (Equiv. 2.362 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
63.30
mm + 0.00 / - 0.07 (Equiv. 2.492 in.) |
Approx. Loose Circlip OD (Dr)
63.76 - 65.30
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 5.50 mm Groove Width (W): 2.15 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-060
Internal Retaining Rings - 60x2x63.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
62.00
mm (Equiv. 2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
65.30
mm + 0.00 / - 0.07 (Equiv. 2.571 in.) |
Approx. Loose Circlip OD (Dr)
65.76
mm |
Radial Wall Max. (b)
5.60
mm |
Groove Width (W)
2.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-062
Internal Retaining Rings - 62x2x65.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
62.00
mm (Equiv. 2.441 in.) |
Clip Thickness (T)
2.00
mm + 0.00 / - 0.30 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
65.30
mm + 0.00 / - 0.07 (Equiv. 2.571 in.) |
Approx. Loose Circlip OD (Dr)
65.76
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 5.60 mm Groove Width (W): 2.15 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-062
Internal Retaining Rings - 62x2x65.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.30
mm + 0.00 / - 0.07 (Equiv. 2.689 in.) |
Approx. Loose Circlip OD (Dr)
68.76 - 70.30
mm |
Radial Wall Max. (b)
5.80
mm |
Groove Width (W)
2.65
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-065
Internal Retaining Rings - 65x2.5x68.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
65.00
mm (Equiv. 2.559 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
68.30
mm + 0.00 / - 0.07 (Equiv. 2.689 in.) |
Approx. Loose Circlip OD (Dr)
68.76 - 70.30
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 5.80 mm Groove Width (W): 2.65 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-065
Internal Retaining Rings - 65x2.5x68.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
67.00
mm (Equiv. 2.638 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
70.30
mm + 0.00 / - 0.07 (Equiv. 2.768 in.) |
Approx. Loose Circlip OD (Dr)
71.04 - 72.60
mm |
Radial Wall Max. (b)
6.00
mm |
Groove Width (W)
2.65
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-067
Internal Retaining Rings - 67x2.5x70.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
67.00
mm (Equiv. 2.638 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
70.30
mm + 0.00 / - 0.07 (Equiv. 2.768 in.) |
Approx. Loose Circlip OD (Dr)
71.04 - 72.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 6.00 mm Groove Width (W): 2.65 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-067
Internal Retaining Rings - 67x2.5x70.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
71.30
mm + 0.00 / - 0.07 (Equiv. 2.807 in.) |
Approx. Loose Circlip OD (Dr)
72.04 - 73.60
mm |
Radial Wall Max. (b)
6.10
mm |
Groove Width (W)
2.65
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-068
Internal Retaining Rings - 68x2.5x71.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
71.30
mm + 0.00 / - 0.07 (Equiv. 2.807 in.) |
Approx. Loose Circlip OD (Dr)
72.04 - 73.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 6.10 mm Groove Width (W): 2.65 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-068
Internal Retaining Rings - 68x2.5x71.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.30
mm + 0.00 / - 0.07 (Equiv. 2.886 in.) |
Approx. Loose Circlip OD (Dr)
74.04 - 75.60
mm |
Radial Wall Max. (b)
6.20
mm |
Groove Width (W)
2.65
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-070
Internal Retaining Rings - 70x2.5x73.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
73.30
mm + 0.00 / - 0.07 (Equiv. 2.886 in.) |
Approx. Loose Circlip OD (Dr)
74.04 - 75.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 6.20 mm Groove Width (W): 2.65 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-070
Internal Retaining Rings - 70x2.5x73.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.30
mm + 0.00 / - 0.07 (Equiv. 2.965 in.) |
Approx. Loose Circlip OD (Dr)
76.04
mm |
Radial Wall Max. (b)
6.40
mm |
Groove Width (W)
2.65
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-072
Internal Retaining Rings - 72x2.5x75.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
72.00
mm (Equiv. 2.835 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
75.30
mm + 0.00 / - 0.07 (Equiv. 2.965 in.) |
Approx. Loose Circlip OD (Dr)
76.04
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 6.40 mm Groove Width (W): 2.65 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-072
Internal Retaining Rings - 72x2.5x75.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.30
mm + 0.00 / - 0.07 (Equiv. 3.083 in.) |
Approx. Loose Circlip OD (Dr)
79.04 - 80.60
mm |
Radial Wall Max. (b)
6.60
mm |
Groove Width (W)
2.65
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-075
Internal Retaining Rings - 75x2.5x78.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
75.00
mm (Equiv. 2.953 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
78.30
mm + 0.00 / - 0.07 (Equiv. 3.083 in.) |
Approx. Loose Circlip OD (Dr)
79.04 - 80.60
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 6.60 mm Groove Width (W): 2.65 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-075
Internal Retaining Rings - 75x2.5x78.3 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
80.00
mm (Equiv. 3.15 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
83.80
mm + 0.00 / - 0.07 (Equiv. 3.299 in.) |
Approx. Loose Circlip OD (Dr)
85.04
mm |
Radial Wall Max. (b)
7.00
mm |
Groove Width (W)
2.65
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-080
Internal Retaining Rings - 80x2.5x83.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
80.00
mm (Equiv. 3.15 in.) |
Clip Thickness (T)
2.50
mm + 0.00 / - 0.30 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
83.80
mm + 0.00 / - 0.07 (Equiv. 3.299 in.) |
Approx. Loose Circlip OD (Dr)
85.04
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 7.00 mm Groove Width (W): 2.65 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-080
Internal Retaining Rings - 80x2.5x83.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.80
mm + 0.00 / - 0.08 (Equiv. 3.693 in.) |
Approx. Loose Circlip OD (Dr)
95.04
mm |
Radial Wall Max. (b)
7.70
mm |
Groove Width (W)
3.15
mm |
|
| Material: Carbon Steel Tool: PRS-I032 | ||||||
|
Part Number: DJK-090 (50 Pcs)
Internal Retaining Rings - 90x3x93.8 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$596.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.80
mm + 0.00 / - 0.08 (Equiv. 3.693 in.) |
Approx. Loose Circlip OD (Dr)
95.04
mm |
|
||
| Material: Carbon Steel Radial Wall Max. (b): 7.70 mm Groove Width (W): 3.15 mm Tool: PRS-I032 | ||||||
|
Part Number: DJK-090 (50 Pcs)
Internal Retaining Rings - 90x3x93.8 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$596.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.80
mm + 0.00 / - 0.08 (Equiv. 3.89 in.) |
Approx. Loose Circlip OD (Dr)
105.04
mm |
Radial Wall Max. (b)
8.50
mm |
Groove Width (W)
3.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I032 | ||||||
|
Part Number: DJK-100
Internal Retaining Rings - 100x3x98.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.80
mm + 0.00 / - 0.08 (Equiv. 3.89 in.) |
Approx. Loose Circlip OD (Dr)
105.04
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 8.50 mm Groove Width (W): 3.15 mm Tool: PRS-I032 | ||||||
|
Part Number: DJK-100
Internal Retaining Rings - 100x3x98.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
110.00
mm (Equiv. 4.331 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
103.80
mm + 0.00 / - 0.08 (Equiv. 4.087 in.) |
Approx. Loose Circlip OD (Dr)
116.04
mm |
Radial Wall Max. (b)
9.00
mm |
Groove Width (W)
3.15
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I032 | ||||||
|
Part Number: DJK-110
Internal Retaining Rings - 110x3x103.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
110.00
mm (Equiv. 4.331 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
103.80
mm + 0.00 / - 0.08 (Equiv. 4.087 in.) |
Approx. Loose Circlip OD (Dr)
116.04
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 9.00 mm Groove Width (W): 3.15 mm Tool: PRS-I032 | ||||||
|
Part Number: DJK-110
Internal Retaining Rings - 110x3x103.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
