| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall Max. (b) | Groove Width (W) |

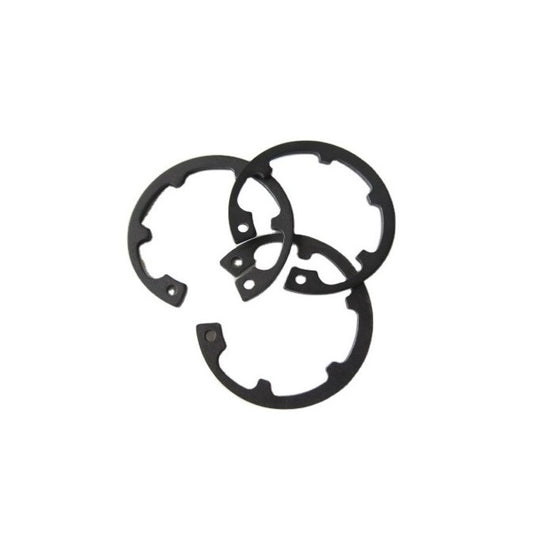

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
16.00
mm (Equiv. 0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
16.91
mm + 0.00 / - 0.06 (Equiv. 0.666 in.) |
Approx. Loose Circlip OD (Dr)
17.17 - 17.73
mm |
Radial Wall Max. (b)
2.10
mm |
Groove Width (W)
1.10
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I011 | ||||||
|
Part Number: DJK-016
Internal Retaining Rings - 16x1x16.91 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

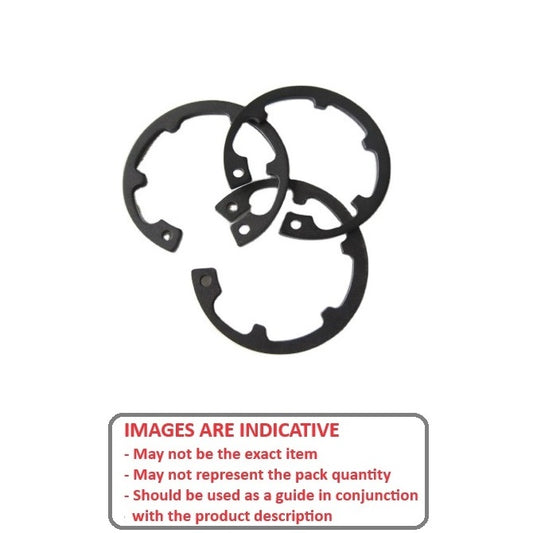

Indicative Image |
||
|
Housing Bore (B)
16.00
mm (Equiv. 0.63 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
16.91
mm + 0.00 / - 0.06 (Equiv. 0.666 in.) |
Approx. Loose Circlip OD (Dr)
17.17 - 17.73
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.10 mm Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: DJK-016
Internal Retaining Rings - 16x1x16.91 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
17.00
mm (Equiv. 0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
17.91
mm + 0.00 / - 0.06 (Equiv. 0.705 in.) |
Approx. Loose Circlip OD (Dr)
18.17 - 18.73
mm |
Radial Wall Max. (b)
2.20
mm |
Groove Width (W)
1.10
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I011 | ||||||
|
Part Number: DJK-017
Internal Retaining Rings - 17x1x17.91 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
17.00
mm (Equiv. 0.669 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.11 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
17.91
mm + 0.00 / - 0.06 (Equiv. 0.705 in.) |
Approx. Loose Circlip OD (Dr)
18.17 - 18.73
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.20 mm Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: DJK-017
Internal Retaining Rings - 17x1x17.91 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.15
mm + 0.00 / - 0.06 (Equiv. 0.754 in.) |
Approx. Loose Circlip OD (Dr)
19.37
mm |
Radial Wall Max. (b)
2.30
mm |
Groove Width (W)
1.10
mm |
|
| Material: Carbon Steel Tool: PRS-I011 | ||||||
|
Part Number: DJK-018 (100 Pcs)
Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
18.00
mm (Equiv. 0.709 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
19.15
mm + 0.00 / - 0.06 (Equiv. 0.754 in.) |
Approx. Loose Circlip OD (Dr)
19.37
mm |
|
||
| Material: Carbon Steel Radial Wall Max. (b): 2.30 mm Groove Width (W): 1.10 mm Tool: PRS-I011 | ||||||
|
Part Number: DJK-018 (100 Pcs)
Internal Retaining Rings - 18x1x19.15 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025 Regular price
$29.86 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.15
mm + 0.00 / - 0.06 (Equiv. 0.793 in.) |
Approx. Loose Circlip OD (Dr)
20.37 - 20.92
mm |
Radial Wall Max. (b)
2.30
mm |
Groove Width (W)
1.10
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-019
Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
19.00
mm (Equiv. 0.748 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
20.15
mm + 0.00 / - 0.06 (Equiv. 0.793 in.) |
Approx. Loose Circlip OD (Dr)
20.37 - 20.92
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.30 mm Groove Width (W): 1.10 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-019
Internal Retaining Rings - 19x1x20.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
21.15
mm + 0.00 / - 0.06 (Equiv. 0.833 in.) |
Approx. Loose Circlip OD (Dr)
21.37
mm |
Radial Wall Max. (b)
2.40
mm |
Groove Width (W)
1.10
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-020
Internal Retaining Rings - 20x1x21.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
20.00
mm (Equiv. 0.787 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
21.15
mm + 0.00 / - 0.06 (Equiv. 0.833 in.) |
Approx. Loose Circlip OD (Dr)
21.37
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.40 mm Groove Width (W): 1.10 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-020
Internal Retaining Rings - 20x1x21.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
21.00
mm (Equiv. 0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
22.15
mm + 0.00 / - 0.06 (Equiv. 0.872 in.) |
Approx. Loose Circlip OD (Dr)
22.37 - 22.92
mm |
Radial Wall Max. (b)
2.40
mm |
Groove Width (W)
1.10
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-021
Internal Retaining Rings - 21x1x22.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
21.00
mm (Equiv. 0.827 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
22.15
mm + 0.00 / - 0.06 (Equiv. 0.872 in.) |
Approx. Loose Circlip OD (Dr)
22.37 - 22.92
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.40 mm Groove Width (W): 1.10 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-021
Internal Retaining Rings - 21x1x22.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.15
mm + 0.00 / - 0.06 (Equiv. 0.911 in.) |
Approx. Loose Circlip OD (Dr)
23.37 - 23.92
mm |
Radial Wall Max. (b)
2.60
mm |
Groove Width (W)
1.10
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-022
Internal Retaining Rings - 22x1x23.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
22.00
mm (Equiv. 0.866 in.) |
Clip Thickness (T)
1.00
mm + 0.00 / - 0.15 (Equiv. 0.039 in.) |
Groove Dia. (Dg)
23.15
mm + 0.00 / - 0.06 (Equiv. 0.911 in.) |
Approx. Loose Circlip OD (Dr)
23.37 - 23.92
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.60 mm Groove Width (W): 1.10 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-022
Internal Retaining Rings - 22x1x23.15 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
23.00
mm (Equiv. 0.906 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.15 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
24.25
mm + 0.00 / - 0.06 (Equiv. 0.955 in.) |
Approx. Loose Circlip OD (Dr)
24.47 - 25.02
mm |
Radial Wall Max. (b)
2.60
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-023
Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
23.00
mm (Equiv. 0.906 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.15 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
24.25
mm + 0.00 / - 0.06 (Equiv. 0.955 in.) |
Approx. Loose Circlip OD (Dr)
24.47 - 25.02
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.60 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-023
Internal Retaining Rings - 23x1.2x24.25 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
25.41
mm + 0.00 / - 0.06 (Equiv. 1 in.) |
Approx. Loose Circlip OD (Dr)
25.69 - 26.32
mm |
Radial Wall Max. (b)
2.60
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-024
Internal Retaining Rings - 24x1.2x25.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
25.41
mm + 0.00 / - 0.06 (Equiv. 1 in.) |
Approx. Loose Circlip OD (Dr)
25.69 - 26.32
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.60 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-024
Internal Retaining Rings - 24x1.2x25.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.41
mm + 0.00 / - 0.06 (Equiv. 1.04 in.) |
Approx. Loose Circlip OD (Dr)
26.69
mm |
Radial Wall Max. (b)
2.80
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-025
Internal Retaining Rings - 25x1.2x26.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
26.41
mm + 0.00 / - 0.06 (Equiv. 1.04 in.) |
Approx. Loose Circlip OD (Dr)
26.69
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.80 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-025
Internal Retaining Rings - 25x1.2x26.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.41
mm + 0.00 / - 0.06 (Equiv. 1.079 in.) |
Approx. Loose Circlip OD (Dr)
28.29 - 28.92
mm |
Radial Wall Max. (b)
2.80
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-026
Internal Retaining Rings - 26x1.2x27.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
26.00
mm (Equiv. 1.024 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
27.41
mm + 0.00 / - 0.06 (Equiv. 1.079 in.) |
Approx. Loose Circlip OD (Dr)
28.29 - 28.92
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.80 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-026
Internal Retaining Rings - 26x1.2x27.41 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
27.00
mm (Equiv. 1.063 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
28.61
mm + 0.00 / - 0.06 (Equiv. 1.126 in.) |
Approx. Loose Circlip OD (Dr)
28.89 - 29.52
mm |
Radial Wall Max. (b)
2.90
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-027
Internal Retaining Rings - 27x1.2x28.61 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
27.00
mm (Equiv. 1.063 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
28.61
mm + 0.00 / - 0.06 (Equiv. 1.126 in.) |
Approx. Loose Circlip OD (Dr)
28.89 - 29.52
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 2.90 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-027
Internal Retaining Rings - 27x1.2x28.61 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
28.00
mm (Equiv. 1.102 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
29.61
mm + 0.00 / - 0.06 (Equiv. 1.166 in.) |
Approx. Loose Circlip OD (Dr)
29.85
mm |
Radial Wall Max. (b)
3.00
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-028
Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
28.00
mm (Equiv. 1.102 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
29.61
mm + 0.00 / - 0.06 (Equiv. 1.166 in.) |
Approx. Loose Circlip OD (Dr)
29.85
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.00 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-028
Internal Retaining Rings - 28x1.2x29.61 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
30.00
mm (Equiv. 1.181 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
31.65
mm + 0.00 / - 0.06 (Equiv. 1.246 in.) |
Approx. Loose Circlip OD (Dr)
31.85
mm |
Radial Wall Max. (b)
3.20
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-030
Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
30.00
mm (Equiv. 1.181 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
31.65
mm + 0.00 / - 0.06 (Equiv. 1.246 in.) |
Approx. Loose Circlip OD (Dr)
31.85
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.20 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-030
Internal Retaining Rings - 30x1.2x31.65 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
31.00
mm (Equiv. 1.22 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
32.95
mm + 0.00 / - 0.06 (Equiv. 1.297 in.) |
Approx. Loose Circlip OD (Dr)
33.15 - 33.90
mm |
Radial Wall Max. (b)
3.20
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-031
Internal Retaining Rings - 31x1.2x32.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
31.00
mm (Equiv. 1.22 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
32.95
mm + 0.00 / - 0.06 (Equiv. 1.297 in.) |
Approx. Loose Circlip OD (Dr)
33.15 - 33.90
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.20 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-031
Internal Retaining Rings - 31x1.2x32.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
32.00
mm (Equiv. 1.26 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
33.95
mm + 0.00 / - 0.06 (Equiv. 1.337 in.) |
Approx. Loose Circlip OD (Dr)
34.15
mm |
Radial Wall Max. (b)
3.30
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-032
Internal Retaining Rings - 32x1.2x33.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
32.00
mm (Equiv. 1.26 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
33.95
mm + 0.00 / - 0.06 (Equiv. 1.337 in.) |
Approx. Loose Circlip OD (Dr)
34.15
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.30 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-032
Internal Retaining Rings - 32x1.2x33.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
33.00
mm (Equiv. 1.299 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
34.95
mm + 0.00 / - 0.06 (Equiv. 1.376 in.) |
Approx. Loose Circlip OD (Dr)
35.25 - 36.00
mm |
Radial Wall Max. (b)
3.30
mm |
Groove Width (W)
1.30
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-033
Internal Retaining Rings - 33x1.2x34.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
33.00
mm (Equiv. 1.299 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.25 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
34.95
mm + 0.00 / - 0.06 (Equiv. 1.376 in.) |
Approx. Loose Circlip OD (Dr)
35.25 - 36.00
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.30 mm Groove Width (W): 1.30 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-033
Internal Retaining Rings - 33x1.2x34.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
34.00
mm (Equiv. 1.339 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
37.95
mm + 0.00 / - 0.06 (Equiv. 1.494 in.) |
Approx. Loose Circlip OD (Dr)
36.25 - 37.00
mm |
Radial Wall Max. (b)
3.40
mm |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-034
Internal Retaining Rings - 34x1.5x37.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
34.00
mm (Equiv. 1.339 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
37.95
mm + 0.00 / - 0.06 (Equiv. 1.494 in.) |
Approx. Loose Circlip OD (Dr)
36.25 - 37.00
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.40 mm Groove Width (W): 1.60 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-034
Internal Retaining Rings - 34x1.5x37.95 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
35.00
mm (Equiv. 1.378 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
37.25
mm + 0.00 / - 0.06 (Equiv. 1.467 in.) |
Approx. Loose Circlip OD (Dr)
37.55
mm |
Radial Wall Max. (b)
3.60
mm |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-035 (5 Pcs)
Internal Retaining Rings - 35x1.5x37.25 mm Circlips - Carbon Steel Circlip 7 units (35 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Housing Bore (B)
35.00
mm (Equiv. 1.378 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
37.25
mm + 0.00 / - 0.06 (Equiv. 1.467 in.) |
Approx. Loose Circlip OD (Dr)
37.55
mm |
|
||
| Material: Carbon Steel Radial Wall Max. (b): 3.60 mm Groove Width (W): 1.60 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-035 (5 Pcs)
Internal Retaining Rings - 35x1.5x37.25 mm Circlips - Carbon Steel Circlip 7 units (35 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025 Regular price
$7.32 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Housing Bore (B)
36.00
mm (Equiv. 1.417 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
38.25
mm + 0.00 / - 0.06 (Equiv. 1.506 in.) |
Approx. Loose Circlip OD (Dr)
38.55 - 39.30
mm |
Radial Wall Max. (b)
3.60
mm |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-036
Internal Retaining Rings - 36x1.5x38.25 mm Circlips - Carbon Spring Steel Circlip 30 Available Now | Further orders can be expected around Thu, Oct 02, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
36.00
mm (Equiv. 1.417 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
38.25
mm + 0.00 / - 0.06 (Equiv. 1.506 in.) |
Approx. Loose Circlip OD (Dr)
38.55 - 39.30
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.60 mm Groove Width (W): 1.60 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-036
Internal Retaining Rings - 36x1.5x38.25 mm Circlips - Carbon Spring Steel Circlip 30 Available Now | Further orders can be expected around Thu, Oct 02, 2025 Regular price
$6.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
38.00
mm (Equiv. 1.496 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
40.25
mm + 0.00 / - 0.06 (Equiv. 1.585 in.) |
Approx. Loose Circlip OD (Dr)
40.55
mm |
Radial Wall Max. (b)
3.80
mm |
Groove Width (W)
1.60
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I018 | ||||||
|
Part Number: DJK-038
Internal Retaining Rings - 38x1.5x40.25 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
38.00
mm (Equiv. 1.496 in.) |
Clip Thickness (T)
1.50
mm + 0.00 / - 0.25 (Equiv. 0.059 in.) |
Groove Dia. (Dg)
40.25
mm + 0.00 / - 0.06 (Equiv. 1.585 in.) |
Approx. Loose Circlip OD (Dr)
40.55
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 3.80 mm Groove Width (W): 1.60 mm Tool: PRS-I018 | ||||||
|
Part Number: DJK-038
Internal Retaining Rings - 38x1.5x40.25 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
40.00
mm (Equiv. 1.575 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
42.75
mm + 0.00 / - 0.06 (Equiv. 1.683 in.) |
Approx. Loose Circlip OD (Dr)
43.11
mm |
Radial Wall Max. (b)
4.00
mm |
Groove Width (W)
1.85
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-040
Internal Retaining Rings - 40x1.75x42.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
40.00
mm (Equiv. 1.575 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
42.75
mm + 0.00 / - 0.06 (Equiv. 1.683 in.) |
Approx. Loose Circlip OD (Dr)
43.11
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 4.00 mm Groove Width (W): 1.85 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-040
Internal Retaining Rings - 40x1.75x42.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
42.00
mm (Equiv. 1.654 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
44.75
mm + 0.00 / - 0.06 (Equiv. 1.762 in.) |
Approx. Loose Circlip OD (Dr)
45.11
mm |
Radial Wall Max. (b)
4.10
mm |
Groove Width (W)
1.85
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-042
Internal Retaining Rings - 42x1.75x44.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
42.00
mm (Equiv. 1.654 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
44.75
mm + 0.00 / - 0.06 (Equiv. 1.762 in.) |
Approx. Loose Circlip OD (Dr)
45.11
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 4.10 mm Groove Width (W): 1.85 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-042
Internal Retaining Rings - 42x1.75x44.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
44.00
mm (Equiv. 1.732 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
46.75
mm + 0.00 / - 0.06 (Equiv. 1.841 in.) |
Approx. Loose Circlip OD (Dr)
47.11 - 48.40
mm |
Radial Wall Max. (b)
4.20
mm |
Groove Width (W)
1.85
mm |
|
| Material: Carbon Spring Steel Tool: PRS-I023 | ||||||
|
Part Number: DJK-044
Internal Retaining Rings - 44x1.75x46.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
44.00
mm (Equiv. 1.732 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.25 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
46.75
mm + 0.00 / - 0.06 (Equiv. 1.841 in.) |
Approx. Loose Circlip OD (Dr)
47.11 - 48.40
mm |
|
||
| Material: Carbon Spring Steel Radial Wall Max. (b): 4.20 mm Groove Width (W): 1.85 mm Tool: PRS-I023 | ||||||
|
Part Number: DJK-044
Internal Retaining Rings - 44x1.75x46.75 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
