| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
123.44
mm +/- 0.15 (Equiv. 4.86 in.) |
Approx. Loose Circlip ID (A)
121.92
mm - 0.00 / + 2.40 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 133 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1270-LS-L
External Retaining Rings - 127x1.98x123.44 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
123.44
mm +/- 0.15 (Equiv. 4.86 in.) |
Approx. Loose Circlip ID (A)
121.92
mm - 0.00 / + 2.40 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 5.54 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 133 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1270-LS-L
External Retaining Rings - 127x1.98x123.44 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
119.68
mm +/- 0.08 (Equiv. 4.712 in.) |
Approx. Loose Circlip ID (A)
118.41
mm + 1.27 / - 0.00 |
Radial Wall (S) min/max
4.93 - 9.14
mm |
Groove Width (W)
2.31
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Steel

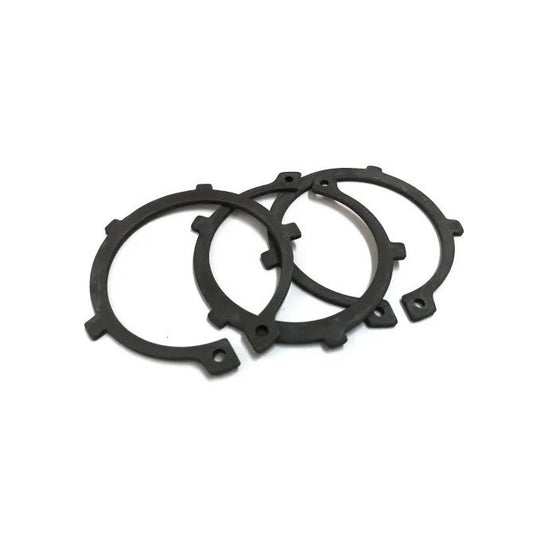

Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-12700-C
External Retaining Rings - 127x2.77x119.68 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$133.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm + 0.00 / - 0.15 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
119.68
mm +/- 0.08 (Equiv. 4.712 in.) |
Approx. Loose Circlip ID (A)
118.41
mm + 1.27 / - 0.00 |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 4.93 - 9.14 mm
Groove Width (W): 2.31 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-12700-C
External Retaining Rings - 127x2.77x119.68 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$133.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.67
mm +/- 0.15 (Equiv. 4.79 in.) |
Approx. Loose Circlip ID (A)
120.65
mm + 0.00 / - 2.36 |
Radial Wall (S) min/max
7.93
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 136.51 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1270-LS-N
External Retaining Rings - 127x2.77x121.67 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.67
mm +/- 0.15 (Equiv. 4.79 in.) |
Approx. Loose Circlip ID (A)
120.65
mm + 0.00 / - 2.36 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 7.93 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 136.51 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1270-LS-N
External Retaining Rings - 127x2.77x121.67 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.70
mm +/- 0.076 (Equiv. 4.791 in.) |
Approx. Loose Circlip ID (A)
119.20
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12700N-S15
External Retaining Rings - 127x2.77x121.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$174.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.70
mm +/- 0.076 (Equiv. 4.791 in.) |
Approx. Loose Circlip ID (A)
119.20
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12700N-S15
External Retaining Rings - 127x2.77x121.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$174.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.70
mm +/- 0.076 (Equiv. 4.791 in.) |
Approx. Loose Circlip ID (A)
119.20
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12700N-CZY
External Retaining Rings - 127x2.77x121.7 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$26.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.70
mm +/- 0.076 (Equiv. 4.791 in.) |
Approx. Loose Circlip ID (A)
119.20
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12700N-CZY
External Retaining Rings - 127x2.77x121.7 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$26.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.70
mm +/- 0.076 (Equiv. 4.791 in.) |
Approx. Loose Circlip ID (A)
119.20
mm |
Groove Width (W)
3.10
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12700N-C
External Retaining Rings - 127x2.77x121.7 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
121.70
mm +/- 0.076 (Equiv. 4.791 in.) |
Approx. Loose Circlip ID (A)
119.20
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.10 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12700N-C
External Retaining Rings - 127x2.77x121.7 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$18.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
121.67
mm (Equiv. 4.79 in.) |
Approx. Loose Circlip ID (A)
118.11
mm + 0.00 / - 0.89 |
Radial Wall (S) min/max
6.86
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Clearance in Groove (C1): 131.83 mm +/- 0.07

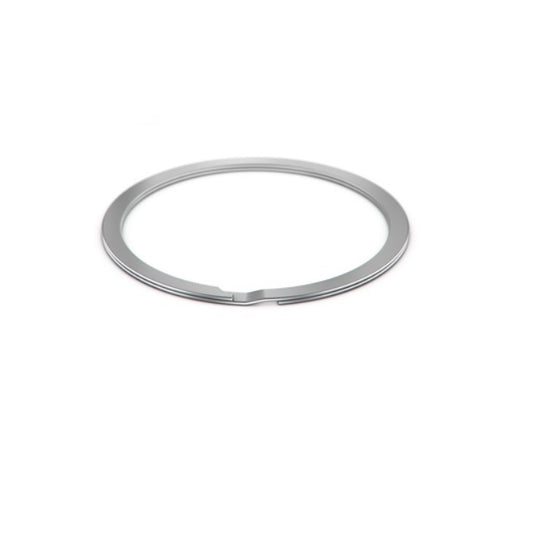

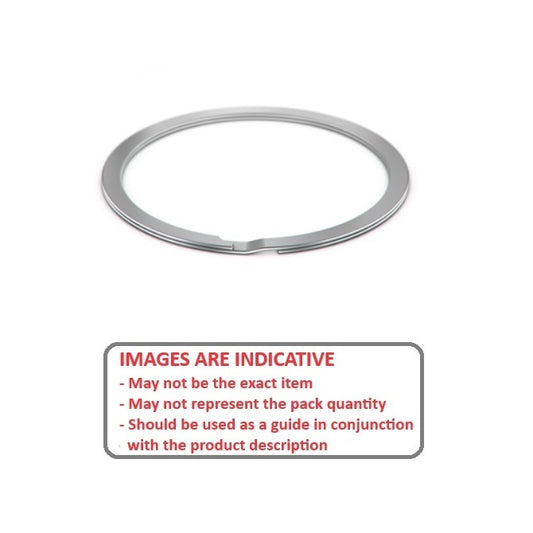

Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-500-S02
External Retaining Rings - 127x2.82x121.67 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$236.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
121.67
mm (Equiv. 4.79 in.) |
Approx. Loose Circlip ID (A)
118.11
mm + 0.00 / - 0.89 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) min/max: 6.86 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.15
Clearance in Groove (C1): 131.83 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-500-S02
External Retaining Rings - 127x2.82x121.67 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$236.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
121.67
mm (Equiv. 4.79 in.) |
Approx. Loose Circlip ID (A)
118.11
mm + 0.00 / - 0.89 |
Radial Wall (S) min/max
6.86
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 131.83 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-500
External Retaining Rings - 127x2.82x121.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$108.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
127.00
mm (Equiv. 5 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
121.67
mm (Equiv. 4.79 in.) |
Approx. Loose Circlip ID (A)
118.11
mm + 0.00 / - 0.89 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.86 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.15
Clearance in Groove (C1): 131.83 mm +/- 0.07
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-500
External Retaining Rings - 127x2.82x121.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$108.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
128.00
mm (Equiv. 5.039 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
123.37
mm + 0.00 / - 0.10 (Equiv. 4.857 in.) |
Approx. Loose Circlip ID (A)
121.54
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12800-C
External Retaining Rings - 128x4x123.37 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
128.00
mm (Equiv. 5.039 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
123.37
mm + 0.00 / - 0.10 (Equiv. 4.857 in.) |
Approx. Loose Circlip ID (A)
121.54
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-12800-C
External Retaining Rings - 128x4x123.37 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
126.34
mm (Equiv. 4.974 in.) |
Approx. Loose Circlip ID (A)
122.20
mm + 0.00 / - 1.02 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 134.9 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-511 (100 Pcs)
External Retaining Rings - 130x1.83x126.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
126.34
mm (Equiv. 4.974 in.) |
Approx. Loose Circlip ID (A)
122.20
mm + 0.00 / - 1.02 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.15
Clearance in Groove (C1): 134.9 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-511 (100 Pcs)
External Retaining Rings - 130x1.83x126.34 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
127.70
mm + 0 / - 0.25 (Equiv. 5.028 in.) |
Approx. Loose Circlip ID (A)
126.40
mm |
Radial Wall (S) min/max
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 133.2 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1300-LS
External Retaining Rings - 130x2.5x127.7 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
127.70
mm + 0 / - 0.25 (Equiv. 5.028 in.) |
Approx. Loose Circlip ID (A)
126.40
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 133.2 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1300-LS
External Retaining Rings - 130x2.5x127.7 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
2.82
mm + 0 / - 0.10 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
125.22
mm + 0 / - 0.50 (Equiv. 4.93 in.) |
Approx. Loose Circlip ID (A)
123.60
mm |
Radial Wall (S) min/max
7.21
mm + 0 / - 0.10 |
Groove Width (W)
3.40
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 138.02 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1300-LR
External Retaining Rings - 130x2.82x125.22 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$17.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
2.82
mm + 0 / - 0.10 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
125.22
mm + 0 / - 0.50 (Equiv. 4.93 in.) |
Approx. Loose Circlip ID (A)
123.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 7.21 mm + 0 / - 0.10
Groove Width (W): 3.40 mm
Clearance in Groove (C1): 138.02 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1300-LR
External Retaining Rings - 130x2.82x125.22 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$17.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.10 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
123.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 150.00 mm
Clearance in Groove (C1): 154.40 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13000-C
External Retaining Rings - 130x4x126 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$13.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.10 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
123.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 150.00 mm
Clearance in Groove (C1): 154.40 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13000-C
External Retaining Rings - 130x4x126 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$13.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.12 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
123.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13000H-C
External Retaining Rings - 130x5x126 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.12 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
123.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13000H-C
External Retaining Rings - 130x5x126 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.10 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
121.70 - 123.54
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-130
External Retaining Rings - 130x4x126 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
130.00
mm (Equiv. 5.118 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
126.00
mm + 0.00 / - 0.10 (Equiv. 4.961 in.) |
Approx. Loose Circlip ID (A)
121.70 - 123.54
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-130
External Retaining Rings - 130x4x126 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
132.00
mm (Equiv. 5.197 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
128.00
mm + 0.00 / - 0.10 (Equiv. 5.039 in.) |
Approx. Loose Circlip ID (A)
125.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13200-C
External Retaining Rings - 132x4x128 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
132.00
mm (Equiv. 5.197 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
128.00
mm + 0.00 / - 0.10 (Equiv. 5.039 in.) |
Approx. Loose Circlip ID (A)
125.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13200-C
External Retaining Rings - 132x4x128 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
129.72
mm (Equiv. 5.107 in.) |
Approx. Loose Circlip ID (A)
125.35
mm + 0.00 / - 1.27 |
Radial Wall (S) min/max
6.35
mm +/- 0.13 |
Groove Width (W)
2.07
mm +/- 0.18 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 138.05 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-525
External Retaining Rings - 133.35x1.83x129.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
1.83
mm +/- 0.10 (Equiv. 0.072 in.) |
Groove Dia. (Dg)
129.72
mm (Equiv. 5.107 in.) |
Approx. Loose Circlip ID (A)
125.35
mm + 0.00 / - 1.27 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 6.35 mm +/- 0.13
Groove Width (W): 2.07 mm +/- 0.18
Clearance in Groove (C1): 138.05 mm +/- 0.06
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RS-525
External Retaining Rings - 133.35x1.83x129.72 mm Spiral Rings - Carbon Spring Steel Spiral Ring 9 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$13.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
125.65
mm +/- 0.10 (Equiv. 4.947 in.) |
Approx. Loose Circlip ID (A)
124.13
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
5.36 - 9.45
mm |
Groove Width (W)
2.67
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-13335-C
External Retaining Rings - 133.35x3.18x125.65 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
125.65
mm +/- 0.10 (Equiv. 4.947 in.) |
Approx. Loose Circlip ID (A)
124.13
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 5.36 - 9.45 mm
Groove Width (W): 2.67 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CEB-13335-C
External Retaining Rings - 133.35x3.18x125.65 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.102 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
125.15
mm |
Groove Width (W)
3.53
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 151.13 mm
Clearance in Groove (C1): 156.97 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13335-C
External Retaining Rings - 133.35x3.18x127.76 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$34.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.102 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
125.15
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.53 mm
Clearance on Shaft (C1): 151.13 mm
Clearance in Groove (C1): 156.97 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13335-C
External Retaining Rings - 133.35x3.18x127.76 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$34.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.102 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
125.20
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13335-S15
External Retaining Rings - 133.35x3.18x127.76 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$1,204.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.102 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
125.20
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13335-S15
External Retaining Rings - 133.35x3.18x127.76 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$1,204.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.15 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
126.24
mm + 0.00 / - 3.18 |
Radial Wall (S) min/max
9.53
mm +/- 0.13 |
Groove Width (W)
3.53
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 145.3 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1334-LS
External Retaining Rings - 133.35x3.18x127.76 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.05 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.15 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
126.24
mm + 0.00 / - 3.18 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 9.53 mm +/- 0.13
Groove Width (W): 3.53 mm
Clearance in Groove (C1): 145.3 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1334-LS
External Retaining Rings - 133.35x3.18x127.76 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.102 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
125.20
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13335-CZY (3 Pcs)
External Retaining Rings - 133.35x3.18x127.76 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$120.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
133.35
mm (Equiv. 5.25 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
127.76
mm +/- 0.102 (Equiv. 5.03 in.) |
Approx. Loose Circlip ID (A)
125.20
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13335-CZY (3 Pcs)
External Retaining Rings - 133.35x3.18x127.76 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$120.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
135.00
mm (Equiv. 5.315 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
132.40
mm + 0 / - 0.25 (Equiv. 5.213 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
Radial Wall (S) min/max
4.00
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 139.1 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1350-LS
External Retaining Rings - 135x2.5x132.4 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
135.00
mm (Equiv. 5.315 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
132.40
mm + 0 / - 0.25 (Equiv. 5.213 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 4.00 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 139.1 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-1350-LS
External Retaining Rings - 135x2.5x132.4 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
135.00
mm (Equiv. 5.315 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
130.37
mm + 0.00 / - 0.10 (Equiv. 5.133 in.) |
Approx. Loose Circlip ID (A)
128.63
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 155.00 mm
Clearance in Groove (C1): 159.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13500-C
External Retaining Rings - 135x4x130.37 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
135.00
mm (Equiv. 5.315 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
130.37
mm + 0.00 / - 0.10 (Equiv. 5.133 in.) |
Approx. Loose Circlip ID (A)
128.63
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 155.00 mm
Clearance in Groove (C1): 159.80 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-13500-C
External Retaining Rings - 135x4x130.37 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$13.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
