| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (Equiv. 0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
2.77
mm +/- 0.05 |
Groove Width (W)
2.97
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 27.77 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0238-SQ-HO
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (Equiv. 0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 2.77 mm +/- 0.05
Groove Width (W): 2.97 mm
Clearance in Groove (C1): 27.77 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0238-SQ-HO
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
2.54
mm +/- 0.06 (Equiv. 0.1 in.) |
Groove Dia. (Dg)
22.23
mm + /- 0.08 (Equiv. 0.875 in.) |
Approx. Loose Circlip ID (A)
22.02
mm |
Radial Wall (S) min/max
22.23
mm |
Groove Width (W)
2.59
mm |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 27.1 mm
Clearance in Groove (C1): Round Section mm

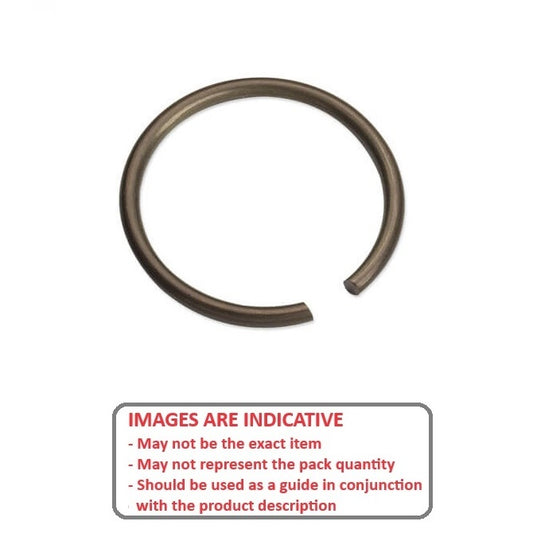

Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0238-RD-HO
External Retaining Rings - 23.83x2.54x22.23 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
2.54
mm +/- 0.06 (Equiv. 0.1 in.) |
Groove Dia. (Dg)
22.23
mm + /- 0.08 (Equiv. 0.875 in.) |
Approx. Loose Circlip ID (A)
22.02
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 22.23 mm
Groove Width (W): 2.59 mm
Clearance on Shaft (C1): 27.1 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0238-RD-HO
External Retaining Rings - 23.83x2.54x22.23 mm Round Wire - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (Equiv. 0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
Radial Wall (S) min/max
2.77
mm +/- 0.05 |
Groove Width (W)
2.97
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 27.77 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0238-SQ-HC
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
23.83
mm (Equiv. 0.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
22.43
mm + 0.08 / - 0.00 (Equiv. 0.883 in.) |
Approx. Loose Circlip ID (A)
22.23
mm + 0.00 / - 0.90 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 2.77 mm +/- 0.05
Groove Width (W): 2.97 mm
Clearance in Groove (C1): 27.77 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0238-SQ-HC
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 33.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400-S15 (3 Pcs)
External Retaining Rings - 24x1.2x22.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.30 mm
Clearance on Shaft (C1): 33.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400-S15 (3 Pcs)
External Retaining Rings - 24x1.2x22.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 33.20 mm
Clearance in Groove (C1): 31.70 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400-C (10 Pcs)
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip 45 units (450 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.30 mm
Clearance on Shaft (C1): 33.20 mm
Clearance in Groove (C1): 31.70 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400-C (10 Pcs)
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip 45 units (450 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$5.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.00
mm + 0 / - 0.13 (Equiv. 0.906 in.) |
Approx. Loose Circlip ID (A)
22.50
mm |
Radial Wall (S) min/max
1.75
mm + 0 / - 0.10 |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 26 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0240-LS (10 Pcs)
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring 18 units (180 pcs) Available Now | Further orders can be expected around Thu, Oct 02, 2025 Regular price
$28.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0 / - 0.10 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.00
mm + 0 / - 0.13 (Equiv. 0.906 in.) |
Approx. Loose Circlip ID (A)
22.50
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 1.75 mm + 0 / - 0.10
Groove Width (W): 1.30 mm
Clearance in Groove (C1): 26 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0240-LS (10 Pcs)
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring 18 units (180 pcs) Available Now | Further orders can be expected around Thu, Oct 02, 2025 Regular price
$28.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
21.78 - 22.33
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-024
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
21.78 - 22.33
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 1.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-024
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
Radial Wall (S) min/max
3.20
mm |
Groove Width (W)
1.30
mm |
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400-C-V (500 Pcs)
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$364.77 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
|
||
|
Material: Carbon Steel
Radial Wall (S) min/max: 3.20 mm
Groove Width (W): 1.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400-C-V (500 Pcs)
External Retaining Rings - 24x1.2x22.9 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025 Regular price
$364.77 AUD
Regular price
Unit price
per
Per 500
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.21 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
22.70
mm + 0.00 / - 0.06 (Equiv. 0.894 in.) |
Approx. Loose Circlip ID (A)
22.00
mm |
Groove Width (W)
1.85
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400HA-C
External Retaining Rings - 24x1.75x22.7 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.21 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
22.70
mm + 0.00 / - 0.06 (Equiv. 0.894 in.) |
Approx. Loose Circlip ID (A)
22.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 1.85 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400HA-C
External Retaining Rings - 24x1.75x22.7 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.21 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
Groove Width (W)
1.85
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 37.10 mm
Clearance in Groove (C1): 35.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400H-C (2 Pcs)
External Retaining Rings - 24x1.75x22.9 mm Circlips - Carbon Steel Circlip 249 units (498 pcs) Available Now | Further orders can be expected around Sat, Nov 29, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
1.75
mm + 0.00 / - 0.21 (Equiv. 0.069 in.) |
Groove Dia. (Dg)
22.90
mm + 0.00 / - 0.06 (Equiv. 0.902 in.) |
Approx. Loose Circlip ID (A)
22.20
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.85 mm
Clearance on Shaft (C1): 37.10 mm
Clearance in Groove (C1): 35.50 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02400H-C (2 Pcs)
External Retaining Rings - 24x1.75x22.9 mm Circlips - Carbon Steel Circlip 249 units (498 pcs) Available Now | Further orders can be expected around Sat, Nov 29, 2025 Regular price
$3.95 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
2.00
mm (Equiv. 0.079 in.) |
Groove Dia. (Dg)
22.0
mm + 0 / - 0.50 (Equiv. 0.866 in.) |
Approx. Loose Circlip ID (A)
21.7
mm |
Radial Wall (S) min/max
22.0
mm +/- 0.10 |
Groove Width (W)
2.2
mm Min. |
|
|
Material: Carbon Spring Steel
Clearance on Shaft (C1): 25.7 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0240-RD (5 Pcs)
External Retaining Rings - 24x2x22 mm Round Wire - Carbon Spring Steel Circlip 36 units (180 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
24.00
mm (Equiv. 0.945 in.) |
Clip Thickness (T)
2.00
mm (Equiv. 0.079 in.) |
Groove Dia. (Dg)
22.0
mm + 0 / - 0.50 (Equiv. 0.866 in.) |
Approx. Loose Circlip ID (A)
21.7
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 22.0 mm +/- 0.10
Groove Width (W): 2.2 mm Min.
Clearance on Shaft (C1): 25.7 mm
Clearance in Groove (C1): Round Section mm
Category: Retaining Rings - External - Round Wire |
||||||
|
Part Number: WRE-0240-RD (5 Pcs)
External Retaining Rings - 24x2x22 mm Round Wire - Carbon Spring Steel Circlip 36 units (180 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.59 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.051 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.10
mm |
Groove Width (W)
1.20
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499-C (50 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$28.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.051 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.10
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499-C (50 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$28.14 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.96
mm (Equiv. 0.983 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.88
mm (Equiv. 0.94 in.) |
Approx. Loose Circlip ID (A)
23.46
mm + 0.00 / - 0.33 |
Radial Wall (S) min/max
1.91
mm +/- 0.11 |
Groove Width (W)
1.21
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 27.28 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RST-098 (140 Pcs)
External Retaining Rings - 24.96x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$579.86 AUD
Regular price
Unit price
per
Per 140
|
||||||
|
Shaft Diameter (Ds)
24.96
mm (Equiv. 0.983 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.88
mm (Equiv. 0.94 in.) |
Approx. Loose Circlip ID (A)
23.46
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 1.91 mm +/- 0.11
Groove Width (W): 1.21 mm +/- 0.07
Clearance in Groove (C1): 27.28 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RST-098 (140 Pcs)
External Retaining Rings - 24.96x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 05, 2025 Regular price
$579.86 AUD
Regular price
Unit price
per
Per 140
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.051 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.10
mm |
Groove Width (W)
1.20
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499-CZY (50 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$31.77 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.051 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.10
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499-CZY (50 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$31.77 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.051 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.10
mm |
Radial Wall (S) min/max
B (Square Ends)
mm |
Groove Width (W)
1.20
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499-S15 (3 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.076 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.051 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.10
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Radial Wall (S) min/max: B (Square Ends) mm
Groove Width (W): 1.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499-S15 (3 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$8.86 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.24
mm + 0.00 / - 0.33 |
Radial Wall (S) min/max
2.16
mm +/- 0.10 |
Groove Width (W)
1.21
mm +/- 0.08 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 27.56 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-098 (10 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring 2 units (20 pcs) Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.52
mm (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.24
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 2.16 mm +/- 0.10
Groove Width (W): 1.21 mm +/- 0.08
Clearance in Groove (C1): 27.56 mm +/- 0.04
Category: Retaining Rings - External - Spiral Rings |
||||||
|
Part Number: RSN-098 (10 Pcs)
External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring 2 units (20 pcs) Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$8.00 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.88
mm +/- 0.08 (Equiv. 0.94 in.) |
Approx. Loose Circlip ID (A)
23.50
mm + 0.00 / - 0.79 |
Radial Wall (S) min/max
1.98
mm +/- 0.08 |
Groove Width (W)
1.17
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 27.46 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0250-LS-L
External Retaining Rings - 24.99x1.07x23.88 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.07
mm +/- 0.05 (Equiv. 0.042 in.) |
Groove Dia. (Dg)
23.88
mm +/- 0.08 (Equiv. 0.94 in.) |
Approx. Loose Circlip ID (A)
23.50
mm + 0.00 / - 0.79 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) min/max: 1.98 mm +/- 0.08
Groove Width (W): 1.17 mm
Clearance in Groove (C1): 27.46 mm
Category: Retaining Rings - External - Snap Rings |
||||||
|
Part Number: WRE-0250-LS-L
External Retaining Rings - 24.99x1.07x23.88 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.98
mm + 0.025 / - 0.076 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.076 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.01
mm |
Groove Width (W)
21.84
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 34.54 mm
Clearance in Groove (C1): 33.02 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499H-C (2 Pcs)
External Retaining Rings - 24.99x1.98x23.52 mm Circlips - Carbon Steel Circlip 11 units (22 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$3.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.98
mm + 0.025 / - 0.076 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
23.52
mm +/- 0.076 (Equiv. 0.926 in.) |
Approx. Loose Circlip ID (A)
23.01
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 21.84 mm
Clearance on Shaft (C1): 34.54 mm
Clearance in Groove (C1): 33.02 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499H-C (2 Pcs)
External Retaining Rings - 24.99x1.98x23.52 mm Circlips - Carbon Steel Circlip 11 units (22 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$3.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
2.00
mm + 0.025 / - 0.076 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
23.50
mm +/- 0.076 (Equiv. 0.925 in.) |
Approx. Loose Circlip ID (A)
22.90
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499H-CZY (6 Pcs)
External Retaining Rings - 24.99x2x23.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
2.00
mm + 0.025 / - 0.076 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
23.50
mm +/- 0.076 (Equiv. 0.925 in.) |
Approx. Loose Circlip ID (A)
22.90
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499H-CZY (6 Pcs)
External Retaining Rings - 24.99x2x23.5 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Per 6
|
||||||
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
2.00
mm + 0.025 / - 0.076 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
23.50
mm +/- 0.076 (Equiv. 0.925 in.) |
Approx. Loose Circlip ID (A)
22.90
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499H-S15
External Retaining Rings - 24.99x2x23.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 17 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$7.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
24.99
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
2.00
mm + 0.025 / - 0.076 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
23.50
mm +/- 0.076 (Equiv. 0.925 in.) |
Approx. Loose Circlip ID (A)
22.90
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02499H-S15
External Retaining Rings - 24.99x2x23.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 17 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$7.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
22.78
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-025 (5 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip 9 units (45 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
22.78
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.30 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: DAK-025 (5 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip 9 units (45 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$4.41 AUD
Regular price
Unit price
per
Per 5
|
||||||
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
23.20
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 34.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02500-S15
External Retaining Rings - 25x1.2x23.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 8 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
23.20
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 1.30 mm
Clearance on Shaft (C1): 34.20 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02500-S15
External Retaining Rings - 25x1.2x23.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 8 Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$2.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
23.20
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance on Shaft (C1): 34.20 mm
Clearance in Groove (C1): 32.70 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02500-CZ (50 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$33.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
23.20
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 1.30 mm
Clearance on Shaft (C1): 34.20 mm
Clearance in Groove (C1): 32.70 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02500-CZ (50 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 23, 2025 Regular price
$33.32 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
23.20
mm |
Groove Width (W)
1.30
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 34.20 mm
Clearance in Groove (C1): 32.70 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02500-C (10 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip 43 units (430 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft Diameter (Ds)
25.00
mm (Equiv. 0.984 in.) |
Clip Thickness (T)
1.20
mm + 0.00 / - 0.21 (Equiv. 0.047 in.) |
Groove Dia. (Dg)
23.90
mm + 0.00 / - 0.06 (Equiv. 0.941 in.) |
Approx. Loose Circlip ID (A)
23.20
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 1.30 mm
Clearance on Shaft (C1): 34.20 mm
Clearance in Groove (C1): 32.70 mm
Category: Retaining Rings - External - Circlips |
||||||
|
Part Number: CCE-02500-C (10 Pcs)
External Retaining Rings - 25x1.2x23.9 mm Circlips - Carbon Steel Circlip 43 units (430 pcs) Available Now | Further orders can be expected around Tue, Sep 23, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
