| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

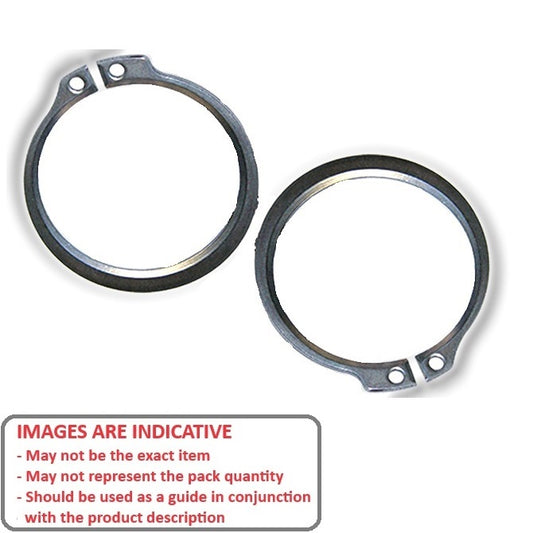

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
131.62
mm +/- 0.10 (Equiv. 5.182 in.) |
Approx. Loose Circlip ID (A)
130.10
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
5.31 - 9.91
mm |
Groove Width (W)
2.64
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish

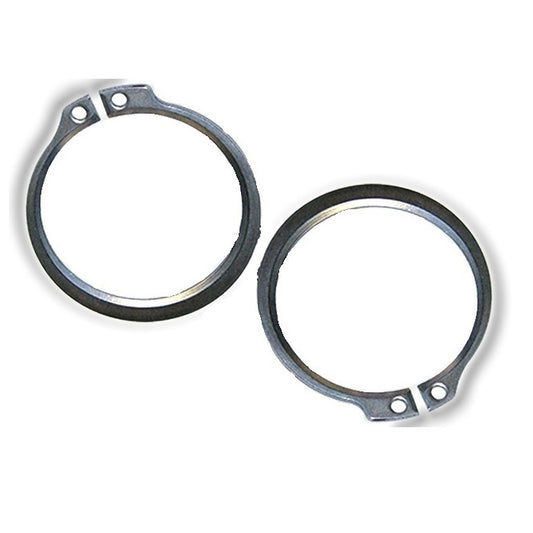

Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-13970-C
External Retaining Rings - 139.7x3.18x131.62 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,045.95 AUD
Regular price
Unit price
per
Each
|
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
131.62
mm +/- 0.10 (Equiv. 5.182 in.) |
Approx. Loose Circlip ID (A)
130.10
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 5.31 - 9.91 mm
Groove Width (W): 2.64 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-13970-C
External Retaining Rings - 139.7x3.18x131.62 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,045.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
133.71
mm +/- 0.102 (Equiv. 5.264 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-13970-C
External Retaining Rings - 139.7x3.18x133.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$77.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
133.71
mm +/- 0.102 (Equiv. 5.264 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-13970-C
External Retaining Rings - 139.7x3.18x133.71 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$77.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
133.71
mm +/- 0.102 (Equiv. 5.264 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
Radial Wall (S) min/max
B (Square Ends)
mm |
Groove Width (W)
3.50
mm |
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-13970-S15
External Retaining Rings - 139.7x3.18x133.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,216.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
133.71
mm +/- 0.102 (Equiv. 5.264 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Radial Wall (S) min/max: B (Square Ends) mm
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-13970-S15
External Retaining Rings - 139.7x3.18x133.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,216.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.10 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
133.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 160.00 mm
Clearance in Groove (C1): 165.20 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14000-C
External Retaining Rings - 140x4x136 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$14.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.10 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
133.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 160.00 mm
Clearance in Groove (C1): 165.20 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14000-C
External Retaining Rings - 140x4x136 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$14.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.12 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
133.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14000H-C
External Retaining Rings - 140x5x136 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.12 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
133.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14000H-C
External Retaining Rings - 140x5x136 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
133.71
mm +/- 0.102 (Equiv. 5.264 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-13970-CZY
External Retaining Rings - 139.7x3.18x133.71 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$111.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
139.70
mm (Equiv. 5.5 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
133.71
mm +/- 0.102 (Equiv. 5.264 in.) |
Approx. Loose Circlip ID (A)
131.10
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-13970-CZY
External Retaining Rings - 139.7x3.18x133.71 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$111.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.10 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
131.70 - 133.54
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - External - Circlips - Tabbed |
||||||
|
Part Number: DAK-140
External Retaining Rings - 140x4x136 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
140.00
mm (Equiv. 5.512 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.50 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
136.00
mm + 0.00 / - 0.10 (Equiv. 5.354 in.) |
Approx. Loose Circlip ID (A)
131.70 - 133.54
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips - Tabbed |
||||||
|
Part Number: DAK-140
External Retaining Rings - 140x4x136 mm Circlips - Carbon Spring Steel Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
142.00
mm (Equiv. 5.591 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
138.00
mm + 0.00 / - 0.10 (Equiv. 5.433 in.) |
Approx. Loose Circlip ID (A)
135.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14200-C
External Retaining Rings - 142x4x138 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
142.00
mm (Equiv. 5.591 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
138.00
mm + 0.00 / - 0.10 (Equiv. 5.433 in.) |
Approx. Loose Circlip ID (A)
135.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14200-C
External Retaining Rings - 142x4x138 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
145.00
mm (Equiv. 5.709 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
141.00
mm + 0.00 / - 0.12 (Equiv. 5.551 in.) |
Approx. Loose Circlip ID (A)
138.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14500H-C
External Retaining Rings - 145x5x141 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
145.00
mm (Equiv. 5.709 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
141.00
mm + 0.00 / - 0.12 (Equiv. 5.551 in.) |
Approx. Loose Circlip ID (A)
138.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14500H-C
External Retaining Rings - 145x5x141 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
137.57
mm +/- 0.10 (Equiv. 5.416 in.) |
Approx. Loose Circlip ID (A)
136.04
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
5.59 - 10.36
mm |
Groove Width (W)
2.62
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-14605-C
External Retaining Rings - 146.05x3.18x137.57 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
137.57
mm +/- 0.10 (Equiv. 5.416 in.) |
Approx. Loose Circlip ID (A)
136.04
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 5.59 - 10.36 mm
Groove Width (W): 2.62 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-14605-C
External Retaining Rings - 146.05x3.18x137.57 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (Equiv. 5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14605-S15
External Retaining Rings - 146.05x3.18x139.83 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,414.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (Equiv. 5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14605-S15
External Retaining Rings - 146.05x3.18x139.83 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,414.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
147.00
mm (Equiv. 5.787 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
143.00
mm + 0.00 / - 0.10 (Equiv. 5.63 in.) |
Approx. Loose Circlip ID (A)
140.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14700-C
External Retaining Rings - 147x4x143 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
147.00
mm (Equiv. 5.787 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
143.00
mm + 0.00 / - 0.10 (Equiv. 5.63 in.) |
Approx. Loose Circlip ID (A)
140.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14700-C
External Retaining Rings - 147x4x143 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (Equiv. 5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14605-CZY (3 Pcs)
External Retaining Rings - 146.05x3.18x139.83 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$399.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (Equiv. 5.505 in.) |
Approx. Loose Circlip ID (A)
137.10
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14605-CZY (3 Pcs)
External Retaining Rings - 146.05x3.18x139.83 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$399.95 AUD
Regular price
Unit price
per
Per 3
|
||||||
|
||||||
|
Shaft Diameter (Ds)
148.00
mm (Equiv. 5.827 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
143.37
mm + 0.00 / - 0.10 (Equiv. 5.644 in.) |
Approx. Loose Circlip ID (A)
140.63
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14800-C
External Retaining Rings - 148x4x143.37 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
148.00
mm (Equiv. 5.827 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
143.37
mm + 0.00 / - 0.10 (Equiv. 5.644 in.) |
Approx. Loose Circlip ID (A)
140.63
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14800-C
External Retaining Rings - 148x4x143.37 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (Equiv. 5.505 in.) |
Approx. Loose Circlip ID (A)
137.06
mm |
Groove Width (W)
3.53
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 163.32 mm
Clearance in Groove (C1): 169.67 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14605-C
External Retaining Rings - 146.05x3.18x139.83 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$114.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
146.05
mm (Equiv. 5.75 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
139.83
mm +/- 0.102 (Equiv. 5.505 in.) |
Approx. Loose Circlip ID (A)
137.06
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.53 mm
Clearance on Shaft (C1): 163.32 mm
Clearance in Groove (C1): 169.67 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-14605-C
External Retaining Rings - 146.05x3.18x139.83 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$114.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15000-C
External Retaining Rings - 150x4x145 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15000-C
External Retaining Rings - 150x4x145 mm Circlips - Carbon Steel Circlip 1 Available Now | Further orders can be expected around Wed, Sep 24, 2025 Regular price
$11.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15000-S15
External Retaining Rings - 150x4x145 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.10 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 4.15 mm
Clearance on Shaft (C1): 171.00 mm
Clearance in Groove (C1): 177.30 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15000-S15
External Retaining Rings - 150x4x145 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.12 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15000H-C
External Retaining Rings - 150x5x145 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
150.00
mm (Equiv. 5.906 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
145.00
mm + 0.00 / - 0.12 (Equiv. 5.709 in.) |
Approx. Loose Circlip ID (A)
142.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15000H-C
External Retaining Rings - 150x5x145 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.00
mm (Equiv. 5.984 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
147.00
mm + 0.00 / - 0.10 (Equiv. 5.787 in.) |
Approx. Loose Circlip ID (A)
143.63
mm |
Groove Width (W)
4.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15200-C
External Retaining Rings - 152x4x147 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.00
mm (Equiv. 5.984 in.) |
Clip Thickness (T)
4.00
mm + 0.00 / - 0.63 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
147.00
mm + 0.00 / - 0.10 (Equiv. 5.787 in.) |
Approx. Loose Circlip ID (A)
143.63
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15200-C
External Retaining Rings - 152x4x147 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
143.54
mm +/- 0.10 (Equiv. 5.651 in.) |
Approx. Loose Circlip ID (A)
142.01
mm + 1.52 / - 0.00 |
Radial Wall (S) min/max
4.34 - 9.68
mm |
Groove Width (W)
2.59
mm + 0.08 / - 0.00 |
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-15240-C
External Retaining Rings - 152.4x3.18x143.54 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,098.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm + 0.00 / - 0.18 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
143.54
mm +/- 0.10 (Equiv. 5.651 in.) |
Approx. Loose Circlip ID (A)
142.01
mm + 1.52 / - 0.00 |
|
||
|
Material: Carbon Spring Steel Self Finish
Radial Wall (S) min/max: 4.34 - 9.68 mm
Groove Width (W): 2.59 mm + 0.08 / - 0.00
Category: Retaining Rings - External - Circlips - Bevelled |
||||||
|
Part Number: CEB-15240-C
External Retaining Rings - 152.4x3.18x143.54 mm Circlips - Carbon Spring Steel Self Finish Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,098.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (Equiv. 5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15240-S15
External Retaining Rings - 152.4x3.18x145.92 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$708.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (Equiv. 5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15240-S15
External Retaining Rings - 152.4x3.18x145.92 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$708.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (Equiv. 5.745 in.) |
Approx. Loose Circlip ID (A)
143.03
mm |
Groove Width (W)
3.53
mm |
|
|
|
Material: Carbon Steel
Clearance on Shaft (C1): 169.42 mm
Clearance in Groove (C1): 176.02 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15240-C
External Retaining Rings - 152.4x3.18x145.92 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$132.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (Equiv. 5.745 in.) |
Approx. Loose Circlip ID (A)
143.03
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.53 mm
Clearance on Shaft (C1): 169.42 mm
Clearance in Groove (C1): 176.02 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15240-C
External Retaining Rings - 152.4x3.18x145.92 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$132.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (Equiv. 5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
Groove Width (W)
3.50
mm |
|
|
|
Material: Carbon Steel Zinc Plated
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15240-CZY
External Retaining Rings - 152.4x3.18x145.92 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$158.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Shaft Diameter (Ds)
152.40
mm (Equiv. 6 in.) |
Clip Thickness (T)
3.18
mm +/- 0.176 (Equiv. 0.125 in.) |
Groove Dia. (Dg)
145.92
mm +/- 0.102 (Equiv. 5.745 in.) |
Approx. Loose Circlip ID (A)
143.00
mm |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.50 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15240-CZY
External Retaining Rings - 152.4x3.18x145.92 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025 Regular price
$158.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Shaft Diameter (Ds)
155.00
mm (Equiv. 6.102 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
150.00
mm + 0.00 / - 0.12 (Equiv. 5.906 in.) |
Approx. Loose Circlip ID (A)
146.00
mm |
Groove Width (W)
5.15
mm |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15500H-C
External Retaining Rings - 155x5x150 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft Diameter (Ds)
155.00
mm (Equiv. 6.102 in.) |
Clip Thickness (T)
5.00
mm + 0.00 / - 0.63 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
150.00
mm + 0.00 / - 0.12 (Equiv. 5.906 in.) |
Approx. Loose Circlip ID (A)
146.00
mm |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm
Category: Retaining Rings - External - Circlips - Standard |
||||||
|
Part Number: CCE-15500H-C
External Retaining Rings - 155x5x150 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
