Collection: Plungers - Spring - No Handle - Steel - Threadlock

Plungers -> Spring -> No Handle -> Steel -> Threadlock

There is only 1 product in the sub-categories of Plungers - Spring - No Handle - Steel - Threadlock. Browse the Plungers - Spring - No Handle - Steel - Threadlock products table.

Category Details

A selection of Threadlock Steel No Handle Spring Plungers. With Long-Lok thread locking compound to prevent loosening

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Spring - No Handle - Steel - Threadlock category on the Small Parts & Bearings online store.
Thread Size (D) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (D1) Tip Length (C) Indicative
Thread Size (D)
M5 (5x0.8mm) x 18

Thread Length (B)
12.0
mm

(Equiv. 0.472 in.)
Initial Pressure (F1)
6.00
N
Final Pressure (F2)
20.00
N
Tip Diameter (D1)
2.40
mm
Tip Length (C)
2.40
mm

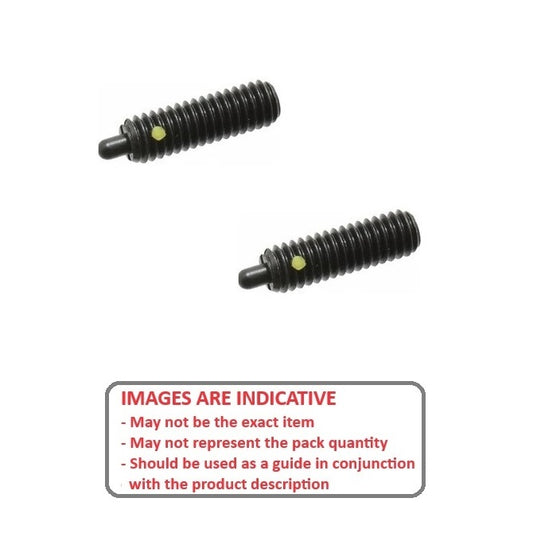

Spring Plungers - M5 - 5x0.8mm - x 18 12 mm - 6 N No Handle - Steel
Material: Steel    Body Length (L): 18.0 mm    Drive: 1.5mm Hex
Part Number: PLST-050M-180-CLK-020
Spring Plungers - M5 - 5x0.8mm - x 18 12 mm - 6 N No Handle - Steel Plunger
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
Regular price $5.00 AUD
Regular price $9.50 AUD Sale price $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Thread Size (D) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Indicative
Thread Size (D)
M5 (5x0.8mm) x 18

Thread Length (B)
12.0
mm

(Equiv. 0.472 in.)
Initial Pressure (F1)
6.00
N
Final Pressure (F2)
20.00
N

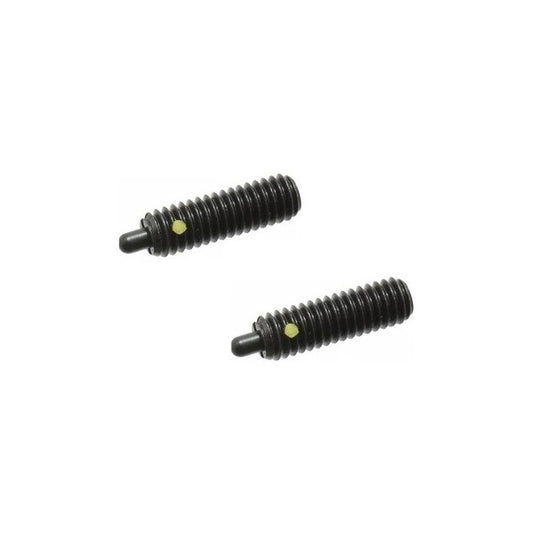

Spring Plungers - M5 - 5x0.8mm - x 18 12 mm - 6 N No Handle - Steel
Material: Steel    Tip Diameter (D1): 2.40 mm    Tip Length (C): 2.40 mm    Body Length (L): 18.0 mm    Drive: 1.5mm Hex
Part Number: PLST-050M-180-CLK-020
Spring Plungers - M5 - 5x0.8mm - x 18 12 mm - 6 N No Handle - Steel Plunger
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
Regular price $5.00 AUD
Regular price $9.50 AUD Sale price $5.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
