Plungers - Spring - Acetal Handle - Non Locking - Stainless

Plungers -> Spring -> Acetal Handle -> Non Locking -> Stainless

There are 6 products in the sub-categories of Plungers - Spring - Acetal Handle - Non Locking - Stainless. Browse the Plungers - Spring - Acetal Handle - Non Locking - Stainless products table.

Category Details

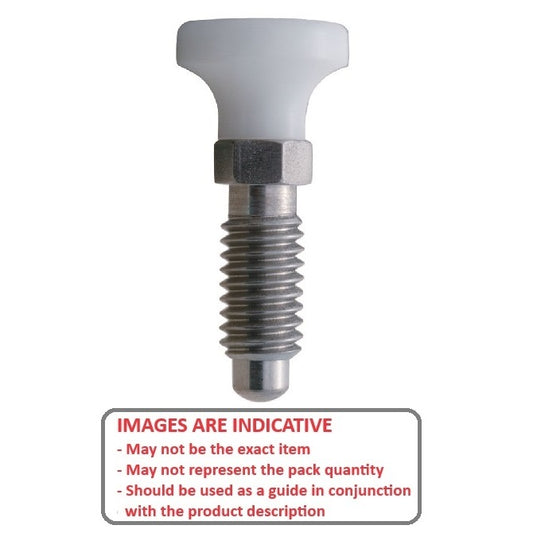

A selection of Stainless Non Locking Acetal Handle Spring Plungers. White acetal plastic handle . 303 stainless steel body and plunger.

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Plungers - Spring - Acetal Handle - Non Locking - Stainless category on the Small Parts & Bearings online store.
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Tip Diameter (D) Tip Length (C) Indicative
Thread Size (A)
M6 (6x1mm)

Thread Length (B)
13.0
mm

(Equiv. 0.512 in.)
Initial Pressure (F1)
0.5
N
Final Pressure (F2)
1.5
N
Tip Diameter (D)
3.0
mm
Tip Length (C)
3.0
mm
Spring Plungers - M6 - 6x1mm - 13 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Head Diameter (E): 12.0 mm    Hex: 6.0
Part Number: PLST-060-130-HS-002
Spring Plungers - M6 - 6x1mm - 13 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$58.32 AUD
$69.98 AUD $58.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Thread Length (B) Initial Pressure (F1) Final Pressure (F2) Indicative
Thread Size (A)
M6 (6x1mm)

Thread Length (B)
13.0
mm

(Equiv. 0.512 in.)
Initial Pressure (F1)
0.5
N
Final Pressure (F2)
1.5
N
Spring Plungers - M6 - 6x1mm - 13 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Tip Diameter (D): 3.0 mm    Tip Length (C): 3.0 mm    Head Diameter (E): 12.0 mm    Hex: 6.0
Part Number: PLST-060-130-HS-002
Spring Plungers - M6 - 6x1mm - 13 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$58.32 AUD
$69.98 AUD $58.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Thread Length (B)
12.7
mm

(Equiv. 0.5 in.)
Initial Pressure (F1)
0.5
N
Final Pressure (F2)
1.6
N
Tip Diameter (D)
4.0
mm
Tip Length (C)
3.3
mm
Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Head Diameter (E): 12.7 mm    Hex: 6.4
Part Number: PLST-064C-127-HS-002
Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$37.14 AUD
$44.56 AUD $37.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/4-20 UNC (6.35mm)

Thread Length (B)
12.7
mm

(Equiv. 0.5 in.)
Initial Pressure (F1)
0.5
N
Final Pressure (F2)
1.6
N
Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Tip Diameter (D): 4.0 mm    Tip Length (C): 3.3 mm    Head Diameter (E): 12.7 mm    Hex: 6.4
Part Number: PLST-064C-127-HS-002
Spring Plungers - 1/4-20 UNC - 6.35mm - 12.7 mm - 0.5 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$37.14 AUD
$44.56 AUD $37.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Thread Length (B)
19.1
mm

(Equiv. 0.752 in.)
Initial Pressure (F1)
1.1
N
Final Pressure (F2)
8.9
N
Tip Diameter (D)
6.3
mm
Tip Length (C)
4.8
mm
Spring Plungers - 3/8-16 UNC - 9.53mm - 19.1 mm - 1.1 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Head Diameter (E): 19.1 mm    Hex: 9.5
Part Number: PLST-095C-191-HS-009
Spring Plungers - 3/8-16 UNC - 9.53mm - 19.1 mm - 1.1 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$37.41 AUD
$44.89 AUD $37.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/8-16 UNC (9.53mm)

Thread Length (B)
19.1
mm

(Equiv. 0.752 in.)
Initial Pressure (F1)
1.1
N
Final Pressure (F2)
8.9
N
Spring Plungers - 3/8-16 UNC - 9.53mm - 19.1 mm - 1.1 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Tip Diameter (D): 6.3 mm    Tip Length (C): 4.8 mm    Head Diameter (E): 19.1 mm    Hex: 9.5
Part Number: PLST-095C-191-HS-009
Spring Plungers - 3/8-16 UNC - 9.53mm - 19.1 mm - 1.1 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$37.41 AUD
$44.89 AUD $37.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M10 (10x1.5mm)

Thread Length (B)
20.0
mm

(Equiv. 0.787 in.)
Initial Pressure (F1)
1.0
N
Final Pressure (F2)
9.0
N
Tip Diameter (D)
6.0
mm
Tip Length (C)
5.0
mm
Spring Plungers - M10 - 10x1.5mm - 20 mm - 1 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Head Diameter (E): 19.0 mm    Hex: 10.0
Part Number: PLST-100-200-HS-009
Spring Plungers - M10 - 10x1.5mm - 20 mm - 1 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$57.50 AUD
$69.00 AUD $57.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M10 (10x1.5mm)

Thread Length (B)
20.0
mm

(Equiv. 0.787 in.)
Initial Pressure (F1)
1.0
N
Final Pressure (F2)
9.0
N
Spring Plungers - M10 - 10x1.5mm - 20 mm - 1 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Tip Diameter (D): 6.0 mm    Tip Length (C): 5.0 mm    Head Diameter (E): 19.0 mm    Hex: 10.0
Part Number: PLST-100-200-HS-009
Spring Plungers - M10 - 10x1.5mm - 20 mm - 1 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$57.50 AUD
$69.00 AUD $57.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M12 (12x1.75mm)

Thread Length (B)
25.0
mm

(Equiv. 0.984 in.)
Initial Pressure (F1)
2.5
N
Final Pressure (F2)
8.0
N
Tip Diameter (D)
8.0
mm
Tip Length (C)
6.0
mm
Spring Plungers - M12 - 12x1.75mm - 25 mm - 2.5 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Head Diameter (E): 25.0 mm    Hex: 12.0
Part Number: PLST-120-250-HS-008
Spring Plungers - M12 - 12x1.75mm - 25 mm - 2.5 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$70.59 AUD
$84.71 AUD $70.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M12 (12x1.75mm)

Thread Length (B)
25.0
mm

(Equiv. 0.984 in.)
Initial Pressure (F1)
2.5
N
Final Pressure (F2)
8.0
N
Spring Plungers - M12 - 12x1.75mm - 25 mm - 2.5 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Tip Diameter (D): 8.0 mm    Tip Length (C): 6.0 mm    Head Diameter (E): 25.0 mm    Hex: 12.0
Part Number: PLST-120-250-HS-008
Spring Plungers - M12 - 12x1.75mm - 25 mm - 2.5 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$70.59 AUD
$84.71 AUD $70.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Thread Length (B)
25.4
mm

(Equiv. 1 in.)
Initial Pressure (F1)
2.2
N
Final Pressure (F2)
7.8
N
Tip Diameter (D)
7.9
mm
Tip Length (C)
6.4
mm
Spring Plungers - 1/2-13 UNC - 12.7mm - 25.4 mm - 2.2 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Head Diameter (E): 25.4 mm    Hex: 12.7
Part Number: PLST-127C-254-HS-008
Spring Plungers - 1/2-13 UNC - 12.7mm - 25.4 mm - 2.2 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$59.68 AUD
$71.62 AUD $59.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1/2-13 UNC (12.7mm)

Thread Length (B)
25.4
mm

(Equiv. 1 in.)
Initial Pressure (F1)
2.2
N
Final Pressure (F2)
7.8
N
Spring Plungers - 1/2-13 UNC - 12.7mm - 25.4 mm - 2.2 N Acetal Handle - Stainless Steel with Acetal
Material: Stainless Steel with Acetal    Tip Diameter (D): 7.9 mm    Tip Length (C): 6.4 mm    Head Diameter (E): 25.4 mm    Hex: 12.7
Part Number: PLST-127C-254-HS-008
Spring Plungers - 1/2-13 UNC - 12.7mm - 25.4 mm - 2.2 N Acetal Handle - Stainless Steel with Acetal Plunger
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 24, 2025
$59.68 AUD
$71.62 AUD $59.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
