Collection: Plungers - Ball Push Fit - Steel Body
Plungers -> Ball Push Fit -> Steel BodyThere are 35 products in the sub-categories of Plungers - Ball Push Fit - Steel Body. Scroll down or follow the link to Plungers - Ball Push Fit - Steel Body in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Plungers - Ball Push Fit - Steel Body - Acetal Ball
A selection of Acetal Ball Steel Body Ball Push Fit Plungers. Unthreaded.

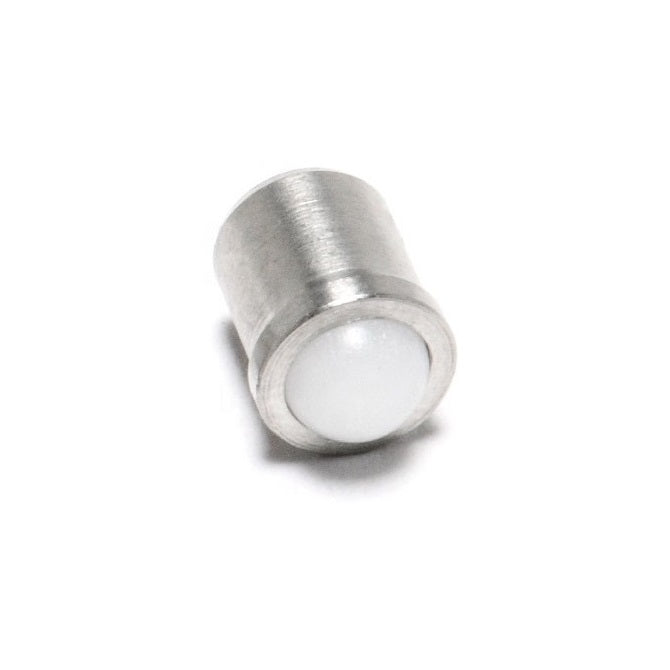

Plungers - Ball Push Fit - Steel Body - Nylon Ball
A selection of Nylon Ball Steel Body Ball Push Fit Plungers. Unthreaded.

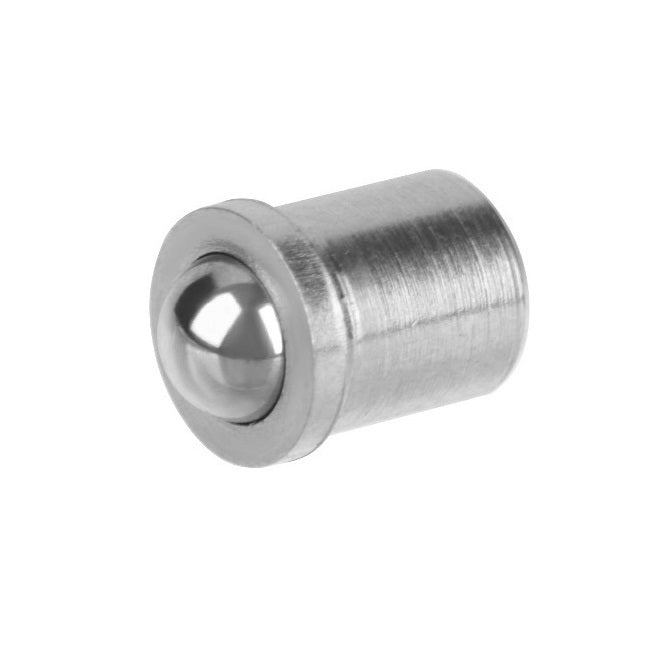

Plungers - Ball Push Fit - Steel Body - Stainless Ball
A selection of Stainless Ball Steel Body Ball Push Fit Plungers. Unthreaded.
Category Details
This category includes various types of ball push fit plungers.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Plungers - Ball Push Fit - Steel Body category on the Small Parts & Bearings online store.
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) | Ball Diameter (D1) | Ball Height (H) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-CN-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
| Body Diameter (D) | Length (L) | Initial Pressure (F1) | Final Pressure (F2) |
Indicative Image |
||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-CN-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-CS-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
1.8
N |
Final Pressure (F2)
5.8
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-CS-006
Ball Push Fit Plungers - 3.18x6.4 mm - 1.8 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-CN-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-032-064-CN-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-CS-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
3.3
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-CS-011
Ball Push Fit Plungers - 3.18x6.4 mm - 3.3 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-032-064-CA-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-032-064-CA-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.86 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0
(Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
2.4
mm |
Ball Height (H)
0.9
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-CS-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
3.18
mm + 0.1 / - 0.0 (Equiv. 0.125 in.) |
Length (L)
6.4
mm (Equiv. 0.252 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 2.4 mm
Ball Height (H): 0.9 mm
Shoulder Diameter (S): 4.8 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-032-064-CS-022
Ball Push Fit Plungers - 3.18x6.4 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.77 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-100-CN-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-100-CN-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-100-CS-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$6.77 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.0
mm (Equiv. 0.394 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-100-CS-022
Ball Push Fit Plungers - 4.78x10 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$6.77 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-103-CN-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-048-103-CN-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-CS-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Stainless Steel Plunger 2 Available Now | Further orders can be expected around Wed, Oct 01, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
4.5
N |
Final Pressure (F2)
11.1
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-CS-011
Ball Push Fit Plungers - 4.78x10.3 mm - 4.5 N Steel Body - Stainless Steel Plunger 2 Available Now | Further orders can be expected around Wed, Oct 01, 2025 Regular price
$9.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-048-103-CA-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-048-103-CA-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0
(Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
4.0
mm |
Ball Height (H)
1.5
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-CS-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
4.78
mm + 0.1 / - 0.0 (Equiv. 0.188 in.) |
Length (L)
10.3
mm (Equiv. 0.406 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.0 mm
Ball Height (H): 1.5 mm
Shoulder Diameter (S): 6.4 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-048-103-CS-044
Ball Push Fit Plungers - 4.78x10.3 mm - 17.8 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-064-120-CN-031
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-064-120-CN-031
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-120-CS-031
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$6.68 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.0
mm (Equiv. 0.472 in.) |
Initial Pressure (F1)
13.4
N |
Final Pressure (F2)
31.1
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-120-CS-031
Ball Push Fit Plungers - 6.35x12 mm - 13.4 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$6.68 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
6.7
N |
Final Pressure (F2)
15.6
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-064-122-CN-016
Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
6.7
N |
Final Pressure (F2)
15.6
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-064-122-CN-016
Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-064-122-CA-058
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-064-122-CA-058
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.41 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
6.7
N |
Final Pressure (F2)
15.6
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-122-CS-016
Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
6.7
N |
Final Pressure (F2)
15.6
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-122-CS-016
Ball Push Fit Plungers - 6.35x12.2 mm - 6.7 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0
(Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
Ball Diameter (D1)
4.8
mm |
Ball Height (H)
1.8
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-122-CS-058
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Stainless Steel Plunger 7 Available Now | Further orders can be expected around Wed, Oct 01, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
6.35
mm + 0.1 / - 0.0 (Equiv. 0.25 in.) |
Length (L)
12.2
mm (Equiv. 0.48 in.) |
Initial Pressure (F1)
26.7
N |
Final Pressure (F2)
57.8
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 4.8 mm
Ball Height (H): 1.8 mm
Shoulder Diameter (S): 7.9 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-064-122-CS-058
Ball Push Fit Plungers - 6.35x12.2 mm - 26.7 N Steel Body - Stainless Steel Plunger 7 Available Now | Further orders can be expected around Wed, Oct 01, 2025 Regular price
$8.50 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-022
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$9.77 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-022
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$9.77 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-079-163-CN-022
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
8.9
N |
Final Pressure (F2)
22.2
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-079-163-CN-022
Ball Push Fit Plungers - 7.93x16.3 mm - 8.9 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Nylon (Polyamide 6/6)
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-079-163-CN-044
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Nylon (Polyamide 6/6)
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Nylon Ball |
||||||
|
Part Number: PLBP-079-163-CN-044
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Nylon Polyamide 6/6 Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.05 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
35.6
N |
Final Pressure (F2)
71.2
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Acetal
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-079-163-CA-071
Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.14 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
35.6
N |
Final Pressure (F2)
71.2
N |
|
||
|
Material: Acetal
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Acetal Ball |
||||||
|
Part Number: PLBP-079-163-CA-071
Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Steel Body - Acetal Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$8.14 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
35.6
N |
Final Pressure (F2)
71.2
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-071
Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
35.6
N |
Final Pressure (F2)
71.2
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-071
Ball Push Fit Plungers - 7.93x16.3 mm - 35.6 N Steel Body - Stainless Steel Plunger Out of Stock | Backorder Now | Orders can be expected around Wed, Oct 01, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0
(Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
Ball Diameter (D1)
6.4
mm |
Ball Height (H)
2.3
mm |
|
|
Material: Stainless Steel
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-044
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Stainless Steel Plunger 8 Available Now | Further orders can be expected around Wed, Oct 01, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Body Diameter (D)
7.93
mm + 0.1 / - 0.0 (Equiv. 0.312 in.) |
Length (L)
16.3
mm (Equiv. 0.642 in.) |
Initial Pressure (F1)
17.8
N |
Final Pressure (F2)
44.5
N |
|
||
|
Material: Stainless Steel
Ball Diameter (D1): 6.4 mm
Ball Height (H): 2.3 mm
Shoulder Diameter (S): 9.5 mm
Category: Plungers - Ball Push Fit - Steel Body - Stainless Ball |
||||||
|
Part Number: PLBP-079-163-CS-044
Ball Push Fit Plungers - 7.93x16.3 mm - 17.8 N Steel Body - Stainless Steel Plunger 8 Available Now | Further orders can be expected around Wed, Oct 01, 2025 Regular price
$8.95 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
