Pins - Ball Lock - Ring Handle Industrial Stainless Steel

Pins -> Ball Lock -> Ring Handle Industrial Stainless Steel

There are 16 products in the sub-categories of Pins - Ball Lock - Ring Handle Industrial Stainless Steel. Browse the Pins - Ball Lock - Ring Handle Industrial Stainless Steel products table.

Category Details

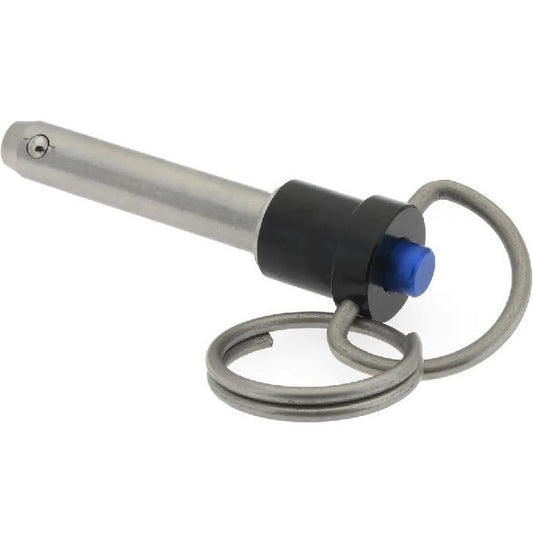

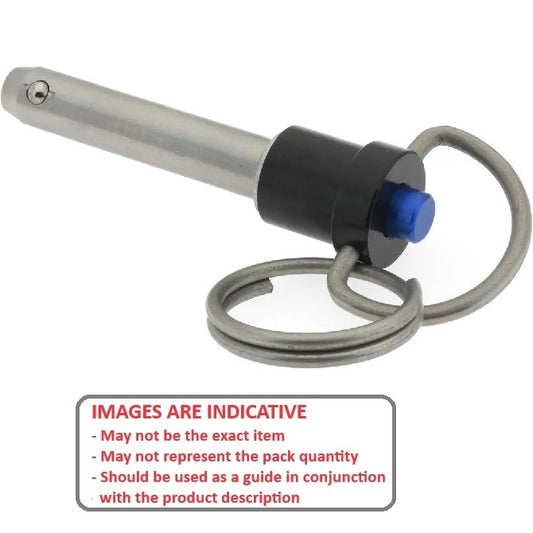

A selection of Ring Handle Industrial Stainless Steel Ball Lock Pins. 17-4 PH or PH15-7MO stainless steel spindle and shank. Handles aluminium unless noted otherwise.

  • An expanded range may be available on special order. Please enquire.
  • Positive lock detent pins.
  • Aluminium handles.
  • 300 Grade Stainless Components
  • 440C Stainless Balls
  • Ring dimensions may vary. Please contact us before purchasing if the ring dimensions are important to your application.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Ball Lock - Ring Handle Industrial Stainless Steel category on the Small Parts & Bearings online store.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative
Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
4.76
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
6.60
mm
Open Ball Distance (B)
5.58
mm
Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 18.54 mm    Pull Out Strength: 89.28 Kg    Calc. Double Shear Strength: 2300 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$56.68 AUD
$68.02 AUD $56.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
4.76
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
6.60
mm
Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 5.58 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 18.54 mm    Pull Out Strength: 89.28 Kg    Calc. Double Shear Strength: 2300 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$56.68 AUD
$68.02 AUD $56.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 4.76x31.75 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
4.76
mm
Grip Length (B)
31.75
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
6.60
mm
Open Ball Distance (B)
5.58
mm
Ball Lock Pins - 4.76x31.75 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 18.54 mm    Pull Out Strength: 89.28 Kg    Calc. Double Shear Strength: 2300 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0318-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$57.05 AUD
$68.45 AUD $57.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 4.76x31.75 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
4.76
mm
Grip Length (B)
31.75
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
6.60
mm
Ball Lock Pins - 4.76x31.75 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 5.58 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 18.54 mm    Pull Out Strength: 89.28 Kg    Calc. Double Shear Strength: 2300 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0318-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$57.05 AUD
$68.45 AUD $57.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 4.76x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
4.76
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
6.60
mm
Open Ball Distance (B)
5.58
mm
Ball Lock Pins - 4.76x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 18.54 mm    Pull Out Strength: 89.28 Kg    Calc. Double Shear Strength: 2300 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Aug 07, 2026
$97.41 AUD
$116.89 AUD $97.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 4.76x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
4.76
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
6.60
mm
Ball Lock Pins - 4.76x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 5.58 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 18.54 mm    Pull Out Strength: 89.28 Kg    Calc. Double Shear Strength: 2300 Kg    Max. Diameter: 4.78 mm    Min. Diameter: 4.76 mm
Part Number: BLP-048-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Fri, Aug 07, 2026
$97.41 AUD
$116.89 AUD $97.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
12.70
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Open Ball Distance (B)
7.34
mm
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 20.32 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0127-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$54.50 AUD
$65.40 AUD $54.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
12.70
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 7.34 mm    Ring Diameter (F): 20.32 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0127-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$54.50 AUD
$65.40 AUD $54.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Open Ball Distance (B)
7.34
mm
Ball Lock Pins - 6.35x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 20.32 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$53.32 AUD
$63.98 AUD $53.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Ball Lock Pins - 6.35x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 7.34 mm    Ring Diameter (F): 20.32 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$53.32 AUD
$63.98 AUD $53.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x38.1 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
38.10
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Open Ball Distance (B)
7.34
mm
Ball Lock Pins - 6.35x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0381-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$63.14 AUD
$75.76 AUD $63.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x38.1 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
38.10
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Ball Lock Pins - 6.35x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 7.34 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0381-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$63.14 AUD
$75.76 AUD $63.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Open Ball Distance (B)
7.34
mm
Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 20.32 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$75.14 AUD
$90.16 AUD $75.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 7.34 mm    Ring Diameter (F): 20.32 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$75.14 AUD
$90.16 AUD $75.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
76.20
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Open Ball Distance (B)
7.34
mm
Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0762-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$70.68 AUD
$84.82 AUD $70.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
6.35
mm
Grip Length (B)
76.20
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
7.36
mm
Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 7.34 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 19.81 mm    Pull Out Strength: 102.67 Kg    Calc. Double Shear Strength: 4100 Kg    Max. Diameter: 6.31 mm    Min. Diameter: 6.27 mm
Part Number: BLP-064-0762-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$70.68 AUD
$84.82 AUD $70.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
7.94
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
8.38
mm
Open Ball Distance (B)
9.52
mm
Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 23.62 mm    Pull Out Strength: 227.67 Kg    Calc. Double Shear Strength: 6400 Kg    Max. Diameter: 7.89 mm    Min. Diameter: 7.86 mm
Part Number: BLP-079-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$64.68 AUD
$77.62 AUD $64.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
7.94
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
8.38
mm
Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 9.52 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 23.62 mm    Pull Out Strength: 227.67 Kg    Calc. Double Shear Strength: 6400 Kg    Max. Diameter: 7.89 mm    Min. Diameter: 7.86 mm
Part Number: BLP-079-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$64.68 AUD
$77.62 AUD $64.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
7.94
mm
Grip Length (B)
38.10
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
8.38
mm
Open Ball Distance (B)
9.52
mm
Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 23.62 mm    Pull Out Strength: 227.67 Kg    Calc. Double Shear Strength: 6400 Kg    Max. Diameter: 7.89 mm    Min. Diameter: 7.86 mm
Part Number: BLP-079-0381-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$74.14 AUD
$88.96 AUD $74.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
7.94
mm
Grip Length (B)
38.10
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
8.38
mm
Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 9.52 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 23.62 mm    Pull Out Strength: 227.67 Kg    Calc. Double Shear Strength: 6400 Kg    Max. Diameter: 7.89 mm    Min. Diameter: 7.86 mm
Part Number: BLP-079-0381-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$74.14 AUD
$88.96 AUD $74.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
9.53
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 23.88 mm    Pull Out Strength: 256.69 Kg    Calc. Double Shear Strength: 9190 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$66.14 AUD
$79.36 AUD $66.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
9.53
mm
Grip Length (B)
25.40
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 11.17 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 23.88 mm    Pull Out Strength: 256.69 Kg    Calc. Double Shear Strength: 9190 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0254-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$66.14 AUD
$79.36 AUD $66.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
9.53
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 23.88 mm    Pull Out Strength: 256.69 Kg    Calc. Double Shear Strength: 9190 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$76.59 AUD
$91.91 AUD $76.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
9.53
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 11.17 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 23.88 mm    Pull Out Strength: 256.69 Kg    Calc. Double Shear Strength: 9190 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$76.59 AUD
$91.91 AUD $76.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
9.53
mm
Grip Length (B)
76.20
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
9.27
mm
Open Ball Distance (B)
11.17
mm
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 26.92 mm    Head Length (R): 23.88 mm    Pull Out Strength: 256.69 Kg    Calc. Double Shear Strength: 9190 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0762-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$96.86 AUD
$116.24 AUD $96.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
9.53
mm
Grip Length (B)
76.20
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
9.27
mm
Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 11.17 mm    Ring Diameter (F): 26.92 mm    Head Length (R): 23.88 mm    Pull Out Strength: 256.69 Kg    Calc. Double Shear Strength: 9190 Kg    Max. Diameter: 9.48 mm    Min. Diameter: 9.44 mm
Part Number: BLP-095-0762-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$96.86 AUD
$116.24 AUD $96.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
12.70
mm
Grip Length (B)
38.10
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
11.68
mm
Open Ball Distance (B)
15.08
mm
Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 29.46 mm    Head Length (R): 28.96 mm    Pull Out Strength: 517.85 Kg    Calc. Double Shear Strength: 16400 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0381-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$107.50 AUD
$129.00 AUD $107.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
12.70
mm
Grip Length (B)
38.10
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
11.68
mm
Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 15.08 mm    Ring Diameter (F): 29.46 mm    Head Length (R): 28.96 mm    Pull Out Strength: 517.85 Kg    Calc. Double Shear Strength: 16400 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0381-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Thu, Aug 13, 2026
$107.50 AUD
$129.00 AUD $107.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
12.70
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
11.68
mm
Open Ball Distance (B)
15.08
mm
Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 29.46 mm    Head Length (R): 28.96 mm    Pull Out Strength: 517.85 Kg    Calc. Double Shear Strength: 16400 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$117.32 AUD
$140.78 AUD $117.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
12.70
mm
Grip Length (B)
50.80
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
11.68
mm
Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 15.08 mm    Ring Diameter (F): 29.46 mm    Head Length (R): 28.96 mm    Pull Out Strength: 517.85 Kg    Calc. Double Shear Strength: 16400 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0508-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$117.32 AUD
$140.78 AUD $117.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
12.70
mm
Grip Length (B)
76.20
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
11.68
mm
Open Ball Distance (B)
15.08
mm
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Ring Diameter (F): 29.46 mm    Head Length (R): 28.96 mm    Pull Out Strength: 517.85 Kg    Calc. Double Shear Strength: 16400 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0762-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$122.50 AUD
$147.00 AUD $122.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless Ring Handle Industrial Stainless Steel Pin
Nominal Diameter
12.70
mm
Grip Length (B)
76.20
mm
Pin Material Grade
17-4 PH Stainless
Locking Ball to End (C)
11.68
mm
Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless
Material: Stainless Steel 17-4 PH    Open Ball Distance (B): 15.08 mm    Ring Diameter (F): 29.46 mm    Head Length (R): 28.96 mm    Pull Out Strength: 517.85 Kg    Calc. Double Shear Strength: 16400 Kg    Max. Diameter: 12.66 mm    Min. Diameter: 12.62 mm
Part Number: BLP-127-0762-RHI-S17 (Each)
Out of Stock | Backorder Now | Backorder now for delivery around Sun, Jun 07, 2026
$122.50 AUD
$147.00 AUD $122.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
