There are 8 products in the sub-categories of Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu. Browse the Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu products table.

Category Details

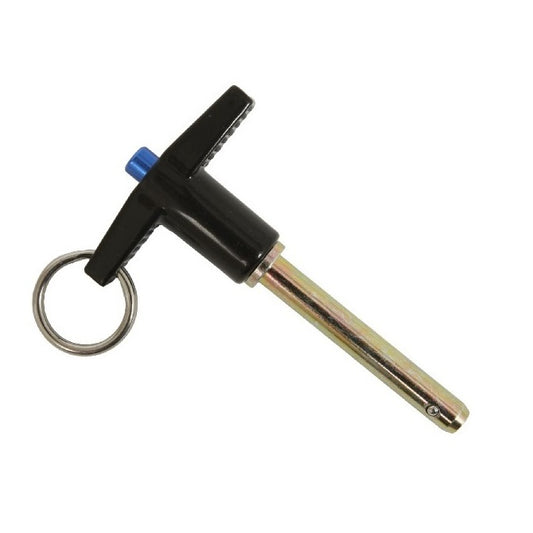

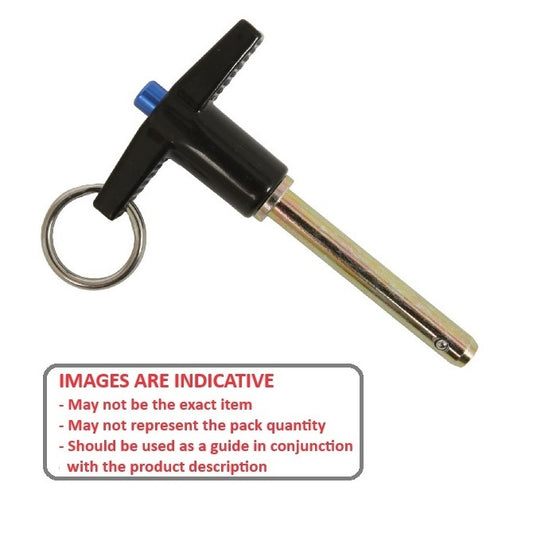

A selection of Stainless-Alu Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. 17-4 PH or 15-7 MO Stainless Steel pins. Handles are aluminium alloy. Tee handle.

  • An expanded range may be available on special order. Please enquire.
  • Positive lock detent pins.
  • Aluminium handles.
  • 300 Grade Stainless Components
  • 440C Stainless Balls

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Stainless-Alu category on the Small Parts & Bearings online store.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Open Ball Distance (B) Max. Handle Height (H) Indicative
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
6.00
mm

(Equiv. 0.236 in.)
Grip Length (B)
25.00
mm

(Equiv. 0.984 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.00
mm
Open Ball Distance (B)
6.99
mm
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 5.96 mm    Min. Diameter: 5.92 mm
Part Number: BLP-060-0250-TI-S17 (Each)
1 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$61.23 AUD
$73.47 AUD $61.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C) Indicative
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
6.00
mm

(Equiv. 0.236 in.)
Grip Length (B)
25.00
mm

(Equiv. 0.984 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.00
mm
Ball Lock Pins - 6x25 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 6.99 mm    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 5.96 mm    Min. Diameter: 5.92 mm
Part Number: BLP-060-0250-TI-S17 (Each)
1 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$61.23 AUD
$73.47 AUD $61.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Ball Lock Pins - 6x40 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
6.00
mm

(Equiv. 0.236 in.)
Grip Length (B)
40.00
mm

(Equiv. 1.575 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.00
mm
Open Ball Distance (B)
6.99
mm
Ball Lock Pins - 6x40 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 5.96 mm    Min. Diameter: 5.92 mm
Part Number: BLP-060-0400-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$67.59 AUD
$81.11 AUD $67.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 6x40 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
6.00
mm

(Equiv. 0.236 in.)
Grip Length (B)
40.00
mm

(Equiv. 1.575 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
7.00
mm
Ball Lock Pins - 6x40 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 6.99 mm    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 5.96 mm    Min. Diameter: 5.92 mm
Part Number: BLP-060-0400-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$67.59 AUD
$81.11 AUD $67.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 8x15 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
8.00
mm

(Equiv. 0.315 in.)
Grip Length (B)
15.00
mm

(Equiv. 0.591 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
8.00
mm
Open Ball Distance (B)
9.42
mm
Ball Lock Pins - 8x15 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 7.96 mm    Min. Diameter: 7.92 mm
Part Number: BLP-080-0150-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$63.32 AUD
$75.98 AUD $63.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 8x15 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
8.00
mm

(Equiv. 0.315 in.)
Grip Length (B)
15.00
mm

(Equiv. 0.591 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
8.00
mm
Ball Lock Pins - 8x15 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 9.42 mm    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 7.96 mm    Min. Diameter: 7.92 mm
Part Number: BLP-080-0150-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$63.32 AUD
$75.98 AUD $63.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 8x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
8.00
mm

(Equiv. 0.315 in.)
Grip Length (B)
25.00
mm

(Equiv. 0.984 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
8.00
mm
Open Ball Distance (B)
9.42
mm
Ball Lock Pins - 8x25 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 7.96 mm    Min. Diameter: 7.92 mm
Part Number: BLP-080-0250-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$71.95 AUD
$86.35 AUD $71.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 8x25 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
8.00
mm

(Equiv. 0.315 in.)
Grip Length (B)
25.00
mm

(Equiv. 0.984 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
8.00
mm
Ball Lock Pins - 8x25 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 9.42 mm    Shank Diameter (D): 13.00 mm    Handle Width (E): 46.00 mm    Handle Height (G): 32.00 mm    Handle Shank Length (H): 18 mm    Max. Diameter: 7.96 mm    Min. Diameter: 7.92 mm
Part Number: BLP-080-0250-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$71.95 AUD
$86.35 AUD $71.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 10x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
10.00
mm

(Equiv. 0.394 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
9.00
mm
Open Ball Distance (B)
11.86
mm
Ball Lock Pins - 10x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 9.96 mm    Min. Diameter: 9.92 mm
Part Number: BLP-100-0500-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$93.95 AUD
$112.75 AUD $93.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 10x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
10.00
mm

(Equiv. 0.394 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
9.00
mm
Ball Lock Pins - 10x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 11.86 mm    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 9.96 mm    Min. Diameter: 9.92 mm
Part Number: BLP-100-0500-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$93.95 AUD
$112.75 AUD $93.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
12.00
mm

(Equiv. 0.472 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
10.00
mm
Open Ball Distance (B)
14.45
mm
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 11.96 mm    Min. Diameter: 11.92 mm
Part Number: BLP-120-0500-TI-S17 (Each)
1 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$114.32 AUD
$137.18 AUD $114.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Larger quantities than the 1 available can be backordered.
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
12.00
mm

(Equiv. 0.472 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
10.00
mm
Ball Lock Pins - 12x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 14.45 mm    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 11.96 mm    Min. Diameter: 11.92 mm
Part Number: BLP-120-0500-TI-S17 (Each)
1 Available Now | Further orders can be expected around Mon, Jan 19, 2026
$114.32 AUD
$137.18 AUD $114.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Ball Lock Pins - 12x100 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
12.00
mm

(Equiv. 0.472 in.)
Grip Length (B)
100.00
mm

(Equiv. 3.937 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
10.00
mm
Open Ball Distance (B)
14.45
mm
Ball Lock Pins - 12x100 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 11.96 mm    Min. Diameter: 11.92 mm
Part Number: BLP-120-1000-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$173.95 AUD
$208.75 AUD $173.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 12x100 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
12.00
mm

(Equiv. 0.472 in.)
Grip Length (B)
100.00
mm

(Equiv. 3.937 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
10.00
mm
Ball Lock Pins - 12x100 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 14.45 mm    Shank Diameter (D): 16.00 mm    Handle Width (E): 51.00 mm    Handle Height (G): 37.00 mm    Handle Shank Length (H): 21 mm    Max. Diameter: 11.96 mm    Min. Diameter: 11.92 mm
Part Number: BLP-120-1000-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$173.95 AUD
$208.75 AUD $173.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 16x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
16.00
mm

(Equiv. 0.63 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
14.00
mm
Open Ball Distance (B)
19.00
mm
Ball Lock Pins - 16x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Shank Diameter (D): 25.00 mm    Handle Width (E): 76.00 mm    Handle Height (G): 43.00 mm    Handle Shank Length (H): 24 mm    Max. Diameter: 15.96 mm    Min. Diameter: 15.92 mm
Part Number: BLP-160-0500-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$145.86 AUD
$175.04 AUD $145.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Ball Lock Pins - 16x50 mm - 17-4 PH Stainless / Aluminium Handle No Shoulder Pin
Nominal Diameter
16.00
mm

(Equiv. 0.63 in.)
Grip Length (B)
50.00
mm

(Equiv. 1.969 in.)
Pin Material Grade
17-4 PH Stainless / Aluminium Handle

Locking Ball to End (C)
14.00
mm
Ball Lock Pins - 16x50 mm - 17-4 PH Stainless / Aluminium Handle
Material: Stainless Steel 17-4 PH with Aluminium Handle    Open Ball Distance (B): 19.00 mm    Shank Diameter (D): 25.00 mm    Handle Width (E): 76.00 mm    Handle Height (G): 43.00 mm    Handle Shank Length (H): 24 mm    Max. Diameter: 15.96 mm    Min. Diameter: 15.92 mm
Part Number: BLP-160-0500-TI-S17 (Each)
Out of Stock | Backorder Now | Orders can be expected around Mon, Jan 19, 2026
$145.86 AUD
$175.04 AUD $145.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
