Collection: Pins - Ball Lock - L-Handle Industrial Stainless Steel

Pins -> Ball Lock -> L-Handle Industrial Stainless Steel

There are 23 products in the sub-categories of Pins - Ball Lock - L-Handle Industrial Stainless Steel. Scroll down or follow the link to Pins - Ball Lock - L-Handle Industrial Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

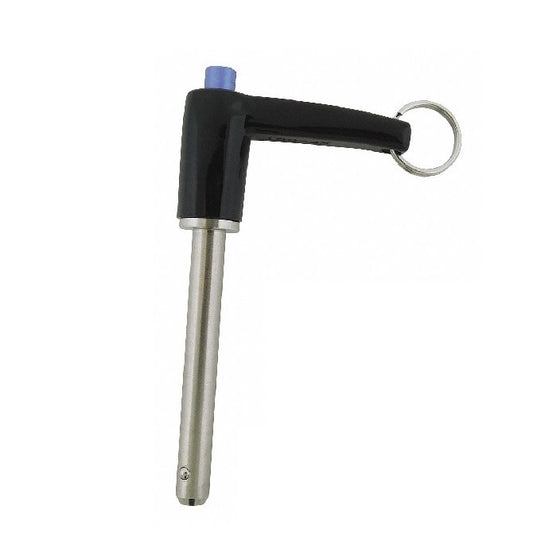

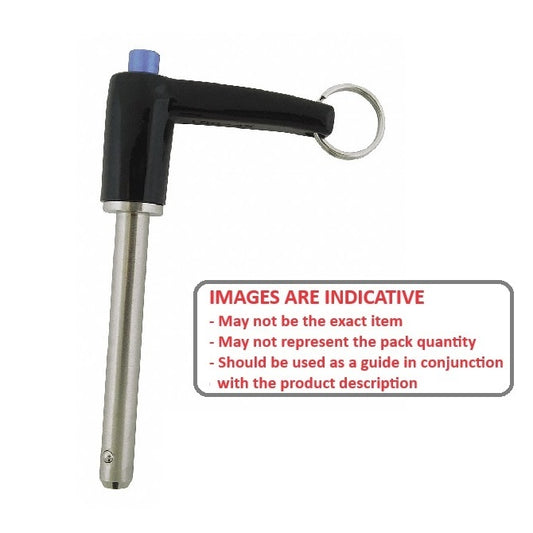

A selection of L-Handle Industrial Stainless Steel Ball Lock Pins. Quick release. 17-4 PH or 15-7 MO Stainless Steel pins. Handles are aluminium alloy.

An expanded range may be available on special order. Please enquire.
Positive lock detent pins.
Aluminium handles.
300 Grade Stainless Components
440C Stainless Balls

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Pins - Ball Lock - L-Handle Industrial Stainless Steel category on the Small Parts & Bearings online store.

Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Open Ball Distance (B)
Nominal Diameter 4.76 mm _{- 0.03 / - 0.07} (Equiv. 0.187 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 6.60 mm	Open Ball Distance (B) 5.59 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 90.00 Kg Calc. Double Shear Strength: 2330 Kg
Part Number: BLP-048-0254-LI-S17 Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $60.50 AUD Regular price ~~$72.60 AUD~~ Sale price $60.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Indicative Image
Nominal Diameter 4.76 mm _{- 0.03 / - 0.07} (Equiv. 0.187 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 6.60 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 5.59 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 90.00 Kg Calc. Double Shear Strength: 2330 Kg
Part Number: BLP-048-0254-LI-S17 Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $60.50 AUD Regular price ~~$72.60 AUD~~ Sale price $60.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-048-0254-LI-S17 --- Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-048-0254-LI-S17 --- Ball Lock Pins - 4.76x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $60.50 AUD Regular price ~~$72.60 AUD~~ Sale price $60.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 4.76 mm _{- 0.03 / - 0.07} (Equiv. 0.187 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 6.60 mm	Open Ball Distance (B) 5.59 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 90.00 Kg Calc. Double Shear Strength: 2330 Kg
Part Number: BLP-048-0381-LI-S17 Ball Lock Pins - 4.76x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $58.14 AUD Regular price ~~$69.76 AUD~~ Sale price $58.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 4.76 mm _{- 0.03 / - 0.07} (Equiv. 0.187 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 6.60 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 5.59 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 90.00 Kg Calc. Double Shear Strength: 2330 Kg
Part Number: BLP-048-0381-LI-S17 Ball Lock Pins - 4.76x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $58.14 AUD Regular price ~~$69.76 AUD~~ Sale price $58.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-048-0381-LI-S17 --- Ball Lock Pins - 4.76x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-048-0381-LI-S17 --- Ball Lock Pins - 4.76x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $58.14 AUD Regular price ~~$69.76 AUD~~ Sale price $58.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 12.70 mm (Equiv. 0.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm	Open Ball Distance (B) 7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0127-LI-S17 Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 12.70 mm (Equiv. 0.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0127-LI-S17 Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-064-0127-LI-S17 --- Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-064-0127-LI-S17 --- Ball Lock Pins - 6.35x12.7 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $58.59 AUD Regular price ~~$70.31 AUD~~ Sale price $58.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm	Open Ball Distance (B) 7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0508-LI-S17 Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $67.32 AUD Regular price ~~$80.78 AUD~~ Sale price $67.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0508-LI-S17 Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $67.32 AUD Regular price ~~$80.78 AUD~~ Sale price $67.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-064-0508-LI-S17 --- Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-064-0508-LI-S17 --- Ball Lock Pins - 6.35x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $67.32 AUD Regular price ~~$80.78 AUD~~ Sale price $67.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 63.50 mm (Equiv. 2.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm	Open Ball Distance (B) 7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0635-LI-S17 Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $70.41 AUD Regular price ~~$84.49 AUD~~ Sale price $70.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 63.50 mm (Equiv. 2.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0635-LI-S17 Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $70.41 AUD Regular price ~~$84.49 AUD~~ Sale price $70.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-064-0635-LI-S17 --- Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-064-0635-LI-S17 --- Ball Lock Pins - 6.35x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $70.41 AUD Regular price ~~$84.49 AUD~~ Sale price $70.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm	Open Ball Distance (B) 7.34 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0762-LI-S17 Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $74.32 AUD Regular price ~~$89.18 AUD~~ Sale price $74.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 6.35 mm _{- 0.04 / - 0.08} (Equiv. 0.25 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 7.36 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 7.34 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 104.00 Kg Calc. Double Shear Strength: 4163 Kg
Part Number: BLP-064-0762-LI-S17 Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $74.32 AUD Regular price ~~$89.18 AUD~~ Sale price $74.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-064-0762-LI-S17 --- Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-064-0762-LI-S17 --- Ball Lock Pins - 6.35x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $74.32 AUD Regular price ~~$89.18 AUD~~ Sale price $74.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm	Open Ball Distance (B) 9.53 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0254-LI-S17 Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $67.41 AUD Regular price ~~$80.89 AUD~~ Sale price $67.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.53 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0254-LI-S17 Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $67.41 AUD Regular price ~~$80.89 AUD~~ Sale price $67.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-079-0254-LI-S17 --- Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-079-0254-LI-S17 --- Ball Lock Pins - 7.94x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $67.41 AUD Regular price ~~$80.89 AUD~~ Sale price $67.41 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm	Open Ball Distance (B) 9.53 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0381-LI-S17 Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $77.86 AUD Regular price ~~$93.44 AUD~~ Sale price $77.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.53 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0381-LI-S17 Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $77.86 AUD Regular price ~~$93.44 AUD~~ Sale price $77.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-079-0381-LI-S17 --- Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-079-0381-LI-S17 --- Ball Lock Pins - 7.94x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $77.86 AUD Regular price ~~$93.44 AUD~~ Sale price $77.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm	Open Ball Distance (B) 9.53 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0508-LI-S17 Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $74.59 AUD Regular price ~~$89.51 AUD~~ Sale price $74.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.53 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0508-LI-S17 Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $74.59 AUD Regular price ~~$89.51 AUD~~ Sale price $74.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-079-0508-LI-S17 --- Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-079-0508-LI-S17 --- Ball Lock Pins - 7.94x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $74.59 AUD Regular price ~~$89.51 AUD~~ Sale price $74.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 63.50 mm (Equiv. 2.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm	Open Ball Distance (B) 9.53 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0635-LI-S17 Ball Lock Pins - 7.94x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 63.50 mm (Equiv. 2.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.53 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0635-LI-S17 Ball Lock Pins - 7.94x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-079-0635-LI-S17 --- Ball Lock Pins - 7.94x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-079-0635-LI-S17 --- Ball Lock Pins - 7.94x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $80.50 AUD Regular price ~~$96.60 AUD~~ Sale price $80.50 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm	Open Ball Distance (B) 9.53 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0762-LI-S17 Ball Lock Pins - 7.94x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $85.05 AUD Regular price ~~$102.05 AUD~~ Sale price $85.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.53 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-0762-LI-S17 Ball Lock Pins - 7.94x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $85.05 AUD Regular price ~~$102.05 AUD~~ Sale price $85.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-079-0762-LI-S17 --- Ball Lock Pins - 7.94x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-079-0762-LI-S17 --- Ball Lock Pins - 7.94x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $85.05 AUD Regular price ~~$102.05 AUD~~ Sale price $85.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 101.60 mm (Equiv. 4 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm	Open Ball Distance (B) 9.53 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-1016-LI-S17 Ball Lock Pins - 7.94x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $88.05 AUD Regular price ~~$105.65 AUD~~ Sale price $88.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 7.94 mm _{- 0.04 / - 0.08} (Equiv. 0.313 in.)	Grip Length (B) 101.60 mm (Equiv. 4 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 8.38 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 9.53 mm Handle Width (L): 45.72 mm Handle Length (G): 32.25 mm Pull Out Strength: 230.00 Kg Calc. Double Shear Strength: 6516 Kg
Part Number: BLP-079-1016-LI-S17 Ball Lock Pins - 7.94x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $88.05 AUD Regular price ~~$105.65 AUD~~ Sale price $88.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-079-1016-LI-S17 --- Ball Lock Pins - 7.94x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-079-1016-LI-S17 --- Ball Lock Pins - 7.94x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $88.05 AUD Regular price ~~$105.65 AUD~~ Sale price $88.05 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm	Open Ball Distance (B) 11.18 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0254-LI-S17 Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $103.23 AUD Regular price Sale price $103.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.18 mm Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0254-LI-S17 Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $103.23 AUD Regular price Sale price $103.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-095-0254-LI-S17 --- Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin BLP-095-0254-LI-S17 --- Ball Lock Pins - 9.53x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $103.23 AUD Regular price Sale price $103.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm	Open Ball Distance (B) 11.18 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0381-LI-S17 Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $75.95 AUD Regular price ~~$91.15 AUD~~ Sale price $75.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.18 mm Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0381-LI-S17 Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $75.95 AUD Regular price ~~$91.15 AUD~~ Sale price $75.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-095-0381-LI-S17 --- Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-095-0381-LI-S17 --- Ball Lock Pins - 9.53x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $75.95 AUD Regular price ~~$91.15 AUD~~ Sale price $75.95 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm	Open Ball Distance (B) 11.18 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0508-LI-S17 Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $76.59 AUD Regular price ~~$91.91 AUD~~ Sale price $76.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.18 mm Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0508-LI-S17 Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $76.59 AUD Regular price ~~$91.91 AUD~~ Sale price $76.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-095-0508-LI-S17 --- Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-095-0508-LI-S17 --- Ball Lock Pins - 9.53x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $76.59 AUD Regular price ~~$91.91 AUD~~ Sale price $76.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 63.50 mm (Equiv. 2.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm	Open Ball Distance (B) 11.18 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0635-LI-S17 Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $96.14 AUD Regular price ~~$115.36 AUD~~ Sale price $96.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 63.50 mm (Equiv. 2.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.18 mm Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0635-LI-S17 Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $96.14 AUD Regular price ~~$115.36 AUD~~ Sale price $96.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-095-0635-LI-S17 --- Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-095-0635-LI-S17 --- Ball Lock Pins - 9.53x63.5 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $96.14 AUD Regular price ~~$115.36 AUD~~ Sale price $96.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm	Open Ball Distance (B) 11.18 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0762-LI-S17 Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $96.86 AUD Regular price ~~$116.24 AUD~~ Sale price $96.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.18 mm Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-0762-LI-S17 Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $96.86 AUD Regular price ~~$116.24 AUD~~ Sale price $96.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-095-0762-LI-S17 --- Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-095-0762-LI-S17 --- Ball Lock Pins - 9.53x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $96.86 AUD Regular price ~~$116.24 AUD~~ Sale price $96.86 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 101.60 mm (Equiv. 4 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm	Open Ball Distance (B) 11.18 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-1016-LI-S17 Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $102.14 AUD Regular price ~~$122.56 AUD~~ Sale price $102.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 9.53 mm _{- 0.05 / - 0.09} (Equiv. 0.375 in.)	Grip Length (B) 101.60 mm (Equiv. 4 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 9.27 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 11.18 mm Handle Width (L): 51.56 mm Handle Length (G): 36.83 mm Pull Out Strength: 260.00 Kg Calc. Double Shear Strength: 9321 Kg
Part Number: BLP-095-1016-LI-S17 Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $102.14 AUD Regular price ~~$122.56 AUD~~ Sale price $102.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-095-1016-LI-S17 --- Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-095-1016-LI-S17 --- Ball Lock Pins - 9.53x101.6 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $102.14 AUD Regular price ~~$122.56 AUD~~ Sale price $102.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm	Open Ball Distance (B) 15.09 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0254-LI-S17 Ball Lock Pins - 12.7x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $109.14 AUD Regular price ~~$130.96 AUD~~ Sale price $109.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 25.40 mm (Equiv. 1 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 15.09 mm Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0254-LI-S17 Ball Lock Pins - 12.7x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $109.14 AUD Regular price ~~$130.96 AUD~~ Sale price $109.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-127-0254-LI-S17 --- Ball Lock Pins - 12.7x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-127-0254-LI-S17 --- Ball Lock Pins - 12.7x25.4 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $109.14 AUD Regular price ~~$130.96 AUD~~ Sale price $109.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm	Open Ball Distance (B) 15.09 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0381-LI-S17 Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $113.59 AUD Regular price ~~$136.31 AUD~~ Sale price $113.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 38.10 mm (Equiv. 1.5 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 15.09 mm Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0381-LI-S17 Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $113.59 AUD Regular price ~~$136.31 AUD~~ Sale price $113.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-127-0381-LI-S17 --- Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-127-0381-LI-S17 --- Ball Lock Pins - 12.7x38.1 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $113.59 AUD Regular price ~~$136.31 AUD~~ Sale price $113.59 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm	Open Ball Distance (B) 15.09 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0508-LI-S17 Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $126.32 AUD Regular price ~~$151.58 AUD~~ Sale price $126.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 15.09 mm Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0508-LI-S17 Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $126.32 AUD Regular price ~~$151.58 AUD~~ Sale price $126.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-127-0508-LI-S17 --- Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-127-0508-LI-S17 --- Ball Lock Pins - 12.7x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $126.32 AUD Regular price ~~$151.58 AUD~~ Sale price $126.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm	Open Ball Distance (B) 15.09 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0762-LI-S17 Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $136.77 AUD Regular price ~~$164.13 AUD~~ Sale price $136.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 12.70 mm _{- 0.05 / - 0.09} (Equiv. 0.5 in.)	Grip Length (B) 76.20 mm (Equiv. 3 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 11.68 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 15.09 mm Handle Width (L): 59.94 mm Handle Length (G): 40.64 mm Pull Out Strength: 525.00 Kg Calc. Double Shear Strength: 16652 Kg
Part Number: BLP-127-0762-LI-S17 Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $136.77 AUD Regular price ~~$164.13 AUD~~ Sale price $136.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-127-0762-LI-S17 --- Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-127-0762-LI-S17 --- Ball Lock Pins - 12.7x76.2 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $136.77 AUD Regular price ~~$164.13 AUD~~ Sale price $136.77 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Diameter 19.05 mm _{- 0.05 / - 0.09} (Equiv. 0.75 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 17.01 mm	Open Ball Distance (B) 22.53 mm
Material: Stainless Steel 17-4 PH Handle Width (L): 77.97 mm Handle Length (G): 43.68 mm Pull Out Strength: 1335.00 Kg Calc. Double Shear Strength: 37330 Kg
Part Number: BLP-191-0508-LI-S17 Ball Lock Pins - 19.05x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $211.32 AUD Regular price ~~$253.58 AUD~~ Sale price $211.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Nominal Diameter 19.05 mm _{- 0.05 / - 0.09} (Equiv. 0.75 in.)	Grip Length (B) 50.80 mm (Equiv. 2 in.)	Pin Material Grade 17-4 PH Stainless	Locking Ball to End (C) 17.01 mm
Material: Stainless Steel 17-4 PH Open Ball Distance (B): 22.53 mm Handle Width (L): 77.97 mm Handle Length (G): 43.68 mm Pull Out Strength: 1335.00 Kg Calc. Double Shear Strength: 37330 Kg
Part Number: BLP-191-0508-LI-S17 Ball Lock Pins - 19.05x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $211.32 AUD Regular price ~~$253.58 AUD~~ Sale price $211.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
BLP-191-0508-LI-S17 --- Ball Lock Pins - 19.05x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Sale BLP-191-0508-LI-S17 --- Ball Lock Pins - 19.05x50.8 mm - 17-4 PH Stainless L-Handle Industrial Stainless Steel Pin Regular price $211.32 AUD Regular price ~~$253.58 AUD~~ Sale price $211.32 AUD Unit price per Out of stock! Backorder Now Sale
