Collection: Pins - Ball Lock - Keyring Style - Single Ball - Steel

Pins (With Images)

Ball Lock

Keyring Style

Single Ball

76 Products in this selection

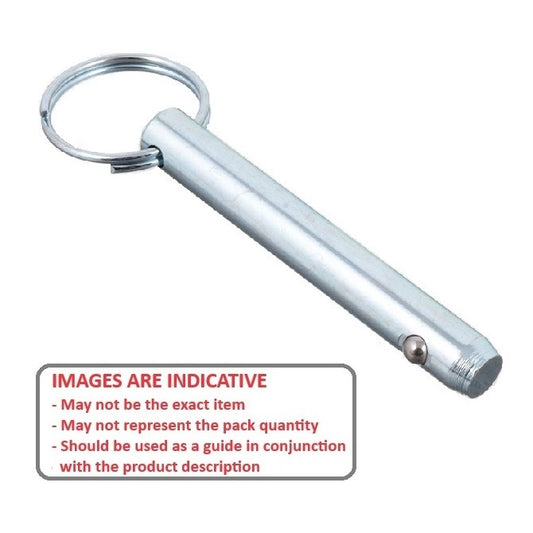

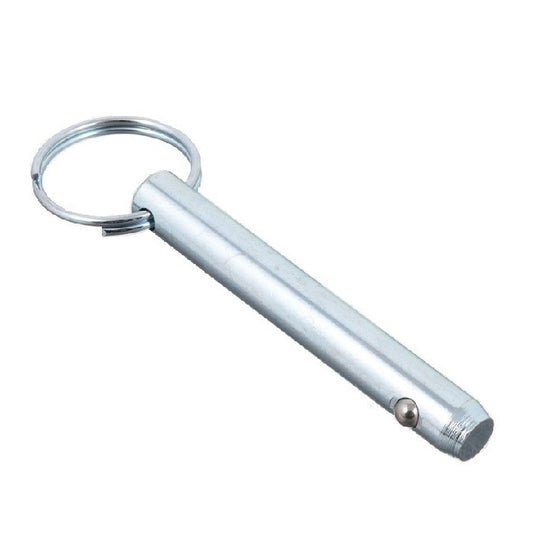

Economical pins that can be used in military or conventional equipment.
Solid body construction with direct spring loaded ball. Used for locking telescoping tubes, securing bracket assemblies, anchoring clevis fittings, hinge pins, cotter pin replacement or setting up jigs and fixtures. Positive lock detent pins.
Commercial drill tolerances provide clearance for standard pins.
Zinc plated C1144 steel.
Not for critical applications. If known pullout strength is required use commercial or industrial pins.

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins

A more concise listing may be found on the Smallparts store at Pins - Ball Lock - Keyring Style - Single Ball - Steel. Smallparts promote the most popular MBA products.

Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Open Ball Distance (B)
Nominal Diameter 15.88 mm	Grip Length (B) 63.50 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-0635-K1-C Ball Lock Pins - 15.88x63.5 mm - Carbon Steel 16 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Each
Nominal Diameter	Grip Length (B)	Pin Material Grade	Locking Ball to End (C)	Indicative Image
Nominal Diameter 15.88 mm	Grip Length (B) 63.50 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-0635-K1-C Ball Lock Pins - 15.88x63.5 mm - Carbon Steel 16 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-0635-K1-C --- Ball Lock Pins - 15.88x63.5 mm - Carbon Steel Sale BLP-159-0635-K1-C --- Ball Lock Pins - 15.88x63.5 mm - Carbon Steel Regular price $15.86 AUD Regular price ~~$19.04 AUD~~ Sale price $15.86 AUD Unit price per 16 Available Now Sale
Nominal Diameter 15.88 mm	Grip Length (B) 76.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-0762-K1-C Ball Lock Pins - 15.88x76.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per Each
Nominal Diameter 15.88 mm	Grip Length (B) 76.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-0762-K1-C Ball Lock Pins - 15.88x76.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-0762-K1-C --- Ball Lock Pins - 15.88x76.2 mm - Carbon Steel BLP-159-0762-K1-C --- Ball Lock Pins - 15.88x76.2 mm - Carbon Steel Regular price $26.23 AUD Regular price Sale price $26.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 15.88 mm	Grip Length (B) 88.90 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-0889-K1-C Ball Lock Pins - 15.88x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each
Nominal Diameter 15.88 mm	Grip Length (B) 88.90 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-0889-K1-C Ball Lock Pins - 15.88x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-0889-K1-C --- Ball Lock Pins - 15.88x88.9 mm - Carbon Steel BLP-159-0889-K1-C --- Ball Lock Pins - 15.88x88.9 mm - Carbon Steel Regular price $28.95 AUD Regular price Sale price $28.95 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 15.88 mm	Grip Length (B) 101.60 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1016-K1-C Ball Lock Pins - 15.88x101.6 mm - Carbon Steel 2 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each
Nominal Diameter 15.88 mm	Grip Length (B) 101.60 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1016-K1-C Ball Lock Pins - 15.88x101.6 mm - Carbon Steel 2 Available Immediately \| Further orders can be expected around Thu, Jun 05, 2025 Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-1016-K1-C --- Ball Lock Pins - 15.88x101.6 mm - Carbon Steel BLP-159-1016-K1-C --- Ball Lock Pins - 15.88x101.6 mm - Carbon Steel Regular price $31.68 AUD Regular price Sale price $31.68 AUD Unit price per 2 Available Now
Nominal Diameter 15.88 mm	Grip Length (B) 114.30 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1143-K1-C Ball Lock Pins - 15.88x114.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Each
Nominal Diameter 15.88 mm	Grip Length (B) 114.30 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1143-K1-C Ball Lock Pins - 15.88x114.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-1143-K1-C --- Ball Lock Pins - 15.88x114.3 mm - Carbon Steel BLP-159-1143-K1-C --- Ball Lock Pins - 15.88x114.3 mm - Carbon Steel Regular price $34.86 AUD Regular price Sale price $34.86 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 15.88 mm	Grip Length (B) 127.00 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1270-K1-C Ball Lock Pins - 15.88x127 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Each
Nominal Diameter 15.88 mm	Grip Length (B) 127.00 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1270-K1-C Ball Lock Pins - 15.88x127 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-1270-K1-C --- Ball Lock Pins - 15.88x127 mm - Carbon Steel BLP-159-1270-K1-C --- Ball Lock Pins - 15.88x127 mm - Carbon Steel Regular price $36.68 AUD Regular price Sale price $36.68 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 15.88 mm	Grip Length (B) 152.40 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm	Open Ball Distance (B) 18.03 mm
Material: Carbon Steel Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1524-K1-C Ball Lock Pins - 15.88x152.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Each
Nominal Diameter 15.88 mm	Grip Length (B) 152.40 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 19.05 mm
Material: Carbon Steel Open Ball Distance (B): 18.03 mm Ring Diameter (R ): 31.75 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-159-1524-K1-C Ball Lock Pins - 15.88x152.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Each View the product page first if you are unsure.
BLP-159-1524-K1-C --- Ball Lock Pins - 15.88x152.4 mm - Carbon Steel BLP-159-1524-K1-C --- Ball Lock Pins - 15.88x152.4 mm - Carbon Steel Regular price $42.05 AUD Regular price Sale price $42.05 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 50.80 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0508-K1-C Ball Lock Pins - 19.05x50.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 05, 2026 Regular price $28.23 AUD Regular price Sale price $28.23 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 50.80 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0508-K1-C Ball Lock Pins - 19.05x50.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 05, 2026 Regular price $28.23 AUD Regular price Sale price $28.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-0508-K1-C --- Ball Lock Pins - 19.05x50.8 mm - Carbon Steel BLP-191-0508-K1-C --- Ball Lock Pins - 19.05x50.8 mm - Carbon Steel Regular price $28.23 AUD Regular price Sale price $28.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 63.50 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0635-K1-C Ball Lock Pins - 19.05x63.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 63.50 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0635-K1-C Ball Lock Pins - 19.05x63.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-0635-K1-C --- Ball Lock Pins - 19.05x63.5 mm - Carbon Steel BLP-191-0635-K1-C --- Ball Lock Pins - 19.05x63.5 mm - Carbon Steel Regular price $32.68 AUD Regular price Sale price $32.68 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 76.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0762-K1-C Ball Lock Pins - 19.05x76.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 05, 2026 Regular price $33.95 AUD Regular price Sale price $33.95 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 76.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0762-K1-C Ball Lock Pins - 19.05x76.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Mon, Jan 05, 2026 Regular price $33.95 AUD Regular price Sale price $33.95 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-0762-K1-C --- Ball Lock Pins - 19.05x76.2 mm - Carbon Steel BLP-191-0762-K1-C --- Ball Lock Pins - 19.05x76.2 mm - Carbon Steel Regular price $33.95 AUD Regular price Sale price $33.95 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 88.90 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0889-K1-C Ball Lock Pins - 19.05x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 88.90 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-0889-K1-C Ball Lock Pins - 19.05x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-0889-K1-C --- Ball Lock Pins - 19.05x88.9 mm - Carbon Steel BLP-191-0889-K1-C --- Ball Lock Pins - 19.05x88.9 mm - Carbon Steel Regular price $41.23 AUD Regular price Sale price $41.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 101.60 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1016-K1-C Ball Lock Pins - 19.05x101.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 101.60 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1016-K1-C Ball Lock Pins - 19.05x101.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-1016-K1-C --- Ball Lock Pins - 19.05x101.6 mm - Carbon Steel BLP-191-1016-K1-C --- Ball Lock Pins - 19.05x101.6 mm - Carbon Steel Regular price $43.68 AUD Regular price Sale price $43.68 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 114.30 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1143-K1-C Ball Lock Pins - 19.05x114.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $47.41 AUD Regular price Sale price $47.41 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 114.30 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1143-K1-C Ball Lock Pins - 19.05x114.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $47.41 AUD Regular price Sale price $47.41 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-1143-K1-C --- Ball Lock Pins - 19.05x114.3 mm - Carbon Steel BLP-191-1143-K1-C --- Ball Lock Pins - 19.05x114.3 mm - Carbon Steel Regular price $47.41 AUD Regular price Sale price $47.41 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 127.00 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1270-K1-C Ball Lock Pins - 19.05x127 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $52.23 AUD Regular price Sale price $52.23 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 127.00 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1270-K1-C Ball Lock Pins - 19.05x127 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $52.23 AUD Regular price Sale price $52.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-1270-K1-C --- Ball Lock Pins - 19.05x127 mm - Carbon Steel BLP-191-1270-K1-C --- Ball Lock Pins - 19.05x127 mm - Carbon Steel Regular price $52.23 AUD Regular price Sale price $52.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 152.40 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1524-K1-C Ball Lock Pins - 19.05x152.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $59.68 AUD Regular price Sale price $59.68 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 152.40 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1524-K1-C Ball Lock Pins - 19.05x152.4 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $59.68 AUD Regular price Sale price $59.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-1524-K1-C --- Ball Lock Pins - 19.05x152.4 mm - Carbon Steel BLP-191-1524-K1-C --- Ball Lock Pins - 19.05x152.4 mm - Carbon Steel Regular price $59.68 AUD Regular price Sale price $59.68 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 165.10 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1651-K1-C Ball Lock Pins - 19.05x165.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $103.32 AUD Regular price Sale price $103.32 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 165.10 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1651-K1-C Ball Lock Pins - 19.05x165.1 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $103.32 AUD Regular price Sale price $103.32 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-1651-K1-C --- Ball Lock Pins - 19.05x165.1 mm - Carbon Steel BLP-191-1651-K1-C --- Ball Lock Pins - 19.05x165.1 mm - Carbon Steel Regular price $103.32 AUD Regular price Sale price $103.32 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 177.80 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1778-K1-C Ball Lock Pins - 19.05x177.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 177.80 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-1778-K1-C Ball Lock Pins - 19.05x177.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-1778-K1-C --- Ball Lock Pins - 19.05x177.8 mm - Carbon Steel BLP-191-1778-K1-C --- Ball Lock Pins - 19.05x177.8 mm - Carbon Steel Regular price $67.14 AUD Regular price Sale price $67.14 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 19.05 mm	Grip Length (B) 203.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm	Open Ball Distance (B) 21.74 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-2032-K1-C Ball Lock Pins - 19.05x203.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $73.05 AUD Regular price Sale price $73.05 AUD Unit price per Each
Nominal Diameter 19.05 mm	Grip Length (B) 203.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 23.80 mm
Material: Carbon Steel Open Ball Distance (B): 21.74 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 9.53 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-191-2032-K1-C Ball Lock Pins - 19.05x203.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 05, 2025 Regular price $73.05 AUD Regular price Sale price $73.05 AUD Unit price per Each View the product page first if you are unsure.
BLP-191-2032-K1-C --- Ball Lock Pins - 19.05x203.2 mm - Carbon Steel BLP-191-2032-K1-C --- Ball Lock Pins - 19.05x203.2 mm - Carbon Steel Regular price $73.05 AUD Regular price Sale price $73.05 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 25.40 mm	Grip Length (B) 50.80 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm	Open Ball Distance (B) 28.96 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0508-K1-C Ball Lock Pins - 25.4x50.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $77.86 AUD Regular price Sale price $77.86 AUD Unit price per Each
Nominal Diameter 25.40 mm	Grip Length (B) 50.80 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm
Material: Carbon Steel Open Ball Distance (B): 28.96 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0508-K1-C Ball Lock Pins - 25.4x50.8 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $77.86 AUD Regular price Sale price $77.86 AUD Unit price per Each View the product page first if you are unsure.
BLP-254-0508-K1-C --- Ball Lock Pins - 25.4x50.8 mm - Carbon Steel BLP-254-0508-K1-C --- Ball Lock Pins - 25.4x50.8 mm - Carbon Steel Regular price $77.86 AUD Regular price Sale price $77.86 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 25.40 mm	Grip Length (B) 63.50 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm	Open Ball Distance (B) 28.96 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0635-K1-C Ball Lock Pins - 25.4x63.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $89.77 AUD Regular price Sale price $89.77 AUD Unit price per Each
Nominal Diameter 25.40 mm	Grip Length (B) 63.50 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm
Material: Carbon Steel Open Ball Distance (B): 28.96 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0635-K1-C Ball Lock Pins - 25.4x63.5 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $89.77 AUD Regular price Sale price $89.77 AUD Unit price per Each View the product page first if you are unsure.
BLP-254-0635-K1-C --- Ball Lock Pins - 25.4x63.5 mm - Carbon Steel BLP-254-0635-K1-C --- Ball Lock Pins - 25.4x63.5 mm - Carbon Steel Regular price $89.77 AUD Regular price Sale price $89.77 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 25.40 mm	Grip Length (B) 76.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm	Open Ball Distance (B) 28.96 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0762-K1-C Ball Lock Pins - 25.4x76.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $98.23 AUD Regular price Sale price $98.23 AUD Unit price per Each
Nominal Diameter 25.40 mm	Grip Length (B) 76.20 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm
Material: Carbon Steel Open Ball Distance (B): 28.96 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0762-K1-C Ball Lock Pins - 25.4x76.2 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $98.23 AUD Regular price Sale price $98.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-254-0762-K1-C --- Ball Lock Pins - 25.4x76.2 mm - Carbon Steel BLP-254-0762-K1-C --- Ball Lock Pins - 25.4x76.2 mm - Carbon Steel Regular price $98.23 AUD Regular price Sale price $98.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 25.40 mm	Grip Length (B) 88.90 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm	Open Ball Distance (B) 28.96 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0889-K1-C Ball Lock Pins - 25.4x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $115.23 AUD Regular price Sale price $115.23 AUD Unit price per Each
Nominal Diameter 25.40 mm	Grip Length (B) 88.90 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm
Material: Carbon Steel Open Ball Distance (B): 28.96 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-0889-K1-C Ball Lock Pins - 25.4x88.9 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $115.23 AUD Regular price Sale price $115.23 AUD Unit price per Each View the product page first if you are unsure.
BLP-254-0889-K1-C --- Ball Lock Pins - 25.4x88.9 mm - Carbon Steel BLP-254-0889-K1-C --- Ball Lock Pins - 25.4x88.9 mm - Carbon Steel Regular price $115.23 AUD Regular price Sale price $115.23 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 25.40 mm	Grip Length (B) 101.60 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm	Open Ball Distance (B) 28.96 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-1016-K1-C Ball Lock Pins - 25.4x101.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $123.68 AUD Regular price Sale price $123.68 AUD Unit price per Each
Nominal Diameter 25.40 mm	Grip Length (B) 101.60 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm
Material: Carbon Steel Open Ball Distance (B): 28.96 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-1016-K1-C Ball Lock Pins - 25.4x101.6 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $123.68 AUD Regular price Sale price $123.68 AUD Unit price per Each View the product page first if you are unsure.
BLP-254-1016-K1-C --- Ball Lock Pins - 25.4x101.6 mm - Carbon Steel BLP-254-1016-K1-C --- Ball Lock Pins - 25.4x101.6 mm - Carbon Steel Regular price $123.68 AUD Regular price Sale price $123.68 AUD Unit price per Out of stock! Backorder Now
Nominal Diameter 25.40 mm	Grip Length (B) 114.30 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm	Open Ball Distance (B) 28.96 mm
Material: Carbon Steel Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-1143-K1-C Ball Lock Pins - 25.4x114.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $136.14 AUD Regular price Sale price $136.14 AUD Unit price per Each
Nominal Diameter 25.40 mm	Grip Length (B) 114.30 mm	Pin Material Grade Carbon Steel	Locking Ball to End (C) 31.75 mm
Material: Carbon Steel Open Ball Distance (B): 28.96 mm Ring Diameter (R ): 38.10 mm Depth of Ring in Pin (D): 12.70 mm Detent Style: 1 Ball Plain Pin No Shoulder
Part Number: BLP-254-1143-K1-C Ball Lock Pins - 25.4x114.3 mm - Carbon Steel Out of Stock \| Backorder Now \| Orders can be expected around Wed, Aug 06, 2025 Regular price $136.14 AUD Regular price Sale price $136.14 AUD Unit price per Each View the product page first if you are unsure.
BLP-254-1143-K1-C --- Ball Lock Pins - 25.4x114.3 mm - Carbon Steel BLP-254-1143-K1-C --- Ball Lock Pins - 25.4x114.3 mm - Carbon Steel Regular price $136.14 AUD Regular price Sale price $136.14 AUD Unit price per Out of stock! Backorder Now

Country/region

Country/region

Collection: Pins - Ball Lock - Keyring Style - Single Ball - Steel

Filter

Filter

Subscribe to our emails
