Pins - Ball Lock - Keyring Style - Dual Ball 300 Grade Stainless Steel

Pins -> Ball Lock -> Keyring Style -> Dual Ball 300 Grade Stainless Steel

There are 2 products in the sub-categories of Pins - Ball Lock - Keyring Style - Dual Ball 300 Grade Stainless Steel. Browse the Pins - Ball Lock - Keyring Style - Dual Ball 300 Grade Stainless Steel products table.

Category Details

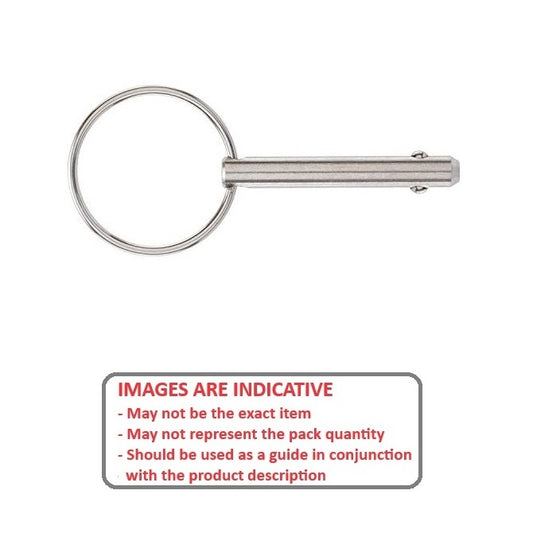

A selection of Dual Ball 300 Grade Stainless Steel Keyring Style Ball Lock Pins. Quick release. Provide positive locking for all types of applications and equipment. Body, head and all internal components are made from corrosion resistant stainless steel.

  • An expanded range may be available on special order. Please enquire.
  • Positive lock detent pins.
  • 300 Grade Stainless Handles
  • 300 Grade Stainless Components
  • 440C Stainless Balls

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Ball Lock - Keyring Style - Dual Ball 300 Grade Stainless Steel category on the Small Parts & Bearings online store.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C ) Open Ball Distance (B) Max. Handle Height (H) Indicative
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
25.40
mm

(Equiv. 1 in.)
Pin Material Grade
304 Stainless Steel

Locking Ball to End (C )
5.08
mm
Open Ball Distance (B)
5.18
mm
Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0254-K2-S4
Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel Keyring Style Pin
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Diameter Grip Length (B) Pin Material Grade Locking Ball to End (C ) Indicative
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
25.40
mm

(Equiv. 1 in.)
Pin Material Grade
304 Stainless Steel

Locking Ball to End (C )
5.08
mm
Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Open Ball Distance (B): 5.18 mm    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0254-K2-S4
Ball Lock Pins - 4.76x25.4 mm - 304 Stainless Steel Keyring Style Pin
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
31.75
mm

(Equiv. 1.25 in.)
Pin Material Grade
304 Stainless Steel

Locking Ball to End (C )
5.08
mm
Open Ball Distance (B)
5.18
mm
Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0318-K2-S4
Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel Keyring Style Pin
8 Available Now | Further orders can be expected around Sun, Aug 31, 2025
$54.95 AUD
$54.95 AUD
Each
Quantity Required

8 Available Now. Backorder if more than 8.
Nominal Diameter
4.76
mm

(Equiv. 0.187 in.)
Grip Length (B)
31.75
mm

(Equiv. 1.25 in.)
Pin Material Grade
304 Stainless Steel

Locking Ball to End (C )
5.08
mm
Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel
Material: Stainless Steel 304 (Similar to A2, 18-8) HRB80    Open Ball Distance (B): 5.18 mm    Ring Diameter (R ): 25.40 mm    Depth of Ring in Pin (D): 4.75 mm    Detent Style: 2 Ball with Shoulder
Part Number: BLP-048-0318-K2-S4
Ball Lock Pins - 4.76x31.75 mm - 304 Stainless Steel Keyring Style Pin
8 Available Now | Further orders can be expected around Sun, Aug 31, 2025
$54.95 AUD
$54.95 AUD
Each
Quantity Required

8 Available Now. Backorder if more than 8.
