Collection: Mounts - Levelling Studded - Swivel - Plated
Mounts -> Levelling Studded -> Swivel -> PlatedThere are 18 products in the sub-categories of Mounts - Levelling Studded - Swivel - Plated. Browse the Mounts - Levelling Studded - Swivel - Plated products table. To narrow down the selection, please choose a sub-category from the links below.

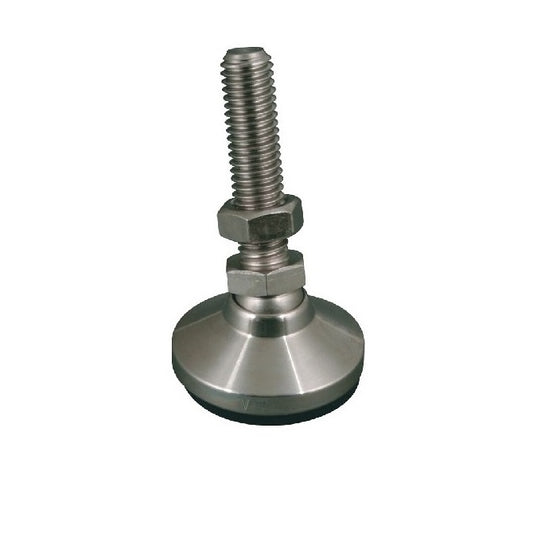

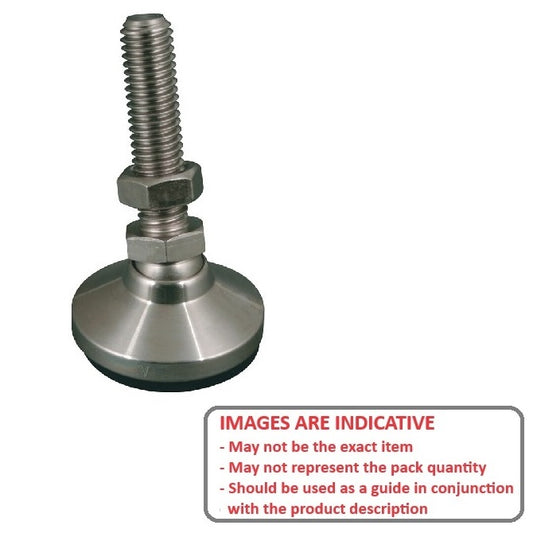

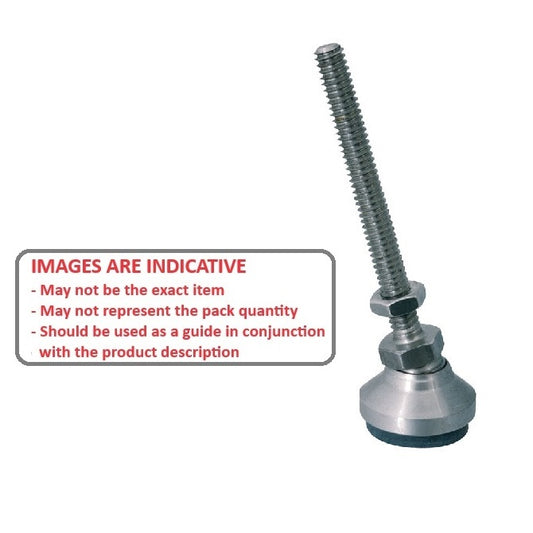

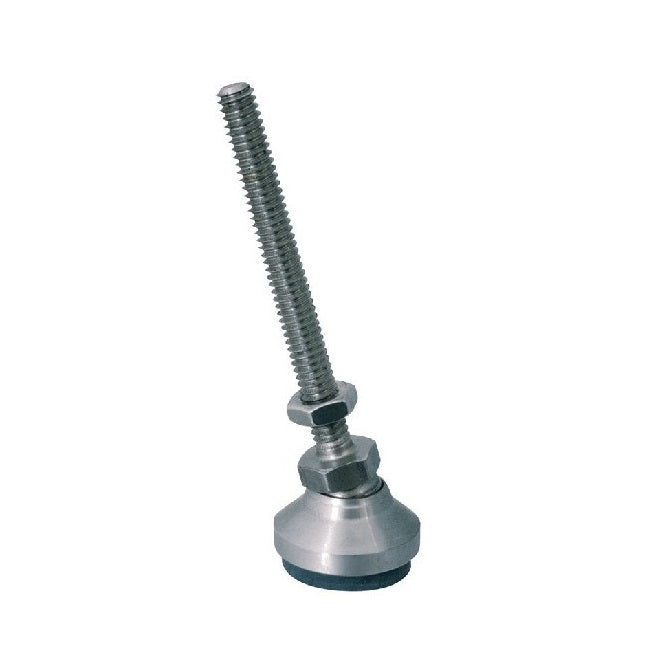

Mounts - Levelling Studded - Swivel - Plated - Rubber Padded
A selection of Rubber Padded Plated Swivel Levelling Studded Mounts. Levelling adjusters....

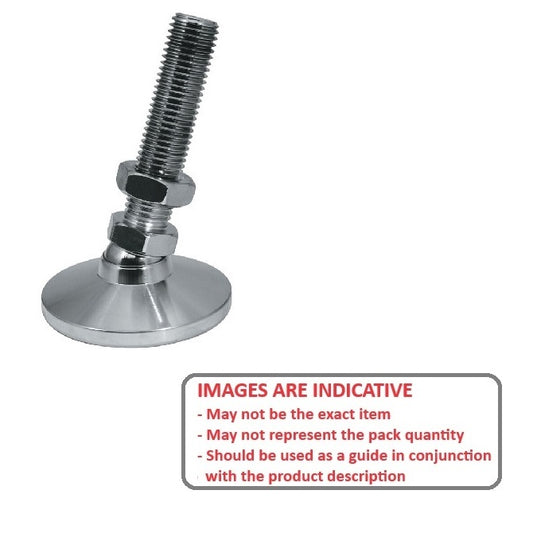

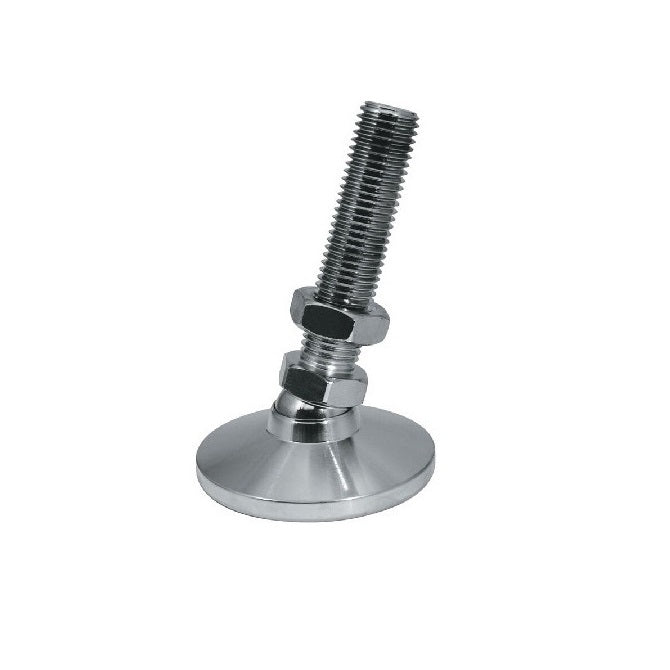

Mounts - Levelling Studded - Swivel - Plated - Standard
A selection of Standard Plated Swivel Levelling Studded Mounts. Levelling adjusters. 15o...
Category Details
This category includes various types of levelling studded mounts.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Mounts - Levelling Studded - Swivel - Plated category on the Small Parts & Bearings online store.
| Thread Size (A) | Base Diameter (D) | Foot Height (C) | Thread Length (F) | Base Height (E) | Overall Height |
Indicative Image |
|---|---|---|---|---|---|---|
|
Thread Size (A)
M6 (6x1mm)
|
Base Diameter (D)
19.0
mm (Equiv. 0.748 in.) |
Foot Height (C)
17.0
mm (Equiv. 0.669 in.) |
Thread Length (F)
25.0
mm |
Base Height (E)
6.00
mm |
Overall Height
42.0
mm |
|
|
Material: Steel
Load Rating: 230 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-060M-025-CNPRP
Levelling Studded Mounts - M6 - 6x1mm - 19x17 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$33.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Thread Size (A) | Base Diameter (D) | Foot Height (C) | Thread Length (F) |
Indicative Image |
||
|
Thread Size (A)
M6 (6x1mm)
|
Base Diameter (D)
19.0
mm (Equiv. 0.748 in.) |
Foot Height (C)
17.0
mm (Equiv. 0.669 in.) |
Thread Length (F)
25.0
mm |
|
||
|
Material: Steel
Base Height (E): 6.00 mm
Overall Height: 42.0 mm
Load Rating: 230 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-060M-025-CNPRP
Levelling Studded Mounts - M6 - 6x1mm - 19x17 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$33.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
1/4-20 UNC (6.35mm)
|
Base Diameter (D)
25.4
mm (Equiv. 1 in.) |
Foot Height (C)
128.2
mm (Equiv. 5.047 in.) |
Thread Length (F)
63.5
mm |
Base Height (E)
7.14
mm |
Overall Height
191.7
mm |
|
|
Material: Steel
Load Rating: 340 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-064C-064-CNPRP
Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x128.2 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
1/4-20 UNC (6.35mm)
|
Base Diameter (D)
25.4
mm (Equiv. 1 in.) |
Foot Height (C)
128.2
mm (Equiv. 5.047 in.) |
Thread Length (F)
63.5
mm |
|
||
|
Material: Steel
Base Height (E): 7.14 mm
Overall Height: 191.7 mm
Load Rating: 340 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-064C-064-CNPRP
Levelling Studded Mounts - 1/4-20 UNC - 6.35mm - 25.4x128.2 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$24.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M8 (8x1.25mm)
|
Base Diameter (D)
25.0
mm (Equiv. 0.984 in.) |
Foot Height (C)
18.0
mm (Equiv. 0.709 in.) |
Thread Length (F)
32.0
mm |
Base Height (E)
4.00
mm |
Overall Height
50.0
mm |
|
|
Material: Steel
Load Rating: 450 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-080M-032-CNP
Levelling Studded Mounts - M8 - 8x1.25mm - 25x18 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$42.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M8 (8x1.25mm)
|
Base Diameter (D)
25.0
mm (Equiv. 0.984 in.) |
Foot Height (C)
18.0
mm (Equiv. 0.709 in.) |
Thread Length (F)
32.0
mm |
|
||
|
Material: Steel
Base Height (E): 4.00 mm
Overall Height: 50.0 mm
Load Rating: 450 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-080M-032-CNP
Levelling Studded Mounts - M8 - 8x1.25mm - 25x18 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$42.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M10 (10x1.5mm)
|
Base Diameter (D)
32.0
mm (Equiv. 1.26 in.) |
Foot Height (C)
25.0
mm (Equiv. 0.984 in.) |
Thread Length (F)
51.0
mm |
Base Height (E)
8.00
mm |
Overall Height
76.0
mm |
|
|
Material: Steel
Load Rating: 1270 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-100M-051-CNPRP
Levelling Studded Mounts - M10 - 10x1.5mm - 32x25 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$35.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M10 (10x1.5mm)
|
Base Diameter (D)
32.0
mm (Equiv. 1.26 in.) |
Foot Height (C)
25.0
mm (Equiv. 0.984 in.) |
Thread Length (F)
51.0
mm |
|
||
|
Material: Steel
Base Height (E): 8.00 mm
Overall Height: 76.0 mm
Load Rating: 1270 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-100M-051-CNPRP
Levelling Studded Mounts - M10 - 10x1.5mm - 32x25 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$35.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M12 (12x1.75mm)
|
Base Diameter (D)
48.0
mm (Equiv. 1.89 in.) |
Foot Height (C)
29.0
mm (Equiv. 1.142 in.) |
Thread Length (F)
51.0
mm |
Base Height (E)
6.00
mm |
Overall Height
80.0
mm |
|
|
Material: Steel
Load Rating: 2250 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-120M-051-CNP
Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$59.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M12 (12x1.75mm)
|
Base Diameter (D)
48.0
mm (Equiv. 1.89 in.) |
Foot Height (C)
29.0
mm (Equiv. 1.142 in.) |
Thread Length (F)
51.0
mm |
|
||
|
Material: Steel
Base Height (E): 6.00 mm
Overall Height: 80.0 mm
Load Rating: 2250 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-120M-051-CNP
Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$59.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M12 (12x1.75mm)
|
Base Diameter (D)
60.00
mm (Equiv. 2.362 in.) |
Foot Height (C)
37.00
mm (Equiv. 1.457 in.) |
Thread Length (F)
120.00
mm |
Base Height (E)
28.50
mm |
Overall Height
157.0
mm |
|
|
Material: Steel
Load Rating: 600 Kg
Finish: Zinc Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MLM-120M-120-CZRP
Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 30, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M12 (12x1.75mm)
|
Base Diameter (D)
60.00
mm (Equiv. 2.362 in.) |
Foot Height (C)
37.00
mm (Equiv. 1.457 in.) |
Thread Length (F)
120.00
mm |
|
||
|
Material: Steel
Base Height (E): 28.50 mm
Overall Height: 157.0 mm
Load Rating: 600 Kg
Finish: Zinc Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MLM-120M-120-CZRP
Levelling Studded Mounts - M12 - 12x1.75mm - 60x37 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 30, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
1/2-13 UNC (12.7mm)
|
Base Diameter (D)
47.6
mm (Equiv. 1.874 in.) |
Foot Height (C)
31.8
mm (Equiv. 1.252 in.) |
Thread Length (F)
50.8
mm |
Base Height (E)
9.53
mm |
Overall Height
82.6
mm |
|
|
Material: Steel
Load Rating: 1750 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-127C-051-CNPRP
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$33.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
1/2-13 UNC (12.7mm)
|
Base Diameter (D)
47.6
mm (Equiv. 1.874 in.) |
Foot Height (C)
31.8
mm (Equiv. 1.252 in.) |
Thread Length (F)
50.8
mm |
|
||
|
Material: Steel
Base Height (E): 9.53 mm
Overall Height: 82.6 mm
Load Rating: 1750 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-127C-051-CNPRP
Levelling Studded Mounts - 1/2-13 UNC - 12.7mm - 47.6x31.8 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$33.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
5/8-11 UNC (15.88mm)
|
Base Diameter (D)
63.5
mm (Equiv. 2.5 in.) |
Foot Height (C)
31.8
mm (Equiv. 1.252 in.) |
Thread Length (F)
101.6
mm |
Base Height (E)
7.94
mm |
Overall Height
133.4
mm |
|
|
Material: Steel
Load Rating: 2720 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-159C-102-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$84.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
5/8-11 UNC (15.88mm)
|
Base Diameter (D)
63.5
mm (Equiv. 2.5 in.) |
Foot Height (C)
31.8
mm (Equiv. 1.252 in.) |
Thread Length (F)
101.6
mm |
|
||
|
Material: Steel
Base Height (E): 7.94 mm
Overall Height: 133.4 mm
Load Rating: 2720 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-159C-102-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$84.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
5/8-11 UNC (15.88mm)
|
Base Diameter (D)
63.5
mm (Equiv. 2.5 in.) |
Foot Height (C)
31.8
mm (Equiv. 1.252 in.) |
Thread Length (F)
50.8
mm |
Base Height (E)
7.94
mm |
Overall Height
82.6
mm |
|
|
Material: Steel
Load Rating: 2720 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-159C-051-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$86.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
5/8-11 UNC (15.88mm)
|
Base Diameter (D)
63.5
mm (Equiv. 2.5 in.) |
Foot Height (C)
31.8
mm (Equiv. 1.252 in.) |
Thread Length (F)
50.8
mm |
|
||
|
Material: Steel
Base Height (E): 7.94 mm
Overall Height: 82.6 mm
Load Rating: 2720 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-159C-051-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$86.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M16 (16x2mm)
|
Base Diameter (D)
64.0
mm (Equiv. 2.52 in.) |
Foot Height (C)
32.0
mm (Equiv. 1.26 in.) |
Thread Length (F)
51.0
mm |
Base Height (E)
8.00
mm |
Overall Height
83.0
mm |
|
|
Material: Steel
Load Rating: 2700 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-160M-051-CNP
Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$74.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M16 (16x2mm)
|
Base Diameter (D)
64.0
mm (Equiv. 2.52 in.) |
Foot Height (C)
32.0
mm (Equiv. 1.26 in.) |
Thread Length (F)
51.0
mm |
|
||
|
Material: Steel
Base Height (E): 8.00 mm
Overall Height: 83.0 mm
Load Rating: 2700 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-160M-051-CNP
Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$74.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
3/4-10 UNC (19.05mm)
|
Base Diameter (D)
76.2
mm (Equiv. 3 in.) |
Foot Height (C)
38.1
mm (Equiv. 1.5 in.) |
Thread Length (F)
101.6
mm |
Base Height (E)
12.70
mm |
Overall Height
139.7
mm |
|
|
Material: Steel
Load Rating: 3350 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-191C-102-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$104.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
3/4-10 UNC (19.05mm)
|
Base Diameter (D)
76.2
mm (Equiv. 3 in.) |
Foot Height (C)
38.1
mm (Equiv. 1.5 in.) |
Thread Length (F)
101.6
mm |
|
||
|
Material: Steel
Base Height (E): 12.70 mm
Overall Height: 139.7 mm
Load Rating: 3350 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-191C-102-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$104.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
3/4-10 UNC (19.05mm)
|
Base Diameter (D)
76.2
mm (Equiv. 3 in.) |
Foot Height (C)
38.1
mm (Equiv. 1.5 in.) |
Thread Length (F)
50.8
mm |
Base Height (E)
12.70
mm |
Overall Height
88.9
mm |
|
|
Material: Steel
Load Rating: 3350 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-191C-051-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$109.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
3/4-10 UNC (19.05mm)
|
Base Diameter (D)
76.2
mm (Equiv. 3 in.) |
Foot Height (C)
38.1
mm (Equiv. 1.5 in.) |
Thread Length (F)
50.8
mm |
|
||
|
Material: Steel
Base Height (E): 12.70 mm
Overall Height: 88.9 mm
Load Rating: 3350 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-191C-051-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$109.41 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M20 (20x2.5mm)
|
Base Diameter (D)
76.0
mm (Equiv. 2.992 in.) |
Foot Height (C)
38.0
mm (Equiv. 1.496 in.) |
Thread Length (F)
51.0
mm |
Base Height (E)
13.00
mm |
Overall Height
89.0
mm |
|
|
Material: Steel
Load Rating: 3350 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-200M-051-CNP
Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$159.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M20 (20x2.5mm)
|
Base Diameter (D)
76.0
mm (Equiv. 2.992 in.) |
Foot Height (C)
38.0
mm (Equiv. 1.496 in.) |
Thread Length (F)
51.0
mm |
|
||
|
Material: Steel
Base Height (E): 13.00 mm
Overall Height: 89.0 mm
Load Rating: 3350 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-200M-051-CNP
Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$159.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
48.0
mm (Equiv. 1.89 in.) |
Thread Length (F)
108.0
mm |
Base Height (E)
10.00
mm |
Overall Height
156.0
mm |
|
|
Material: Steel
Load Rating: 9000 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-240M-108-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$231.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
48.0
mm (Equiv. 1.89 in.) |
Thread Length (F)
108.0
mm |
|
||
|
Material: Steel
Base Height (E): 10.00 mm
Overall Height: 156.0 mm
Load Rating: 9000 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-240M-108-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$231.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
48.0
mm (Equiv. 1.89 in.) |
Thread Length (F)
89.0
mm |
Base Height (E)
10.00
mm |
Overall Height
137.0
mm |
|
|
Material: Steel
Load Rating: 9000 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-240M-089-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$226.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
48.0
mm (Equiv. 1.89 in.) |
Thread Length (F)
89.0
mm |
|
||
|
Material: Steel
Base Height (E): 10.00 mm
Overall Height: 137.0 mm
Load Rating: 9000 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-240M-089-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$226.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
51.0
mm (Equiv. 2.008 in.) |
Thread Length (F)
108.0
mm |
Base Height (E)
14.00
mm |
Overall Height
159.0
mm |
|
|
Material: Steel
Load Rating: 6800 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-240M-108-CNPRP (10 Pcs)
Levelling Studded Mounts - M24 - 24x3mm - 102x51 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$4,838.95 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
51.0
mm (Equiv. 2.008 in.) |
Thread Length (F)
108.0
mm |
|
||
|
Material: Steel
Base Height (E): 14.00 mm
Overall Height: 159.0 mm
Load Rating: 6800 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-240M-108-CNPRP (10 Pcs)
Levelling Studded Mounts - M24 - 24x3mm - 102x51 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$4,838.95 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
51.0
mm (Equiv. 2.008 in.) |
Thread Length (F)
89.0
mm |
Base Height (E)
14.00
mm |
Overall Height
140.0
mm |
|
|
Material: Steel
Load Rating: 6800 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-240M-089-CNPRP
Levelling Studded Mounts - M24 - 24x3mm - 102x51 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$300.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
M24 (24x3mm)
|
Base Diameter (D)
102.0
mm (Equiv. 4.016 in.) |
Foot Height (C)
51.0
mm (Equiv. 2.008 in.) |
Thread Length (F)
89.0
mm |
|
||
|
Material: Steel
Base Height (E): 14.00 mm
Overall Height: 140.0 mm
Load Rating: 6800 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Rubber Padded |
||||||
|
Part Number: MSM-240M-089-CNPRP
Levelling Studded Mounts - M24 - 24x3mm - 102x51 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$300.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Thread Size (A)
1-8 UNC (25.4mm)
|
Base Diameter (D)
101.6
mm (Equiv. 4 in.) |
Foot Height (C)
47.6
mm (Equiv. 1.874 in.) |
Thread Length (F)
203.2
mm |
Base Height (E)
10.32
mm |
Overall Height
250.8
mm |
|
|
Material: Steel
Load Rating: 9070 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-254C-203-CNP
Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$288.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Thread Size (A)
1-8 UNC (25.4mm)
|
Base Diameter (D)
101.6
mm (Equiv. 4 in.) |
Foot Height (C)
47.6
mm (Equiv. 1.874 in.) |
Thread Length (F)
203.2
mm |
|
||
|
Material: Steel
Base Height (E): 10.32 mm
Overall Height: 250.8 mm
Load Rating: 9070 Kg
Finish: Nickel Plated
Category: Mounts - Levelling Studded - Swivel - Plated - Standard |
||||||
|
Part Number: MSM-254C-203-CNP
Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 16, 2025 Regular price
$288.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
