Mounts - Levelling Studded - Swivel - Plated - Standard

Mounts -> Levelling Studded -> Swivel -> Plated -> Standard

There are 11 products in the sub-categories of Mounts - Levelling Studded - Swivel - Plated - Standard. Browse the Mounts - Levelling Studded - Swivel - Plated - Standard products table.

Category Details

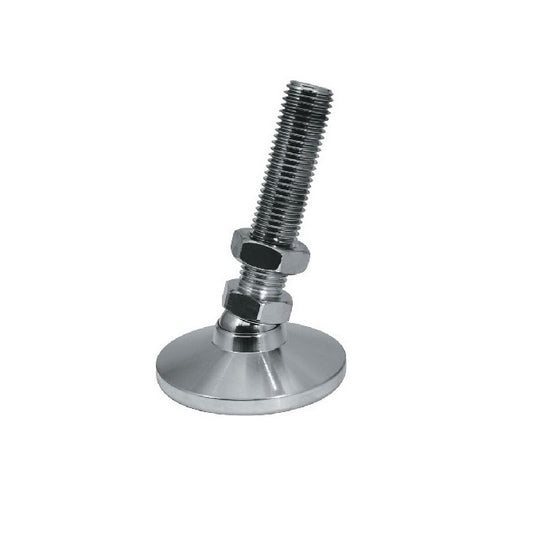

A selection of Standard Plated Swivel Levelling Studded Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.

  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Mounts - Levelling Studded - Swivel - Plated - Standard category on the Small Parts & Bearings online store.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Base Height (E) Overall Height Indicative
Thread Size (A)
M8 (8x1.25mm)

Base Diameter (D)
25.0
mm

(Equiv. 0.984 in.)
Foot Height (C)
18.0
mm

(Equiv. 0.709 in.)
Thread Length (F)
32.0
mm
Base Height (E)
4.00
mm
Overall Height
50.0
mm
Levelling Studded Mounts - M8 -8x1.25mm- 25x18 mm - Steel
Material: Steel    Load Rating: 450 Kg    Finish: Nickel Plated    Hex Flats (B): 12.000 mm
Part Number: MSM-080M-032-CNP
Levelling Studded Mounts - M8 - 8x1.25mm - 25x18 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$42.77 AUD
$42.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A) Base Diameter (D) Foot Height (C) Thread Length (F) Indicative
Thread Size (A)
M8 (8x1.25mm)

Base Diameter (D)
25.0
mm

(Equiv. 0.984 in.)
Foot Height (C)
18.0
mm

(Equiv. 0.709 in.)
Thread Length (F)
32.0
mm
Levelling Studded Mounts - M8 -8x1.25mm- 25x18 mm - Steel
Material: Steel    Base Height (E): 4.00 mm    Overall Height: 50.0 mm    Load Rating: 450 Kg    Finish: Nickel Plated    Hex Flats (B): 12.000 mm
Part Number: MSM-080M-032-CNP
Levelling Studded Mounts - M8 - 8x1.25mm - 25x18 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$42.77 AUD
$42.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M12 (12x1.75mm)

Base Diameter (D)
48.0
mm

(Equiv. 1.89 in.)
Foot Height (C)
29.0
mm

(Equiv. 1.142 in.)
Thread Length (F)
51.0
mm
Base Height (E)
6.00
mm
Overall Height
80.0
mm
Levelling Studded Mounts - M12 -12x1.75mm- 48x29 mm - Steel
Material: Steel    Load Rating: 2250 Kg    Finish: Nickel Plated    Hex Flats (B): 20.000 mm
Part Number: MSM-120M-051-CNP
Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$59.41 AUD
$71.29 AUD $59.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M12 (12x1.75mm)

Base Diameter (D)
48.0
mm

(Equiv. 1.89 in.)
Foot Height (C)
29.0
mm

(Equiv. 1.142 in.)
Thread Length (F)
51.0
mm
Levelling Studded Mounts - M12 -12x1.75mm- 48x29 mm - Steel
Material: Steel    Base Height (E): 6.00 mm    Overall Height: 80.0 mm    Load Rating: 2250 Kg    Finish: Nickel Plated    Hex Flats (B): 20.000 mm
Part Number: MSM-120M-051-CNP
Levelling Studded Mounts - M12 - 12x1.75mm - 48x29 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$59.41 AUD
$71.29 AUD $59.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
101.6
mm
Base Height (E)
7.94
mm
Overall Height
133.4
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Load Rating: 2720 Kg    Finish: Nickel Plated    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$84.23 AUD
$101.07 AUD $84.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
101.6
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Base Height (E): 7.94 mm    Overall Height: 133.4 mm    Load Rating: 2720 Kg    Finish: Nickel Plated    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-102-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$84.23 AUD
$101.07 AUD $84.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
50.8
mm
Base Height (E)
7.94
mm
Overall Height
82.6
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Load Rating: 2720 Kg    Finish: Nickel Plated    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$86.41 AUD
$103.69 AUD $86.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
5/8-11 UNC (15.88mm)

Base Diameter (D)
63.5
mm

(Equiv. 2.5 in.)
Foot Height (C)
31.8
mm

(Equiv. 1.252 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 5/8-11 UNC -15.88mm- 63.5x31.8 mm - Steel
Material: Steel    Base Height (E): 7.94 mm    Overall Height: 82.6 mm    Load Rating: 2720 Kg    Finish: Nickel Plated    Hex Flats (B): 22.225 mm
Part Number: MSM-159C-051-CNP
Levelling Studded Mounts - 5/8-11 UNC - 15.88mm - 63.5x31.8 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$86.41 AUD
$103.69 AUD $86.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M16 (16x2mm)

Base Diameter (D)
64.0
mm

(Equiv. 2.52 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
51.0
mm
Base Height (E)
8.00
mm
Overall Height
83.0
mm
Levelling Studded Mounts - M16 -16x2mm- 64x32 mm - Steel
Material: Steel    Load Rating: 2700 Kg    Finish: Nickel Plated    Hex Flats (B): 22.000 mm
Part Number: MSM-160M-051-CNP
Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$74.41 AUD
$89.29 AUD $74.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M16 (16x2mm)

Base Diameter (D)
64.0
mm

(Equiv. 2.52 in.)
Foot Height (C)
32.0
mm

(Equiv. 1.26 in.)
Thread Length (F)
51.0
mm
Levelling Studded Mounts - M16 -16x2mm- 64x32 mm - Steel
Material: Steel    Base Height (E): 8.00 mm    Overall Height: 83.0 mm    Load Rating: 2700 Kg    Finish: Nickel Plated    Hex Flats (B): 22.000 mm
Part Number: MSM-160M-051-CNP
Levelling Studded Mounts - M16 - 16x2mm - 64x32 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$74.41 AUD
$89.29 AUD $74.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Thread Length (F)
101.6
mm
Base Height (E)
12.70
mm
Overall Height
139.7
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3350 Kg    Finish: Nickel Plated    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-102-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$104.14 AUD
$124.96 AUD $104.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Thread Length (F)
101.6
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 139.7 mm    Load Rating: 3350 Kg    Finish: Nickel Plated    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-102-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$104.14 AUD
$124.96 AUD $104.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Thread Length (F)
50.8
mm
Base Height (E)
12.70
mm
Overall Height
88.9
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Load Rating: 3350 Kg    Finish: Nickel Plated    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-051-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$109.41 AUD
$131.29 AUD $109.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
3/4-10 UNC (19.05mm)

Base Diameter (D)
76.2
mm

(Equiv. 3 in.)
Foot Height (C)
38.1
mm

(Equiv. 1.5 in.)
Thread Length (F)
50.8
mm
Levelling Studded Mounts - 3/4-10 UNC -19.05mm- 76.2x38.1 mm - Steel
Material: Steel    Base Height (E): 12.70 mm    Overall Height: 88.9 mm    Load Rating: 3350 Kg    Finish: Nickel Plated    Hex Flats (B): 26.988 mm
Part Number: MSM-191C-051-CNP
Levelling Studded Mounts - 3/4-10 UNC - 19.05mm - 76.2x38.1 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$109.41 AUD
$131.29 AUD $109.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M20 (20x2.5mm)

Base Diameter (D)
76.0
mm

(Equiv. 2.992 in.)
Foot Height (C)
38.0
mm

(Equiv. 1.496 in.)
Thread Length (F)
51.0
mm
Base Height (E)
13.00
mm
Overall Height
89.0
mm
Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Steel
Material: Steel    Load Rating: 3350 Kg    Finish: Nickel Plated    Hex Flats (B): 27.000 mm
Part Number: MSM-200M-051-CNP
Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$159.86 AUD
$191.84 AUD $159.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M20 (20x2.5mm)

Base Diameter (D)
76.0
mm

(Equiv. 2.992 in.)
Foot Height (C)
38.0
mm

(Equiv. 1.496 in.)
Thread Length (F)
51.0
mm
Levelling Studded Mounts - M20 -20x2.5mm- 76x38 mm - Steel
Material: Steel    Base Height (E): 13.00 mm    Overall Height: 89.0 mm    Load Rating: 3350 Kg    Finish: Nickel Plated    Hex Flats (B): 27.000 mm
Part Number: MSM-200M-051-CNP
Levelling Studded Mounts - M20 - 20x2.5mm - 76x38 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$159.86 AUD
$191.84 AUD $159.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M24 (24x3mm)

Base Diameter (D)
102.0
mm

(Equiv. 4.016 in.)
Foot Height (C)
48.0
mm

(Equiv. 1.89 in.)
Thread Length (F)
108.0
mm
Base Height (E)
10.00
mm
Overall Height
156.0
mm
Levelling Studded Mounts - M24 -24x3mm- 102x48 mm - Steel
Material: Steel    Load Rating: 9000 Kg    Finish: Nickel Plated    Hex Flats (B): 35.000 mm
Part Number: MSM-240M-108-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$231.23 AUD
$277.47 AUD $231.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M24 (24x3mm)

Base Diameter (D)
102.0
mm

(Equiv. 4.016 in.)
Foot Height (C)
48.0
mm

(Equiv. 1.89 in.)
Thread Length (F)
108.0
mm
Levelling Studded Mounts - M24 -24x3mm- 102x48 mm - Steel
Material: Steel    Base Height (E): 10.00 mm    Overall Height: 156.0 mm    Load Rating: 9000 Kg    Finish: Nickel Plated    Hex Flats (B): 35.000 mm
Part Number: MSM-240M-108-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$231.23 AUD
$277.47 AUD $231.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M24 (24x3mm)

Base Diameter (D)
102.0
mm

(Equiv. 4.016 in.)
Foot Height (C)
48.0
mm

(Equiv. 1.89 in.)
Thread Length (F)
89.0
mm
Base Height (E)
10.00
mm
Overall Height
137.0
mm
Levelling Studded Mounts - M24 -24x3mm- 102x48 mm - Steel
Material: Steel    Load Rating: 9000 Kg    Finish: Nickel Plated    Hex Flats (B): 35.000 mm
Part Number: MSM-240M-089-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$226.86 AUD
$272.24 AUD $226.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
M24 (24x3mm)

Base Diameter (D)
102.0
mm

(Equiv. 4.016 in.)
Foot Height (C)
48.0
mm

(Equiv. 1.89 in.)
Thread Length (F)
89.0
mm
Levelling Studded Mounts - M24 -24x3mm- 102x48 mm - Steel
Material: Steel    Base Height (E): 10.00 mm    Overall Height: 137.0 mm    Load Rating: 9000 Kg    Finish: Nickel Plated    Hex Flats (B): 35.000 mm
Part Number: MSM-240M-089-CNP
Levelling Studded Mounts - M24 - 24x3mm - 102x48 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$226.86 AUD
$272.24 AUD $226.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1-8 UNC (25.4mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
47.6
mm

(Equiv. 1.874 in.)
Thread Length (F)
203.2
mm
Base Height (E)
10.32
mm
Overall Height
250.8
mm
Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel
Material: Steel    Load Rating: 9070 Kg    Finish: Nickel Plated    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-203-CNP
Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$288.95 AUD
$346.75 AUD $288.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Thread Size (A)
1-8 UNC (25.4mm)

Base Diameter (D)
101.6
mm

(Equiv. 4 in.)
Foot Height (C)
47.6
mm

(Equiv. 1.874 in.)
Thread Length (F)
203.2
mm
Levelling Studded Mounts - 1-8 UNC -25.4mm- 101.6x47.6 mm - Steel
Material: Steel    Base Height (E): 10.32 mm    Overall Height: 250.8 mm    Load Rating: 9070 Kg    Finish: Nickel Plated    Hex Flats (B): 34.925 mm
Part Number: MSM-254C-203-CNP
Levelling Studded Mounts - 1-8 UNC - 25.4mm - 101.6x47.6 mm Swivel - Steel Mount
Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 28, 2025
$288.95 AUD
$346.75 AUD $288.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
