Collection: Housing Assembly - Pillow Block
Housing Assembly -> Pillow BlockThere are 39 products in the sub-categories of Housing Assembly - Pillow Block. Scroll down or follow the link to Housing Assembly - Pillow Block in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

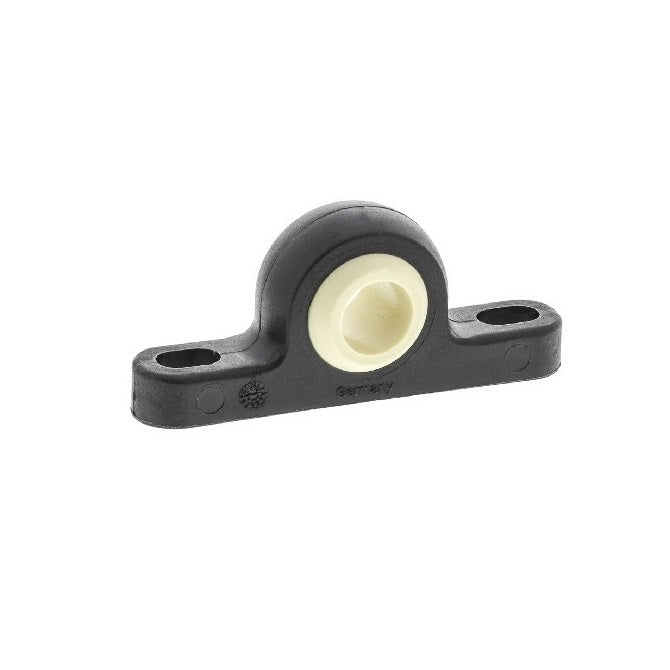

Housing Assembly - Pillow Block - Thermoplastic

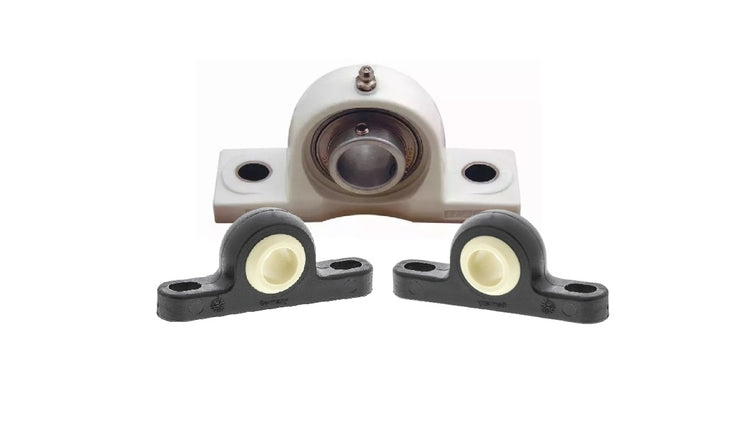

This category includes various types of pillow block housing assembly.An expanded range...
Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel
A selection of Thermoplastic and Chrome Steel Pillow Block Housing Assembly. Thermoplastic...

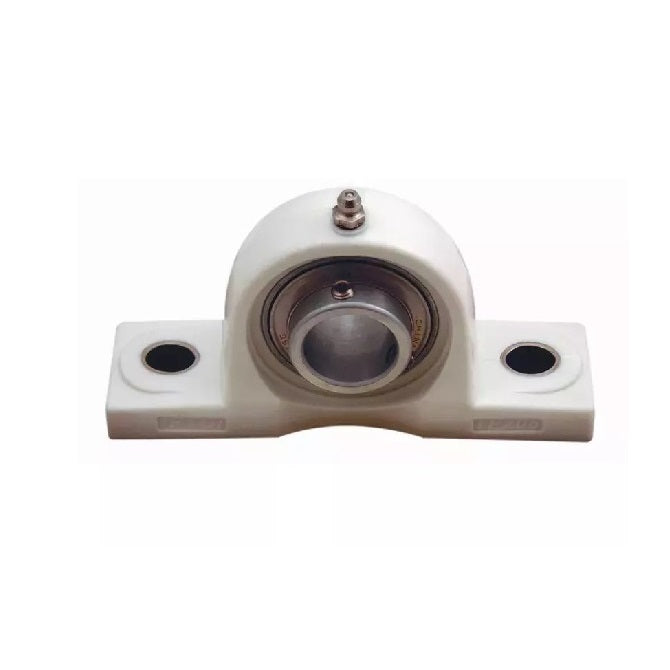

Housing Assembly - Pillow Block - Thermoplastic and Stainless
A selection of Thermoplastic and Stainless Pillow Block Housing Assembly. Thermoplastic housed...
Category Details
This category includes various types of pillow block housing assembly.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Housing Assembly - Pillow Block category on the Small Parts & Bearings online store.
| Bore Diameter (d) | Overall Length (L) | Height (H) | Width (W) | Overall Width (W2) | Distance Base to Centre |
Indicative Image |
|---|---|---|---|---|---|---|
|
Bore Diameter (d)
4.830
mm + 0.020 / + 0.068
(Equiv. 0.19 in.) |
Overall Length (L)
35.560
mm (Equiv. 1.4 in.) |
Height (H)
14.730
mm (Equiv. 0.58 in.) |
Width (W)
5.940
mm |
Overall Width (W2)
7.920
mm |
Distance Base to Centre
7.370
mm |
|
|
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 150 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-048-L280 (10 Pcs)
Pillow Block Housing Assembly - 4.83x35.56x14.73 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$133.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
| Bore Diameter (d) | Overall Length (L) | Height (H) | Width (W) |
Indicative Image |
||
|
Bore Diameter (d)
4.830
mm + 0.020 / + 0.068 (Equiv. 0.19 in.) |
Overall Length (L)
35.560
mm (Equiv. 1.4 in.) |
Height (H)
14.730
mm (Equiv. 0.58 in.) |
Width (W)
5.940
mm |
|
||
|
Overall Width (W2): 7.920 mm
Distance Base to Centre: 7.370 mm
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 150 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-048-L280 (10 Pcs)
Pillow Block Housing Assembly - 4.83x35.56x14.73 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$133.32 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Bore Diameter (d)
6.000
mm (Equiv. 0.236 in.) |
Overall Length (L)
43.000
mm (Equiv. 1.693 in.) |
Height (H)
20.000
mm (Equiv. 0.787 in.) |
Width (W)
7.000
mm |
Overall Width (W2)
9.000
mm |
Distance Base to Centre
10.000
mm |
|
|
Max. Angle of Pivot: 29 °
Max. Static Tensile Strength: 547 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-060-L280
Pillow Block Housing Assembly - 6x43x20 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
6.000
mm (Equiv. 0.236 in.) |
Overall Length (L)
43.000
mm (Equiv. 1.693 in.) |
Height (H)
20.000
mm (Equiv. 0.787 in.) |
Width (W)
7.000
mm |
|
||
|
Overall Width (W2): 9.000 mm
Distance Base to Centre: 10.000 mm
Max. Angle of Pivot: 29 °
Max. Static Tensile Strength: 547 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-060-L280
Pillow Block Housing Assembly - 6x43x20 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$8.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
6.350
mm + 0.025 / + 0.083
(Equiv. 0.25 in.) |
Overall Length (L)
44.450
mm (Equiv. 1.75 in.) |
Height (H)
19.810
mm (Equiv. 0.78 in.) |
Width (W)
6.350
mm |
Overall Width (W2)
9.530
mm |
Distance Base to Centre
9.910
mm |
|
|
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 250 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-064-L280 (10 Pcs)
Pillow Block Housing Assembly - 6.35x44.45x19.81 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$137.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Bore Diameter (d)
6.350
mm + 0.025 / + 0.083 (Equiv. 0.25 in.) |
Overall Length (L)
44.450
mm (Equiv. 1.75 in.) |
Height (H)
19.810
mm (Equiv. 0.78 in.) |
Width (W)
6.350
mm |
|
||
|
Overall Width (W2): 9.530 mm
Distance Base to Centre: 9.910 mm
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 250 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-064-L280 (10 Pcs)
Pillow Block Housing Assembly - 6.35x44.45x19.81 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$137.68 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Bore Diameter (d)
7.938
mm + 0.025 / + 0.083
(Equiv. 0.313 in.) |
Overall Length (L)
49.530
mm (Equiv. 1.95 in.) |
Height (H)
21.840
mm (Equiv. 0.86 in.) |
Width (W)
7.920
mm |
Overall Width (W2)
11.100
mm |
Distance Base to Centre
10.920
mm |
|
|
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 300 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-079-L280 (10 Pcs)
Pillow Block Housing Assembly - 7.938x49.53x21.84 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$140.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Bore Diameter (d)
7.938
mm + 0.025 / + 0.083 (Equiv. 0.313 in.) |
Overall Length (L)
49.530
mm (Equiv. 1.95 in.) |
Height (H)
21.840
mm (Equiv. 0.86 in.) |
Width (W)
7.920
mm |
|
||
|
Overall Width (W2): 11.100 mm
Distance Base to Centre: 10.920 mm
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 300 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-079-L280 (10 Pcs)
Pillow Block Housing Assembly - 7.938x49.53x21.84 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$140.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Bore Diameter (d)
9.530
mm + 0.025 / + 0.083
(Equiv. 0.375 in.) |
Overall Length (L)
60.960
mm (Equiv. 2.4 in.) |
Height (H)
27.940
mm (Equiv. 1.1 in.) |
Width (W)
9.120
mm |
Overall Width (W2)
12.700
mm |
Distance Base to Centre
13.970
mm |
|
|
Max. Angle of Pivot: 22 °
Max. Static Tensile Strength: 325 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-095-L280 (10 Pcs)
Pillow Block Housing Assembly - 9.53x60.96x27.94 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$155.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Bore Diameter (d)
9.530
mm + 0.025 / + 0.083 (Equiv. 0.375 in.) |
Overall Length (L)
60.960
mm (Equiv. 2.4 in.) |
Height (H)
27.940
mm (Equiv. 1.1 in.) |
Width (W)
9.120
mm |
|
||
|
Overall Width (W2): 12.700 mm
Distance Base to Centre: 13.970 mm
Max. Angle of Pivot: 22 °
Max. Static Tensile Strength: 325 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-095-L280 (10 Pcs)
Pillow Block Housing Assembly - 9.53x60.96x27.94 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$155.41 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Bore Diameter (d)
10.000
mm (Equiv. 0.394 in.) |
Overall Length (L)
62.000
mm (Equiv. 2.441 in.) |
Height (H)
28.000
mm (Equiv. 1.102 in.) |
Width (W)
10.500
mm |
Overall Width (W2)
14.000
mm |
Distance Base to Centre
14.000
mm |
|
|
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 747 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-100-L280
Pillow Block Housing Assembly - 10x62x28 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$11.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
10.000
mm (Equiv. 0.394 in.) |
Overall Length (L)
62.000
mm (Equiv. 2.441 in.) |
Height (H)
28.000
mm (Equiv. 1.102 in.) |
Width (W)
10.500
mm |
|
||
|
Overall Width (W2): 14.000 mm
Distance Base to Centre: 14.000 mm
Max. Angle of Pivot: 25 °
Max. Static Tensile Strength: 747 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-100-L280
Pillow Block Housing Assembly - 10x62x28 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$11.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
11.110
mm + 0.032 / + 0.102
(Equiv. 0.437 in.) |
Overall Length (L)
63.500
mm (Equiv. 2.5 in.) |
Height (H)
28.960
mm (Equiv. 1.14 in.) |
Width (W)
10.310
mm |
Overall Width (W2)
14.270
mm |
Distance Base to Centre
14.480
mm |
|
|
Max. Angle of Pivot: 22 °
Max. Static Tensile Strength: 350 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-111-L280 (10 Pcs)
Pillow Block Housing Assembly - 11.11x63.5x28.96 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$183.95 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Bore Diameter (d)
11.110
mm + 0.032 / + 0.102 (Equiv. 0.437 in.) |
Overall Length (L)
63.500
mm (Equiv. 2.5 in.) |
Height (H)
28.960
mm (Equiv. 1.14 in.) |
Width (W)
10.310
mm |
|
||
|
Overall Width (W2): 14.270 mm
Distance Base to Centre: 14.480 mm
Max. Angle of Pivot: 22 °
Max. Static Tensile Strength: 350 N
Category: Housing Assembly - Pillow Block - Thermoplastic |
||||||
|
Part Number: BB-111-L280 (10 Pcs)
Pillow Block Housing Assembly - 11.11x63.5x28.96 mm Thermoplastic Out of Stock | Backorder Now | Orders can be expected around Thu, Oct 02, 2025 Regular price
$183.95 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Bore Diameter (d)
12.700
mm (Equiv. 0.5 in.) |
Overall Length (L)
33.338
mm (Equiv. 1.313 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.275
mm |
Distance Base to Centre
95.250
mm |
|
|
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-124RS
Pillow Block Housing Assembly - 12.7x33.338x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$350.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
12.700
mm (Equiv. 0.5 in.) |
Overall Length (L)
33.338
mm (Equiv. 1.313 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.275 mm
Distance Base to Centre: 95.250 mm
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-124RS
Pillow Block Housing Assembly - 12.7x33.338x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$350.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
15.875
mm (Equiv. 0.625 in.) |
Overall Length (L)
33.300
mm (Equiv. 1.311 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.275
mm |
Distance Base to Centre
95.250
mm |
|
|
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-125RS
Pillow Block Housing Assembly - 15.875x33.3x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$307.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
15.875
mm (Equiv. 0.625 in.) |
Overall Length (L)
33.300
mm (Equiv. 1.311 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.275 mm
Distance Base to Centre: 95.250 mm
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-125RS
Pillow Block Housing Assembly - 15.875x33.3x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$307.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
19.050
mm (Equiv. 0.75 in.) |
Overall Length (L)
33.338
mm (Equiv. 1.313 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.275
mm |
Distance Base to Centre
95.250
mm |
|
|
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-126RS
Pillow Block Housing Assembly - 19.05x33.338x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$307.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
19.050
mm (Equiv. 0.75 in.) |
Overall Length (L)
33.338
mm (Equiv. 1.313 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.275 mm
Distance Base to Centre: 95.250 mm
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-126RS
Pillow Block Housing Assembly - 19.05x33.338x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$307.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
19.050
mm (Equiv. 0.75 in.) |
Overall Length (L)
33.338
mm (Equiv. 1.313 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.280
mm |
Distance Base to Centre
95.250
mm |
|
|
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-212RS
Pillow Block Housing Assembly - 19.05x33.338x127 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$234.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
19.050
mm (Equiv. 0.75 in.) |
Overall Length (L)
33.338
mm (Equiv. 1.313 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.280 mm
Distance Base to Centre: 95.250 mm
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-212RS
Pillow Block Housing Assembly - 19.05x33.338x127 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$234.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
20.000
mm (Equiv. 0.787 in.) |
Overall Length (L)
33.300
mm (Equiv. 1.311 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.000
mm |
Overall Width (W2)
14.000
mm |
Distance Base to Centre
95.000
mm |
|
|
Max. Angle of Pivot: 14.000 °
Max. Static Tensile Strength: 14.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-127RS
Pillow Block Housing Assembly - 20x33.3x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$310.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
20.000
mm (Equiv. 0.787 in.) |
Overall Length (L)
33.300
mm (Equiv. 1.311 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.000
mm |
|
||
|
Overall Width (W2): 14.000 mm
Distance Base to Centre: 95.000 mm
Max. Angle of Pivot: 14.000 °
Max. Static Tensile Strength: 14.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-127RS
Pillow Block Housing Assembly - 20x33.3x127 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$310.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
20.000
mm (Equiv. 0.787 in.) |
Overall Length (L)
33.300
mm (Equiv. 1.311 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.000
mm |
Overall Width (W2)
14.000
mm |
Distance Base to Centre
95.000
mm |
|
|
Max. Angle of Pivot: 14.000 °
Max. Static Tensile Strength: 14.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-213RS
Pillow Block Housing Assembly - 20x33.3x127 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$205.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
20.000
mm (Equiv. 0.787 in.) |
Overall Length (L)
33.300
mm (Equiv. 1.311 in.) |
Height (H)
127.000
mm (Equiv. 5 in.) |
Width (W)
38.000
mm |
|
||
|
Overall Width (W2): 14.000 mm
Distance Base to Centre: 95.000 mm
Max. Angle of Pivot: 14.000 °
Max. Static Tensile Strength: 14.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-213RS
Pillow Block Housing Assembly - 20x33.3x127 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$205.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
22.225
mm (Equiv. 0.875 in.) |
Overall Length (L)
36.513
mm (Equiv. 1.438 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.275
mm |
Distance Base to Centre
104.775
mm |
|
|
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-128RS
Pillow Block Housing Assembly - 22.225x36.513x139.7 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$329.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
22.225
mm (Equiv. 0.875 in.) |
Overall Length (L)
36.513
mm (Equiv. 1.438 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.275 mm
Distance Base to Centre: 104.775 mm
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-128RS
Pillow Block Housing Assembly - 22.225x36.513x139.7 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$329.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
22.225
mm (Equiv. 0.875 in.) |
Overall Length (L)
36.513
mm (Equiv. 1.438 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.280
mm |
Distance Base to Centre
104.775
mm |
|
|
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 71.438 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-214RS
Pillow Block Housing Assembly - 22.225x36.513x139.7 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$215.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
22.225
mm (Equiv. 0.875 in.) |
Overall Length (L)
36.513
mm (Equiv. 1.438 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.280 mm
Distance Base to Centre: 104.775 mm
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 71.438 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-214RS
Pillow Block Housing Assembly - 22.225x36.513x139.7 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$215.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
25.000
mm (Equiv. 0.984 in.) |
Overall Length (L)
36.500
mm (Equiv. 1.437 in.) |
Height (H)
140.000
mm (Equiv. 5.512 in.) |
Width (W)
38.000
mm |
Overall Width (W2)
14.000
mm |
Distance Base to Centre
105.000
mm |
|
|
Max. Angle of Pivot: 14.000 °
Max. Static Tensile Strength: 71.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-215RS
Pillow Block Housing Assembly - 25x36.5x140 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$222.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
25.000
mm (Equiv. 0.984 in.) |
Overall Length (L)
36.500
mm (Equiv. 1.437 in.) |
Height (H)
140.000
mm (Equiv. 5.512 in.) |
Width (W)
38.000
mm |
|
||
|
Overall Width (W2): 14.000 mm
Distance Base to Centre: 105.000 mm
Max. Angle of Pivot: 14.000 °
Max. Static Tensile Strength: 71.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-215RS
Pillow Block Housing Assembly - 25x36.5x140 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$222.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
25.000
mm (Equiv. 0.984 in.) |
Overall Length (L)
36.500
mm (Equiv. 1.437 in.) |
Height (H)
140.000
mm (Equiv. 5.512 in.) |
Width (W)
38.000
mm |
Overall Width (W2)
14.000
mm |
Distance Base to Centre
105.000
mm |
|
|
Max. Angle of Pivot: 38.000 °
Max. Static Tensile Strength: 71.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-129RS
Pillow Block Housing Assembly - 25x36.5x140 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$345.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
25.000
mm (Equiv. 0.984 in.) |
Overall Length (L)
36.500
mm (Equiv. 1.437 in.) |
Height (H)
140.000
mm (Equiv. 5.512 in.) |
Width (W)
38.000
mm |
|
||
|
Overall Width (W2): 14.000 mm
Distance Base to Centre: 105.000 mm
Max. Angle of Pivot: 38.000 °
Max. Static Tensile Strength: 71.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-129RS
Pillow Block Housing Assembly - 25x36.5x140 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$345.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
25.400
mm (Equiv. 1 in.) |
Overall Length (L)
36.500
mm (Equiv. 1.437 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.280
mm |
Distance Base to Centre
104.775
mm |
|
|
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 71.438 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-216RS
Pillow Block Housing Assembly - 25.4x36.5x139.7 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$220.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
25.400
mm (Equiv. 1 in.) |
Overall Length (L)
36.500
mm (Equiv. 1.437 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.280 mm
Distance Base to Centre: 104.775 mm
Max. Angle of Pivot: 14.275 °
Max. Static Tensile Strength: 71.438 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-216RS
Pillow Block Housing Assembly - 25.4x36.5x139.7 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$220.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
25.400
mm (Equiv. 1 in.) |
Overall Length (L)
36.513
mm (Equiv. 1.438 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
Overall Width (W2)
14.275
mm |
Distance Base to Centre
104.775
mm |
|
|
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-130RS
Pillow Block Housing Assembly - 25.4x36.513x139.7 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$336.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
25.400
mm (Equiv. 1 in.) |
Overall Length (L)
36.513
mm (Equiv. 1.438 in.) |
Height (H)
139.700
mm (Equiv. 5.5 in.) |
Width (W)
38.100
mm |
|
||
|
Overall Width (W2): 14.275 mm
Distance Base to Centre: 104.775 mm
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 65.881 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-130RS
Pillow Block Housing Assembly - 25.4x36.513x139.7 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$336.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
28.575
mm (Equiv. 1.125 in.) |
Overall Length (L)
42.863
mm (Equiv. 1.688 in.) |
Height (H)
162.719
mm (Equiv. 6.406 in.) |
Width (W)
46.038
mm |
Overall Width (W2)
26.975
mm |
Distance Base to Centre
119.063
mm |
|
|
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 83.741 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-131RS
Pillow Block Housing Assembly - 28.575x42.863x162.719 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$401.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
28.575
mm (Equiv. 1.125 in.) |
Overall Length (L)
42.863
mm (Equiv. 1.688 in.) |
Height (H)
162.719
mm (Equiv. 6.406 in.) |
Width (W)
46.038
mm |
|
||
|
Overall Width (W2): 26.975 mm
Distance Base to Centre: 119.063 mm
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 83.741 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-131RS
Pillow Block Housing Assembly - 28.575x42.863x162.719 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$401.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
28.575
mm (Equiv. 1.125 in.) |
Overall Length (L)
42.863
mm (Equiv. 1.688 in.) |
Height (H)
162.719
mm (Equiv. 6.406 in.) |
Width (W)
46.040
mm |
Overall Width (W2)
17.460
mm |
Distance Base to Centre
119.063
mm |
|
|
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 83.741 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-217RS
Pillow Block Housing Assembly - 28.575x42.863x162.719 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$262.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
28.575
mm (Equiv. 1.125 in.) |
Overall Length (L)
42.863
mm (Equiv. 1.688 in.) |
Height (H)
162.719
mm (Equiv. 6.406 in.) |
Width (W)
46.040
mm |
|
||
|
Overall Width (W2): 17.460 mm
Distance Base to Centre: 119.063 mm
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 83.741 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-217RS
Pillow Block Housing Assembly - 28.575x42.863x162.719 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$262.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
30.000
mm (Equiv. 1.181 in.) |
Overall Length (L)
42.900
mm (Equiv. 1.689 in.) |
Height (H)
163.000
mm (Equiv. 6.417 in.) |
Width (W)
46.000
mm |
Overall Width (W2)
18.000
mm |
Distance Base to Centre
119.000
mm |
|
|
Max. Angle of Pivot: 18.000 °
Max. Static Tensile Strength: 84.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-218RS
Pillow Block Housing Assembly - 30x42.9x163 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$266.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
30.000
mm (Equiv. 1.181 in.) |
Overall Length (L)
42.900
mm (Equiv. 1.689 in.) |
Height (H)
163.000
mm (Equiv. 6.417 in.) |
Width (W)
46.000
mm |
|
||
|
Overall Width (W2): 18.000 mm
Distance Base to Centre: 119.000 mm
Max. Angle of Pivot: 18.000 °
Max. Static Tensile Strength: 84.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Chrome Steel |
||||||
|
Part Number: IP-218RS
Pillow Block Housing Assembly - 30x42.9x163 mm Thermoplastic and Chrome Steel Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$266.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
30.000
mm (Equiv. 1.181 in.) |
Overall Length (L)
42.900
mm (Equiv. 1.689 in.) |
Height (H)
163.000
mm (Equiv. 6.417 in.) |
Width (W)
46.000
mm |
Overall Width (W2)
18.000
mm |
Distance Base to Centre
119.000
mm |
|
|
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 84.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-132RS
Pillow Block Housing Assembly - 30x42.9x163 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$412.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
30.000
mm (Equiv. 1.181 in.) |
Overall Length (L)
42.900
mm (Equiv. 1.689 in.) |
Height (H)
163.000
mm (Equiv. 6.417 in.) |
Width (W)
46.000
mm |
|
||
|
Overall Width (W2): 18.000 mm
Distance Base to Centre: 119.000 mm
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 84.000 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-132RS
Pillow Block Housing Assembly - 30x42.9x163 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$412.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Bore Diameter (d)
30.163
mm (Equiv. 1.188 in.) |
Overall Length (L)
42.863
mm (Equiv. 1.688 in.) |
Height (H)
162.719
mm (Equiv. 6.406 in.) |
Width (W)
46.038
mm |
Overall Width (W2)
26.975
mm |
Distance Base to Centre
119.063
mm |
|
|
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 83.741 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-133RS
Pillow Block Housing Assembly - 30.163x42.863x162.719 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$411.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Bore Diameter (d)
30.163
mm (Equiv. 1.188 in.) |
Overall Length (L)
42.863
mm (Equiv. 1.688 in.) |
Height (H)
162.719
mm (Equiv. 6.406 in.) |
Width (W)
46.038
mm |
|
||
|
Overall Width (W2): 26.975 mm
Distance Base to Centre: 119.063 mm
Max. Angle of Pivot: 18.256 °
Max. Static Tensile Strength: 83.741 N
Category: Housing Assembly - Pillow Block - Thermoplastic and Stainless |
||||||
|
Part Number: IP-133RS
Pillow Block Housing Assembly - 30.163x42.863x162.719 mm Thermoplastic and Stainless Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 10, 2025 Regular price
$411.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
