Housing and Bearing Assembly - Pedestal Miniature Self Aligning

Housing and Bearing Assembly -> Pedestal Miniature Self Aligning

There is only 1 product in the sub-categories of Housing and Bearing Assembly - Pedestal Miniature Self Aligning. Browse the Housing and Bearing Assembly - Pedestal Miniature Self Aligning products table.

Category Details

A selection of Pedestal Miniature Self Aligning Housing and Bearing Assembly. Spyraflo pressed steel housings incorporating Abec 3 bearings in a special seat allowing for +/- 5 Deg Misalignment. Improves performance and reduces manufacturing costs. Simplify designs.

  • Bearing housing assemblies combine matching parts already assembled. Bearings in this range refer to either ball bearings or plain bearings. Refer to the listings for each type.
  • Pillo block type are a pedestal mounted with two bolt holes through the base.
  • Small and cost effective. All bore sizes are mounted in the same size housing for ease of design and cost efficiency.
  • High precision bearings pre-mounted with a 5o misalignment capability.
  • 40,000 RPM recommended maximum speed with testing
  • 27kgf radial static capacity, 54kgf radial dynamic capacity per bearing
  • RoHS, REACH and SVHC environmental compliant

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Housing and Bearing Assembly - Pedestal Miniature Self Aligning category on the Small Parts & Bearings online store.
Nominal Bore Base Width (F) Base Length (B) Body Clearance (A) Hole CENTRES (D) Indicative
Pedestal Miniature Self Aligning Housing and Bearing Assembly - 7.938x14.29x25.4 mm
Nominal Bore
7.938
mm

(Equiv. 0.313 in.)
Base Width (F)
14.29
mm

(Equiv. 0.563 in.)
Base Length (B)
25.4
mm

(Equiv. 1 in.)
Body Clearance (A)
16.51
mm
Hole CENTRES (D)
15.9
mm

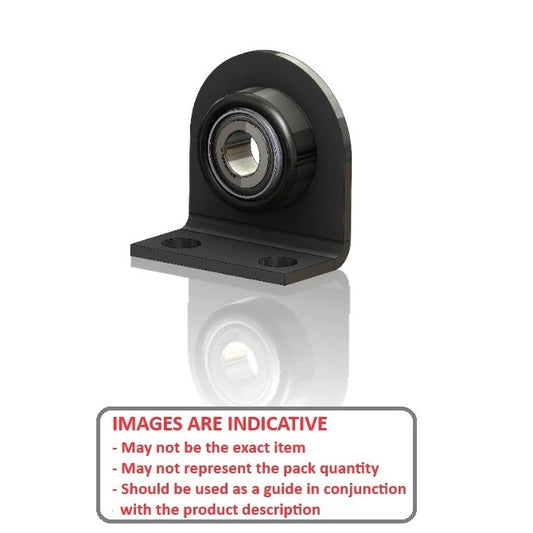

Pedestal Miniature Self Aligning Housing Assembly - 7.938x14.29x25.4 mm
Hole Diameter (I): 5.3 mm    Overall Height (C): 26.92 mm    Centre Height (G): 14.29 mm    Bolt Hole Centre to Back (H): 4.83 mm
Deleted Item. Available while stocks last.
Part Number: PF-312 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Bore Base Width (F) Base Length (B) Indicative
Pedestal Miniature Self Aligning Housing and Bearing Assembly - 7.938x14.29x25.4 mm
Nominal Bore
7.938
mm

(Equiv. 0.313 in.)
Base Width (F)
14.29
mm

(Equiv. 0.563 in.)
Base Length (B)
25.4
mm

(Equiv. 1 in.)

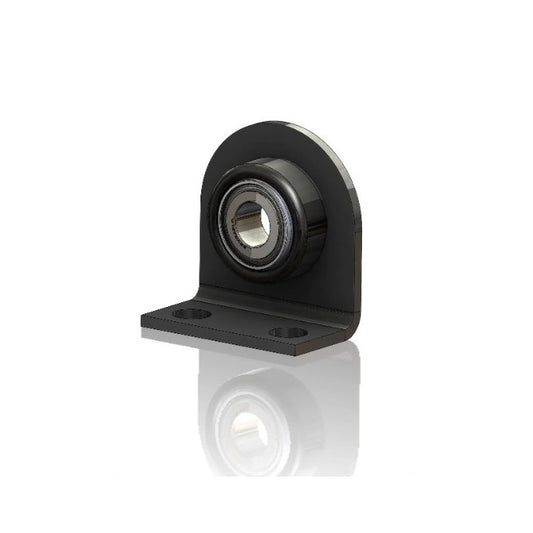

Pedestal Miniature Self Aligning Housing Assembly - 7.938x14.29x25.4 mm
Body Clearance (A): 16.51 mm    Hole CENTRES (D): 15.9 mm    Hole Diameter (I): 5.3 mm    Overall Height (C): 26.92 mm    Centre Height (G): 14.29 mm    Bolt Hole Centre to Back (H): 4.83 mm
Deleted Item. Available while stocks last.
Part Number: PF-312 (Each)
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
