Bearings - Thrust Ball Washers Only - Chrome Steel

Bearings -> Thrust Ball Washers Only -> Chrome Steel

There are 6 products in the sub-categories of Bearings - Thrust Ball Washers Only - Chrome Steel. Browse the Bearings - Thrust Ball Washers Only - Chrome Steel products table.

Category Details

A selection of Chrome Steel Thrust Ball Washers Only Bearings. Hardened thrust washers for thrust bearings - ungrooved. Match with thrust ball and retainer or roller type.

  • These washers are are used as replacements for matching ball thrust bearings. They can be used to replace worn washers, or used to select a range of thicknesses depending on your application.
  • An expanded range may be available on special order. Please enquire.
  • Carbon Steel Washers are hardened to RC59.61.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Thrust Ball Washers Only - Chrome Steel category on the Small Parts & Bearings online store.
Nominal Inside Diameter Nominal OD Description / Material Nom. Thickness (B Max) Indicative
Nominal Inside Diameter
9.52
mm

(Equiv. 0.375 in.)
Nominal OD
20.62
mm

(Equiv. 0.812 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.60
mm
Thrust Ball Washers Only Bearings - 9.52x20.62 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 9.44 - 9.52 mm    Diam. to Clear Washer OD (Dwc): 21.44 mm
Part Number: T-0095-0206-FW
Thrust Ball Washers Only Bearings - 9.52x20.62 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel Washer
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 11, 2025
$3.95 AUD
$4.75 AUD $3.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter Nominal OD Description / Material Nom. Thickness (B Max) Indicative
Nominal Inside Diameter
9.52
mm

(Equiv. 0.375 in.)
Nominal OD
20.62
mm

(Equiv. 0.812 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.60
mm
Thrust Ball Washers Only Bearings - 9.52x20.62 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 9.44 - 9.52 mm    Diam. to Clear Washer OD (Dwc): 21.44 mm
Part Number: T-0095-0206-FW
Thrust Ball Washers Only Bearings - 9.52x20.62 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel Washer
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 11, 2025
$3.95 AUD
$4.75 AUD $3.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter
11.13
mm

(Equiv. 0.438 in.)
Nominal OD
22.23
mm

(Equiv. 0.875 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.58
mm
Thrust Ball Washers Only Bearings - 11.13x22.23 mm - Washer Only - Carbon Steel / 1.58 mm Chrome Steel
Material: Carbon Steel
Deleted Item. Available while stocks last.
Part Number: T-0111-0222-FW
Thrust Ball Washers Only Bearings - 11.13x22.23 mm - Washer Only - Carbon Steel / 1.58 mm Chrome Steel Washer
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
11.13
mm

(Equiv. 0.438 in.)
Nominal OD
22.23
mm

(Equiv. 0.875 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.58
mm
Thrust Ball Washers Only Bearings - 11.13x22.23 mm - Washer Only - Carbon Steel / 1.58 mm Chrome Steel
Material: Carbon Steel
Deleted Item. Available while stocks last.
Part Number: T-0111-0222-FW
Thrust Ball Washers Only Bearings - 11.13x22.23 mm - Washer Only - Carbon Steel / 1.58 mm Chrome Steel Washer
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
12.70
mm

(Equiv. 0.5 in.)
Nominal OD
23.80
mm

(Equiv. 0.937 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.60
mm
Thrust Ball Washers Only Bearings - 12.7x23.8 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 12.62 - 12.70 mm    Diam. to Clear Washer OD (Dwc): 24.61 mm
Part Number: T-0127-0238-FW
Thrust Ball Washers Only Bearings - 12.7x23.8 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel Washer
3 Available Now | Further orders can be expected around Tue, Nov 11, 2025
$2.95 AUD
$3.55 AUD $2.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. Backorder if more than 3.
Nominal Inside Diameter
12.70
mm

(Equiv. 0.5 in.)
Nominal OD
23.80
mm

(Equiv. 0.937 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.60
mm
Thrust Ball Washers Only Bearings - 12.7x23.8 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 12.62 - 12.70 mm    Diam. to Clear Washer OD (Dwc): 24.61 mm
Part Number: T-0127-0238-FW
Thrust Ball Washers Only Bearings - 12.7x23.8 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel Washer
3 Available Now | Further orders can be expected around Tue, Nov 11, 2025
$2.95 AUD
$3.55 AUD $2.95 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

3 Available Now. Backorder if more than 3.
Nominal Inside Diameter
14.27
mm

(Equiv. 0.562 in.)
Nominal OD
25.40
mm

(Equiv. 1 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.60
mm

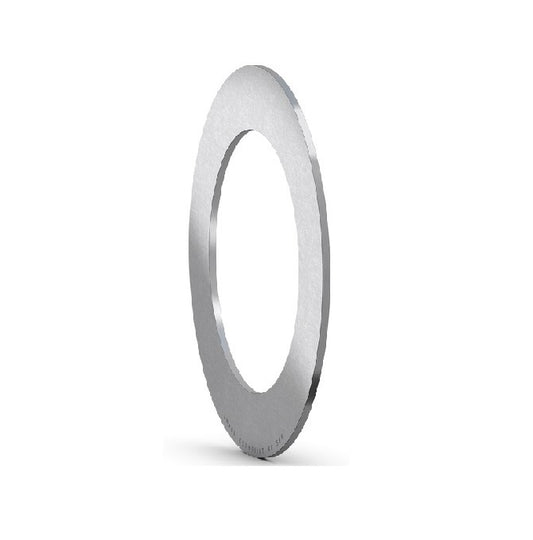

Thrust Ball Washers Only Bearings - 14.27x25.4 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 14.19 - 14.27 mm    Diam. to Clear Washer OD (Dwc): 26.19 mm
Part Number: T-0143-0254-FW
Thrust Ball Washers Only Bearings - 14.27x25.4 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel Washer
1 Available Now | Further orders can be expected around Tue, Nov 11, 2025
$2.50 AUD
$3.00 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Inside Diameter
14.27
mm

(Equiv. 0.562 in.)
Nominal OD
25.40
mm

(Equiv. 1 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
1.60
mm
Thrust Ball Washers Only Bearings - 14.27x25.4 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 14.19 - 14.27 mm    Diam. to Clear Washer OD (Dwc): 26.19 mm
Part Number: T-0143-0254-FW
Thrust Ball Washers Only Bearings - 14.27x25.4 mm - Washer Only - Carbon Steel / 1.6 mm Chrome Steel Washer
1 Available Now | Further orders can be expected around Tue, Nov 11, 2025
$2.50 AUD
$3.00 AUD $2.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. Backorder if more than 1.
Nominal Inside Diameter
15.88
mm

(Equiv. 0.625 in.)
Nominal OD
28.58
mm

(Equiv. 1.125 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
2.42
mm
Thrust Ball Washers Only Bearings - 15.88x28.58 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 15.80 - 15.88 mm    Diam. to Clear Washer OD (Dwc): 29.36 mm
Part Number: T-0159-0286-FW
Thrust Ball Washers Only Bearings - 15.88x28.58 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel Washer
2 Available Now | Further orders can be expected around Tue, Nov 11, 2025
$6.05 AUD
$7.25 AUD $6.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Nominal Inside Diameter
15.88
mm

(Equiv. 0.625 in.)
Nominal OD
28.58
mm

(Equiv. 1.125 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
2.42
mm
Thrust Ball Washers Only Bearings - 15.88x28.58 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 15.80 - 15.88 mm    Diam. to Clear Washer OD (Dwc): 29.36 mm
Part Number: T-0159-0286-FW
Thrust Ball Washers Only Bearings - 15.88x28.58 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel Washer
2 Available Now | Further orders can be expected around Tue, Nov 11, 2025
$6.05 AUD
$7.25 AUD $6.05 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

2 Available Now. Backorder if more than 2.
Nominal Inside Diameter
19.05
mm

(Equiv. 0.75 in.)
Nominal OD
31.75
mm

(Equiv. 1.25 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
2.42
mm
Thrust Ball Washers Only Bearings - 19.05x31.75 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 18.97 - 19.05 mm    Diam. to Clear Washer OD (Dwc): 32.54 mm
Part Number: T-0191-0318-FW
Thrust Ball Washers Only Bearings - 19.05x31.75 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel Washer
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 11, 2025
$5.59 AUD
$6.71 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Nominal Inside Diameter
19.05
mm

(Equiv. 0.75 in.)
Nominal OD
31.75
mm

(Equiv. 1.25 in.)
Description / Material
Washer Only - Carbon Steel

Nom. Thickness (B Max)
2.42
mm
Thrust Ball Washers Only Bearings - 19.05x31.75 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel
Material: Carbon Steel    Shaft Pilot Diameter (S): 18.97 - 19.05 mm    Diam. to Clear Washer OD (Dwc): 32.54 mm
Part Number: T-0191-0318-FW
Thrust Ball Washers Only Bearings - 19.05x31.75 mm - Washer Only - Carbon Steel / 2.42 mm Chrome Steel Washer
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 11, 2025
$5.59 AUD
$6.71 AUD $5.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
