Collection: Bearings - Single Row Ball - Flanged - Precision

Bearings -> Single Row Ball -> Flanged -> Precision

There are 643 products in the sub-categories of Bearings - Single Row Ball - Flanged - Precision. Scroll down or follow the link to Bearings - Single Row Ball - Flanged - Precision in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

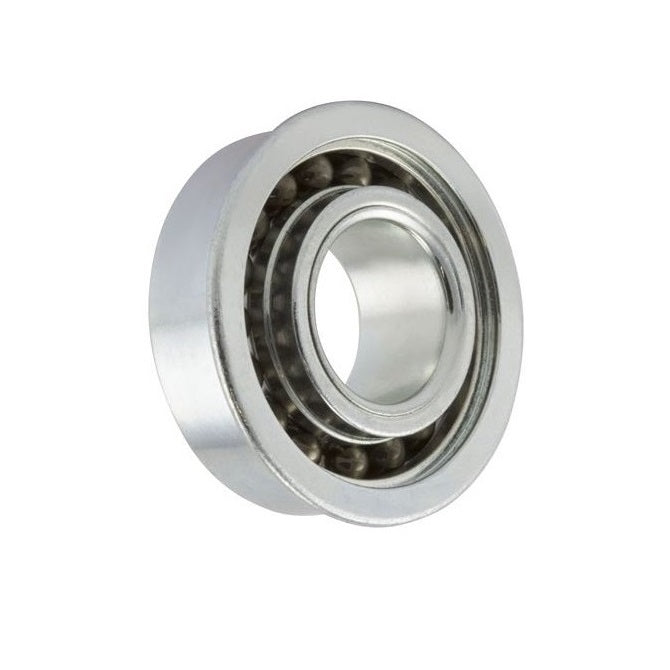

Single Row Ball Bearings - 1x3x1 mm - Stainless Steel AISI 440C

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

A selection of 440C Stainless Precision Flanged Single Row Ball Bearings. Stainless...

Bearings - Single Row Ball - Flanged - Precision - 440C Stainless

Single Row Ball Bearings - 1x3x1 mm - Chrome Steel SAE 52100

Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

A selection of Chrome Steel Precision Flanged Single Row Ball Bearings. Chrome...

Bearings - Single Row Ball - Flanged - Precision - Chrome Steel

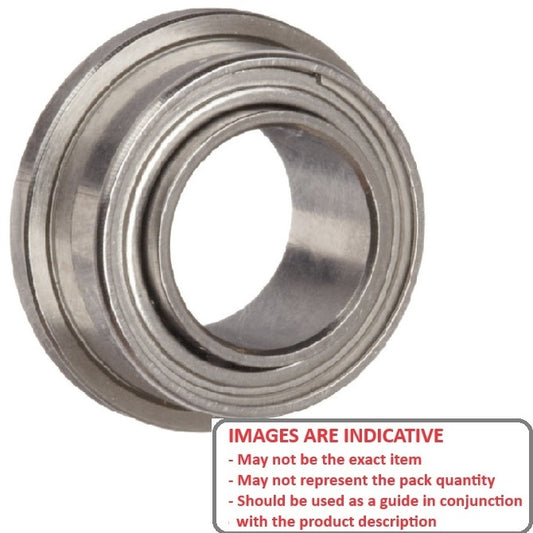

Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm - Stainless Steel AISI 440C

Bearings - Single Row Ball - Flanged - Precision - Extended Inner

A selection of Extended Inner Precision Flanged Single Row Ball Bearings. Single...

Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Category Details

This category includes various types of single row ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Bearings - Single Row Ball - Flanged - Precision category on the Small Parts & Bearings online store.

ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Flange Diameter (DF)	Flange Width (BF)
ID (d) 1.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.039 in.)	OD (D) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	Width (B) 1.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.039 in.)		Flange Diameter (DF) 3.800 mm	Flange Width (BF) 0.300 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F681-MC3-ACO Single Row Ball Bearings - 1x3x1 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $46.59 AUD Regular price ~~$96.53 AUD~~ Sale price $46.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Indicative Image
ID (d) 1.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.039 in.)	OD (D) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	Width (B) 1.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.039 in.)
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 3.800 mm Flange Width (BF): 0.300 mm Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F681-MC3-ACO Single Row Ball Bearings - 1x3x1 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $46.59 AUD Regular price ~~$96.53 AUD~~ Sale price $46.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
F681-MC3-ACO --- Single Row Ball Bearings - 1x3x1 mm Flanged - Chrome Steel SAE 52100 Bearing Sale F681-MC3-ACO --- Single Row Ball Bearings - 1x3x1 mm Flanged - Chrome Steel SAE 52100 Bearing Regular price $46.59 AUD Regular price ~~$96.53 AUD~~ Sale price $46.59 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.039 in.)	OD (D) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	Width (B) 1.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.039 in.)		Flange Diameter (DF) 3.800 mm	Flange Width (BF) 0.300 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681-MC3-ACO (100 Pcs) Single Row Ball Bearings - 1x3x1 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $1,070.68 AUD Regular price ~~$2,265.12 AUD~~ Sale price $1,070.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
ID (d) 1.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.039 in.)	OD (D) 3.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.118 in.)	Width (B) 1.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.039 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 3.800 mm Flange Width (BF): 0.300 mm Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681-MC3-ACO (100 Pcs) Single Row Ball Bearings - 1x3x1 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $1,070.68 AUD Regular price ~~$2,265.12 AUD~~ Sale price $1,070.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
SF681-MC3-ACO (100 Pcs) --- Single Row Ball Bearings - 1x3x1 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF681-MC3-ACO (100 Pcs) --- Single Row Ball Bearings - 1x3x1 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $1,070.68 AUD Regular price ~~$2,265.12 AUD~~ Sale price $1,070.68 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.000 mm (Equiv. 0.039 in.)	OD (D) 4.000 mm (Equiv. 0.157 in.)	Width (B) 1.600 mm (Equiv. 0.063 in.)		Flange Diameter (DF) 5.000 mm	Flange Width (BF) 0.500 mm
Material: Stainless Steel AISI 440C Precision Grade: Economy Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF691-ACO-ECO Single Row Ball Bearings - 1x4x1.6 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 08, 2025 Regular price $22.59 AUD Regular price ~~$45.67 AUD~~ Sale price $22.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.000 mm (Equiv. 0.039 in.)	OD (D) 4.000 mm (Equiv. 0.157 in.)	Width (B) 1.600 mm (Equiv. 0.063 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.000 mm Flange Width (BF): 0.500 mm Precision Grade: Economy Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF691-ACO-ECO Single Row Ball Bearings - 1x4x1.6 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 08, 2025 Regular price $22.59 AUD Regular price ~~$45.67 AUD~~ Sale price $22.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SF691-ACO-ECO --- Single Row Ball Bearings - 1x4x1.6 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF691-ACO-ECO --- Single Row Ball Bearings - 1x4x1.6 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $22.59 AUD Regular price ~~$45.67 AUD~~ Sale price $22.59 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.016 mm _{+ 0.000 / - 0.007} (Equiv. 0.04 in.)	OD (D) 3.175 mm _{+ 0.000 / - 0.007} (Equiv. 0.125 in.)	Width (B) 1.191 mm _{+ 0.000 / - 0.040} (Equiv. 0.047 in.)	Inner Ring Width (Bn) 1.984 mm	Flange Diameter (DF) 4.343 mm	Flange Width (BF) 0.330 mm
Material: Stainless Steel AISI 440C Precision Grade: P6 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR09-MC3-JP6 Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.016 mm _{+ 0.000 / - 0.007} (Equiv. 0.04 in.)	OD (D) 3.175 mm _{+ 0.000 / - 0.007} (Equiv. 0.125 in.)	Width (B) 1.191 mm _{+ 0.000 / - 0.040} (Equiv. 0.047 in.)	Inner Ring Width (Bn) 1.984 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 4.343 mm Flange Width (BF): 0.330 mm Precision Grade: P6 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR09-MC3-JP6 Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)		Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.330 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: FR0-MC3-AF12 (50 Pcs) Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $334.32 AUD Regular price ~~$706.32 AUD~~ Sale price $334.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.330 mm Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: FR0-MC3-AF12 (50 Pcs) Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $334.32 AUD Regular price ~~$706.32 AUD~~ Sale price $334.32 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
FR0-MC3-AF12 (50 Pcs) --- Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing Sale FR0-MC3-AF12 (50 Pcs) --- Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Chrome Steel SAE 52100 Bearing Regular price $334.32 AUD Regular price ~~$706.32 AUD~~ Sale price $334.32 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)		Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.330 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SFR0-MC3 Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Stainless Steel AISI 440C Bearing 10 Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.24 AUD Regular price ~~$9.34 AUD~~ Sale price $4.24 AUD Unit price per Each Quantity Required 10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.330 mm Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SFR0-MC3 Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Stainless Steel AISI 440C Bearing 10 Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.24 AUD Regular price ~~$9.34 AUD~~ Sale price $4.24 AUD Unit price per Each Quantity Required 10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
SFR0-MC3 --- Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFR0-MC3 --- Single Row Ball Bearings - 1.191x3.967x1.588 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $4.24 AUD Regular price ~~$9.34 AUD~~ Sale price $4.24 AUD Unit price per 10 Available Now Sale
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)	Inner Ring Width (Bn) 2.381 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.330 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 1.588 mm _{+ 0.000 / - 0.125} (Equiv. 0.063 in.)	Inner Ring Width (Bn) 2.381 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.330 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)		Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SFR0A-ZZ-MC3 Single Row Ball Bearings - 1.191x3.967x2.381 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $82.68 AUD Regular price ~~$172.98 AUD~~ Sale price $82.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SFR0A-ZZ-MC3 Single Row Ball Bearings - 1.191x3.967x2.381 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $82.68 AUD Regular price ~~$172.98 AUD~~ Sale price $82.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $82.68 AUD Regular price ~~$172.98 AUD~~ Sale price $82.68 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0A-ZZ-MC3 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $112.05 AUD Regular price ~~$235.07 AUD~~ Sale price $112.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0A-ZZ-MC3 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $112.05 AUD Regular price ~~$235.07 AUD~~ Sale price $112.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR0A-ZZ-MC3 --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $112.05 AUD Regular price ~~$235.07 AUD~~ Sale price $112.05 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5,379.86 AUD Regular price ~~$11,390.40 AUD~~ Sale price $5,379.86 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
ID (d) 1.191 mm _{+ 0.000 / - 0.0075} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $5,379.86 AUD Regular price ~~$11,390.40 AUD~~ Sale price $5,379.86 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR0A-ZZ-MC3-J3-G5 (500 Pcs) --- Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $5,379.86 AUD Regular price ~~$11,390.40 AUD~~ Sale price $5,379.86 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.191 mm _{+ 0.000 / - 0.005} (Equiv. 0.047 in.)	OD (D) 3.967 mm _{+ 0.000 / - 0.0075} (Equiv. 0.156 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)	Inner Ring Width (Bn) 3.175 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR0A-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 1.984 mm _{+ 0.000 / - 0.125} (Equiv. 0.078 in.)	Inner Ring Width (Bn) 2.779 mm	Flange Diameter (DF) 5.156 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR1-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 1.984 mm _{+ 0.000 / - 0.125} (Equiv. 0.078 in.)	Inner Ring Width (Bn) 2.779 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.156 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 3 Closure Type: Open Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR1-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 5.944 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR1B-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm _{+ 0.000 / - 0.005} (Equiv. 0.055 in.)	OD (D) 4.763 mm _{+ 0.000 / - 0.0075} (Equiv. 0.188 in.)	Width (B) 2.779 mm _{+ 0.000 / - 0.125} (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.944 mm Flange Width (BF): 0.787 mm Precision Grade: Abec 3 Closure Type: ZZS Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR1B-ZZS-MC34-U3-AF12 Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.397 mm (Equiv. 0.055 in.)	OD (D) 4.763 mm (Equiv. 0.188 in.)	Width (B) 2.779 mm (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 5.944 mm	Flange Width (BF) 0.787 mm
Material: Stainless Steel AISI 440C Precision Grade: Economy Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR1B-ZZ-ECO Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 08, 2025 Regular price $22.41 AUD Regular price ~~$45.39 AUD~~ Sale price $22.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.397 mm (Equiv. 0.055 in.)	OD (D) 4.763 mm (Equiv. 0.188 in.)	Width (B) 2.779 mm (Equiv. 0.109 in.)	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.944 mm Flange Width (BF): 0.787 mm Precision Grade: Economy Closure Type: ZZ Bearing Type: Radial Flanged with Extended Inner Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Part Number: SFWR1B-ZZ-ECO Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 08, 2025 Regular price $22.41 AUD Regular price ~~$45.39 AUD~~ Sale price $22.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SFWR1B-ZZ-ECO --- Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFWR1B-ZZ-ECO --- Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $22.41 AUD Regular price ~~$45.39 AUD~~ Sale price $22.41 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	Width (B) 1.200 mm _{+ 0.000 / - 0.125} (Equiv. 0.047 in.)		Flange Diameter (DF) 5.000 mm	Flange Width (BF) 0.400 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681X-MC3-AF12 Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $50.05 AUD Regular price ~~$103.87 AUD~~ Sale price $50.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	Width (B) 1.200 mm _{+ 0.000 / - 0.125} (Equiv. 0.047 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.000 mm Flange Width (BF): 0.400 mm Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681X-MC3-AF12 Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $50.05 AUD Regular price ~~$103.87 AUD~~ Sale price $50.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
SF681X-MC3-AF12 --- Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF681X-MC3-AF12 --- Single Row Ball Bearings - 1.5x4x1.2 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $50.05 AUD Regular price ~~$103.87 AUD~~ Sale price $50.05 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)		Flange Diameter (DF) 5.000 mm	Flange Width (BF) 0.600 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681XA-ZZ-MC3 Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing 14 Available Now \| Further orders can be expected around Tue, Sep 30, 2025 Regular price $3.50 AUD Regular price ~~$8.47 AUD~~ Sale price $3.50 AUD Unit price per Each Quantity Required 14 Available Now. Backorder if more than 14.
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 4.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.157 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.000 mm Flange Width (BF): 0.600 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681XA-ZZ-MC3 Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing 14 Available Now \| Further orders can be expected around Tue, Sep 30, 2025 Regular price $3.50 AUD Regular price ~~$8.47 AUD~~ Sale price $3.50 AUD Unit price per Each Quantity Required 14 Available Now. Backorder if more than 14.
SF681XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF681XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $3.50 AUD Regular price ~~$8.47 AUD~~ Sale price $3.50 AUD Unit price per 14 Available Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.007} (Equiv. 0.059 in.)	OD (D) 4.000 mm _{+ 0.000 / - 0.007} (Equiv. 0.157 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.040} (Equiv. 0.079 in.)		Flange Diameter (DF) 5.000 mm	Flange Width (BF) 0.600 mm
Material: Stainless Steel AISI 440C Precision Grade: P6 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681XA-ZZ-MC3-JP6 (20 Pcs) Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $166.77 AUD Regular price ~~$351.00 AUD~~ Sale price $166.77 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
ID (d) 1.500 mm _{+ 0.000 / - 0.007} (Equiv. 0.059 in.)	OD (D) 4.000 mm _{+ 0.000 / - 0.007} (Equiv. 0.157 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.040} (Equiv. 0.079 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 5.000 mm Flange Width (BF): 0.600 mm Precision Grade: P6 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF681XA-ZZ-MC3-JP6 (20 Pcs) Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $166.77 AUD Regular price ~~$351.00 AUD~~ Sale price $166.77 AUD Unit price per Per 20 Quantity Required Backorder: Out of Stock.
SF681XA-ZZ-MC3-JP6 (20 Pcs) --- Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF681XA-ZZ-MC3-JP6 (20 Pcs) --- Single Row Ball Bearings - 1.5x4x2 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $166.77 AUD Regular price ~~$351.00 AUD~~ Sale price $166.77 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.197 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)		Flange Diameter (DF) 6.500 mm	Flange Width (BF) 0.600 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F691X-MC3 (43 Pcs) Single Row Ball Bearings - 1.5x5x2 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 24, 2025 Regular price $194.32 AUD Regular price ~~$410.37 AUD~~ Sale price $194.32 AUD Unit price per Per 43 Quantity Required Backorder: Out of Stock.
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.197 in.)	Width (B) 2.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.079 in.)
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 6.500 mm Flange Width (BF): 0.600 mm Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F691X-MC3 (43 Pcs) Single Row Ball Bearings - 1.5x5x2 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Wed, Sep 24, 2025 Regular price $194.32 AUD Regular price ~~$410.37 AUD~~ Sale price $194.32 AUD Unit price per Per 43 Quantity Required Backorder: Out of Stock.
F691X-MC3 (43 Pcs) --- Single Row Ball Bearings - 1.5x5x2 mm Flanged - Chrome Steel SAE 52100 Bearing Sale F691X-MC3 (43 Pcs) --- Single Row Ball Bearings - 1.5x5x2 mm Flanged - Chrome Steel SAE 52100 Bearing Regular price $194.32 AUD Regular price ~~$410.37 AUD~~ Sale price $194.32 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.197 in.)	Width (B) 2.600 mm _{+ 0.000 / - 0.125} (Equiv. 0.102 in.)		Flange Diameter (DF) 6.500 mm	Flange Width (BF) 0.800 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F691XA-ZZ-MC3 Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $50.59 AUD Regular price ~~$104.91 AUD~~ Sale price $50.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.197 in.)	Width (B) 2.600 mm _{+ 0.000 / - 0.125} (Equiv. 0.102 in.)
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 6.500 mm Flange Width (BF): 0.800 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F691XA-ZZ-MC3 Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $50.59 AUD Regular price ~~$104.91 AUD~~ Sale price $50.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
F691XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Chrome Steel SAE 52100 Bearing Sale F691XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Chrome Steel SAE 52100 Bearing Regular price $50.59 AUD Regular price ~~$104.91 AUD~~ Sale price $50.59 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.197 in.)	Width (B) 2.600 mm _{+ 0.000 / - 0.125} (Equiv. 0.102 in.)		Flange Diameter (DF) 6.500 mm	Flange Width (BF) 0.800 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF691XA-ZZ-MC3 Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing 46 Available Now \| Item Discontinued - Up to 46 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.29 AUD Regular price ~~$11.61 AUD~~ Sale price $5.29 AUD Unit price per Each Quantity Required 46 Available Now. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.197 in.)	Width (B) 2.600 mm _{+ 0.000 / - 0.125} (Equiv. 0.102 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 6.500 mm Flange Width (BF): 0.800 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF691XA-ZZ-MC3 Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing 46 Available Now \| Item Discontinued - Up to 46 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.29 AUD Regular price ~~$11.61 AUD~~ Sale price $5.29 AUD Unit price per Each Quantity Required 46 Available Now. These are priced to quit. Please contact us for a quote if you require more.
SF691XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF691XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $5.29 AUD Regular price ~~$11.61 AUD~~ Sale price $5.29 AUD Unit price per 46 Available Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.007} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.007} (Equiv. 0.197 in.)	Width (B) 2.600 mm _{+ 0.000 / - 0.040} (Equiv. 0.102 in.)		Flange Diameter (DF) 6.500 mm	Flange Width (BF) 0.800 mm
Material: Stainless Steel AISI 440C Precision Grade: P6 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF691XA-ZZ-MC3-JP6 (100 Pcs) Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $830.23 AUD Regular price ~~$1,756.08 AUD~~ Sale price $830.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
ID (d) 1.500 mm _{+ 0.000 / - 0.007} (Equiv. 0.059 in.)	OD (D) 5.000 mm _{+ 0.000 / - 0.007} (Equiv. 0.197 in.)	Width (B) 2.600 mm _{+ 0.000 / - 0.040} (Equiv. 0.102 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 6.500 mm Flange Width (BF): 0.800 mm Precision Grade: P6 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF691XA-ZZ-MC3-JP6 (100 Pcs) Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $830.23 AUD Regular price ~~$1,756.08 AUD~~ Sale price $830.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
SF691XA-ZZ-MC3-JP6 (100 Pcs) --- Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF691XA-ZZ-MC3-JP6 (100 Pcs) --- Single Row Ball Bearings - 1.5x5x2.6 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $830.23 AUD Regular price ~~$1,756.08 AUD~~ Sale price $830.23 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)		Flange Diameter (DF) 7.500 mm	Flange Width (BF) 0.600 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F601XA-ZZ-MC3 Single Row Ball Bearings - 1.5x6x3 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.95 AUD Regular price ~~$99.48 AUD~~ Sale price $47.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 7.500 mm Flange Width (BF): 0.600 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - Chrome Steel
Part Number: F601XA-ZZ-MC3 Single Row Ball Bearings - 1.5x6x3 mm Flanged - Chrome Steel SAE 52100 Bearing Out of Stock \| Backorder Now \| Orders can be expected around Sun, Oct 05, 2025 Regular price $47.95 AUD Regular price ~~$99.48 AUD~~ Sale price $47.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
F601XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x6x3 mm Flanged - Chrome Steel SAE 52100 Bearing Sale F601XA-ZZ-MC3 --- Single Row Ball Bearings - 1.5x6x3 mm Flanged - Chrome Steel SAE 52100 Bearing Regular price $47.95 AUD Regular price ~~$99.48 AUD~~ Sale price $47.95 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)		Flange Diameter (DF) 7.500 mm	Flange Width (BF) 0.600 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF601XA-ZZ-MC3 (100 Pcs) Single Row Ball Bearings - 1.5x6x3 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $613.23 AUD Regular price ~~$1,297.08 AUD~~ Sale price $613.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
ID (d) 1.500 mm _{+ 0.000 / - 0.0075} (Equiv. 0.059 in.)	OD (D) 6.000 mm _{+ 0.000 / - 0.0075} (Equiv. 0.236 in.)	Width (B) 3.000 mm _{+ 0.000 / - 0.125} (Equiv. 0.118 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.500 mm Flange Width (BF): 0.600 mm Precision Grade: Abec 1 Closure Type: ZZ Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SF601XA-ZZ-MC3 (100 Pcs) Single Row Ball Bearings - 1.5x6x3 mm Flanged - Stainless Steel AISI 440C Bearing Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 30, 2025 Regular price $613.23 AUD Regular price ~~$1,297.08 AUD~~ Sale price $613.23 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
SF601XA-ZZ-MC3 (100 Pcs) --- Single Row Ball Bearings - 1.5x6x3 mm Flanged - Stainless Steel AISI 440C Bearing Sale SF601XA-ZZ-MC3 (100 Pcs) --- Single Row Ball Bearings - 1.5x6x3 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $613.23 AUD Regular price ~~$1,297.08 AUD~~ Sale price $613.23 AUD Unit price per Out of stock! Backorder Now Sale
ID (d) 1.984 mm _{+ 0.000 / - 0.0075} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)		Flange Diameter (DF) 7.518 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SFR1-4-MC3 Single Row Ball Bearings - 1.984x6.35x2.381 mm Flanged - Stainless Steel AISI 440C Bearing 10 Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.74 AUD Regular price ~~$12.77 AUD~~ Sale price $5.74 AUD Unit price per Each Quantity Required 10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
ID (d) 1.984 mm _{+ 0.000 / - 0.0075} (Equiv. 0.078 in.)	OD (D) 6.350 mm _{+ 0.000 / - 0.0075} (Equiv. 0.25 in.)	Width (B) 2.381 mm _{+ 0.000 / - 0.125} (Equiv. 0.094 in.)
Material: Stainless Steel AISI 440C Flange Diameter (DF): 7.518 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 1 Closure Type: Open Bearing Type: Radial Flanged Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Part Number: SFR1-4-MC3 Single Row Ball Bearings - 1.984x6.35x2.381 mm Flanged - Stainless Steel AISI 440C Bearing 10 Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $5.74 AUD Regular price ~~$12.77 AUD~~ Sale price $5.74 AUD Unit price per Each Quantity Required 10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
SFR1-4-MC3 --- Single Row Ball Bearings - 1.984x6.35x2.381 mm Flanged - Stainless Steel AISI 440C Bearing Sale SFR1-4-MC3 --- Single Row Ball Bearings - 1.984x6.35x2.381 mm Flanged - Stainless Steel AISI 440C Bearing Regular price $5.74 AUD Regular price ~~$12.77 AUD~~ Sale price $5.74 AUD Unit price per 10 Available Now Sale

Country/region

Collection: Bearings - Single Row Ball - Flanged - Precision

Category Details

Filter

Filter

Subscribe to our emails
