Collection: Balls - Fixture

Balls -> Fixture

There are 8 products in the sub-categories of Balls - Fixture. Browse the Balls - Fixture products table. To narrow down the selection, please choose a sub-category from the links below.

Fixture Balls - 6.35x3.167x14.224 mm - Stainless Steel

Balls - Fixture - Stainless Steel

A selection of Stainless Steel Fixture Balls. 440C Hardened to RC 55-58....

Balls - Fixture - Stainless Steel

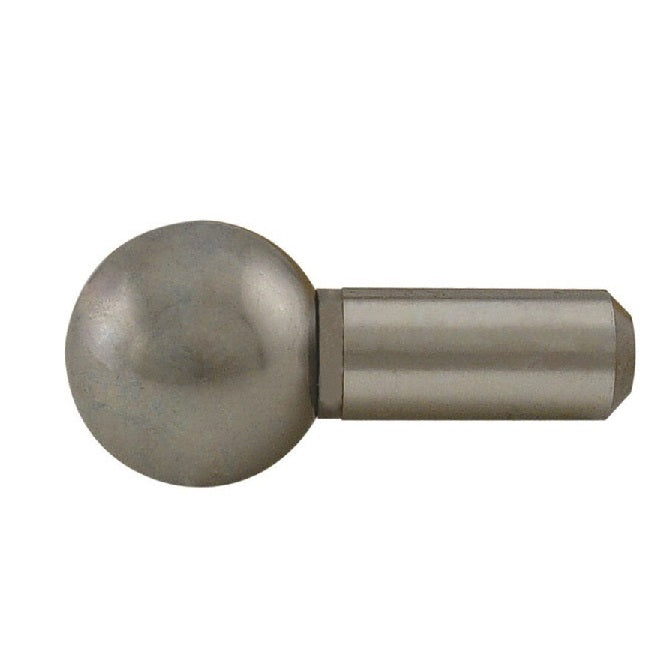

Fixture Balls - 6.35x3.167x14.224 mm - Tungsten Carbide

Balls - Fixture - Tungsten Carbide

A selection of Tungsten Carbide Fixture Balls. Tungsten Carbide RC 65-68 Fixture...

Balls - Fixture - Tungsten Carbide

Category Details

This category includes various types of fixture balls.

Fixture balls are precision components used in fixture design, tooling, and workholding applications.
Fixture balls, also known as locating balls or tooling balls, serve as reference points or contact points in fixtures and jigs to facilitate accurate positioning, alignment, and repeatability during machining, assembly, and inspection processes.
These balls are often mounted on fixtures, jigs, or workholding systems using various mounting methods, such as threaded, press-fit, or magnetic mounting.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Balls Master Catalogue PDF

A more concise listing may be found in the Balls - Fixture category on the Small Parts & Bearings online store.

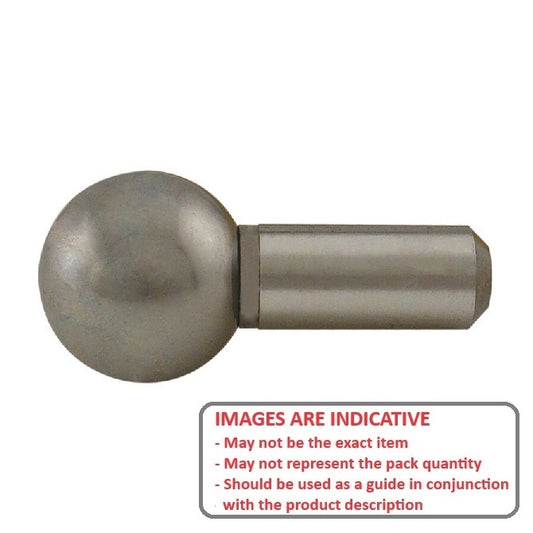

Diameter (A)	Shank Diameter (C)	Base to Centre (B)	Indicative Image
Diameter (A) 6.350 mm _{+/- 0.0013} (Equiv. 0.25 in.)	Shank Diameter (C) 3.167 mm _{+/- 0.1270} (Equiv. 0.125 in.)	Base to Centre (B) 14.224 mm _{+/- 0.0076} (Equiv. 0.56 in.)
Material: Tungsten Carbide Category: Balls - Fixture - Tungsten Carbide
Part Number: BFX-00635-TC Fixture Balls - 6.35x3.167x14.224 mm - Tungsten Carbide Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $212.41 AUD Regular price Sale price $212.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A)	Shank Diameter (C)	Base to Centre (B)	Indicative Image
Diameter (A) 6.350 mm _{+/- 0.0013} (Equiv. 0.25 in.)	Shank Diameter (C) 3.167 mm _{+/- 0.1270} (Equiv. 0.125 in.)	Base to Centre (B) 14.224 mm _{+/- 0.0076} (Equiv. 0.56 in.)
Material: Tungsten Carbide Category: Balls - Fixture - Tungsten Carbide
Part Number: BFX-00635-TC Fixture Balls - 6.35x3.167x14.224 mm - Tungsten Carbide Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $212.41 AUD Regular price Sale price $212.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-00635-TC --- Fixture Balls - 6.35x3.167x14.224 mm - Tungsten Carbide Ball BFX-00635-TC --- Fixture Balls - 6.35x3.167x14.224 mm - Tungsten Carbide Ball Regular price $212.41 AUD Regular price Sale price $212.41 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Diameter (A) 6.350 mm _{+/- 0.0025} (Equiv. 0.25 in.)	Shank Diameter (C) 3.167 mm _{+ 0 / - 0.0051} (Equiv. 0.125 in.)	Base to Centre (B) 14.224 mm _{+/- 0.127} (Equiv. 0.56 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-00635-S440 Fixture Balls - 6.35x3.167x14.224 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $241.68 AUD Regular price Sale price $241.68 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A) 6.350 mm _{+/- 0.0025} (Equiv. 0.25 in.)	Shank Diameter (C) 3.167 mm _{+ 0 / - 0.0051} (Equiv. 0.125 in.)	Base to Centre (B) 14.224 mm _{+/- 0.127} (Equiv. 0.56 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-00635-S440 Fixture Balls - 6.35x3.167x14.224 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $241.68 AUD Regular price Sale price $241.68 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-00635-S440 --- Fixture Balls - 6.35x3.167x14.224 mm - Stainless Steel Ball BFX-00635-S440 --- Fixture Balls - 6.35x3.167x14.224 mm - Stainless Steel Ball Regular price $241.68 AUD Regular price Sale price $241.68 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Diameter (A) 9.525 mm _{+/- 0.0013} (Equiv. 0.375 in.)	Shank Diameter (C) 4.755 mm _{+/- 0.1270} (Equiv. 0.187 in.)	Base to Centre (B) 19.050 mm _{+/- 0.0076} (Equiv. 0.75 in.)
Material: Tungsten Carbide Category: Balls - Fixture - Tungsten Carbide
Part Number: BFX-00953-TC Fixture Balls - 9.525x4.755x19.05 mm - Tungsten Carbide Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $188.59 AUD Regular price ~~$226.31 AUD~~ Sale price $188.59 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A) 9.525 mm _{+/- 0.0013} (Equiv. 0.375 in.)	Shank Diameter (C) 4.755 mm _{+/- 0.1270} (Equiv. 0.187 in.)	Base to Centre (B) 19.050 mm _{+/- 0.0076} (Equiv. 0.75 in.)
Material: Tungsten Carbide Category: Balls - Fixture - Tungsten Carbide
Part Number: BFX-00953-TC Fixture Balls - 9.525x4.755x19.05 mm - Tungsten Carbide Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $188.59 AUD Regular price ~~$226.31 AUD~~ Sale price $188.59 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-00953-TC --- Fixture Balls - 9.525x4.755x19.05 mm - Tungsten Carbide Ball Sale BFX-00953-TC --- Fixture Balls - 9.525x4.755x19.05 mm - Tungsten Carbide Ball Regular price $188.59 AUD Regular price ~~$226.31 AUD~~ Sale price $188.59 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Diameter (A) 9.525 mm _{+/- 0.0025} (Equiv. 0.375 in.)	Shank Diameter (C) 4.755 mm _{+ 0 / - 0.0051} (Equiv. 0.187 in.)	Base to Centre (B) 19.050 mm _{+/- 0.127} (Equiv. 0.75 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-00953-S440 Fixture Balls - 9.525x4.755x19.05 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $132.14 AUD Regular price ~~$277.59 AUD~~ Sale price $132.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A) 9.525 mm _{+/- 0.0025} (Equiv. 0.375 in.)	Shank Diameter (C) 4.755 mm _{+ 0 / - 0.0051} (Equiv. 0.187 in.)	Base to Centre (B) 19.050 mm _{+/- 0.127} (Equiv. 0.75 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-00953-S440 Fixture Balls - 9.525x4.755x19.05 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $132.14 AUD Regular price ~~$277.59 AUD~~ Sale price $132.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-00953-S440 --- Fixture Balls - 9.525x4.755x19.05 mm - Stainless Steel Ball Sale BFX-00953-S440 --- Fixture Balls - 9.525x4.755x19.05 mm - Stainless Steel Ball Regular price $132.14 AUD Regular price ~~$277.59 AUD~~ Sale price $132.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Diameter (A) 12.700 mm _{+/- 0.0025} (Equiv. 0.5 in.)	Shank Diameter (C) 6.342 mm _{+ 0 / - 0.0051} (Equiv. 0.25 in.)	Base to Centre (B) 23.876 mm _{+/- 0.127} (Equiv. 0.94 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-01270-S440 Fixture Balls - 12.7x6.342x23.876 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $194.23 AUD Regular price ~~$409.10 AUD~~ Sale price $194.23 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A) 12.700 mm _{+/- 0.0025} (Equiv. 0.5 in.)	Shank Diameter (C) 6.342 mm _{+ 0 / - 0.0051} (Equiv. 0.25 in.)	Base to Centre (B) 23.876 mm _{+/- 0.127} (Equiv. 0.94 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-01270-S440 Fixture Balls - 12.7x6.342x23.876 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $194.23 AUD Regular price ~~$409.10 AUD~~ Sale price $194.23 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-01270-S440 --- Fixture Balls - 12.7x6.342x23.876 mm - Stainless Steel Ball Sale BFX-01270-S440 --- Fixture Balls - 12.7x6.342x23.876 mm - Stainless Steel Ball Regular price $194.23 AUD Regular price ~~$409.10 AUD~~ Sale price $194.23 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Diameter (A) 15.875 mm _{+/- 0.0025} (Equiv. 0.625 in.)	Shank Diameter (C) 7.930 mm _{+ 0 / - 0.0051} (Equiv. 0.312 in.)	Base to Centre (B) 26.924 mm _{+/- 0.127} (Equiv. 1.06 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-01588-S440 Fixture Balls - 15.875x7.93x26.924 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $263.14 AUD Regular price ~~$555.08 AUD~~ Sale price $263.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A) 15.875 mm _{+/- 0.0025} (Equiv. 0.625 in.)	Shank Diameter (C) 7.930 mm _{+ 0 / - 0.0051} (Equiv. 0.312 in.)	Base to Centre (B) 26.924 mm _{+/- 0.127} (Equiv. 1.06 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-01588-S440 Fixture Balls - 15.875x7.93x26.924 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $263.14 AUD Regular price ~~$555.08 AUD~~ Sale price $263.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-01588-S440 --- Fixture Balls - 15.875x7.93x26.924 mm - Stainless Steel Ball Sale BFX-01588-S440 --- Fixture Balls - 15.875x7.93x26.924 mm - Stainless Steel Ball Regular price $263.14 AUD Regular price ~~$555.08 AUD~~ Sale price $263.14 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Diameter (A) 19.050 mm _{+/- 0.0025} (Equiv. 0.75 in.)	Shank Diameter (C) 9.517 mm _{+ 0 / - 0.0051} (Equiv. 0.375 in.)	Base to Centre (B) 31.750 mm _{+/- 0.127} (Equiv. 1.25 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-01905-S440 Fixture Balls - 19.05x9.517x31.75 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $261.77 AUD Regular price ~~$552.11 AUD~~ Sale price $261.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A) 19.050 mm _{+/- 0.0025} (Equiv. 0.75 in.)	Shank Diameter (C) 9.517 mm _{+ 0 / - 0.0051} (Equiv. 0.375 in.)	Base to Centre (B) 31.750 mm _{+/- 0.127} (Equiv. 1.25 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-01905-S440 Fixture Balls - 19.05x9.517x31.75 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $261.77 AUD Regular price ~~$552.11 AUD~~ Sale price $261.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-01905-S440 --- Fixture Balls - 19.05x9.517x31.75 mm - Stainless Steel Ball Sale BFX-01905-S440 --- Fixture Balls - 19.05x9.517x31.75 mm - Stainless Steel Ball Regular price $261.77 AUD Regular price ~~$552.11 AUD~~ Sale price $261.77 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Diameter (A) 25.400 mm _{+/- 0.0025} (Equiv. 1 in.)	Shank Diameter (C) 12.692 mm _{+ 0 / - 0.0051} (Equiv. 0.5 in.)	Base to Centre (B) 41.148 mm _{+/- 0.127} (Equiv. 1.62 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-02540-S440 Fixture Balls - 25.4x12.692x41.148 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $472.05 AUD Regular price ~~$997.56 AUD~~ Sale price $472.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
Diameter (A) 25.400 mm _{+/- 0.0025} (Equiv. 1 in.)	Shank Diameter (C) 12.692 mm _{+ 0 / - 0.0051} (Equiv. 0.5 in.)	Base to Centre (B) 41.148 mm _{+/- 0.127} (Equiv. 1.62 in.)
Material: Stainless Steel Category: Balls - Fixture - Stainless Steel
Part Number: BFX-02540-S440 Fixture Balls - 25.4x12.692x41.148 mm - Stainless Steel Ball Out of Stock \| Backorder Now \| Orders can be expected around Mon, Oct 06, 2025 Regular price $472.05 AUD Regular price ~~$997.56 AUD~~ Sale price $472.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Each Quantity Required Backorder: Out of Stock.
BFX-02540-S440 --- Fixture Balls - 25.4x12.692x41.148 mm - Stainless Steel Ball Sale BFX-02540-S440 --- Fixture Balls - 25.4x12.692x41.148 mm - Stainless Steel Ball Regular price $472.05 AUD Regular price ~~$997.56 AUD~~ Sale price $472.05 AUD Unit price per Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
