Yoke Ends - Blank

Yoke Ends -> Blank

There are 9 products in the sub-categories of Yoke Ends - Blank. Browse the Yoke Ends - Blank products table.

Category Details

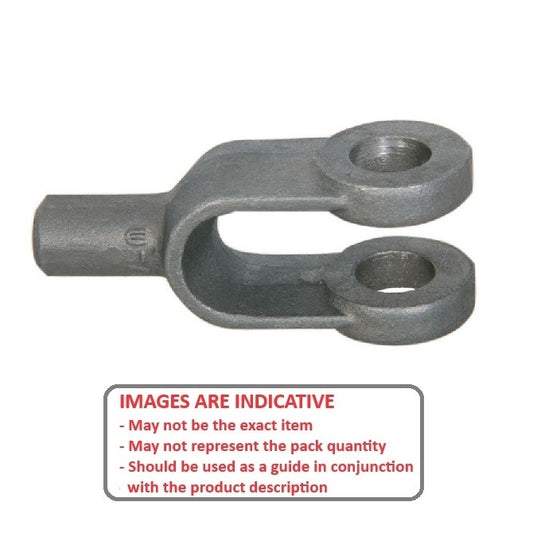

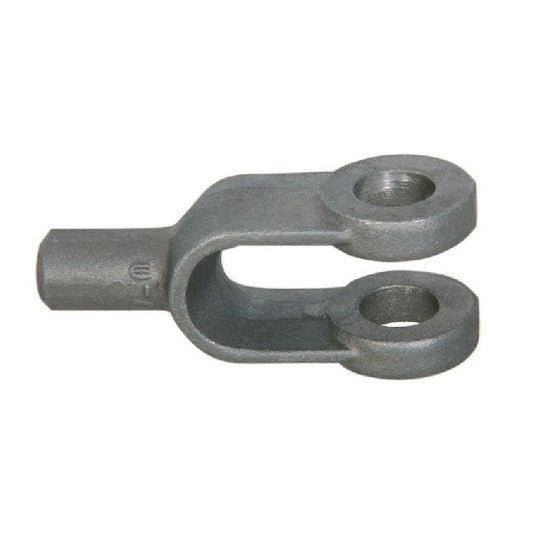

A selection of Blank Yoke Ends. Linkage connectors with blank ends - no hole.

  • A yoke end, also known as a clevis end, is a U-shaped metal fastener used to connect rods, cables, or pipes to a mounting point.
  • It's commonly used in lifting, rigging, and other applications where secure attachment and articulation are needed.
  • Yoke ends require a clevis pin and cotter pin for secure attachment.
  • Drop forged steel machined to SAE standards
  • Also see clevis joints

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Yoke Ends - Blank category on the Small Parts & Bearings online store.
Effective Length (A) Hub Diameter (B) Gap (E) +/- 0.38 Width (F) +/- 0.38 Hole Size (G) +0.25 Stud Height (L) Indicative
Effective Length (A)
44.450
mm

(Equiv. 1.75 in.)
Hub Diameter (B)
6.350
mm

(Equiv. 0.25 in.)
Gap (E) +/- 0.38
7.140
mm

(Equiv. 0.281 in.)
Width (F) +/- 0.38
7.14
mm
Hole Size (G) +0.25
6.35
mm
Stud Height (L)
24
mm
Blank Yoke Ends - 44.45x6.35x7.14 mm
Material: Steel    Housing Diameter (K): 13 mm
Part Number: YE-12RS
Blank Yoke Ends - 44.45x6.35x7.14 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$29.50 AUD
$35.40 AUD $29.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Effective Length (A) Hub Diameter (B) Gap (E) +/- 0.38 Width (F) +/- 0.38 Indicative
Effective Length (A)
44.450
mm

(Equiv. 1.75 in.)
Hub Diameter (B)
6.350
mm

(Equiv. 0.25 in.)
Gap (E) +/- 0.38
7.140
mm

(Equiv. 0.281 in.)
Width (F) +/- 0.38
7.14
mm
Blank Yoke Ends - 44.45x6.35x7.14 mm
Material: Steel    Hole Size (G) +0.25: 6.35 mm    Stud Height (L): 24 mm    Housing Diameter (K): 13 mm
Part Number: YE-12RS
Blank Yoke Ends - 44.45x6.35x7.14 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$29.50 AUD
$35.40 AUD $29.50 AUD
Each
Quantity Required

Backorder: Out of Stock.
Effective Length (A)
50.800
mm

(Equiv. 2 in.)
Hub Diameter (B)
7.940
mm

(Equiv. 0.313 in.)
Gap (E) +/- 0.38
8.730
mm

(Equiv. 0.344 in.)
Width (F) +/- 0.38
8.73
mm
Hole Size (G) +0.25
7.94
mm
Stud Height (L)
27
mm
Blank Yoke Ends - 50.8x7.94x8.73 mm
Material: Steel    Housing Diameter (K): 15 mm
Part Number: YE-13RS
Blank Yoke Ends - 50.8x7.94x8.73 mm - Steel
2 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$32.59 AUD
$32.59 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Effective Length (A)
50.800
mm

(Equiv. 2 in.)
Hub Diameter (B)
7.940
mm

(Equiv. 0.313 in.)
Gap (E) +/- 0.38
8.730
mm

(Equiv. 0.344 in.)
Width (F) +/- 0.38
8.73
mm
Blank Yoke Ends - 50.8x7.94x8.73 mm
Material: Steel    Hole Size (G) +0.25: 7.94 mm    Stud Height (L): 27 mm    Housing Diameter (K): 15 mm
Part Number: YE-13RS
Blank Yoke Ends - 50.8x7.94x8.73 mm - Steel
2 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$32.59 AUD
$32.59 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Effective Length (A)
53.980
mm

(Equiv. 2.125 in.)
Hub Diameter (B)
9.530
mm

(Equiv. 0.375 in.)
Gap (E) +/- 0.38
11.110
mm

(Equiv. 0.437 in.)
Width (F) +/- 0.38
11.11
mm
Hole Size (G) +0.25
9.53
mm
Stud Height (L)
25
mm
Blank Yoke Ends - 53.98x9.53x11.11 mm
Material: Steel    Housing Diameter (K): 17 mm
Part Number: YE-14RS
Blank Yoke Ends - 53.98x9.53x11.11 mm - Steel
2 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$33.23 AUD
$39.87 AUD $33.23 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Effective Length (A)
53.980
mm

(Equiv. 2.125 in.)
Hub Diameter (B)
9.530
mm

(Equiv. 0.375 in.)
Gap (E) +/- 0.38
11.110
mm

(Equiv. 0.437 in.)
Width (F) +/- 0.38
11.11
mm
Blank Yoke Ends - 53.98x9.53x11.11 mm
Material: Steel    Hole Size (G) +0.25: 9.53 mm    Stud Height (L): 25 mm    Housing Diameter (K): 17 mm
Part Number: YE-14RS
Blank Yoke Ends - 53.98x9.53x11.11 mm - Steel
2 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$33.23 AUD
$39.87 AUD $33.23 AUD
Each
Quantity Required

2 Available Now. Backorder if more than 2.
Effective Length (A)
57.150
mm

(Equiv. 2.25 in.)
Hub Diameter (B)
11.110
mm

(Equiv. 0.437 in.)
Gap (E) +/- 0.38
12.700
mm

(Equiv. 0.5 in.)
Width (F) +/- 0.38
12.70
mm
Hole Size (G) +0.25
11.11
mm
Stud Height (L)
24
mm
Blank Yoke Ends - 57.15x11.11x12.7 mm
Material: Steel    Housing Diameter (K): 21 mm
Part Number: YE-15RS
Blank Yoke Ends - 57.15x11.11x12.7 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$46.32 AUD
$46.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Effective Length (A)
57.150
mm

(Equiv. 2.25 in.)
Hub Diameter (B)
11.110
mm

(Equiv. 0.437 in.)
Gap (E) +/- 0.38
12.700
mm

(Equiv. 0.5 in.)
Width (F) +/- 0.38
12.70
mm
Blank Yoke Ends - 57.15x11.11x12.7 mm
Material: Steel    Hole Size (G) +0.25: 11.11 mm    Stud Height (L): 24 mm    Housing Diameter (K): 21 mm
Part Number: YE-15RS
Blank Yoke Ends - 57.15x11.11x12.7 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$46.32 AUD
$46.32 AUD
Each
Quantity Required

Backorder: Out of Stock.
Effective Length (A)
63.500
mm

(Equiv. 2.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Hole Size (G) +0.25
12.70
mm
Stud Height (L)
25
mm
Blank Yoke Ends - 63.5x12.7x14.29 mm
Material: Steel    Housing Diameter (K): 24 mm
Part Number: YE-16RS
Blank Yoke Ends - 63.5x12.7x14.29 mm - Steel
1 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$40.77 AUD
$48.93 AUD $40.77 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
Effective Length (A)
63.500
mm

(Equiv. 2.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Blank Yoke Ends - 63.5x12.7x14.29 mm
Material: Steel    Hole Size (G) +0.25: 12.70 mm    Stud Height (L): 25 mm    Housing Diameter (K): 24 mm
Part Number: YE-16RS
Blank Yoke Ends - 63.5x12.7x14.29 mm - Steel
1 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$40.77 AUD
$48.93 AUD $40.77 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
Effective Length (A)
73.030
mm

(Equiv. 2.875 in.)
Hub Diameter (B)
15.880
mm

(Equiv. 0.625 in.)
Gap (E) +/- 0.38
17.460
mm

(Equiv. 0.687 in.)
Width (F) +/- 0.38
17.46
mm
Hole Size (G) +0.25
15.88
mm
Stud Height (L)
29
mm
Blank Yoke Ends - 73.03x15.88x17.46 mm
Material: Steel    Housing Diameter (K): 30 mm
Part Number: YE-17RS
Blank Yoke Ends - 73.03x15.88x17.46 mm - Steel
1 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$51.77 AUD
$62.13 AUD $51.77 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
Effective Length (A)
73.030
mm

(Equiv. 2.875 in.)
Hub Diameter (B)
15.880
mm

(Equiv. 0.625 in.)
Gap (E) +/- 0.38
17.460
mm

(Equiv. 0.687 in.)
Width (F) +/- 0.38
17.46
mm
Blank Yoke Ends - 73.03x15.88x17.46 mm
Material: Steel    Hole Size (G) +0.25: 15.88 mm    Stud Height (L): 29 mm    Housing Diameter (K): 30 mm
Part Number: YE-17RS
Blank Yoke Ends - 73.03x15.88x17.46 mm - Steel
1 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$51.77 AUD
$62.13 AUD $51.77 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
Effective Length (A)
92.080
mm

(Equiv. 3.625 in.)
Hub Diameter (B)
19.050
mm

(Equiv. 0.75 in.)
Gap (E) +/- 0.38
20.640
mm

(Equiv. 0.813 in.)
Width (F) +/- 0.38
20.64
mm
Hole Size (G) +0.25
19.05
mm
Stud Height (L)
38
mm
Blank Yoke Ends - 92.08x19.05x20.64 mm
Material: Steel    Housing Diameter (K): 37 mm
Part Number: YE-18RS
Blank Yoke Ends - 92.08x19.05x20.64 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$123.23 AUD
$147.87 AUD $123.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Effective Length (A)
92.080
mm

(Equiv. 3.625 in.)
Hub Diameter (B)
19.050
mm

(Equiv. 0.75 in.)
Gap (E) +/- 0.38
20.640
mm

(Equiv. 0.813 in.)
Width (F) +/- 0.38
20.64
mm
Blank Yoke Ends - 92.08x19.05x20.64 mm
Material: Steel    Hole Size (G) +0.25: 19.05 mm    Stud Height (L): 38 mm    Housing Diameter (K): 37 mm
Part Number: YE-18RS
Blank Yoke Ends - 92.08x19.05x20.64 mm - Steel
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$123.23 AUD
$147.87 AUD $123.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Effective Length (A)
152.400
mm

(Equiv. 6 in.)
Hub Diameter (B)
25.400
mm

(Equiv. 1 in.)
Gap (E) +/- 0.38
26.990
mm

(Equiv. 1.063 in.)
Width (F) +/- 0.38
26.99
mm
Hole Size (G) +0.25
25.40
mm
Stud Height (L)
76
mm
Blank Yoke Ends - 152.4x25.4x26.99 mm
Material: Steel    Housing Diameter (K): 49 mm
Part Number: YE-20RS
Blank Yoke Ends - 152.4x25.4x26.99 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$58.24 AUD
$183.66 AUD $58.24 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Effective Length (A)
152.400
mm

(Equiv. 6 in.)
Hub Diameter (B)
25.400
mm

(Equiv. 1 in.)
Gap (E) +/- 0.38
26.990
mm

(Equiv. 1.063 in.)
Width (F) +/- 0.38
26.99
mm
Blank Yoke Ends - 152.4x25.4x26.99 mm
Material: Steel    Hole Size (G) +0.25: 25.40 mm    Stud Height (L): 76 mm    Housing Diameter (K): 49 mm
Part Number: YE-20RS
Blank Yoke Ends - 152.4x25.4x26.99 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$58.24 AUD
$183.66 AUD $58.24 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Effective Length (A)
165.100
mm

(Equiv. 6.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Hole Size (G) +0.25
12.70
mm
Stud Height (L)
127
mm
Blank Yoke Ends - 165.1x12.7x14.29 mm
Material: Steel    Housing Diameter (K): 24 mm
Part Number: YE-16ARS
Blank Yoke Ends - 165.1x12.7x14.29 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.69 AUD
$53.99 AUD $19.69 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Effective Length (A)
165.100
mm

(Equiv. 6.5 in.)
Hub Diameter (B)
12.700
mm

(Equiv. 0.5 in.)
Gap (E) +/- 0.38
14.290
mm

(Equiv. 0.563 in.)
Width (F) +/- 0.38
14.29
mm
Blank Yoke Ends - 165.1x12.7x14.29 mm
Material: Steel    Hole Size (G) +0.25: 12.70 mm    Stud Height (L): 127 mm    Housing Diameter (K): 24 mm
Part Number: YE-16ARS
Blank Yoke Ends - 165.1x12.7x14.29 mm - Steel
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$19.69 AUD
$53.99 AUD $19.69 AUD
Each
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
