Washers - Self Aligning - Components

Washers -> Self Aligning -> Components

There are 10 products in the sub-categories of Washers - Self Aligning - Components. Browse the Washers - Self Aligning - Components products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of self aligning washers.
  • Self-aligning washers are designed to compensate for misalignment between connected parts. An expanded range may be available on special order. Please enquire.
  • Consists of a convex and concave washer that swivel slightly when nested, allowing them to adapt to slight angles and uneven surfaces. This helps to distribute load evenly and reduce stress on the connection.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Washers - Self Aligning - Components category on the Small Parts & Bearings online store.
Suitable Shaft or Bolt Size Bore Size (d1 or d2) OD (d3) Thickness (h2 or h3) Overall Thickness (h4) Radius (r) Indicative
Suitable Shaft or Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Bore Size (d1 or d2)
8.4
mm

(Equiv. 0.331 in.)
OD (d3)
17.00
mm

(Equiv. 0.669 in.)
Thickness (h2 or h3)
3.2
mm
Overall Thickness (h4)
5.0
mm
Radius (r)
12.0
mm

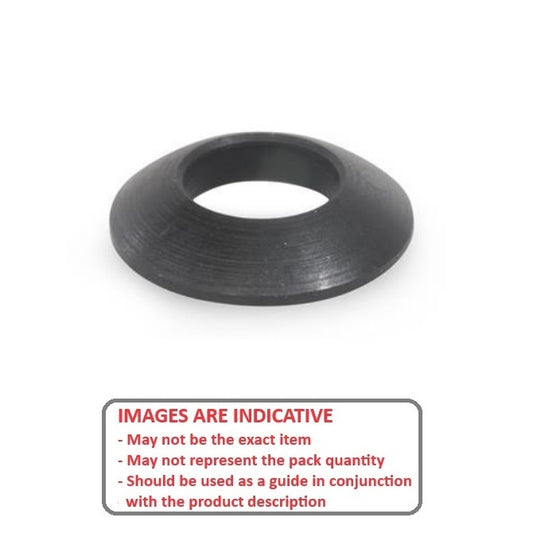

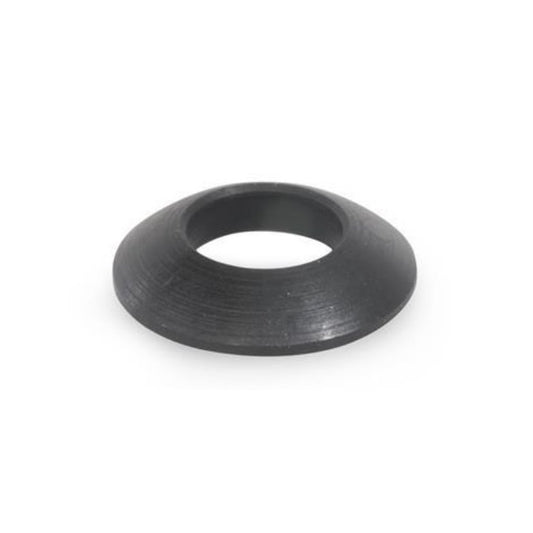

Self Aligning Washers - 8x8.4x17 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 17 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0080-ALN-CA
Self Aligning Washers - 8x8.4x17 mm Components - Carbon Steel - Hardened Washer
6 Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Quantity Required

6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size Bore Size (d1 or d2) OD (d3) Thickness (h2 or h3) Indicative
Suitable Shaft or Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Bore Size (d1 or d2)
8.4
mm

(Equiv. 0.331 in.)
OD (d3)
17.00
mm

(Equiv. 0.669 in.)
Thickness (h2 or h3)
3.2
mm
Self Aligning Washers - 8x8.4x17 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 5.0 mm    Radius (r): 12.0 mm    Static Load Rating: 17 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0080-ALN-CA
Self Aligning Washers - 8x8.4x17 mm Components - Carbon Steel - Hardened Washer
6 Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Quantity Required

6 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Bore Size (d1 or d2)
9.6
mm

(Equiv. 0.378 in.)
OD (d3)
17.00
mm

(Equiv. 0.669 in.)
Thickness (h2 or h3)
3.5
mm
Overall Thickness (h4)
5.0
mm

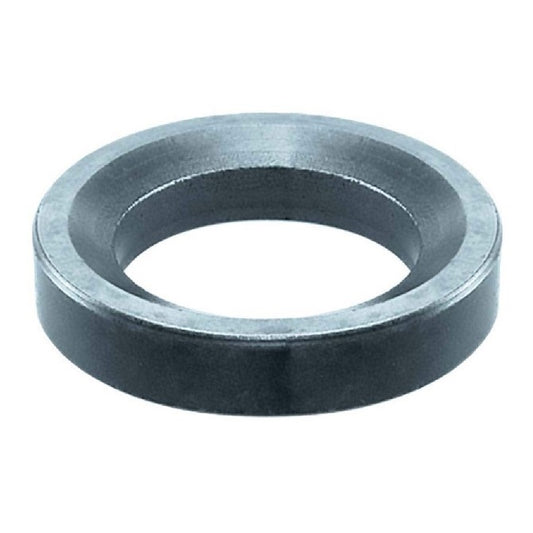

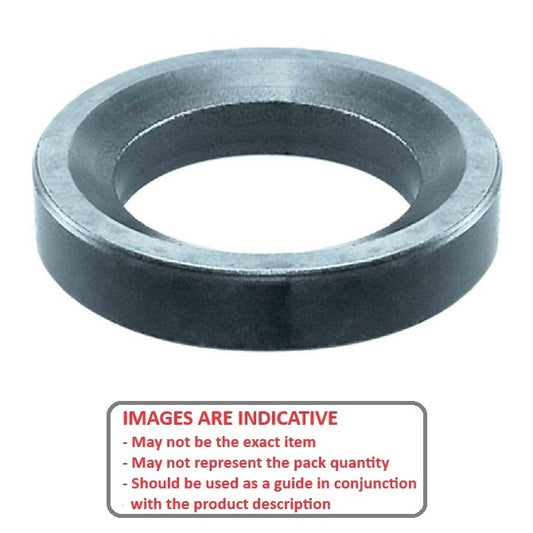

Self Aligning Washers - 8x9.6x17 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 17 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0080-ALN-CB
Self Aligning Washers - 8x9.6x17 mm Components - Carbon Steel - Hardened Washer
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Quantity Required

10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
8.00
mm

(Equiv. 0.315 in.)
Bore Size (d1 or d2)
9.6
mm

(Equiv. 0.378 in.)
OD (d3)
17.00
mm

(Equiv. 0.669 in.)
Thickness (h2 or h3)
3.5
mm
Self Aligning Washers - 8x9.6x17 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 5.0 mm    Static Load Rating: 17 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0080-ALN-CB
Self Aligning Washers - 8x9.6x17 mm Components - Carbon Steel - Hardened Washer
10 Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$2.00 AUD
$3.80 AUD $2.00 AUD
Each
Quantity Required

10 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Bore Size (d1 or d2)
12
mm

(Equiv. 0.472 in.)
OD (d3)
30.00
mm

(Equiv. 1.181 in.)
Thickness (h2 or h3)
5.0
mm
Overall Thickness (h4)
7.1
mm
Self Aligning Washers - 10x12x30 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 26 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0100-ALN-CBH (5 Pcs)
Self Aligning Washers - 10x12x30 mm Components - Carbon Steel - Hardened Washer
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 16, 2025
$30.77 AUD
$60.04 AUD $30.77 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Suitable Shaft or Bolt Size
10.00
mm

(Equiv. 0.394 in.)
Bore Size (d1 or d2)
12
mm

(Equiv. 0.472 in.)
OD (d3)
30.00
mm

(Equiv. 1.181 in.)
Thickness (h2 or h3)
5.0
mm
Self Aligning Washers - 10x12x30 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 7.1 mm    Static Load Rating: 26 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0100-ALN-CBH (5 Pcs)
Self Aligning Washers - 10x12x30 mm Components - Carbon Steel - Hardened Washer
Out of Stock | Backorder Now | Orders can be expected around Tue, Sep 16, 2025
$30.77 AUD
$60.04 AUD $30.77 AUD
Per 5
Quantity Required

Backorder: Out of Stock.
Suitable Shaft or Bolt Size
20.00
mm

(Equiv. 0.787 in.)
Bore Size (d1 or d2)
21
mm

(Equiv. 0.827 in.)
OD (d3)
36.00
mm

(Equiv. 1.417 in.)
Thickness (h2 or h3)
6.3
mm
Overall Thickness (h4)
11.5
mm
Radius (r)
27.0
mm
Self Aligning Washers - 20x21x36 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 117 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0200-ALN-CA
Self Aligning Washers - 20x21x36 mm Components - Carbon Steel - Hardened Washer
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.88 AUD
$9.28 AUD $4.88 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
20.00
mm

(Equiv. 0.787 in.)
Bore Size (d1 or d2)
21
mm

(Equiv. 0.827 in.)
OD (d3)
36.00
mm

(Equiv. 1.417 in.)
Thickness (h2 or h3)
6.3
mm
Self Aligning Washers - 20x21x36 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 11.5 mm    Radius (r): 27.0 mm    Static Load Rating: 117 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0200-ALN-CA
Self Aligning Washers - 20x21x36 mm Components - Carbon Steel - Hardened Washer
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.88 AUD
$9.28 AUD $4.88 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
20.00
mm

(Equiv. 0.787 in.)
Bore Size (d1 or d2)
23.2
mm

(Equiv. 0.913 in.)
OD (d3)
36.00
mm

(Equiv. 1.417 in.)
Thickness (h2 or h3)
7.5
mm
Overall Thickness (h4)
11.5
mm
Self Aligning Washers - 20x23.2x36 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 117 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0200-ALN-CB
Self Aligning Washers - 20x23.2x36 mm Components - Carbon Steel - Hardened Washer
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.10 AUD
$9.69 AUD $5.10 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
20.00
mm

(Equiv. 0.787 in.)
Bore Size (d1 or d2)
23.2
mm

(Equiv. 0.913 in.)
OD (d3)
36.00
mm

(Equiv. 1.417 in.)
Thickness (h2 or h3)
7.5
mm
Self Aligning Washers - 20x23.2x36 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 11.5 mm    Static Load Rating: 117 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0200-ALN-CB
Self Aligning Washers - 20x23.2x36 mm Components - Carbon Steel - Hardened Washer
5 Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.10 AUD
$9.69 AUD $5.10 AUD
Each
Quantity Required

5 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
24.00
mm

(Equiv. 0.945 in.)
Bore Size (d1 or d2)
25
mm

(Equiv. 0.984 in.)
OD (d3)
44.00
mm

(Equiv. 1.732 in.)
Thickness (h2 or h3)
8.2
mm
Overall Thickness (h4)
15.0
mm
Radius (r)
32.0
mm
Self Aligning Washers - 24x25x44 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 168 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0240-ALN-CA
Self Aligning Washers - 24x25x44 mm Components - Carbon Steel - Hardened Washer
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Each
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
24.00
mm

(Equiv. 0.945 in.)
Bore Size (d1 or d2)
25
mm

(Equiv. 0.984 in.)
OD (d3)
44.00
mm

(Equiv. 1.732 in.)
Thickness (h2 or h3)
8.2
mm
Self Aligning Washers - 24x25x44 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 15.0 mm    Radius (r): 32.0 mm    Static Load Rating: 168 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0240-ALN-CA
Self Aligning Washers - 24x25x44 mm Components - Carbon Steel - Hardened Washer
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Each
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
24.00
mm

(Equiv. 0.945 in.)
Bore Size (d1 or d2)
28
mm

(Equiv. 1.102 in.)
OD (d3)
44.00
mm

(Equiv. 1.732 in.)
Thickness (h2 or h3)
9.5
mm
Overall Thickness (h4)
15.0
mm
Self Aligning Washers - 24x28x44 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 168 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0240-ALN-CB
Self Aligning Washers - 24x28x44 mm Components - Carbon Steel - Hardened Washer
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Each
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
24.00
mm

(Equiv. 0.945 in.)
Bore Size (d1 or d2)
28
mm

(Equiv. 1.102 in.)
OD (d3)
44.00
mm

(Equiv. 1.732 in.)
Thickness (h2 or h3)
9.5
mm
Self Aligning Washers - 24x28x44 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 15.0 mm    Static Load Rating: 168 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0240-ALN-CB
Self Aligning Washers - 24x28x44 mm Components - Carbon Steel - Hardened Washer
3 Available Now | Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity
$10.00 AUD
$19.00 AUD $10.00 AUD
Each
Quantity Required

3 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
36.00
mm

(Equiv. 1.417 in.)
Bore Size (d1 or d2)
37
mm

(Equiv. 1.457 in.)
OD (d3)
68.00
mm

(Equiv. 2.677 in.)
Thickness (h2 or h3)
14.0
mm
Overall Thickness (h4)
23.0
mm
Radius (r)
50.0
mm
Self Aligning Washers - 36x37x68 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 394 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0360-ALN-CA (5 Pcs)
Self Aligning Washers - 36x37x68 mm Components - Carbon Steel - Hardened Washer
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$63.34 AUD
$120.34 AUD $63.34 AUD
Per 5
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
36.00
mm

(Equiv. 1.417 in.)
Bore Size (d1 or d2)
37
mm

(Equiv. 1.457 in.)
OD (d3)
68.00
mm

(Equiv. 2.677 in.)
Thickness (h2 or h3)
14.0
mm
Self Aligning Washers - 36x37x68 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 23.0 mm    Radius (r): 50.0 mm    Static Load Rating: 394 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0360-ALN-CA (5 Pcs)
Self Aligning Washers - 36x37x68 mm Components - Carbon Steel - Hardened Washer
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$63.34 AUD
$120.34 AUD $63.34 AUD
Per 5
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
42.00
mm

(Equiv. 1.654 in.)
Bore Size (d1 or d2)
43
mm

(Equiv. 1.693 in.)
OD (d3)
78.00
mm

(Equiv. 3.071 in.)
Thickness (h2 or h3)
17.0
mm
Overall Thickness (h4)
29.0
mm
Radius (r)
58.0
mm
Self Aligning Washers - 42x43x78 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 542 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0420-ALN-CA
Self Aligning Washers - 42x43x78 mm Components - Carbon Steel - Hardened Washer
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$42.00 AUD
$79.80 AUD $42.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
42.00
mm

(Equiv. 1.654 in.)
Bore Size (d1 or d2)
43
mm

(Equiv. 1.693 in.)
OD (d3)
78.00
mm

(Equiv. 3.071 in.)
Thickness (h2 or h3)
17.0
mm
Self Aligning Washers - 42x43x78 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 29.0 mm    Radius (r): 58.0 mm    Static Load Rating: 542 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0420-ALN-CA
Self Aligning Washers - 42x43x78 mm Components - Carbon Steel - Hardened Washer
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$42.00 AUD
$79.80 AUD $42.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
42.00
mm

(Equiv. 1.654 in.)
Bore Size (d1 or d2)
49
mm

(Equiv. 1.929 in.)
OD (d3)
78.00
mm

(Equiv. 3.071 in.)
Thickness (h2 or h3)
18.0
mm
Overall Thickness (h4)
29.0
mm
Self Aligning Washers - 42x49x78 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Static Load Rating: 542 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0420-ALN-CB
Self Aligning Washers - 42x49x78 mm Components - Carbon Steel - Hardened Washer
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$42.00 AUD
$79.80 AUD $42.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Suitable Shaft or Bolt Size
42.00
mm

(Equiv. 1.654 in.)
Bore Size (d1 or d2)
49
mm

(Equiv. 1.929 in.)
OD (d3)
78.00
mm

(Equiv. 3.071 in.)
Thickness (h2 or h3)
18.0
mm
Self Aligning Washers - 42x49x78 mm - Carbon Steel - Hardened
Material: Carbon Steel - Hardened    Overall Thickness (h4): 29.0 mm    Static Load Rating: 542 Max. kN
Category: Washers - Self Aligning - Components - Hardened Steel
Part Number: W0420-ALN-CB
Self Aligning Washers - 42x49x78 mm Components - Carbon Steel - Hardened Washer
2 Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$42.00 AUD
$79.80 AUD $42.00 AUD
Each
Quantity Required

2 Available Now. These are priced to quit. Please contact us for a quote if you require more.
