Washers - Lock - Split - Titanium CP Grade 1

Washers -> Lock -> Split -> Titanium CP Grade 1

There are 4 products in the sub-categories of Washers - Lock - Split - Titanium CP Grade 1. Browse the Washers - Lock - Split - Titanium CP Grade 1 products table.

Category Details

A selection of Titanium CP Grade 1 Split Lock Washers. Split type. CP1 commercially pure titanium grade 1. UNS R50250

  • Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
  • Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
  • Dimensions are nominal and may vary between batches.
  • Widely used in power generation, chemical processing, aerospace and medical applications.
  • Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance
  • Tensile Strength 24.6 kgf/mm2. Yield Strength 17.6 kgf/mm2. Elongation 24 Percent.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Washers - Lock - Split - Titanium CP Grade 1 category on the Small Parts & Bearings online store.
Nominal Inside Diameter Outside Diameter Material Thickness (T) Indicative
Nominal Inside Diameter
5.00
mm
+ 0.4 / - 0.0
(Equiv. 0.197 in.)
Outside Diameter
9.2
mm

(Equiv. 0.362 in.)
Material Thickness (T)
1.20
mm

(Equiv. 0.047 in.)
Lock Washers - 5x9.2x1.2 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M5, 10-24, 10-32, 3/16    Specs: DIN 127 B    Actual ID (Ref): 5.2 mm
Part Number: W0050-T-009-012-L-TC1 (10 Pcs)

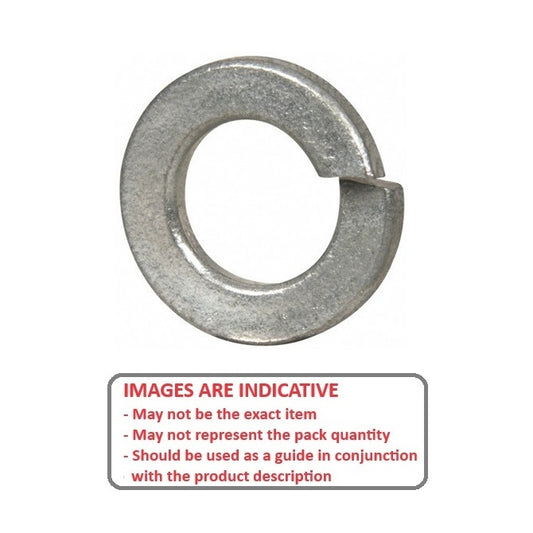

Lock Washers - 5x9.2x1.2 mm Split Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter Outside Diameter Material Thickness (T) Indicative
Nominal Inside Diameter
5.00
mm
+ 0.4 / - 0.0
(Equiv. 0.197 in.)
Outside Diameter
9.2
mm

(Equiv. 0.362 in.)
Material Thickness (T)
1.20
mm

(Equiv. 0.047 in.)
Lock Washers - 5x9.2x1.2 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M5, 10-24, 10-32, 3/16    Specs: DIN 127 B    Actual ID (Ref): 5.2 mm
Part Number: W0050-T-009-012-L-TC1 (10 Pcs)
Lock Washers - 5x9.2x1.2 mm Split Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
6.00
mm
+ 0.4 / - 0.0
(Equiv. 0.236 in.)
Outside Diameter
11.8
mm

(Equiv. 0.465 in.)
Material Thickness (T)
1.60
mm

(Equiv. 0.063 in.)
Lock Washers - 6x11.8x1.6 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M6    Specs: DIN 127 B    Actual ID (Ref): 6.2 mm
Part Number: W0060-T-012-016-L-TC1 (10 Pcs)
Lock Washers - 6x11.8x1.6 mm Split Washer
10 units (100 pcs) Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
6.00
mm
+ 0.4 / - 0.0
(Equiv. 0.236 in.)
Outside Diameter
11.8
mm

(Equiv. 0.465 in.)
Material Thickness (T)
1.60
mm

(Equiv. 0.063 in.)
Lock Washers - 6x11.8x1.6 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M6    Specs: DIN 127 B    Actual ID (Ref): 6.2 mm
Part Number: W0060-T-012-016-L-TC1 (10 Pcs)
Lock Washers - 6x11.8x1.6 mm Split Washer
10 units (100 pcs) Available Now | Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
8.00
mm
+ 0.4 / - 0.0
(Equiv. 0.315 in.)
Outside Diameter
14.8
mm

(Equiv. 0.583 in.)
Material Thickness (T)
2.00
mm

(Equiv. 0.079 in.)
Lock Washers - 8x14.8x2 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M8, 5/16    Specs: DIN 127 B    Actual ID (Ref): 8.2 mm
Part Number: W0080-T-015-020-L-TC1 (10 Pcs)
Lock Washers - 8x14.8x2 mm Split Washer
9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

9 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
8.00
mm
+ 0.4 / - 0.0
(Equiv. 0.315 in.)
Outside Diameter
14.8
mm

(Equiv. 0.583 in.)
Material Thickness (T)
2.00
mm

(Equiv. 0.079 in.)
Lock Washers - 8x14.8x2 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M8, 5/16    Specs: DIN 127 B    Actual ID (Ref): 8.2 mm
Part Number: W0080-T-015-020-L-TC1 (10 Pcs)
Lock Washers - 8x14.8x2 mm Split Washer
9 units (90 pcs) Available Now | Item Discontinued - Up to 9 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

9 units (90 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
10.00
mm
+ 0.5 / - 0.0
(Equiv. 0.394 in.)
Outside Diameter
18.1
mm

(Equiv. 0.713 in.)
Material Thickness (T)
2.20
mm

(Equiv. 0.087 in.)
Lock Washers - 10x18.1x2.2 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M10, 3/8    Specs: DIN 127 B    Actual ID (Ref): 10.2 mm
Part Number: W0100-T-018-022-L-TC1 (10 Pcs)
Lock Washers - 10x18.1x2.2 mm Split Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
10.00
mm
+ 0.5 / - 0.0
(Equiv. 0.394 in.)
Outside Diameter
18.1
mm

(Equiv. 0.713 in.)
Material Thickness (T)
2.20
mm

(Equiv. 0.087 in.)
Lock Washers - 10x18.1x2.2 mm
Material: Titanium - CP1 Commercially Pure    Nominal Screw Size: M10, 3/8    Specs: DIN 127 B    Actual ID (Ref): 10.2 mm
Part Number: W0100-T-018-022-L-TC1 (10 Pcs)
Lock Washers - 10x18.1x2.2 mm Split Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
