Washers - Flat - Commercial - Titanium - CP Grade 1

Washers -> Flat -> Commercial -> Titanium -> CP Grade 1

There are 5 products in the sub-categories of Washers - Flat - Commercial - Titanium - CP Grade 1. Browse the Washers - Flat - Commercial - Titanium - CP Grade 1 products table.

Category Details

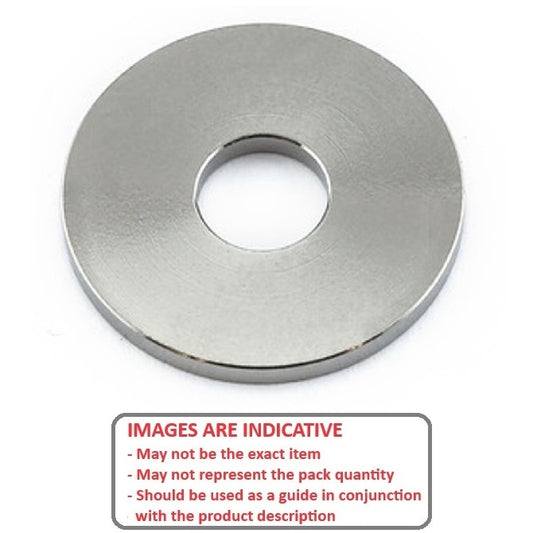

A selection of CP Grade 1 Titanium Commercial Flat Washers. Commercially Pure CP1 Titanium Grade 1 flat washers. Tensile Strength 24.6 kgf/mm2. Yield Strength 17.6 kgf/mm2. Elongation 24 Percent.

  • Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
  • Flat plain washers distribute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
  • Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.
  • Commercially pure for general industrial corrosion applications. UNS R50250.
  • Please note! Tolerances for commercial grade washers are much larger than for precision washers. Widely used in power generation, chemical processing, aerospace and medical applications.
  • Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Washers - Flat - Commercial - Titanium - CP Grade 1 category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Thickness (T) Other Indicative
Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
4.00
mm
AS1237 / DIN125
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
9.00
mm
AS1237 / DIN125
(Equiv. 0.354 in.)
Thickness (T)
1.00
mm
AS1237 / DIN125
(Equiv. 0.039 in.)
Other
To Suit M4 Screw
Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 4.3 mm
Deleted Item. Available while stocks last.
Part Number: W0040-F-009-010-TC1 (PK-10)
40 units (400 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (400 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Thickness (T) Other Indicative
Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
4.00
mm
AS1237 / DIN125
(Equiv. 0.157 in.)
Nominal Outside Diameter (D)
9.00
mm
AS1237 / DIN125
(Equiv. 0.354 in.)
Thickness (T)
1.00
mm
AS1237 / DIN125
(Equiv. 0.039 in.)
Other
To Suit M4 Screw
Flat Washers - 4x9x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 4.3 mm
Deleted Item. Available while stocks last.
Part Number: W0040-F-009-010-TC1 (PK-10)
40 units (400 pcs) Available Now | Item Discontinued - Up to 40 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

40 units (400 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
5.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
10.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.394 in.)
Thickness (T)
1.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.039 in.)
Other
To Suit M5 Screw
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 5.3 mm
Deleted Item. Available while stocks last.
Part Number: W0050-F-010-010-TC1 (PK-10)
6 units (60 pcs) Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

6 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
5.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.197 in.)
Nominal Outside Diameter (D)
10.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.394 in.)
Thickness (T)
1.00
mm
ASME / ANSI B18.22.1
(Equiv. 0.039 in.)
Other
To Suit M5 Screw
Flat Washers - 5x10x1 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 5.3 mm
Deleted Item. Available while stocks last.
Part Number: W0050-F-010-010-TC1 (PK-10)
6 units (60 pcs) Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

6 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
6.00
mm
AS1237 / DIN125
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
12.00
mm
AS1237 / DIN125
(Equiv. 0.472 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M6 Screw
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 6.4 mm
Deleted Item. Available while stocks last.
Part Number: W0060-F-012-016-TC1 (PK-10)
4 units (40 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

4 units (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
6.00
mm
AS1237 / DIN125
(Equiv. 0.236 in.)
Nominal Outside Diameter (D)
12.00
mm
AS1237 / DIN125
(Equiv. 0.472 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M6 Screw
Flat Washers - 6x12x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 6.4 mm
Deleted Item. Available while stocks last.
Part Number: W0060-F-012-016-TC1 (PK-10)
4 units (40 pcs) Available Now | Item Discontinued - Up to 4 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

4 units (40 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
8.00
mm
AS1237 / DIN125
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
16.00
mm
AS1237 / DIN125
(Equiv. 0.63 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M8 Screw
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 8.4 mm
Deleted Item. Available while stocks last.
Part Number: W0080-F-016-016-TC1 (PK-10)
7 units (70 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
8.00
mm
AS1237 / DIN125
(Equiv. 0.315 in.)
Nominal Outside Diameter (D)
16.00
mm
AS1237 / DIN125
(Equiv. 0.63 in.)
Thickness (T)
1.60
mm
AS1237 / DIN125
(Equiv. 0.063 in.)
Other
To Suit M8 Screw
Flat Washers - 8x16x1.6 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 8.4 mm
Deleted Item. Available while stocks last.
Part Number: W0080-F-016-016-TC1 (PK-10)
7 units (70 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
10.00
mm
AS1237 / DIN125
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
20.00
mm
AS1237 / DIN125
(Equiv. 0.787 in.)
Thickness (T)
2.00
mm
AS1237 / DIN125
(Equiv. 0.079 in.)
Other
To Suit M10 Screw
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 10.5 mm
Deleted Item. Available while stocks last.
Part Number: W0100-F-020-020-TC1 (PK-10)
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure Washer
Nominal Inside Diameter (d)
10.00
mm
AS1237 / DIN125
(Equiv. 0.394 in.)
Nominal Outside Diameter (D)
20.00
mm
AS1237 / DIN125
(Equiv. 0.787 in.)
Thickness (T)
2.00
mm
AS1237 / DIN125
(Equiv. 0.079 in.)
Other
To Suit M10 Screw
Flat Washers - 10x20x2 mm - Titanium - CP1 Commercially Pure
Material: Titanium - CP1 Commercially Pure    Actual ID (Ref): 10.5 mm
Deleted Item. Available while stocks last.
Part Number: W0100-F-020-020-TC1 (PK-10)
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Priced, Stocked and Sold Per 10 Units
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
