Washers - Flat - Commercial - PVC

Washers -> Flat -> Commercial -> PVC

There is only 1 product in the sub-categories of Washers - Flat - Commercial - PVC. Browse the Washers - Flat - Commercial - PVC products table.

Category Details

A selection of PVC Commercial Flat Washers. PVC -plastic- flat washers selection.

  • Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
  • Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
  • Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Washers - Flat - Commercial - PVC category on the Small Parts & Bearings online store.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Thickness (T) Other Indicative
Nominal Inside Diameter (d)
6.35
mm

(Equiv. 0.25 in.)
Nominal Outside Diameter (D)
12.70
mm

(Equiv. 0.5 in.)
Thickness (T)
1.59
mm

(Equiv. 0.063 in.)
Other
Vibration dampening, sealing, insulating

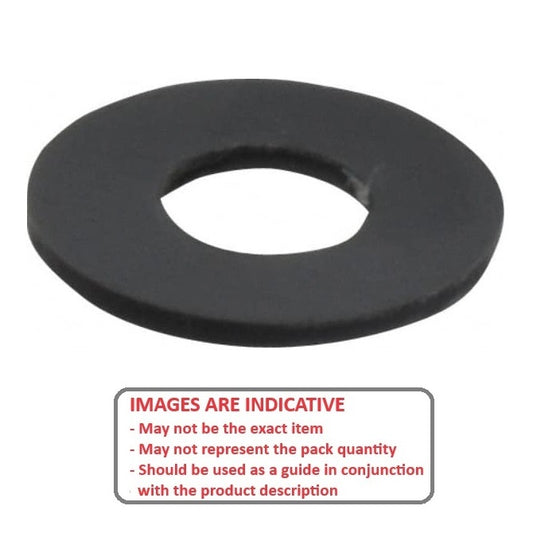

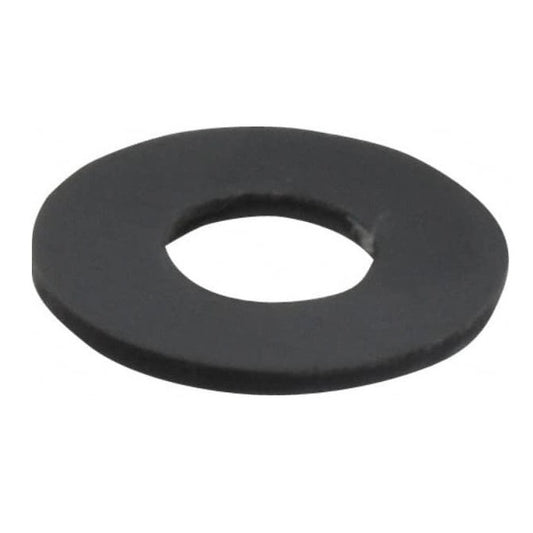

Flat Washers - 6.35x12.7x1.59 mm - PVC Polyvinyl Chloride - Grey
Material: PVC (Polyvinyl Chloride) - Grey    Actual ID (Ref): 7.14 mm
Part Number: W0064-F-013-016-PV (10 Pcs)
Flat Washers - 6.35x12.7x1.59 mm Commercial - PVC Polyvinyl Chloride - Grey Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Excludes GST and overseas Taxes & Duties
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) Nominal Outside Diameter (D) Thickness (T) Other Indicative
Nominal Inside Diameter (d)
6.35
mm

(Equiv. 0.25 in.)
Nominal Outside Diameter (D)
12.70
mm

(Equiv. 0.5 in.)
Thickness (T)
1.59
mm

(Equiv. 0.063 in.)
Other
Vibration dampening, sealing, insulating
Flat Washers - 6.35x12.7x1.59 mm - PVC Polyvinyl Chloride - Grey
Material: PVC (Polyvinyl Chloride) - Grey    Actual ID (Ref): 7.14 mm
Part Number: W0064-F-013-016-PV (10 Pcs)
Flat Washers - 6.35x12.7x1.59 mm Commercial - PVC Polyvinyl Chloride - Grey Washer
8 units (80 pcs) Available Now | Item Discontinued - Up to 8 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Excludes GST and overseas Taxes & Duties
Per 10
Quantity Required

8 units (80 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
