Collection: Washers - Flat - Commercial - Brass

Washers -> Flat -> Commercial -> Brass

There are 31 products in the sub-categories of Washers - Flat - Commercial - Brass. Scroll down or follow the link to Washers - Flat - Commercial - Brass in the products table to see all these items combined into a handy table with filters.

Category Details

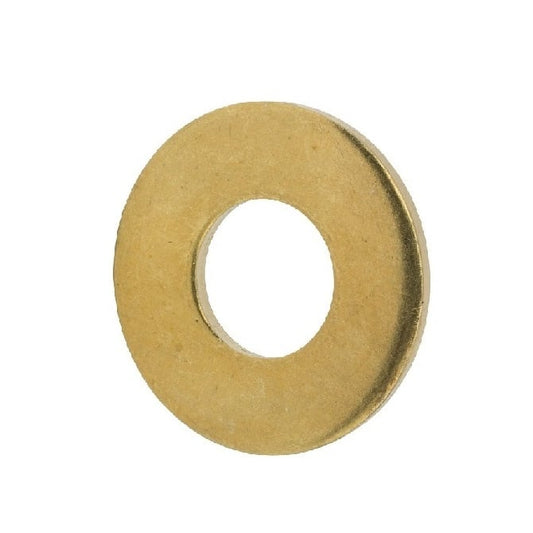

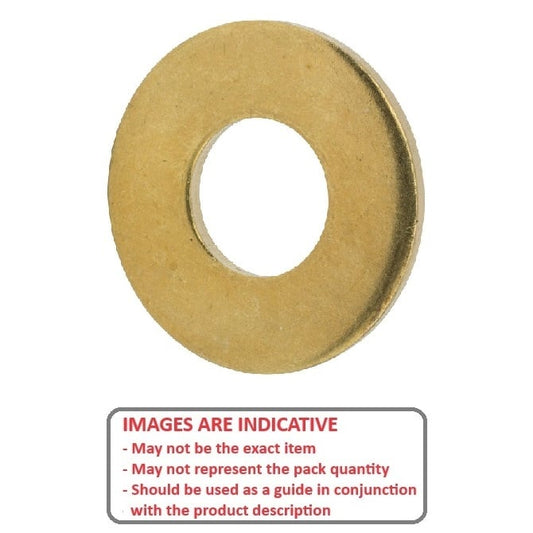

A selection of Brass Commercial Flat Washers. Brass flat washers selection.

Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.
Please note! Tolerances for commercial grade washers are much larger than for precision washers.
In most cases the actual washer size will be larger than the nominal ID and smaller than the nominal OD.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Washers - Flat - Commercial - Brass category on the Small Parts & Bearings online store.

Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Thickness (T)	Other	Indicative Image
Nominal Inside Diameter (d) 1.52 mm _{ASME / ANSI B18.22.1} (Equiv. 0.06 in.)	Nominal Outside Diameter (D) 3.18 mm _{ASME / ANSI B18.22.1} (Equiv. 0.125 in.)	Thickness (T) 0.43 mm _{ASME / ANSI B18.22.1} (Equiv. 0.017 in.)	Other To Suit 0 UN Screw
Material: Brass Actual ID (Ref): 1.65 mm
Part Number: W0015-F-003-004-BR (10 Pcs) Flat Washers - 1.52x3.18x0.43 mm Commercial - Brass Washer 55 units (550 pcs) Available Now \| Item Discontinued - Up to 55 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 55 units (550 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d)	Nominal Outside Diameter (D)	Thickness (T)	Other	Indicative Image
Nominal Inside Diameter (d) 1.52 mm _{ASME / ANSI B18.22.1} (Equiv. 0.06 in.)	Nominal Outside Diameter (D) 3.18 mm _{ASME / ANSI B18.22.1} (Equiv. 0.125 in.)	Thickness (T) 0.43 mm _{ASME / ANSI B18.22.1} (Equiv. 0.017 in.)	Other To Suit 0 UN Screw
Material: Brass Actual ID (Ref): 1.65 mm
Part Number: W0015-F-003-004-BR (10 Pcs) Flat Washers - 1.52x3.18x0.43 mm Commercial - Brass Washer 55 units (550 pcs) Available Now \| Item Discontinued - Up to 55 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 55 units (550 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0015-F-003-004-BR (10 Pcs) --- Flat Washers - 1.52x3.18x0.43 mm Commercial - Brass Washer Sale W0015-F-003-004-BR (10 Pcs) --- Flat Washers - 1.52x3.18x0.43 mm Commercial - Brass Washer Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 55 Available Now Sale
Nominal Inside Diameter (d) 1.52 mm _{ASME / ANSI B18.22.1} (Equiv. 0.06 in.)	Nominal Outside Diameter (D) 4.76 mm _{ASME / ANSI B18.22.1} (Equiv. 0.187 in.)	Thickness (T) 0.43 mm _{ASME / ANSI B18.22.1} (Equiv. 0.017 in.)	Other To Suit 0 UN Screw
Material: Brass Actual ID (Ref): 1.7 mm
Part Number: W0015-F-005-004-BR (10 Pcs) Flat Washers - 1.52x4.76x0.43 mm Commercial - Brass Washer 35 units (350 pcs) Available Now \| Item Discontinued - Up to 35 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 35 units (350 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) 1.52 mm _{ASME / ANSI B18.22.1} (Equiv. 0.06 in.)	Nominal Outside Diameter (D) 4.76 mm _{ASME / ANSI B18.22.1} (Equiv. 0.187 in.)	Thickness (T) 0.43 mm _{ASME / ANSI B18.22.1} (Equiv. 0.017 in.)	Other To Suit 0 UN Screw
Material: Brass Actual ID (Ref): 1.7 mm
Part Number: W0015-F-005-004-BR (10 Pcs) Flat Washers - 1.52x4.76x0.43 mm Commercial - Brass Washer 35 units (350 pcs) Available Now \| Item Discontinued - Up to 35 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 35 units (350 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0015-F-005-004-BR (10 Pcs) --- Flat Washers - 1.52x4.76x0.43 mm Commercial - Brass Washer Sale W0015-F-005-004-BR (10 Pcs) --- Flat Washers - 1.52x4.76x0.43 mm Commercial - Brass Washer Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 35 Available Now Sale
Nominal Inside Diameter (d) 2.00 mm _{AS1237 / DIN125} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 4.70 mm _{AS1237 / DIN125} (Equiv. 0.185 in.)	Thickness (T) 0.30 mm _{AS1237 / DIN125} (Equiv. 0.012 in.)	Other To Suit M2 Screw
Material: Brass Actual ID (Ref): 2.1 mm
Part Number: W0020-F-005-003-BR (100 Pcs) Flat Washers - 2x4.7x0.3 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 2.00 mm _{AS1237 / DIN125} (Equiv. 0.079 in.)	Nominal Outside Diameter (D) 4.70 mm _{AS1237 / DIN125} (Equiv. 0.185 in.)	Thickness (T) 0.30 mm _{AS1237 / DIN125} (Equiv. 0.012 in.)	Other To Suit M2 Screw
Material: Brass Actual ID (Ref): 2.1 mm
Part Number: W0020-F-005-003-BR (100 Pcs) Flat Washers - 2x4.7x0.3 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Oct 01, 2025 Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0020-F-005-003-BR (100 Pcs) --- Flat Washers - 2x4.7x0.3 mm Commercial - Brass Washer W0020-F-005-003-BR (100 Pcs) --- Flat Washers - 2x4.7x0.3 mm Commercial - Brass Washer Regular price $23.05 AUD Regular price Sale price $23.05 AUD Unit price per Out of stock! Backorder Now
Nominal Inside Diameter (d) 2.50 mm _{AS1237 / DIN125} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 6.50 mm _{AS1237 / DIN125} (Equiv. 0.256 in.)	Thickness (T) 0.50 mm _{AS1237 / DIN125} (Equiv. 0.02 in.)	Other To Suit M2.5 Screw
Material: Brass Actual ID (Ref): 2.7 mm
Part Number: W0025-F-007-005-BR (10 Pcs) Flat Washers - 2.5x6.5x0.5 mm Commercial - Brass Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) 2.50 mm _{AS1237 / DIN125} (Equiv. 0.098 in.)	Nominal Outside Diameter (D) 6.50 mm _{AS1237 / DIN125} (Equiv. 0.256 in.)	Thickness (T) 0.50 mm _{AS1237 / DIN125} (Equiv. 0.02 in.)	Other To Suit M2.5 Screw
Material: Brass Actual ID (Ref): 2.7 mm
Part Number: W0025-F-007-005-BR (10 Pcs) Flat Washers - 2.5x6.5x0.5 mm Commercial - Brass Washer 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0025-F-007-005-BR (10 Pcs) --- Flat Washers - 2.5x6.5x0.5 mm Commercial - Brass Washer Sale W0025-F-007-005-BR (10 Pcs) --- Flat Washers - 2.5x6.5x0.5 mm Commercial - Brass Washer Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 10 Available Now Sale
Nominal Inside Diameter (d) 3.00 mm _{AS1237 / DIN125} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 7.00 mm _{AS1237 / DIN125} (Equiv. 0.276 in.)	Thickness (T) 0.50 mm _{AS1237 / DIN125} (Equiv. 0.02 in.)	Other To Suit M3 Screw
Material: Brass Actual ID (Ref): 3.2 mm
Part Number: W0030-F-007-005-BR (20 Pcs) Flat Washers - 3x7x0.5 mm Commercial - Brass Washer 158 units (3160 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $3.86 AUD Regular price ~~$7.16 AUD~~ Sale price $3.86 AUD Unit price per Per 20 Quantity Required 158 units (3160 pcs) Available Now. Backorder if more than 158.
Nominal Inside Diameter (d) 3.00 mm _{AS1237 / DIN125} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 7.00 mm _{AS1237 / DIN125} (Equiv. 0.276 in.)	Thickness (T) 0.50 mm _{AS1237 / DIN125} (Equiv. 0.02 in.)	Other To Suit M3 Screw
Material: Brass Actual ID (Ref): 3.2 mm
Part Number: W0030-F-007-005-BR (20 Pcs) Flat Washers - 3x7x0.5 mm Commercial - Brass Washer 158 units (3160 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $3.86 AUD Regular price ~~$7.16 AUD~~ Sale price $3.86 AUD Unit price per Per 20 Quantity Required 158 units (3160 pcs) Available Now. Backorder if more than 158.
W0030-F-007-005-BR (20 Pcs) --- Flat Washers - 3x7x0.5 mm Commercial - Brass Washer Sale W0030-F-007-005-BR (20 Pcs) --- Flat Washers - 3x7x0.5 mm Commercial - Brass Washer Regular price $3.86 AUD Regular price ~~$7.16 AUD~~ Sale price $3.86 AUD Unit price per 158 Available Now Sale
Nominal Inside Diameter (d) 3.00 mm _{AS1237 / DIN125} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 7.94 mm _{AS1237 / DIN125} (Equiv. 0.313 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M3 Screw
Material: Brass Actual ID (Ref): 3.2 mm
Part Number: W0030-F-008-007-BR (10 Pcs) Flat Washers - 3x7.94x0.72 mm Commercial - Brass Washer 206 units (2060 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $1.95 AUD Regular price ~~$3.60 AUD~~ Sale price $1.95 AUD Unit price per Per 10 Quantity Required 206 units (2060 pcs) Available Now. Backorder if more than 206.
Nominal Inside Diameter (d) 3.00 mm _{AS1237 / DIN125} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 7.94 mm _{AS1237 / DIN125} (Equiv. 0.313 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M3 Screw
Material: Brass Actual ID (Ref): 3.2 mm
Part Number: W0030-F-008-007-BR (10 Pcs) Flat Washers - 3x7.94x0.72 mm Commercial - Brass Washer 206 units (2060 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $1.95 AUD Regular price ~~$3.60 AUD~~ Sale price $1.95 AUD Unit price per Per 10 Quantity Required 206 units (2060 pcs) Available Now. Backorder if more than 206.
W0030-F-008-007-BR (10 Pcs) --- Flat Washers - 3x7.94x0.72 mm Commercial - Brass Washer Sale W0030-F-008-007-BR (10 Pcs) --- Flat Washers - 3x7.94x0.72 mm Commercial - Brass Washer Regular price $1.95 AUD Regular price ~~$3.60 AUD~~ Sale price $1.95 AUD Unit price per 206 Available Now Sale
Nominal Inside Diameter (d) 3.00 mm _{AS1237 / DIN125} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 9.53 mm _{AS1237 / DIN125} (Equiv. 0.375 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M3 Screw
Material: Brass Actual ID (Ref): 3.2 mm
Part Number: W0030-F-010-007-BR (20 Pcs) Flat Washers - 3x9.53x0.72 mm Commercial - Brass Washer 48 units (960 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $4.05 AUD Regular price ~~$7.53 AUD~~ Sale price $4.05 AUD Unit price per Per 20 Quantity Required 48 units (960 pcs) Available Now. Backorder if more than 48.
Nominal Inside Diameter (d) 3.00 mm _{AS1237 / DIN125} (Equiv. 0.118 in.)	Nominal Outside Diameter (D) 9.53 mm _{AS1237 / DIN125} (Equiv. 0.375 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M3 Screw
Material: Brass Actual ID (Ref): 3.2 mm
Part Number: W0030-F-010-007-BR (20 Pcs) Flat Washers - 3x9.53x0.72 mm Commercial - Brass Washer 48 units (960 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $4.05 AUD Regular price ~~$7.53 AUD~~ Sale price $4.05 AUD Unit price per Per 20 Quantity Required 48 units (960 pcs) Available Now. Backorder if more than 48.
W0030-F-010-007-BR (20 Pcs) --- Flat Washers - 3x9.53x0.72 mm Commercial - Brass Washer Sale W0030-F-010-007-BR (20 Pcs) --- Flat Washers - 3x9.53x0.72 mm Commercial - Brass Washer Regular price $4.05 AUD Regular price ~~$7.53 AUD~~ Sale price $4.05 AUD Unit price per 48 Available Now Sale
Nominal Inside Diameter (d) 4.00 mm _{AS1237 / DIN125} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 9.00 mm _{AS1237 / DIN125} (Equiv. 0.354 in.)	Thickness (T) 0.80 mm _{AS1237 / DIN125} (Equiv. 0.031 in.)	Other To Suit M4, 5/32 or 8UN Screw
Material: Brass Actual ID (Ref): 4.3 mm
Part Number: W0040-F-009-008-BR (10 Pcs) Flat Washers - 4x9x0.8 mm Commercial - Brass Washer 84 units (840 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.05 AUD Regular price ~~$3.74 AUD~~ Sale price $2.05 AUD Unit price per Per 10 Quantity Required 84 units (840 pcs) Available Now. Backorder if more than 84.
Nominal Inside Diameter (d) 4.00 mm _{AS1237 / DIN125} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 9.00 mm _{AS1237 / DIN125} (Equiv. 0.354 in.)	Thickness (T) 0.80 mm _{AS1237 / DIN125} (Equiv. 0.031 in.)	Other To Suit M4, 5/32 or 8UN Screw
Material: Brass Actual ID (Ref): 4.3 mm
Part Number: W0040-F-009-008-BR (10 Pcs) Flat Washers - 4x9x0.8 mm Commercial - Brass Washer 84 units (840 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.05 AUD Regular price ~~$3.74 AUD~~ Sale price $2.05 AUD Unit price per Per 10 Quantity Required 84 units (840 pcs) Available Now. Backorder if more than 84.
W0040-F-009-008-BR (10 Pcs) --- Flat Washers - 4x9x0.8 mm Commercial - Brass Washer Sale W0040-F-009-008-BR (10 Pcs) --- Flat Washers - 4x9x0.8 mm Commercial - Brass Washer Regular price $2.05 AUD Regular price ~~$3.74 AUD~~ Sale price $2.05 AUD Unit price per 84 Available Now Sale
Nominal Inside Diameter (d) 4.00 mm _{AS1237 / DIN125} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 9.53 mm _{AS1237 / DIN125} (Equiv. 0.375 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M4, 5/32 or 8UN Screw
Material: Brass Actual ID (Ref): 4.3 mm
Part Number: W0040-F-010-007-BR (10 Pcs) Flat Washers - 4x9.53x0.72 mm Commercial - Brass Washer 5 units (50 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.05 AUD Regular price ~~$3.76 AUD~~ Sale price $2.05 AUD Unit price per Per 10 Quantity Required 5 units (50 pcs) Available Now. Backorder if more than 5.
Nominal Inside Diameter (d) 4.00 mm _{AS1237 / DIN125} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 9.53 mm _{AS1237 / DIN125} (Equiv. 0.375 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M4, 5/32 or 8UN Screw
Material: Brass Actual ID (Ref): 4.3 mm
Part Number: W0040-F-010-007-BR (10 Pcs) Flat Washers - 4x9.53x0.72 mm Commercial - Brass Washer 5 units (50 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.05 AUD Regular price ~~$3.76 AUD~~ Sale price $2.05 AUD Unit price per Per 10 Quantity Required 5 units (50 pcs) Available Now. Backorder if more than 5.
W0040-F-010-007-BR (10 Pcs) --- Flat Washers - 4x9.53x0.72 mm Commercial - Brass Washer Sale W0040-F-010-007-BR (10 Pcs) --- Flat Washers - 4x9.53x0.72 mm Commercial - Brass Washer Regular price $2.05 AUD Regular price ~~$3.76 AUD~~ Sale price $2.05 AUD Unit price per 5 Available Now Sale
Nominal Inside Diameter (d) 4.00 mm _{AS1237 / DIN125} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 11.11 mm _{AS1237 / DIN125} (Equiv. 0.437 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M4, 5/32 or 8UN Screw
Material: Brass Actual ID (Ref): 4.3 mm
Part Number: W0040-F-011-007-BR (10 Pcs) Flat Washers - 4x11.11x0.72 mm Commercial - Brass Washer 29 units (290 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.14 AUD Regular price ~~$3.90 AUD~~ Sale price $2.14 AUD Unit price per Per 10 Quantity Required 29 units (290 pcs) Available Now. Backorder if more than 29.
Nominal Inside Diameter (d) 4.00 mm _{AS1237 / DIN125} (Equiv. 0.157 in.)	Nominal Outside Diameter (D) 11.11 mm _{AS1237 / DIN125} (Equiv. 0.437 in.)	Thickness (T) 0.72 mm _{AS1237 / DIN125} (Equiv. 0.028 in.)	Other To Suit M4, 5/32 or 8UN Screw
Material: Brass Actual ID (Ref): 4.3 mm
Part Number: W0040-F-011-007-BR (10 Pcs) Flat Washers - 4x11.11x0.72 mm Commercial - Brass Washer 29 units (290 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.14 AUD Regular price ~~$3.90 AUD~~ Sale price $2.14 AUD Unit price per Per 10 Quantity Required 29 units (290 pcs) Available Now. Backorder if more than 29.
W0040-F-011-007-BR (10 Pcs) --- Flat Washers - 4x11.11x0.72 mm Commercial - Brass Washer Sale W0040-F-011-007-BR (10 Pcs) --- Flat Washers - 4x11.11x0.72 mm Commercial - Brass Washer Regular price $2.14 AUD Regular price ~~$3.90 AUD~~ Sale price $2.14 AUD Unit price per 29 Available Now Sale
Nominal Inside Diameter (d) 4.76 mm _{ASME / ANSI B18.22.1} (Equiv. 0.187 in.)	Nominal Outside Diameter (D) 11.11 mm _{ASME / ANSI B18.22.1} (Equiv. 0.437 in.)	Thickness (T) 0.72 mm _{ASME / ANSI B18.22.1} (Equiv. 0.028 in.)	Other To Suit 3/16 or 10UN Screw
Material: Brass Actual ID (Ref): 4.9 mm
Part Number: W0048-F-011-007-BR (10 Pcs) Flat Washers - 4.76x11.11x0.72 mm Commercial - Brass Washer 18 units (180 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.14 AUD Regular price ~~$3.90 AUD~~ Sale price $2.14 AUD Unit price per Per 10 Quantity Required 18 units (180 pcs) Available Now. Backorder if more than 18.
Nominal Inside Diameter (d) 4.76 mm _{ASME / ANSI B18.22.1} (Equiv. 0.187 in.)	Nominal Outside Diameter (D) 11.11 mm _{ASME / ANSI B18.22.1} (Equiv. 0.437 in.)	Thickness (T) 0.72 mm _{ASME / ANSI B18.22.1} (Equiv. 0.028 in.)	Other To Suit 3/16 or 10UN Screw
Material: Brass Actual ID (Ref): 4.9 mm
Part Number: W0048-F-011-007-BR (10 Pcs) Flat Washers - 4.76x11.11x0.72 mm Commercial - Brass Washer 18 units (180 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.14 AUD Regular price ~~$3.90 AUD~~ Sale price $2.14 AUD Unit price per Per 10 Quantity Required 18 units (180 pcs) Available Now. Backorder if more than 18.
W0048-F-011-007-BR (10 Pcs) --- Flat Washers - 4.76x11.11x0.72 mm Commercial - Brass Washer Sale W0048-F-011-007-BR (10 Pcs) --- Flat Washers - 4.76x11.11x0.72 mm Commercial - Brass Washer Regular price $2.14 AUD Regular price ~~$3.90 AUD~~ Sale price $2.14 AUD Unit price per 18 Available Now Sale
Nominal Inside Diameter (d) 4.76 mm _{ASME / ANSI B18.22.1} (Equiv. 0.187 in.)	Nominal Outside Diameter (D) 12.70 mm _{ASME / ANSI B18.22.1} (Equiv. 0.5 in.)	Thickness (T) 0.72 mm _{ASME / ANSI B18.22.1} (Equiv. 0.028 in.)	Other To Suit 3/16 or 10UN Screw
Material: Brass Actual ID (Ref): 4.9 mm
Part Number: W0048-F-013-007-BR (10 Pcs) Flat Washers - 4.76x12.7x0.72 mm Commercial - Brass Washer 20 units (200 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.23 AUD Regular price ~~$4.11 AUD~~ Sale price $2.23 AUD Unit price per Per 10 Quantity Required 20 units (200 pcs) Available Now. Backorder if more than 20.
Nominal Inside Diameter (d) 4.76 mm _{ASME / ANSI B18.22.1} (Equiv. 0.187 in.)	Nominal Outside Diameter (D) 12.70 mm _{ASME / ANSI B18.22.1} (Equiv. 0.5 in.)	Thickness (T) 0.72 mm _{ASME / ANSI B18.22.1} (Equiv. 0.028 in.)	Other To Suit 3/16 or 10UN Screw
Material: Brass Actual ID (Ref): 4.9 mm
Part Number: W0048-F-013-007-BR (10 Pcs) Flat Washers - 4.76x12.7x0.72 mm Commercial - Brass Washer 20 units (200 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.23 AUD Regular price ~~$4.11 AUD~~ Sale price $2.23 AUD Unit price per Per 10 Quantity Required 20 units (200 pcs) Available Now. Backorder if more than 20.
W0048-F-013-007-BR (10 Pcs) --- Flat Washers - 4.76x12.7x0.72 mm Commercial - Brass Washer Sale W0048-F-013-007-BR (10 Pcs) --- Flat Washers - 4.76x12.7x0.72 mm Commercial - Brass Washer Regular price $2.23 AUD Regular price ~~$4.11 AUD~~ Sale price $2.23 AUD Unit price per 20 Available Now Sale
Nominal Inside Diameter (d) 5.00 mm _{AS1237 / DIN125} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 10.00 mm _{AS1237 / DIN125} (Equiv. 0.394 in.)	Thickness (T) 0.80 mm _{AS1237 / DIN125} (Equiv. 0.031 in.)	Other To Suit M5 Screw
Material: Brass Actual ID (Ref): 5.3 mm
Part Number: W0050-F-010-008-BR (10 Pcs) Flat Washers - 5x10x0.8 mm Commercial - Brass Washer 45 units (450 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 10 Quantity Required 45 units (450 pcs) Available Now. Backorder if more than 45.
Nominal Inside Diameter (d) 5.00 mm _{AS1237 / DIN125} (Equiv. 0.197 in.)	Nominal Outside Diameter (D) 10.00 mm _{AS1237 / DIN125} (Equiv. 0.394 in.)	Thickness (T) 0.80 mm _{AS1237 / DIN125} (Equiv. 0.031 in.)	Other To Suit M5 Screw
Material: Brass Actual ID (Ref): 5.3 mm
Part Number: W0050-F-010-008-BR (10 Pcs) Flat Washers - 5x10x0.8 mm Commercial - Brass Washer 45 units (450 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per Per 10 Quantity Required 45 units (450 pcs) Available Now. Backorder if more than 45.
W0050-F-010-008-BR (10 Pcs) --- Flat Washers - 5x10x0.8 mm Commercial - Brass Washer W0050-F-010-008-BR (10 Pcs) --- Flat Washers - 5x10x0.8 mm Commercial - Brass Washer Regular price $3.95 AUD Regular price Sale price $3.95 AUD Unit price per 45 Available Now
Nominal Inside Diameter (d) 6.00 mm _{AS1237 / DIN125} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.50 mm _{AS1237 / DIN125} (Equiv. 0.492 in.)	Thickness (T) 1.00 mm _{AS1237 / DIN125} (Equiv. 0.039 in.)	Other To Suit M6 Screw
Material: Brass Actual ID (Ref): 6.4 mm
Part Number: W0060-F-013-010-BR (100 Pcs) Flat Washers - 6x12.5x1 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.00 mm _{AS1237 / DIN125} (Equiv. 0.236 in.)	Nominal Outside Diameter (D) 12.50 mm _{AS1237 / DIN125} (Equiv. 0.492 in.)	Thickness (T) 1.00 mm _{AS1237 / DIN125} (Equiv. 0.039 in.)	Other To Suit M6 Screw
Material: Brass Actual ID (Ref): 6.4 mm
Part Number: W0060-F-013-010-BR (100 Pcs) Flat Washers - 6x12.5x1 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0060-F-013-010-BR (100 Pcs) --- Flat Washers - 6x12.5x1 mm Commercial - Brass Washer W0060-F-013-010-BR (100 Pcs) --- Flat Washers - 6x12.5x1 mm Commercial - Brass Washer Regular price $52.41 AUD Regular price Sale price $52.41 AUD Unit price per Out of stock! Backorder Now
Nominal Inside Diameter (d) 6.35 mm _{ASME / ANSI B18.22.1} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 12.70 mm _{ASME / ANSI B18.22.1} (Equiv. 0.5 in.)	Thickness (T) 0.72 mm _{ASME / ANSI B18.22.1} (Equiv. 0.028 in.)	Other To Suit 1/4 Screw
Material: Brass Actual ID (Ref): 6.7 mm
Part Number: W0064-F-013-007-BR (100 Pcs) Flat Washers - 6.35x12.7x0.72 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 6.35 mm _{ASME / ANSI B18.22.1} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 12.70 mm _{ASME / ANSI B18.22.1} (Equiv. 0.5 in.)	Thickness (T) 0.72 mm _{ASME / ANSI B18.22.1} (Equiv. 0.028 in.)	Other To Suit 1/4 Screw
Material: Brass Actual ID (Ref): 6.7 mm
Part Number: W0064-F-013-007-BR (100 Pcs) Flat Washers - 6.35x12.7x0.72 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0064-F-013-007-BR (100 Pcs) --- Flat Washers - 6.35x12.7x0.72 mm Commercial - Brass Washer W0064-F-013-007-BR (100 Pcs) --- Flat Washers - 6.35x12.7x0.72 mm Commercial - Brass Washer Regular price $13.68 AUD Regular price Sale price $13.68 AUD Unit price per Out of stock! Backorder Now
Nominal Inside Diameter (d) 6.35 mm _{ASME / ANSI B18.22.1} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 14.29 mm _{ASME / ANSI B18.22.1} (Equiv. 0.563 in.)	Thickness (T) 0.91 mm _{ASME / ANSI B18.22.1} (Equiv. 0.036 in.)	Other To Suit 1/4 Screw
Material: Brass Actual ID (Ref): 6.7 mm
Part Number: W0064-F-014-009-BR (10 Pcs) Flat Washers - 6.35x14.29x0.91 mm Commercial - Brass Washer 8 units (80 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.41 AUD Regular price ~~$4.43 AUD~~ Sale price $2.41 AUD Unit price per Per 10 Quantity Required 8 units (80 pcs) Available Now. Backorder if more than 8.
Nominal Inside Diameter (d) 6.35 mm _{ASME / ANSI B18.22.1} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 14.29 mm _{ASME / ANSI B18.22.1} (Equiv. 0.563 in.)	Thickness (T) 0.91 mm _{ASME / ANSI B18.22.1} (Equiv. 0.036 in.)	Other To Suit 1/4 Screw
Material: Brass Actual ID (Ref): 6.7 mm
Part Number: W0064-F-014-009-BR (10 Pcs) Flat Washers - 6.35x14.29x0.91 mm Commercial - Brass Washer 8 units (80 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.41 AUD Regular price ~~$4.43 AUD~~ Sale price $2.41 AUD Unit price per Per 10 Quantity Required 8 units (80 pcs) Available Now. Backorder if more than 8.
W0064-F-014-009-BR (10 Pcs) --- Flat Washers - 6.35x14.29x0.91 mm Commercial - Brass Washer Sale W0064-F-014-009-BR (10 Pcs) --- Flat Washers - 6.35x14.29x0.91 mm Commercial - Brass Washer Regular price $2.41 AUD Regular price ~~$4.43 AUD~~ Sale price $2.41 AUD Unit price per 8 Available Now Sale
Nominal Inside Diameter (d) 6.35 mm _{ASME / ANSI B18.22.1} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 15.88 mm _{ASME / ANSI B18.22.1} (Equiv. 0.625 in.)	Thickness (T) 0.91 mm _{ASME / ANSI B18.22.1} (Equiv. 0.036 in.)	Other To Suit 1/4 Screw
Material: Brass Actual ID (Ref): 6.7 mm
Part Number: W0064-FP-010-0081-BR (10 Pcs) Flat Washers - 6.35x15.88x0.91 mm Commercial - Brass Washer 18 units (180 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.86 AUD Regular price ~~$5.29 AUD~~ Sale price $2.86 AUD Unit price per Per 10 Quantity Required 18 units (180 pcs) Available Now. Backorder if more than 18.
Nominal Inside Diameter (d) 6.35 mm _{ASME / ANSI B18.22.1} (Equiv. 0.25 in.)	Nominal Outside Diameter (D) 15.88 mm _{ASME / ANSI B18.22.1} (Equiv. 0.625 in.)	Thickness (T) 0.91 mm _{ASME / ANSI B18.22.1} (Equiv. 0.036 in.)	Other To Suit 1/4 Screw
Material: Brass Actual ID (Ref): 6.7 mm
Part Number: W0064-FP-010-0081-BR (10 Pcs) Flat Washers - 6.35x15.88x0.91 mm Commercial - Brass Washer 18 units (180 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.86 AUD Regular price ~~$5.29 AUD~~ Sale price $2.86 AUD Unit price per Per 10 Quantity Required 18 units (180 pcs) Available Now. Backorder if more than 18.
W0064-FP-010-0081-BR (10 Pcs) --- Flat Washers - 6.35x15.88x0.91 mm Commercial - Brass Washer Sale W0064-FP-010-0081-BR (10 Pcs) --- Flat Washers - 6.35x15.88x0.91 mm Commercial - Brass Washer Regular price $2.86 AUD Regular price ~~$5.29 AUD~~ Sale price $2.86 AUD Unit price per 18 Available Now Sale
Nominal Inside Diameter (d) 7.94 mm _{ASME / ANSI B18.22.1} (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 15.88 mm _{ASME / ANSI B18.22.1} (Equiv. 0.625 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 5/16 Screw
Material: Brass Actual ID (Ref): 8.3 mm
Part Number: W0079-F-016-010-BR (10 Pcs) Flat Washers - 7.94x15.88x1.02 mm Commercial - Brass Washer 46 units (460 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.86 AUD Regular price ~~$5.29 AUD~~ Sale price $2.86 AUD Unit price per Per 10 Quantity Required 46 units (460 pcs) Available Now. Backorder if more than 46.
Nominal Inside Diameter (d) 7.94 mm _{ASME / ANSI B18.22.1} (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 15.88 mm _{ASME / ANSI B18.22.1} (Equiv. 0.625 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 5/16 Screw
Material: Brass Actual ID (Ref): 8.3 mm
Part Number: W0079-F-016-010-BR (10 Pcs) Flat Washers - 7.94x15.88x1.02 mm Commercial - Brass Washer 46 units (460 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.86 AUD Regular price ~~$5.29 AUD~~ Sale price $2.86 AUD Unit price per Per 10 Quantity Required 46 units (460 pcs) Available Now. Backorder if more than 46.
W0079-F-016-010-BR (10 Pcs) --- Flat Washers - 7.94x15.88x1.02 mm Commercial - Brass Washer Sale W0079-F-016-010-BR (10 Pcs) --- Flat Washers - 7.94x15.88x1.02 mm Commercial - Brass Washer Regular price $2.86 AUD Regular price ~~$5.29 AUD~~ Sale price $2.86 AUD Unit price per 46 Available Now Sale
Nominal Inside Diameter (d) 7.94 mm _{ASME / ANSI B18.22.1} (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 19.05 mm _{ASME / ANSI B18.22.1} (Equiv. 0.75 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 5/16 Screw
Material: Brass Actual ID (Ref): 8.3 mm
Part Number: W0079-F-019-010-BR (100 Pcs) Flat Washers - 7.94x19.05x1.02 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $20.32 AUD Regular price ~~$24.38 AUD~~ Sale price $20.32 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 7.94 mm _{ASME / ANSI B18.22.1} (Equiv. 0.313 in.)	Nominal Outside Diameter (D) 19.05 mm _{ASME / ANSI B18.22.1} (Equiv. 0.75 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 5/16 Screw
Material: Brass Actual ID (Ref): 8.3 mm
Part Number: W0079-F-019-010-BR (100 Pcs) Flat Washers - 7.94x19.05x1.02 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $20.32 AUD Regular price ~~$24.38 AUD~~ Sale price $20.32 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0079-F-019-010-BR (100 Pcs) --- Flat Washers - 7.94x19.05x1.02 mm Commercial - Brass Washer Sale W0079-F-019-010-BR (100 Pcs) --- Flat Washers - 7.94x19.05x1.02 mm Commercial - Brass Washer Regular price $20.32 AUD Regular price ~~$24.38 AUD~~ Sale price $20.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 8.00 mm _{AS1237 / DIN125} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 17.00 mm _{AS1237 / DIN125} (Equiv. 0.669 in.)	Thickness (T) 1.20 mm _{AS1237 / DIN125} (Equiv. 0.047 in.)	Other To Suit M8 Bolt
Material: Brass Actual ID (Ref): 8.4 mm
Part Number: W0080-F-017-012-BR (10 Pcs) Flat Washers - 8x17x1.2 mm Commercial - Brass Washer 6 units (60 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.95 AUD Regular price ~~$5.45 AUD~~ Sale price $2.95 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
Nominal Inside Diameter (d) 8.00 mm _{AS1237 / DIN125} (Equiv. 0.315 in.)	Nominal Outside Diameter (D) 17.00 mm _{AS1237 / DIN125} (Equiv. 0.669 in.)	Thickness (T) 1.20 mm _{AS1237 / DIN125} (Equiv. 0.047 in.)	Other To Suit M8 Bolt
Material: Brass Actual ID (Ref): 8.4 mm
Part Number: W0080-F-017-012-BR (10 Pcs) Flat Washers - 8x17x1.2 mm Commercial - Brass Washer 6 units (60 pcs) Available Now \| Further orders can be expected around Wed, Nov 05, 2025 Regular price $2.95 AUD Regular price ~~$5.45 AUD~~ Sale price $2.95 AUD Unit price per Per 10 Quantity Required 6 units (60 pcs) Available Now. Backorder if more than 6.
W0080-F-017-012-BR (10 Pcs) --- Flat Washers - 8x17x1.2 mm Commercial - Brass Washer Sale W0080-F-017-012-BR (10 Pcs) --- Flat Washers - 8x17x1.2 mm Commercial - Brass Washer Regular price $2.95 AUD Regular price ~~$5.45 AUD~~ Sale price $2.95 AUD Unit price per 6 Available Now Sale
Nominal Inside Diameter (d) 9.53 mm _{ASME / ANSI B18.22.1} (Equiv. 0.375 in.)	Nominal Outside Diameter (D) 19.05 mm _{ASME / ANSI B18.22.1} (Equiv. 0.75 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 3/8 Bolt
Material: Brass Actual ID (Ref): 9.8 mm
Part Number: W0095-F-019-010-BR (100 Pcs) Flat Washers - 9.53x19.05x1.02 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $20.32 AUD Regular price ~~$24.38 AUD~~ Sale price $20.32 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 9.53 mm _{ASME / ANSI B18.22.1} (Equiv. 0.375 in.)	Nominal Outside Diameter (D) 19.05 mm _{ASME / ANSI B18.22.1} (Equiv. 0.75 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 3/8 Bolt
Material: Brass Actual ID (Ref): 9.8 mm
Part Number: W0095-F-019-010-BR (100 Pcs) Flat Washers - 9.53x19.05x1.02 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $20.32 AUD Regular price ~~$24.38 AUD~~ Sale price $20.32 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0095-F-019-010-BR (100 Pcs) --- Flat Washers - 9.53x19.05x1.02 mm Commercial - Brass Washer Sale W0095-F-019-010-BR (100 Pcs) --- Flat Washers - 9.53x19.05x1.02 mm Commercial - Brass Washer Regular price $20.32 AUD Regular price ~~$24.38 AUD~~ Sale price $20.32 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 9.53 mm _{ASME / ANSI B18.22.1} (Equiv. 0.375 in.)	Nominal Outside Diameter (D) 22.23 mm _{ASME / ANSI B18.22.1} (Equiv. 0.875 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 3/8 Bolt
Material: Brass Actual ID (Ref): 9.8 mm
Part Number: W0095-F-022-010-BR (100 Pcs) Flat Washers - 9.53x22.23x1.02 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $28.14 AUD Regular price ~~$33.76 AUD~~ Sale price $28.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 9.53 mm _{ASME / ANSI B18.22.1} (Equiv. 0.375 in.)	Nominal Outside Diameter (D) 22.23 mm _{ASME / ANSI B18.22.1} (Equiv. 0.875 in.)	Thickness (T) 1.02 mm _{ASME / ANSI B18.22.1} (Equiv. 0.04 in.)	Other To Suit 3/8 Bolt
Material: Brass Actual ID (Ref): 9.8 mm
Part Number: W0095-F-022-010-BR (100 Pcs) Flat Washers - 9.53x22.23x1.02 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $28.14 AUD Regular price ~~$33.76 AUD~~ Sale price $28.14 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
W0095-F-022-010-BR (100 Pcs) --- Flat Washers - 9.53x22.23x1.02 mm Commercial - Brass Washer Sale W0095-F-022-010-BR (100 Pcs) --- Flat Washers - 9.53x22.23x1.02 mm Commercial - Brass Washer Regular price $28.14 AUD Regular price ~~$33.76 AUD~~ Sale price $28.14 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 9.53 mm _{ASME / ANSI B18.22.1} (Equiv. 0.375 in.)	Nominal Outside Diameter (D) 25.40 mm _{ASME / ANSI B18.22.1} (Equiv. 1 in.)	Thickness (T) 1.29 mm _{ASME / ANSI B18.22.1} (Equiv. 0.051 in.)	Other To Suit 3/8 Bolt
Material: Brass Actual ID (Ref): 9.8 mm
Part Number: W0095-F-025-013-BR (200 Pcs) Flat Washers - 9.53x25.4x1.29 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $208.23 AUD Regular price ~~$249.87 AUD~~ Sale price $208.23 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
Nominal Inside Diameter (d) 9.53 mm _{ASME / ANSI B18.22.1} (Equiv. 0.375 in.)	Nominal Outside Diameter (D) 25.40 mm _{ASME / ANSI B18.22.1} (Equiv. 1 in.)	Thickness (T) 1.29 mm _{ASME / ANSI B18.22.1} (Equiv. 0.051 in.)	Other To Suit 3/8 Bolt
Material: Brass Actual ID (Ref): 9.8 mm
Part Number: W0095-F-025-013-BR (200 Pcs) Flat Washers - 9.53x25.4x1.29 mm Commercial - Brass Washer Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 05, 2025 Regular price $208.23 AUD Regular price ~~$249.87 AUD~~ Sale price $208.23 AUD Unit price per Per 200 Quantity Required Backorder: Out of Stock.
W0095-F-025-013-BR (200 Pcs) --- Flat Washers - 9.53x25.4x1.29 mm Commercial - Brass Washer Sale W0095-F-025-013-BR (200 Pcs) --- Flat Washers - 9.53x25.4x1.29 mm Commercial - Brass Washer Regular price $208.23 AUD Regular price ~~$249.87 AUD~~ Sale price $208.23 AUD Unit price per Out of stock! Backorder Now Sale
Nominal Inside Diameter (d) 10.00 mm _{AS1237 / DIN125} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 21.00 mm _{AS1237 / DIN125} (Equiv. 0.827 in.)	Thickness (T) 1.20 mm _{AS1237 / DIN125} (Equiv. 0.047 in.)	Other To Suit M10 Bolt
Material: Brass Actual ID (Ref): 10.5 mm
Part Number: W0100-F-021-012-BR (20 Pcs) Flat Washers - 10x21x1.2 mm Commercial - Brass Washer 3 units (60 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.61 AUD Regular price ~~$14.52 AUD~~ Sale price $4.61 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter (d) 10.00 mm _{AS1237 / DIN125} (Equiv. 0.394 in.)	Nominal Outside Diameter (D) 21.00 mm _{AS1237 / DIN125} (Equiv. 0.827 in.)	Thickness (T) 1.20 mm _{AS1237 / DIN125} (Equiv. 0.047 in.)	Other To Suit M10 Bolt
Material: Brass Actual ID (Ref): 10.5 mm
Part Number: W0100-F-021-012-BR (20 Pcs) Flat Washers - 10x21x1.2 mm Commercial - Brass Washer 3 units (60 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $4.61 AUD Regular price ~~$14.52 AUD~~ Sale price $4.61 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0100-F-021-012-BR (20 Pcs) --- Flat Washers - 10x21x1.2 mm Commercial - Brass Washer Sale W0100-F-021-012-BR (20 Pcs) --- Flat Washers - 10x21x1.2 mm Commercial - Brass Washer Regular price $4.61 AUD Regular price ~~$14.52 AUD~~ Sale price $4.61 AUD Unit price per 3 Available Now Sale

Country/region

Collection: Washers - Flat - Commercial - Brass

Category Details

Filter

Filter

Subscribe to our emails
