Washers - Disk Lock

Washers -> Disk Lock

There are 2 products in the sub-categories of Washers - Disk Lock. Browse the Washers - Disk Lock products table.

Category Details

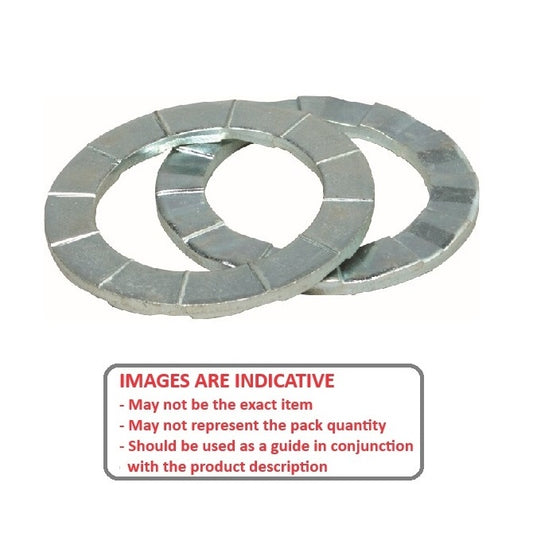

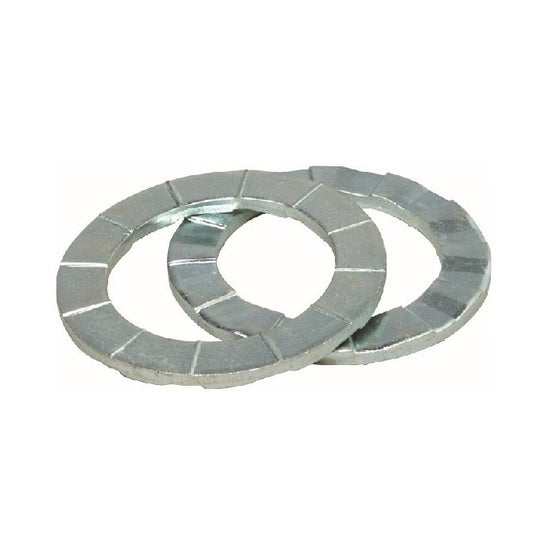

A selection of Disk Lock Washers. Stainless steel selection including Grade A2, 302,316, 18-8 and more.

  • Disc lock washers offer resistance to self loosening during vibration & fluctuating loads.
  • They wedge each other and lock themselves, utilizing tension leading to a secure bolted joint.
  • Supplied in pairs. Assembled in pairs, cam face to cam face. Also see Nord Lock and Lockrite washers This category will be discontinued when the remaining items are sold.
  • Maximum Working Temp: +430 deg C.
  • DISC-LOCK© has outperformed all other types of loose, washered, threaded or pinned systems in a wide range of high stress, corrosive, and vibration sensitive applications.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Washers - Disk Lock category on the Small Parts & Bearings online store.
Nominal Inside Diameter Nominal OD Thickness To Suit Thread Size No. of Cams Indicative
Nominal Inside Diameter
5
mm

(Equiv. 0.197 in.)
Nominal OD
10.18
mm

(Equiv. 0.401 in.)
Thickness
2.03
mm

(Equiv. 0.08 in.)
To Suit Thread Size
M5 (5x0.8mm)
No. of Cams
6.00
Disk Lock Washers - 5x10.18x2.03 mm - Stainless Steel 302 Similar to A2, 304, 18-8
Material: Stainless Steel 302 (Similar to A2, 304, 18-8)    Actual ID (Ref): 5.15 mm
Deleted Item. Available while stocks last.
Part Number: W0050-LK-010-020-D-S2 (PAIR)
Disk Lock Washers - 5x10.18x2.03 mm - Stainless Steel 302 Similar to A2, 304, 18-8 Washer
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter Nominal OD Thickness To Suit Thread Size Indicative
Nominal Inside Diameter
5
mm

(Equiv. 0.197 in.)
Nominal OD
10.18
mm

(Equiv. 0.401 in.)
Thickness
2.03
mm

(Equiv. 0.08 in.)
To Suit Thread Size
M5 (5x0.8mm)
Disk Lock Washers - 5x10.18x2.03 mm - Stainless Steel 302 Similar to A2, 304, 18-8
Material: Stainless Steel 302 (Similar to A2, 304, 18-8)    No. of Cams: 6.00    Actual ID (Ref): 5.15 mm
Deleted Item. Available while stocks last.
Part Number: W0050-LK-010-020-D-S2 (PAIR)
Disk Lock Washers - 5x10.18x2.03 mm - Stainless Steel 302 Similar to A2, 304, 18-8 Washer
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
10
mm

(Equiv. 0.394 in.)
Nominal OD
17.9
mm

(Equiv. 0.705 in.)
Thickness
3.40
mm

(Equiv. 0.134 in.)
To Suit Thread Size
M10
No. of Cams
8.00
Disk Lock Washers - 10x17.9x3.4 mm - Stainless Steel 302 Similar to A2, 304, 18-8
Material: Stainless Steel 302 (Similar to A2, 304, 18-8)    Actual ID (Ref): 10.38 mm
Deleted Item. Available while stocks last.
Part Number: W0100-LK-018-034-D-S2 (PAIR)
Disk Lock Washers - 10x17.9x3.4 mm - Stainless Steel 302 Similar to A2, 304, 18-8 Washer
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Nominal Inside Diameter
10
mm

(Equiv. 0.394 in.)
Nominal OD
17.9
mm

(Equiv. 0.705 in.)
Thickness
3.40
mm

(Equiv. 0.134 in.)
To Suit Thread Size
M10
Disk Lock Washers - 10x17.9x3.4 mm - Stainless Steel 302 Similar to A2, 304, 18-8
Material: Stainless Steel 302 (Similar to A2, 304, 18-8)    No. of Cams: 8.00    Actual ID (Ref): 10.38 mm
Deleted Item. Available while stocks last.
Part Number: W0100-LK-018-034-D-S2 (PAIR)
Disk Lock Washers - 10x17.9x3.4 mm - Stainless Steel 302 Similar to A2, 304, 18-8 Washer
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
