V-Rings - Nitrile

V-Rings -> Nitrile

There are 8 products in the sub-categories of V-Rings - Nitrile. Browse the V-Rings - Nitrile products table.

Category Details

A selection of Nitrile V-Rings. VA profile - Nitrile V rings.

  • V-ring, also known as a V-seal, is a type of all-rubber seal designed for rotating shafts.
  • Primarily used to prevent contaminants like dirt, dust, and moisture from entering areas like bearings, oil seals, and housings.
  • Acts as a barrier to protect critical components in various mechanical and industrial applications. This category will be discontinued when the remaining items are sold.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the V-Rings - Nitrile category on the Small Parts & Bearings online store.
Shaft Diameter (C) Seal Diameter (d1) Profile Height (W) Profile Width (B2) Total Width (B) Max Face Bore (d2) Indicative
Shaft Diameter (C)
2.70 - 3.50
mm

(Equiv. 0.106 in.)
Seal Diameter (d1)
2.50
mm

(Equiv. 0.098 in.)
Profile Height (W)
1.50
mm

(Equiv. 0.059 in.)
Profile Width (B2)
2.10
mm
Total Width (B)
3.00
mm
Max Face Bore (d2)
C + 1
mm

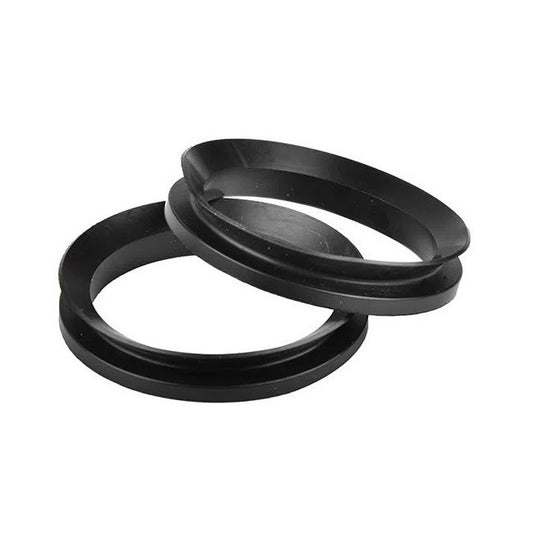

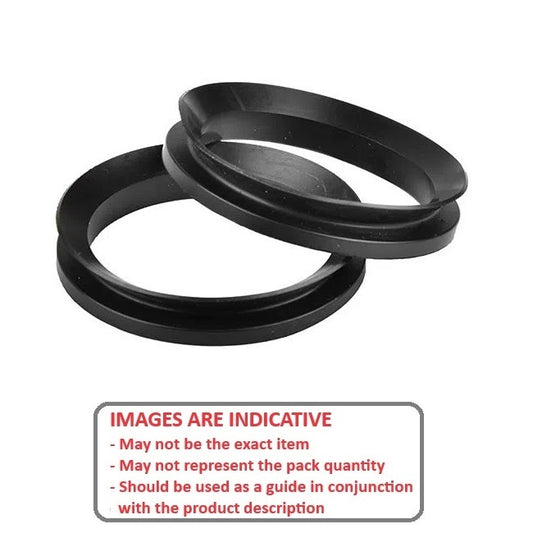

Nitrile V-Rings - 2.70 - 3.50 2.5x1.5 mm
Min Face OD (d3): C + 4 mm    Fitted Width (B1): 2.50 +/- 0.30 mm
Deleted Item. Available while stocks last.
Part Number: VA0003 (6 Pcs)
Nitrile V-Rings - 2.70 - 3.50 2.5x1.5 mm
1 pack (6 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (6 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C) Seal Diameter (d1) Profile Height (W) Profile Width (B2) Indicative
Shaft Diameter (C)
2.70 - 3.50
mm

(Equiv. 0.106 in.)
Seal Diameter (d1)
2.50
mm

(Equiv. 0.098 in.)
Profile Height (W)
1.50
mm

(Equiv. 0.059 in.)
Profile Width (B2)
2.10
mm
Nitrile V-Rings - 2.70 - 3.50 2.5x1.5 mm
Total Width (B): 3.00 mm    Max Face Bore (d2): C + 1 mm    Min Face OD (d3): C + 4 mm    Fitted Width (B1): 2.50 +/- 0.30 mm
Deleted Item. Available while stocks last.
Part Number: VA0003 (6 Pcs)
Nitrile V-Rings - 2.70 - 3.50 2.5x1.5 mm
1 pack (6 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
6 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (6 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
4.50 - 5.50
mm

(Equiv. 0.177 in.)
Seal Diameter (d1)
4.00
mm

(Equiv. 0.157 in.)
Profile Height (W)
2.00
mm

(Equiv. 0.079 in.)
Profile Width (B2)
2.40
mm
Total Width (B)
3.70
mm
Max Face Bore (d2)
C + 1
mm
Nitrile V-Rings - 4.50 - 5.50 4x2 mm
Min Face OD (d3): C + 6 mm    Fitted Width (B1): 3.00 +/- 0.40 mm
Deleted Item. Available while stocks last.
Part Number: VA0005
Nitrile V-Rings - 4.50 - 5.50 4x2 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$1.00 AUD
$1.90 AUD $1.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
4.50 - 5.50
mm

(Equiv. 0.177 in.)
Seal Diameter (d1)
4.00
mm

(Equiv. 0.157 in.)
Profile Height (W)
2.00
mm

(Equiv. 0.079 in.)
Profile Width (B2)
2.40
mm
Nitrile V-Rings - 4.50 - 5.50 4x2 mm
Total Width (B): 3.70 mm    Max Face Bore (d2): C + 1 mm    Min Face OD (d3): C + 6 mm    Fitted Width (B1): 3.00 +/- 0.40 mm
Deleted Item. Available while stocks last.
Part Number: VA0005
Nitrile V-Rings - 4.50 - 5.50 4x2 mm
1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$1.00 AUD
$1.90 AUD $1.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

1 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
6.50 - 8.00
mm

(Equiv. 0.256 in.)
Seal Diameter (d1)
6.00
mm

(Equiv. 0.236 in.)
Profile Height (W)
2.00
mm

(Equiv. 0.079 in.)
Profile Width (B2)
2.40
mm
Total Width (B)
3.70
mm
Max Face Bore (d2)
C + 1
mm
Nitrile V-Rings - 6.50 - 8.00 6x2 mm
Min Face OD (d3): C + 6 mm    Fitted Width (B1): 3.00 +/- 0.40 mm
Deleted Item. Available while stocks last.
Part Number: VA0007 (10 Pcs)
Nitrile V-Rings - 6.50 - 8.00 6x2 mm
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
6.50 - 8.00
mm

(Equiv. 0.256 in.)
Seal Diameter (d1)
6.00
mm

(Equiv. 0.236 in.)
Profile Height (W)
2.00
mm

(Equiv. 0.079 in.)
Profile Width (B2)
2.40
mm
Nitrile V-Rings - 6.50 - 8.00 6x2 mm
Total Width (B): 3.70 mm    Max Face Bore (d2): C + 1 mm    Min Face OD (d3): C + 6 mm    Fitted Width (B1): 3.00 +/- 0.40 mm
Deleted Item. Available while stocks last.
Part Number: VA0007 (10 Pcs)
Nitrile V-Rings - 6.50 - 8.00 6x2 mm
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
11.50-12.50
mm

(Equiv. 0.453 in.)
Seal Diameter (d1)
10.50
mm

(Equiv. 0.413 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Total Width (B)
5.50
mm
Max Face Bore (d2)
C + 2
mm
Nitrile V-Rings - 11.50-12.50 10.5x3 mm
Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0012 (10 Pcs)
Nitrile V-Rings - 11.50-12.50 10.5x3 mm
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
11.50-12.50
mm

(Equiv. 0.453 in.)
Seal Diameter (d1)
10.50
mm

(Equiv. 0.413 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Nitrile V-Rings - 11.50-12.50 10.5x3 mm
Total Width (B): 5.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0012 (10 Pcs)
Nitrile V-Rings - 11.50-12.50 10.5x3 mm
5 units (50 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
12.50-13.50
mm

(Equiv. 0.492 in.)
Seal Diameter (d1)
11.70
mm

(Equiv. 0.461 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Total Width (B)
5.50
mm
Max Face Bore (d2)
C + 2
mm
Nitrile V-Rings - 12.50-13.50 11.7x3 mm
Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0013 (10 Pcs)
Nitrile V-Rings - 12.50-13.50 11.7x3 mm
7 units (70 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
12.50-13.50
mm

(Equiv. 0.492 in.)
Seal Diameter (d1)
11.70
mm

(Equiv. 0.461 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Nitrile V-Rings - 12.50-13.50 11.7x3 mm
Total Width (B): 5.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0013 (10 Pcs)
Nitrile V-Rings - 12.50-13.50 11.7x3 mm
7 units (70 pcs) Available Now | Item Discontinued - Up to 7 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

7 units (70 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
17.50-19.00
mm

(Equiv. 0.689 in.)
Seal Diameter (d1)
16.00
mm

(Equiv. 0.63 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Total Width (B)
5.50
mm
Max Face Bore (d2)
C + 2
mm
Nitrile V-Rings - 17.50-19.00 16x3 mm
Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0018 (10 Pcs)
Nitrile V-Rings - 17.50-19.00 16x3 mm
2 units (20 pcs) Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
17.50-19.00
mm

(Equiv. 0.689 in.)
Seal Diameter (d1)
16.00
mm

(Equiv. 0.63 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Nitrile V-Rings - 17.50-19.00 16x3 mm
Total Width (B): 5.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0018 (10 Pcs)
Nitrile V-Rings - 17.50-19.00 16x3 mm
2 units (20 pcs) Available Now | Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity
$12.00 AUD
$22.80 AUD $12.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
24.00-27.00
mm

(Equiv. 0.945 in.)
Seal Diameter (d1)
22.00
mm

(Equiv. 0.866 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Total Width (B)
7.50
mm
Max Face Bore (d2)
C + 2
mm
Nitrile V-Rings - 24.00-27.00 22x4 mm
Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0025 (10 Pcs)
Nitrile V-Rings - 24.00-27.00 22x4 mm
6 units (60 pcs) Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

6 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
24.00-27.00
mm

(Equiv. 0.945 in.)
Seal Diameter (d1)
22.00
mm

(Equiv. 0.866 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Nitrile V-Rings - 24.00-27.00 22x4 mm
Total Width (B): 7.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0025 (10 Pcs)
Nitrile V-Rings - 24.00-27.00 22x4 mm
6 units (60 pcs) Available Now | Item Discontinued - Up to 6 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

6 units (60 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
29.00-31.00
mm

(Equiv. 1.142 in.)
Seal Diameter (d1)
27.00
mm

(Equiv. 1.063 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Total Width (B)
7.50
mm
Max Face Bore (d2)
C + 3
mm
Nitrile V-Rings - 29.00-31.00 27x4 mm
Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0030 (5 Pcs)
Nitrile V-Rings - 29.00-31.00 27x4 mm
5 units (25 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (25 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
29.00-31.00
mm

(Equiv. 1.142 in.)
Seal Diameter (d1)
27.00
mm

(Equiv. 1.063 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Nitrile V-Rings - 29.00-31.00 27x4 mm
Total Width (B): 7.50 mm    Max Face Bore (d2): C + 3 mm    Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0030 (5 Pcs)
Nitrile V-Rings - 29.00-31.00 27x4 mm
5 units (25 pcs) Available Now | Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

5 units (25 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
