V-Rings - Fluoroelastomer

V-Rings -> Fluoroelastomer

There are 5 products in the sub-categories of V-Rings - Fluoroelastomer. Browse the V-Rings - Fluoroelastomer products table.

Category Details

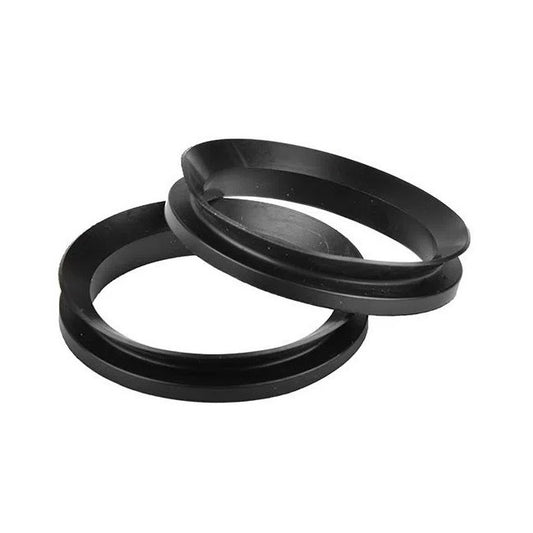

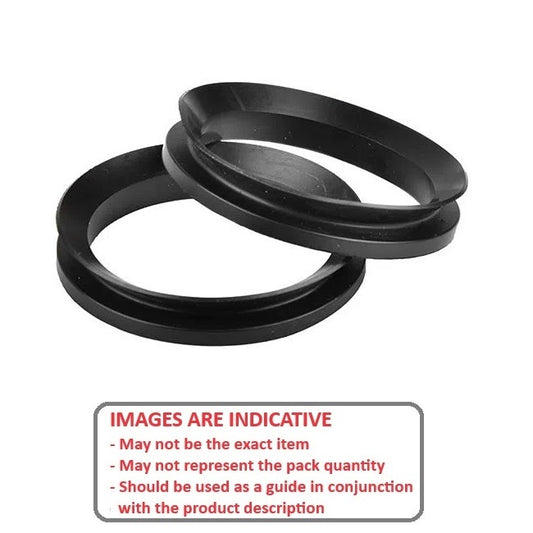

A selection of Fluoroelastomer V-Rings. VAprofile - High temperature fluoroelastomer V rings.

  • V-ring, also known as a V-seal, is a type of all-rubber seal designed for rotating shafts.
  • Primarily used to prevent contaminants like dirt, dust, and moisture from entering areas like bearings, oil seals, and housings.
  • Acts as a barrier to protect critical components in various mechanical and industrial applications. This category will be discontinued when the remaining items are sold.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the V-Rings - Fluoroelastomer category on the Small Parts & Bearings online store.
Shaft Diameter (C) Seal Diameter (d1) Profile Height (W) Profile Width (B2) Total Width (B) Max Face Bore (d2) Indicative
Shaft Diameter (C)
11.50-12.50
mm

(Equiv. 0.453 in.)
Seal Diameter (d1)
10.50
mm

(Equiv. 0.413 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Total Width (B)
5.50
mm
Max Face Bore (d2)
C + 2
mm
Fluoroelastomer V-Rings - 11.50-12.50 10.5x3 mm - Fluoroelastomer
Material: Fluoroelastomer    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: VA0012-V60
Fluoroelastomer V-Rings - 11.50-12.50 10.5x3 mm - Fluoroelastomer V-Ring
141 Available Now | Item Discontinued - Up to 141 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

141 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C) Seal Diameter (d1) Profile Height (W) Profile Width (B2) Indicative
Shaft Diameter (C)
11.50-12.50
mm

(Equiv. 0.453 in.)
Seal Diameter (d1)
10.50
mm

(Equiv. 0.413 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Fluoroelastomer V-Rings - 11.50-12.50 10.5x3 mm - Fluoroelastomer
Material: Fluoroelastomer    Total Width (B): 5.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Part Number: VA0012-V60
Fluoroelastomer V-Rings - 11.50-12.50 10.5x3 mm - Fluoroelastomer V-Ring
141 Available Now | Item Discontinued - Up to 141 may be ordered online. No backorders. Please contact us if you need a larger quantity
$4.00 AUD
$7.60 AUD $4.00 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

141 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
13.50-15.50
mm

(Equiv. 0.531 in.)
Seal Diameter (d1)
12.50
mm

(Equiv. 0.492 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Total Width (B)
5.50
mm
Max Face Bore (d2)
C + 2
mm
Fluoroelastomer V-Rings - 13.50-15.50 12.5x3 mm - Fluoroelastomer
Material: Fluoroelastomer    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0014-V60 (10 Pcs)
Fluoroelastomer V-Rings - 13.50-15.50 12.5x3 mm - Fluoroelastomer V-Ring
1 pack (10 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (10 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
13.50-15.50
mm

(Equiv. 0.531 in.)
Seal Diameter (d1)
12.50
mm

(Equiv. 0.492 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Fluoroelastomer V-Rings - 13.50-15.50 12.5x3 mm - Fluoroelastomer
Material: Fluoroelastomer    Total Width (B): 5.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0014-V60 (10 Pcs)
Fluoroelastomer V-Rings - 13.50-15.50 12.5x3 mm - Fluoroelastomer V-Ring
1 pack (10 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$15.00 AUD
$28.50 AUD $15.00 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (10 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
15.50-17.50
mm

(Equiv. 0.61 in.)
Seal Diameter (d1)
14.00
mm

(Equiv. 0.551 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Total Width (B)
5.50
mm
Max Face Bore (d2)
C + 2
mm
Fluoroelastomer V-Rings - 15.50-17.50 14x3 mm - Fluoroelastomer
Material: Fluoroelastomer    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0016-V60 (5 Pcs)
Fluoroelastomer V-Rings - 15.50-17.50 14x3 mm - Fluoroelastomer V-Ring
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
15.50-17.50
mm

(Equiv. 0.61 in.)
Seal Diameter (d1)
14.00
mm

(Equiv. 0.551 in.)
Profile Height (W)
3.00
mm

(Equiv. 0.118 in.)
Profile Width (B2)
3.40
mm
Fluoroelastomer V-Rings - 15.50-17.50 14x3 mm - Fluoroelastomer
Material: Fluoroelastomer    Total Width (B): 5.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 9 mm    Fitted Width (B1): 4.50 +/-0.60 mm
Deleted Item. Available while stocks last.
Part Number: VA0016-V60 (5 Pcs)
Fluoroelastomer V-Rings - 15.50-17.50 14x3 mm - Fluoroelastomer V-Ring
1 pack (5 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (5 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
21.00-24.00
mm

(Equiv. 0.827 in.)
Seal Diameter (d1)
20.00
mm

(Equiv. 0.787 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Total Width (B)
7.50
mm
Max Face Bore (d2)
C + 2
mm
Fluoroelastomer V-Rings - 21.00-24.00 20x4 mm - Fluoroelastomer
Material: Fluoroelastomer    Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0022-V60 (9 Pcs)
Fluoroelastomer V-Rings - 21.00-24.00 20x4 mm - Fluoroelastomer V-Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft Diameter (C)
21.00-24.00
mm

(Equiv. 0.827 in.)
Seal Diameter (d1)
20.00
mm

(Equiv. 0.787 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Fluoroelastomer V-Rings - 21.00-24.00 20x4 mm - Fluoroelastomer
Material: Fluoroelastomer    Total Width (B): 7.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0022-V60 (9 Pcs)
Fluoroelastomer V-Rings - 21.00-24.00 20x4 mm - Fluoroelastomer V-Ring
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 26, 2028
Shaft Diameter (C)
24.00-27.00
mm

(Equiv. 0.945 in.)
Seal Diameter (d1)
22.00
mm

(Equiv. 0.866 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Total Width (B)
7.50
mm
Max Face Bore (d2)
C + 2
mm
Fluoroelastomer V-Rings - 24.00-27.00 22x4 mm - Fluoroelastomer
Material: Fluoroelastomer    Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0025-V60 (3 Pcs)
Fluoroelastomer V-Rings - 24.00-27.00 22x4 mm - Fluoroelastomer V-Ring
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.00 AUD
$5.70 AUD $3.00 AUD
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (3 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (C)
24.00-27.00
mm

(Equiv. 0.945 in.)
Seal Diameter (d1)
22.00
mm

(Equiv. 0.866 in.)
Profile Height (W)
4.00
mm

(Equiv. 0.157 in.)
Profile Width (B2)
4.70
mm
Fluoroelastomer V-Rings - 24.00-27.00 22x4 mm - Fluoroelastomer
Material: Fluoroelastomer    Total Width (B): 7.50 mm    Max Face Bore (d2): C + 2 mm    Min Face OD (d3): C + 12 mm    Fitted Width (B1): 6.00 +/-0.80 mm
Deleted Item. Available while stocks last.
Part Number: VA0025-V60 (3 Pcs)
Fluoroelastomer V-Rings - 24.00-27.00 22x4 mm - Fluoroelastomer V-Ring
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$3.00 AUD
$5.70 AUD $3.00 AUD
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

1 pack (3 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
