Turntable - Lockable

Turntable -> Lockable

There are 4 products in the sub-categories of Turntable - Lockable. Browse the Turntable - Lockable products table.

Category Details

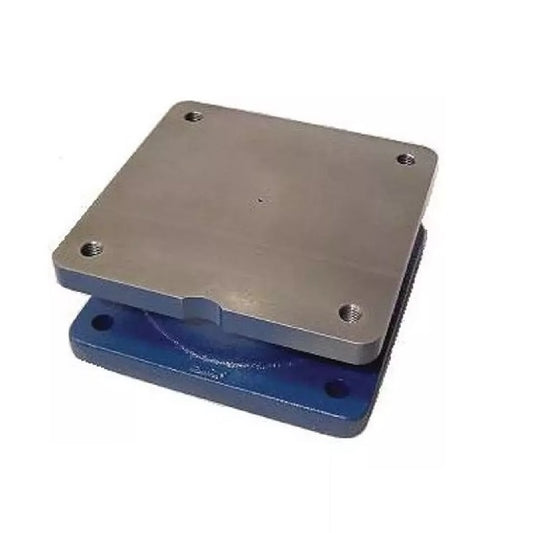

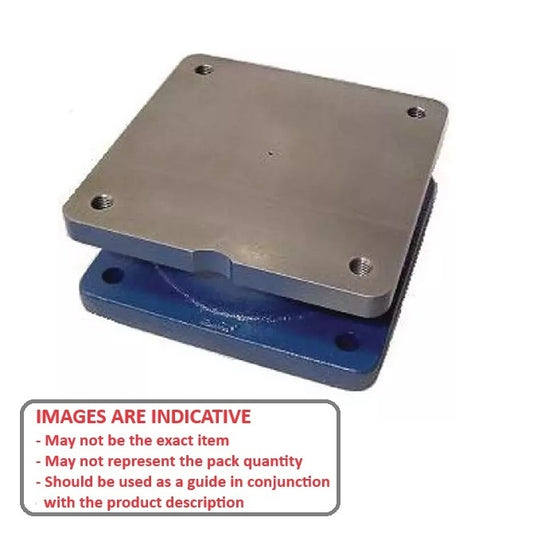

A selection of Lockable Turntable. Similar to lazy susans but heavy duty.

  • Heavy duty lockable turntables engineered for safe, smooth, long-lasting operation.
  • For industrial work stations, product displays, material container. stands, paint booths and welding tables
  • All turntables are fitted with permanently lubricated and sealed bearings, eliminating the need for future re-lubrication.
  • Turntables may be mounted using the recommended bolts or welded directly to the fixture. The bottom flange is to be fastened first with standard size bolts. Top plates feature tapped holes to provide ease of assembly.
  • Locatable units allow 90 Deg indexing.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Turntable - Lockable category on the Small Parts & Bearings online store.
Load Capacity Height (A) Length (B) Bolt Centres (C) Bolt Size Indicative
Load Capacity
453
Kg
Height (A)
44.958
mm

(Equiv. 1.77 in.)
Length (B)
82.55
mm

(Equiv. 3.25 in.)
Bolt Centres (C)
63.50
mm
Bolt Size
1/4-20 UNC (6.35mm)
Lockable Turntable - 453 Kg - 44.958x82.55 mm - Cast Iron
Material: Cast Iron
Part Number: SKF-85RS
Lockable Turntable - 453 Kg - 44.958x82.55 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 31, 2025
$1,959.23 AUD
$1,959.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Load Capacity Height (A) Length (B) Indicative
Load Capacity
453
Kg
Height (A)
44.958
mm

(Equiv. 1.77 in.)
Length (B)
82.55
mm

(Equiv. 3.25 in.)
Lockable Turntable - 453 Kg - 44.958x82.55 mm - Cast Iron
Material: Cast Iron    Bolt Centres (C): 63.50 mm    Bolt Size: 1/4-20 UNC (6.35mm)
Part Number: SKF-85RS
Lockable Turntable - 453 Kg - 44.958x82.55 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 31, 2025
$1,959.23 AUD
$1,959.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Load Capacity
1130
Kg
Height (A)
48.768
mm

(Equiv. 1.92 in.)
Length (B)
88.90
mm

(Equiv. 3.5 in.)
Bolt Centres (C)
69.85
mm
Bolt Size
1/4-20 UNC (6.35mm)
Lockable Turntable - 1130 Kg - 48.768x88.9 mm - Cast Iron
Material: Cast Iron
Part Number: SKF-86RS
Lockable Turntable - 1130 Kg - 48.768x88.9 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$970.86 AUD
$1,165.04 AUD $970.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Load Capacity
1130
Kg
Height (A)
48.768
mm

(Equiv. 1.92 in.)
Length (B)
88.90
mm

(Equiv. 3.5 in.)
Lockable Turntable - 1130 Kg - 48.768x88.9 mm - Cast Iron
Material: Cast Iron    Bolt Centres (C): 69.85 mm    Bolt Size: 1/4-20 UNC (6.35mm)
Part Number: SKF-86RS
Lockable Turntable - 1130 Kg - 48.768x88.9 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$970.86 AUD
$1,165.04 AUD $970.86 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Load Capacity
2260
Kg
Height (A)
61.722
mm

(Equiv. 2.43 in.)
Length (B)
127.00
mm

(Equiv. 5 in.)
Bolt Centres (C)
101.60
mm
Bolt Size
3/8-16 UNC (9.53mm)
Lockable Turntable - 2260 Kg - 61.722x127 mm - Cast Iron
Material: Cast Iron
Part Number: SKF-87RS
Lockable Turntable - 2260 Kg - 61.722x127 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$1,203.23 AUD
$1,443.87 AUD $1,203.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Load Capacity
2260
Kg
Height (A)
61.722
mm

(Equiv. 2.43 in.)
Length (B)
127.00
mm

(Equiv. 5 in.)
Lockable Turntable - 2260 Kg - 61.722x127 mm - Cast Iron
Material: Cast Iron    Bolt Centres (C): 101.60 mm    Bolt Size: 3/8-16 UNC (9.53mm)
Part Number: SKF-87RS
Lockable Turntable - 2260 Kg - 61.722x127 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$1,203.23 AUD
$1,443.87 AUD $1,203.23 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Load Capacity
4535
Kg
Height (A)
69.088
mm

(Equiv. 2.72 in.)
Length (B)
165.10
mm

(Equiv. 6.5 in.)
Bolt Centres (C)
139.70
mm
Bolt Size
3/8-16 UNC (9.53mm)
Lockable Turntable - 4535 Kg - 69.088x165.1 mm - Cast Iron
Material: Cast Iron
Part Number: SKF-88RS
Lockable Turntable - 4535 Kg - 69.088x165.1 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$1,931.59 AUD
$2,317.91 AUD $1,931.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Load Capacity
4535
Kg
Height (A)
69.088
mm

(Equiv. 2.72 in.)
Length (B)
165.10
mm

(Equiv. 6.5 in.)
Lockable Turntable - 4535 Kg - 69.088x165.1 mm - Cast Iron
Material: Cast Iron    Bolt Centres (C): 139.70 mm    Bolt Size: 3/8-16 UNC (9.53mm)
Part Number: SKF-88RS
Lockable Turntable - 4535 Kg - 69.088x165.1 mm - Cast Iron
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$1,931.59 AUD
$2,317.91 AUD $1,931.59 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
