Tensioner - Drive - Adjustable Angle - Plain

Tensioner -> Drive -> Adjustable Angle -> Plain

There are 2 products in the sub-categories of Tensioner - Drive - Adjustable Angle - Plain. Browse the Tensioner - Drive - Adjustable Angle - Plain products table.

Category Details

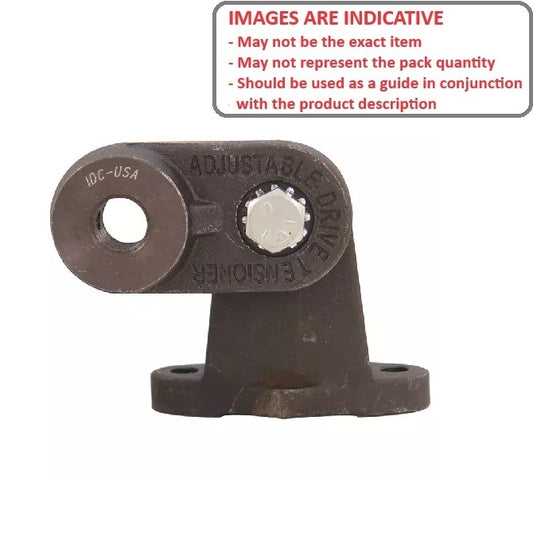

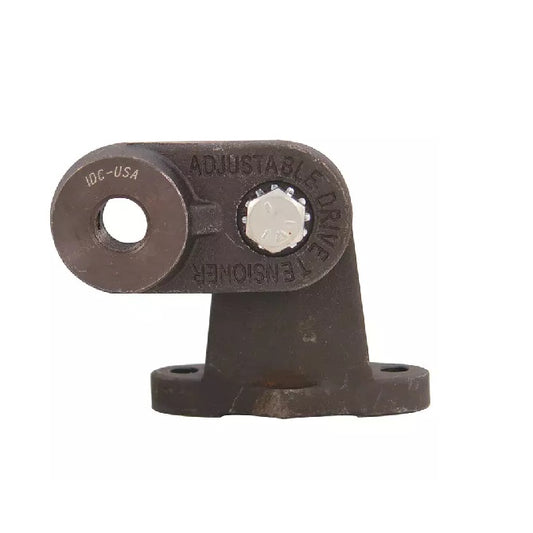

A selection of Plain Adjustable Angle Drive Tensioner. Use with idler shafts and idler pulleys. Fixed base with adjustable arm through 360o.

  • Idler shaft and pulleys not included with tensioner

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Tensioner - Drive - Adjustable Angle - Plain category on the Small Parts & Bearings online store.
Bore (C) Arm Width (D) E Plate Width (F) Overall Height (G) Overall Width (H) Indicative
Bore (C)
25.400
mm

(Equiv. 1 in.)
Arm Width (D)
31.750
mm

(Equiv. 1.25 in.)
E
38.100
mm

(Equiv. 1.5 in.)
Plate Width (F)
50.800
mm
Overall Height (G)
101.600
mm
Overall Width (H)
101.600
mm
Drive Tensioner - 25.4x31.75x38.1 mm
Bolt Centres (I): 76.200 mm    Centre of Mount to End (J): 76.200 mm    Centre of Mount to Bore (K): 50.800 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 12.7 / 63.5 mm    Approx Weight: 1.42 Kg
Part Number: IDC-67RS
Drive Tensioner - 25.4x31.75x38.1 mm Adjustable Angle
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$335.68 AUD
$335.68 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore (C) Arm Width (D) E Plate Width (F) Indicative
Bore (C)
25.400
mm

(Equiv. 1 in.)
Arm Width (D)
31.750
mm

(Equiv. 1.25 in.)
E
38.100
mm

(Equiv. 1.5 in.)
Plate Width (F)
50.800
mm
Drive Tensioner - 25.4x31.75x38.1 mm
Overall Height (G): 101.600 mm    Overall Width (H): 101.600 mm    Bolt Centres (I): 76.200 mm    Centre of Mount to End (J): 76.200 mm    Centre of Mount to Bore (K): 50.800 mm    Bolt Size (L): 3/4-16 x 9.53    M / N: 12.7 / 63.5 mm    Approx Weight: 1.42 Kg
Part Number: IDC-67RS
Drive Tensioner - 25.4x31.75x38.1 mm Adjustable Angle
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$335.68 AUD
$335.68 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore (C)
38.100
mm

(Equiv. 1.5 in.)
Arm Width (D)
44.450
mm

(Equiv. 1.75 in.)
E
60.325
mm

(Equiv. 2.375 in.)
Plate Width (F)
88.900
mm
Overall Height (G)
187.325
mm
Overall Width (H)
190.500
mm
Drive Tensioner - 38.1x44.45x60.325 mm
Bolt Centres (I): 152.400 mm    Centre of Mount to End (J): 165.100 mm    Centre of Mount to Bore (K): 127.000 mm    Bolt Size (L): 1-14 x 15.88    M / N: 19.05 / 130.175 mm    Approx Weight: 6.44 Kg
Part Number: IDC-69RS
Drive Tensioner - 38.1x44.45x60.325 mm Adjustable Angle
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$624.68 AUD
$749.62 AUD $624.68 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
Bore (C)
38.100
mm

(Equiv. 1.5 in.)
Arm Width (D)
44.450
mm

(Equiv. 1.75 in.)
E
60.325
mm

(Equiv. 2.375 in.)
Plate Width (F)
88.900
mm
Drive Tensioner - 38.1x44.45x60.325 mm
Overall Height (G): 187.325 mm    Overall Width (H): 190.500 mm    Bolt Centres (I): 152.400 mm    Centre of Mount to End (J): 165.100 mm    Centre of Mount to Bore (K): 127.000 mm    Bolt Size (L): 1-14 x 15.88    M / N: 19.05 / 130.175 mm    Approx Weight: 6.44 Kg
Part Number: IDC-69RS
Drive Tensioner - 38.1x44.45x60.325 mm Adjustable Angle
Out of Stock | Backorder Now | Orders can be expected around Wed, Sep 24, 2025
$624.68 AUD
$749.62 AUD $624.68 AUD
Excludes GST and overseas Taxes & Duties
Each
Quantity Required

Backorder: Out of Stock.
