Stops - Spring Flat Button

Stops -> Spring Flat Button

There are 3 products in the sub-categories of Stops - Spring Flat Button. Browse the Stops - Spring Flat Button products table.

Category Details

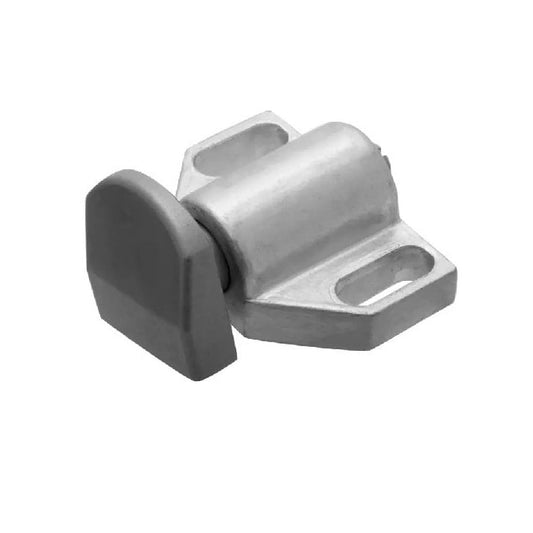

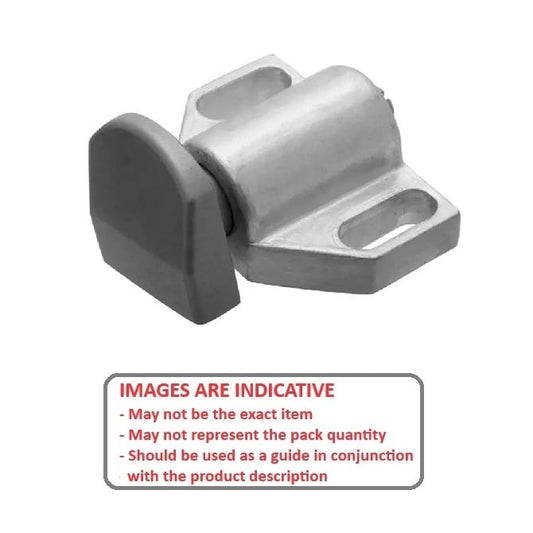

A selection of Spring Flat Button Stops. Flat button nose selection.

  • Spring stops are used extensively in the locating of parts in jigs and fixtures, particularly where fixture walls are not available.
  • Properly radiused nose for perfect fit with no wobble.
  • Plunger is case hardened low carbon steel. Aluminium body.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Stops - Spring Flat Button category on the Small Parts & Bearings online store.
Half-Depressed End Force A B C D E Indicative
Half-Depressed End Force
4.54
Kg
A
23.81
mm

(Equiv. 0.937 in.)
B
17.46
mm

(Equiv. 0.687 in.)
C
16.67
mm
D
3.56
mm
E
8.89
mm
Spring Flat Button Stops - 4.54 Kg - 23.81x17.46 mm
F: 16.67 mm    G: 19.05 mm    H: 3.18 mm    I: 5.56 mm    J: 4.76 mm    K / L / M / N: 10.32 / 4.76 / 15.08 / 0.40 mm
Part Number: DS-60RS
Spring Flat Button Stops - 4.54 Kg - 23.81x17.46 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025
$95.32 AUD
$95.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Half-Depressed End Force A B C Indicative
Half-Depressed End Force
4.54
Kg
A
23.81
mm

(Equiv. 0.937 in.)
B
17.46
mm

(Equiv. 0.687 in.)
C
16.67
mm
Spring Flat Button Stops - 4.54 Kg - 23.81x17.46 mm
D: 3.56 mm    E: 8.89 mm    F: 16.67 mm    G: 19.05 mm    H: 3.18 mm    I: 5.56 mm    J: 4.76 mm    K / L / M / N: 10.32 / 4.76 / 15.08 / 0.40 mm
Part Number: DS-60RS
Spring Flat Button Stops - 4.54 Kg - 23.81x17.46 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025
$95.32 AUD
$95.32 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Half-Depressed End Force
6.35
Kg
A
38.10
mm

(Equiv. 1.5 in.)
B
25.40
mm

(Equiv. 1 in.)
C
28.58
mm
D
5.08
mm
E
13.72
mm
Spring Flat Button Stops - 6.35 Kg - 38.1x25.4 mm
F: 23.02 mm    G: 22.23 mm    H: 4.76 mm    I: 7.94 mm    J: 7.14 mm    K / L / M / N: 15.88 / 6.35 / 28.58 / - mm
Part Number: DS-61RS
Spring Flat Button Stops - 6.35 Kg - 38.1x25.4 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025
$123.23 AUD
$147.87 AUD $123.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Half-Depressed End Force
6.35
Kg
A
38.10
mm

(Equiv. 1.5 in.)
B
25.40
mm

(Equiv. 1 in.)
C
28.58
mm
Spring Flat Button Stops - 6.35 Kg - 38.1x25.4 mm
D: 5.08 mm    E: 13.72 mm    F: 23.02 mm    G: 22.23 mm    H: 4.76 mm    I: 7.94 mm    J: 7.14 mm    K / L / M / N: 15.88 / 6.35 / 28.58 / - mm
Part Number: DS-61RS
Spring Flat Button Stops - 6.35 Kg - 38.1x25.4 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025
$123.23 AUD
$147.87 AUD $123.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Half-Depressed End Force
14.51
Kg
A
50.80
mm

(Equiv. 2 in.)
B
34.93
mm

(Equiv. 1.375 in.)
C
38.10
mm
D
6.35
mm
E
17.53
mm
Spring Flat Button Stops - 14.51 Kg - 50.8x34.93 mm
F: 33.34 mm    G: 38.10 mm    H: 6.35 mm    I: 11.11 mm    J: 6.35 mm    K / L / M / N: 22.23 / 9.53 / 30.16 / 0.40 mm
Part Number: DS-62RS
Spring Flat Button Stops - 14.51 Kg - 50.8x34.93 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025
$118.59 AUD
$142.31 AUD $118.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Half-Depressed End Force
14.51
Kg
A
50.80
mm

(Equiv. 2 in.)
B
34.93
mm

(Equiv. 1.375 in.)
C
38.10
mm
Spring Flat Button Stops - 14.51 Kg - 50.8x34.93 mm
D: 6.35 mm    E: 17.53 mm    F: 33.34 mm    G: 38.10 mm    H: 6.35 mm    I: 11.11 mm    J: 6.35 mm    K / L / M / N: 22.23 / 9.53 / 30.16 / 0.40 mm
Part Number: DS-62RS
Spring Flat Button Stops - 14.51 Kg - 50.8x34.93 mm
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 23, 2025
$118.59 AUD
$142.31 AUD $118.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
