Collection: Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm
Sprockets -> Roller Chain -> Simplex -> 3.75 x 1.6mmThere are 3 products in the sub-categories of Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm. Browse the Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm products table. To narrow down the selection, please choose a sub-category from the links below.
Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Plastic
A selection of Plastic 3.75 x 1.6mm Simplex Roller Chain Sprockets. Nylon...
Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Stainless Steel
A selection of Stainless Steel 3.75 x 1.6mm Simplex Roller Chain Sprockets....
Category Details
This category includes various types of roller chain sprockets.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm category on the Small Parts & Bearings online store.
| Number of Teeth | PCD | Hub Diameter (D1) | Overall Width (E) | Standard Number | Type / Rows |
Indicative Image |
|---|---|---|---|---|---|---|
|
Number of Teeth
15
|
PCD
17.88
mm (Equiv. 0.704 in.) |
Hub Diameter (D1)
13.00
mm (Equiv. 0.512 in.) |
Overall Width (E)
9.00
mm |
Standard Number
Non Standard
|
Type / Rows
Type 3s
|
|
|

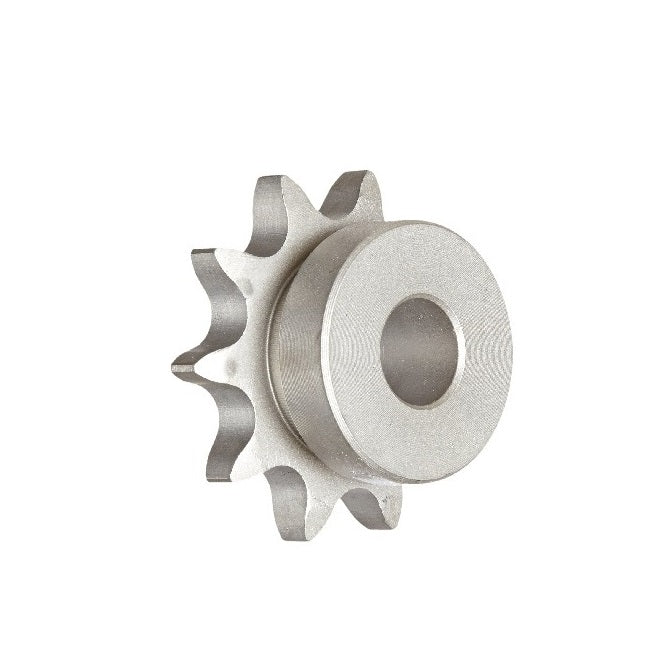

Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Bore (d): 6.000
Locking Method: M3 Set Screw
Category: Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Stainless Steel |
||||||
|
Part Number: SP1-038-016B-015-060-S3
Roller Chain Sprockets - 15 tooth - 17.88x13 mm Simplex - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sprocket 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
| Number of Teeth | PCD | Hub Diameter (D1) | Overall Width (E) |
Indicative Image |
||
|
Number of Teeth
15
|
PCD
17.88
mm (Equiv. 0.704 in.) |
Hub Diameter (D1)
13.00
mm (Equiv. 0.512 in.) |
Overall Width (E)
9.00
mm |
|
||
|
Material: Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Standard Number: Non Standard
Type / Rows: Type 3s
Bore (d): 6.000
Locking Method: M3 Set Screw
Category: Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Stainless Steel |
||||||
|
Part Number: SP1-038-016B-015-060-S3
Roller Chain Sprockets - 15 tooth - 17.88x13 mm Simplex - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Sprocket 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$10.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Number of Teeth
40
|
PCD
47.68
mm (Equiv. 1.877 in.) |
Hub Diameter (D1)
16.00
mm (Equiv. 0.63 in.) |
Overall Width (E)
9.50
mm |
Standard Number
Non Standard
|
Type / Rows
Type 3
|
|
|

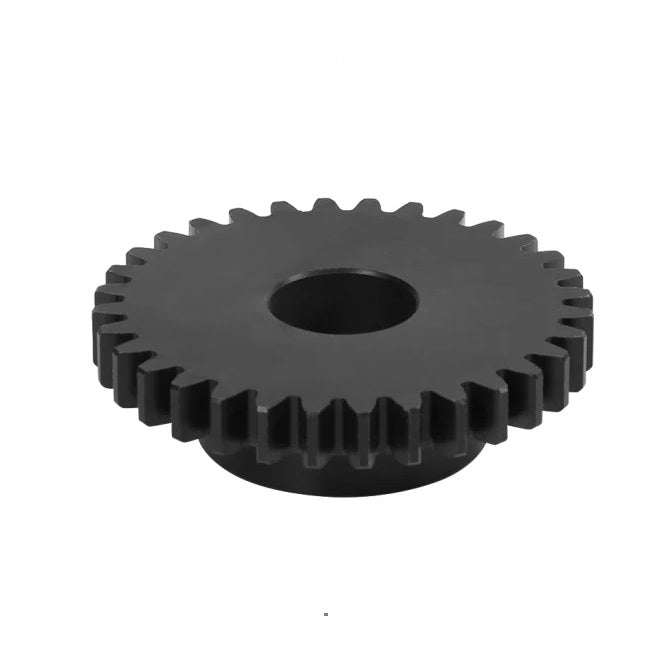

Material: NYLATRON GS (PA66 + MoS2)
Bore (d): 6.000
Locking Method: No Locking
Category: Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Plastic |
||||||
|
Part Number: SP1-038-016B-040-060-NG
Roller Chain Sprockets - 40 tooth - 47.68x16 mm Simplex - NYLATRON GS PA66 + MoS2 Sprocket 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Number of Teeth
40
|
PCD
47.68
mm (Equiv. 1.877 in.) |
Hub Diameter (D1)
16.00
mm (Equiv. 0.63 in.) |
Overall Width (E)
9.50
mm |
|
||
|
Material: NYLATRON GS (PA66 + MoS2)
Standard Number: Non Standard
Type / Rows: Type 3
Bore (d): 6.000
Locking Method: No Locking
Category: Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Plastic |
||||||
|
Part Number: SP1-038-016B-040-060-NG
Roller Chain Sprockets - 40 tooth - 47.68x16 mm Simplex - NYLATRON GS PA66 + MoS2 Sprocket 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
|
Number of Teeth
52
|
PCD
61.98
mm (Equiv. 2.44 in.) |
Hub Diameter (D1)
16.00
mm (Equiv. 0.63 in.) |
Overall Width (E)
9.50
mm |
Standard Number
Non Standard
|
Type / Rows
Type 3
|
|
|
Material: NYLATRON GS (PA66 + MoS2)
Bore (d): 6.000
Locking Method: No Locking
Category: Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Plastic |
||||||
|
Part Number: SP1-038-016B-052-060-NG
Roller Chain Sprockets - 52 tooth - 61.98x16 mm Simplex - NYLATRON GS PA66 + MoS2 Sprocket 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
Number of Teeth
52
|
PCD
61.98
mm (Equiv. 2.44 in.) |
Hub Diameter (D1)
16.00
mm (Equiv. 0.63 in.) |
Overall Width (E)
9.50
mm |
|
||
|
Material: NYLATRON GS (PA66 + MoS2)
Standard Number: Non Standard
Type / Rows: Type 3
Bore (d): 6.000
Locking Method: No Locking
Category: Sprockets - Roller Chain - Simplex - 3.75 x 1.6mm - Plastic |
||||||
|
Part Number: SP1-038-016B-052-060-NG
Roller Chain Sprockets - 52 tooth - 61.98x16 mm Simplex - NYLATRON GS PA66 + MoS2 Sprocket 1 Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$3.00 AUD
Regular price
Unit price
per
Excludes GST and overseas Taxes & Duties Each
|
||||||
|
||||||
