Sprockets - Roller Chain - Simplex - 08B - With Boss

Sprockets -> Roller Chain -> Simplex -> 08B -> With Boss

There are 4 products in the sub-categories of Sprockets - Roller Chain - Simplex - 08B - With Boss. Browse the Sprockets - Roller Chain - Simplex - 08B - With Boss products table.

Category Details

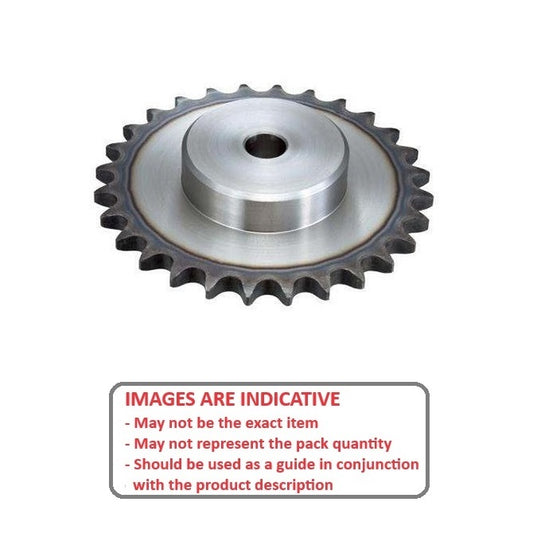

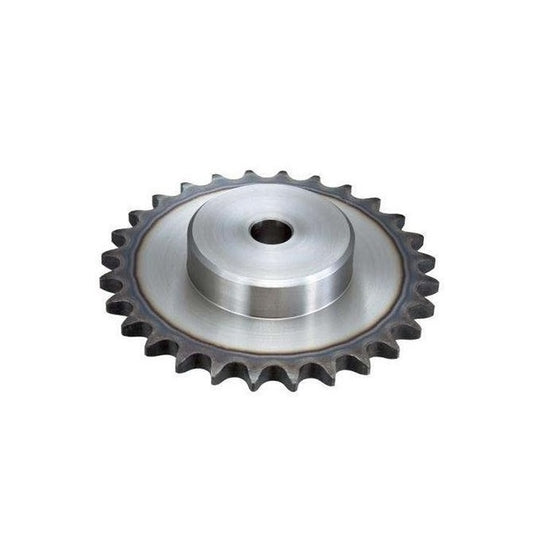

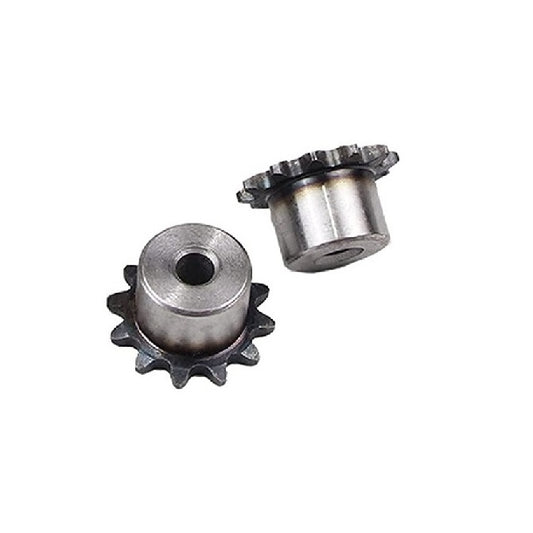

A selection of With Boss 08B Simplex Roller Chain Sprockets. Match with 12.70x7.75mm simplex chain (08B BS)

  • This category will be discontinued when the remaining items are sold.
  • All items are priced to quit.
  • Backorders or orders for previously listed items in the category may still be possible - please enquire.
  • Pilot bored sprockets come with a very small bore that will need to be machined by the customer to suit their shaft size.
  • British Standard 08B - 1/2 inch. With and without hubs.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Sprockets - Roller Chain - Simplex - 08B - With Boss category on the Small Parts & Bearings online store.
Number of Teeth PCD Hub Diameter (D1) Overall Width (E) Standard Number Type / Rows Indicative
Number of Teeth
13

PCD
52.53
mm

(Equiv. 2.068 in.)
Hub Diameter (D1)
37.00
mm

(Equiv. 1.457 in.)
Overall Width (E)
28.00
mm
Standard Number
08B-1
Type / Rows
Type 3
Roller Chain Sprockets - 13 tooth - 52.53x37 mm - Carbon Steel
Material: Carbon Steel    Bore (d): 10.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-013-PB-C (2 Pcs)
Roller Chain Sprockets - 13 tooth - 52.53x37 mm Simplex - Carbon Steel Sprocket
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.82 AUD
$12.95 AUD $6.82 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth PCD Hub Diameter (D1) Overall Width (E) Indicative
Number of Teeth
13

PCD
52.53
mm

(Equiv. 2.068 in.)
Hub Diameter (D1)
37.00
mm

(Equiv. 1.457 in.)
Overall Width (E)
28.00
mm
Roller Chain Sprockets - 13 tooth - 52.53x37 mm - Carbon Steel
Material: Carbon Steel    Standard Number: 08B-1    Type / Rows: Type 3    Bore (d): 10.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-013-PB-C (2 Pcs)
Roller Chain Sprockets - 13 tooth - 52.53x37 mm Simplex - Carbon Steel Sprocket
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.82 AUD
$12.95 AUD $6.82 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
15

PCD
60.61
mm

(Equiv. 2.386 in.)
Hub Diameter (D1)
41.00
mm

(Equiv. 1.614 in.)
Overall Width (E)
28.00
mm
Standard Number
08B-1
Type / Rows
Type 3
Roller Chain Sprockets - 15 tooth - 60.61x41 mm - Carbon Steel
Material: Carbon Steel    Bore (d): 10.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-015-PB-C (2 Pcs)
Roller Chain Sprockets - 15 tooth - 60.61x41 mm Simplex - Carbon Steel Sprocket
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.95 AUD
$15.10 AUD $7.95 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
15

PCD
60.61
mm

(Equiv. 2.386 in.)
Hub Diameter (D1)
41.00
mm

(Equiv. 1.614 in.)
Overall Width (E)
28.00
mm
Roller Chain Sprockets - 15 tooth - 60.61x41 mm - Carbon Steel
Material: Carbon Steel    Standard Number: 08B-1    Type / Rows: Type 3    Bore (d): 10.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-015-PB-C (2 Pcs)
Roller Chain Sprockets - 15 tooth - 60.61x41 mm Simplex - Carbon Steel Sprocket
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.95 AUD
$15.10 AUD $7.95 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
16

PCD
64.65
mm

(Equiv. 2.545 in.)
Hub Diameter (D1)
50.00
mm

(Equiv. 1.969 in.)
Overall Width (E)
28.00
mm
Standard Number
08B-1
Type / Rows
Type 3
Roller Chain Sprockets - 16 tooth - 64.65x50 mm - Carbon Steel
Material: Carbon Steel    Bore (d): 12.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-016-PB-C (2 Pcs)
Roller Chain Sprockets - 16 tooth - 64.65x50 mm Simplex - Carbon Steel Sprocket
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.95 AUD
$15.10 AUD $7.95 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
16

PCD
64.65
mm

(Equiv. 2.545 in.)
Hub Diameter (D1)
50.00
mm

(Equiv. 1.969 in.)
Overall Width (E)
28.00
mm
Roller Chain Sprockets - 16 tooth - 64.65x50 mm - Carbon Steel
Material: Carbon Steel    Standard Number: 08B-1    Type / Rows: Type 3    Bore (d): 12.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-016-PB-C (2 Pcs)
Roller Chain Sprockets - 16 tooth - 64.65x50 mm Simplex - Carbon Steel Sprocket
1 pack (2 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$7.95 AUD
$15.10 AUD $7.95 AUD
Excludes GST and overseas Taxes & Duties
Per 2
Quantity Required

1 pack (2 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
21

PCD
84.86
mm

(Equiv. 3.341 in.)
Hub Diameter (D1)
68.00
mm

(Equiv. 2.677 in.)
Overall Width (E)
28.00
mm
Standard Number
08B-1
Type / Rows
Type 3
Roller Chain Sprockets - 21 tooth - 84.86x68 mm - Carbon Steel
Material: Carbon Steel    Bore (d): 12.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-021-PB-C (3 Pcs)
Roller Chain Sprockets - 21 tooth - 84.86x68 mm Simplex - Carbon Steel Sprocket
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.05 AUD
$9.59 AUD $5.05 AUD
Excludes GST and overseas Taxes & Duties
Per 3
Quantity Required

1 pack (3 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Number of Teeth
21

PCD
84.86
mm

(Equiv. 3.341 in.)
Hub Diameter (D1)
68.00
mm

(Equiv. 2.677 in.)
Overall Width (E)
28.00
mm
Roller Chain Sprockets - 21 tooth - 84.86x68 mm - Carbon Steel
Material: Carbon Steel    Standard Number: 08B-1    Type / Rows: Type 3    Bore (d): 12.00 mm    Locking Method: No Locking
Part Number: SP1-127-078B-021-PB-C (3 Pcs)
Roller Chain Sprockets - 21 tooth - 84.86x68 mm Simplex - Carbon Steel Sprocket
1 pack (3 pcs) Available Now | Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity
$5.05 AUD
$9.59 AUD $5.05 AUD
Excludes GST and overseas Taxes & Duties
Per 3
Quantity Required

1 pack (3 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
