| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection | Optimum Deflection | Load at Optimal |

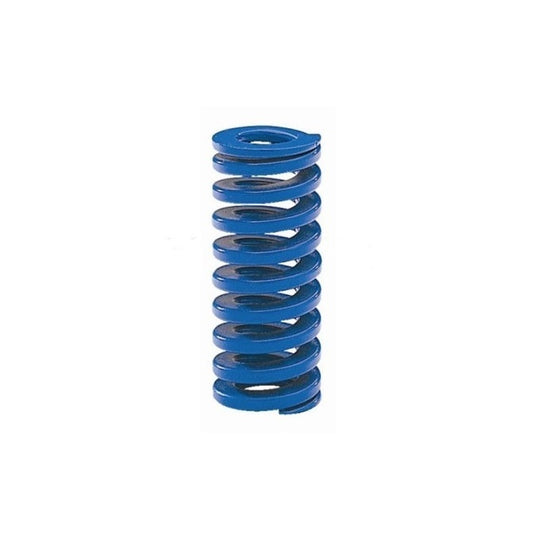

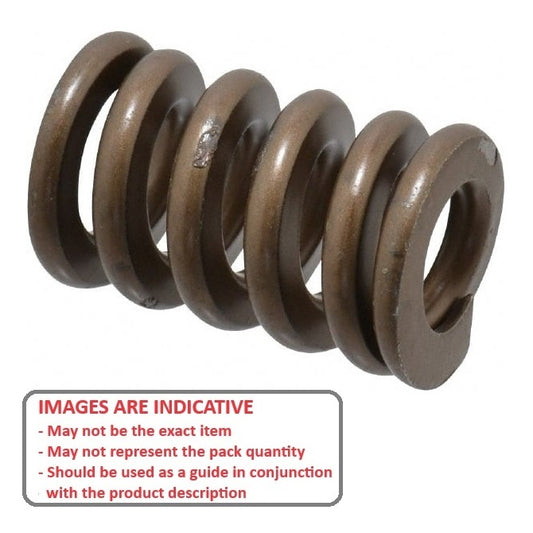

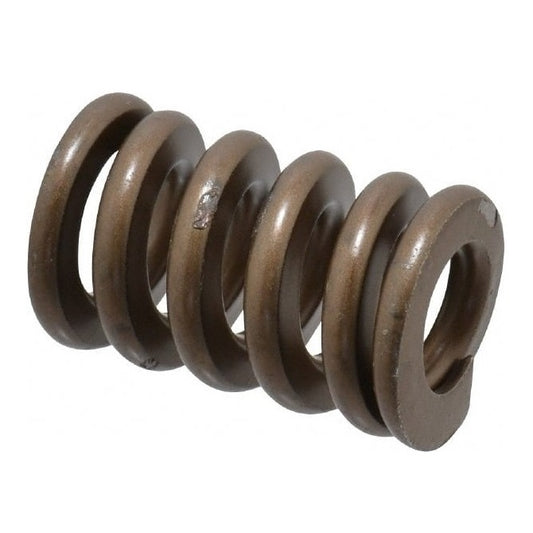

Indicative Image |
|---|---|---|---|---|---|---|
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
83.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-HDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$20.23 AUD
Regular price
Unit price
per
Each
|
||||||
| Hole Diameter (B) | Rod Diameter (A) | Length (L) | Optimum Deflection |
Indicative Image |
||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 9.5 mm
Load at Optimal: 83.6 N
Maximum Deflection: 25 Percent
Maximum Deflection: 15.9 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-HDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$20.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
15.9
mm |
Load at Optimal
73.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MD
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now | Further orders can be expected around Thu, Sep 18, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 15.9 mm
Load at Optimal: 73.1 N
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MD
Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now | Further orders can be expected around Thu, Sep 18, 2025 Regular price
$9.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
20
Percent |
Optimum Deflection
12.7
mm |
Load at Optimal
82.6
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 30 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MHDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
20
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 12.7 mm
Load at Optimal: 82.6 N
Maximum Deflection: 30 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MHDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
11.4
mm |
Load at Optimal
82.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-HD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.4 mm
Load at Optimal: 82.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-HD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$15.59 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
15.9
mm |
Load at Optimal
73.1
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$17.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
63.500
mm (Equiv. 2.5 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 15.9 mm
Load at Optimal: 73.1 N
Maximum Deflection: 40 Percent
Maximum Deflection: 25.4 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-064-MDS
Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$17.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
Optimum Deflection
11.4
mm |
Load at Optimal
82.1
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-HDS
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$23.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
15
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 11.4 mm
Load at Optimal: 82.1 N
Maximum Deflection: 25 Percent
Maximum Deflection: 19.1 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-HDS
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$23.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.1
mm |
Load at Optimal
70.7
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 30.5 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-MD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 19.1 mm
Load at Optimal: 70.7 N
Maximum Deflection: 40 Percent
Maximum Deflection: 30.5 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-MD
Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$13.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
304.800
mm (Equiv. 12 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
76.2
mm |
Load at Optimal
83.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 40 Percent
Maximum Deflection: 121.9 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-305-MD
Die Springs - 9.53x4.763x304.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$50.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
304.800
mm (Equiv. 12 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 76.2 mm
Load at Optimal: 83.8 N
Maximum Deflection: 40 Percent
Maximum Deflection: 121.9 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-305-MD
Die Springs - 9.53x4.763x304.8 mm Imperial - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$50.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
19.1
mm |
Load at Optimal
70.7
N |
|
|
Material: Chrome Silicon
Maximum Deflection: 40 Percent
Maximum Deflection: 30.5 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-MDS
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$20.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
9.53
mm (Equiv. 0.375 in.) |
Rod Diameter (A)
4.763
mm (Equiv. 0.188 in.) |
Length (L)
76.200
mm (Equiv. 3 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Chrome Silicon
Optimum Deflection: 19.1 mm
Load at Optimal: 70.7 N
Maximum Deflection: 40 Percent
Maximum Deflection: 30.5 mm
Category: Springs - Die - Imperial |
||||||
|
Part Number: DS-095-076-MDS
Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock | Backorder Now | Orders can be expected around Thu, Sep 18, 2025 Regular price
$20.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
100.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-MD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 100.8 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-MD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$10.14 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
139.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-HD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 139.2 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-HD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
231.8
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-EHD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$16.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 231.8 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-EHD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$16.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
6.3
mm |
Load at Optimal
63.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-LD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
25.00
mm (Equiv. 0.984 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 6.3 mm
Load at Optimal: 63.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 9.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-025-LD
Die Springs - 10x5x25 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$9.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
8.0
mm |
Load at Optimal
104.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-MD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$12.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 8.0 mm
Load at Optimal: 104.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-MD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$12.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
8.0
mm |
Load at Optimal
140.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-HD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$10.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 8.0 mm
Load at Optimal: 140.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-HD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$10.23 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
8.0
mm |
Load at Optimal
223.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-EHD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 8.0 mm
Load at Optimal: 223.2 N
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-EHD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$11.05 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
8.0
mm |
Load at Optimal
68.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-LD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$11.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
32.00
mm (Equiv. 1.26 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 8.0 mm
Load at Optimal: 68.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 11.8 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-032-LD
Die Springs - 10x5x32 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$11.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
113.1
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-MD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 113.1 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-MD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$19.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
162.5
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-HD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 162.5 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-HD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$16.32 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
225.2
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-EHD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$16.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 225.2 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-EHD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$16.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
9.5
mm |
Load at Optimal
64.6
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-LD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$18.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
38.00
mm (Equiv. 1.496 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 9.5 mm
Load at Optimal: 64.6 N
Maximum Deflection: 37 Percent
Maximum Deflection: 14.1 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-038-LD
Die Springs - 10x5x38 mm Metric - Carbon Spring Steel 4 Available Now | Further orders can be expected around Sat, Oct 04, 2025 Regular price
$18.41 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
11.0
mm |
Load at Optimal
113.3
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-044-MD
Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$15.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.0 mm
Load at Optimal: 113.3 N
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-044-MD
Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$15.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
11.0
mm |
Load at Optimal
66.0
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-044-LD
Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
44.00
mm (Equiv. 1.732 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 11.0 mm
Load at Optimal: 66.0 N
Maximum Deflection: 37 Percent
Maximum Deflection: 16.3 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-044-LD
Die Springs - 10x5x44 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$14.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
Optimum Deflection
12.8
mm |
Load at Optimal
113.9
N |
|
|
Material: Carbon Spring Steel
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-051-MD
Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$15.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
Hole Diameter (B)
10.00
mm (Equiv. 0.394 in.) |
Rod Diameter (A)
5.00
mm (Equiv. 0.197 in.) |
Length (L)
51.00
mm (Equiv. 2.008 in.) |
Optimum Deflection
25
Percent |
|
||
|
Material: Carbon Spring Steel
Optimum Deflection: 12.8 mm
Load at Optimal: 113.9 N
Maximum Deflection: 37 Percent
Maximum Deflection: 18.9 mm
Category: Springs - Die - Metric |
||||||
|
Part Number: DS-100-051-MD
Die Springs - 10x5x51 mm Metric - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sat, Oct 04, 2025 Regular price
$15.77 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
