Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Hole Diameter (B) 38.10 mm (Equiv. 1.5 in.)	Rod Diameter (A) 19.050 mm (Equiv. 0.75 in.)	Length (L) 50.800 mm (Equiv. 2 in.)	Optimum Deflection 20 Percent	Optimum Deflection 10.2 mm	Load at Optimal 1840.1 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-381-051-MHD Die Springs - 38.1x19.05x50.8 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $46.95 AUD Regular price ~~$56.35 AUD~~ Sale price $46.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 38.10 mm (Equiv. 1.5 in.)	Rod Diameter (A) 19.050 mm (Equiv. 0.75 in.)	Length (L) 50.800 mm (Equiv. 2 in.)	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 10.2 mm Load at Optimal: 1840.1 N Maximum Deflection: 30 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial
Part Number: DS-381-051-MHD Die Springs - 38.1x19.05x50.8 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $46.95 AUD Regular price ~~$56.35 AUD~~ Sale price $46.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-381-051-MHD --- Die Springs - 38.1x19.05x50.8 mm Imperial - Carbon Spring Steel Sale DS-381-051-MHD --- Die Springs - 38.1x19.05x50.8 mm Imperial - Carbon Spring Steel Regular price $46.95 AUD Regular price ~~$56.35 AUD~~ Sale price $46.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 38.10 mm (Equiv. 1.5 in.)	Rod Diameter (A) 19.050 mm (Equiv. 0.75 in.)	Length (L) 152.400 mm (Equiv. 6 in.)	Optimum Deflection 20 Percent	Optimum Deflection 30.5 mm	Load at Optimal 1967.3 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 45.7 mm Category: Springs - Die - Imperial
Part Number: DS-381-152-MHDS Die Springs - 38.1x19.05x152.4 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $147.14 AUD Regular price ~~$176.56 AUD~~ Sale price $147.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 38.10 mm (Equiv. 1.5 in.)	Rod Diameter (A) 19.050 mm (Equiv. 0.75 in.)	Length (L) 152.400 mm (Equiv. 6 in.)	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 30.5 mm Load at Optimal: 1967.3 N Maximum Deflection: 30 Percent Maximum Deflection: 45.7 mm Category: Springs - Die - Imperial
Part Number: DS-381-152-MHDS Die Springs - 38.1x19.05x152.4 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $147.14 AUD Regular price ~~$176.56 AUD~~ Sale price $147.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-381-152-MHDS --- Die Springs - 38.1x19.05x152.4 mm Imperial - Chrome Silicon Spring Sale DS-381-152-MHDS --- Die Springs - 38.1x19.05x152.4 mm Imperial - Chrome Silicon Spring Regular price $147.14 AUD Regular price ~~$176.56 AUD~~ Sale price $147.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 38.10 mm (Equiv. 1.5 in.)	Rod Diameter (A) 19.050 mm (Equiv. 0.75 in.)	Length (L) 114.300 mm (Equiv. 4.5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 28.6 mm	Load at Optimal 1152.6 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 45.7 mm Category: Springs - Die - Imperial
Part Number: DS-381-114-MDS Die Springs - 38.1x19.05x114.3 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $98.68 AUD Regular price ~~$118.42 AUD~~ Sale price $98.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 38.10 mm (Equiv. 1.5 in.)	Rod Diameter (A) 19.050 mm (Equiv. 0.75 in.)	Length (L) 114.300 mm (Equiv. 4.5 in.)	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 28.6 mm Load at Optimal: 1152.6 N Maximum Deflection: 40 Percent Maximum Deflection: 45.7 mm Category: Springs - Die - Imperial
Part Number: DS-381-114-MDS Die Springs - 38.1x19.05x114.3 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $98.68 AUD Regular price ~~$118.42 AUD~~ Sale price $98.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-381-114-MDS --- Die Springs - 38.1x19.05x114.3 mm Imperial - Chrome Silicon Spring Sale DS-381-114-MDS --- Die Springs - 38.1x19.05x114.3 mm Imperial - Chrome Silicon Spring Regular price $98.68 AUD Regular price ~~$118.42 AUD~~ Sale price $98.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 1177.6 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-400-051-LD Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $67.41 AUD Regular price ~~$80.89 AUD~~ Sale price $67.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 1177.6 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-400-051-LD Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $67.41 AUD Regular price ~~$80.89 AUD~~ Sale price $67.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-051-LD --- Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Sale DS-400-051-LD --- Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Regular price $67.41 AUD Regular price ~~$80.89 AUD~~ Sale price $67.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 2324.5 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-400-051-MD Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $76.05 AUD Regular price ~~$91.25 AUD~~ Sale price $76.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 2324.5 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-400-051-MD Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $76.05 AUD Regular price ~~$91.25 AUD~~ Sale price $76.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-051-MD --- Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Sale DS-400-051-MD --- Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Regular price $76.05 AUD Regular price ~~$91.25 AUD~~ Sale price $76.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent	Optimum Deflection 12.8 mm	Load at Optimal 4480.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-400-051-HD Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $90.95 AUD Regular price ~~$109.15 AUD~~ Sale price $90.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 51.00 mm (Equiv. 2.008 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 12.8 mm Load at Optimal: 4480.0 N Maximum Deflection: 37 Percent Maximum Deflection: 18.9 mm Category: Springs - Die - Metric
Part Number: DS-400-051-HD Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $90.95 AUD Regular price ~~$109.15 AUD~~ Sale price $90.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-051-HD --- Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Sale DS-400-051-HD --- Die Springs - 40x20x51 mm Metric - Carbon Spring Steel Regular price $90.95 AUD Regular price ~~$109.15 AUD~~ Sale price $90.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 1168.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-LD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $69.05 AUD Regular price ~~$82.85 AUD~~ Sale price $69.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 1168.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-LD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $69.05 AUD Regular price ~~$82.85 AUD~~ Sale price $69.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-064-LD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Sale DS-400-064-LD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Regular price $69.05 AUD Regular price ~~$82.85 AUD~~ Sale price $69.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 2240.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-MD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $85.50 AUD Regular price ~~$102.60 AUD~~ Sale price $85.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 2240.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-MD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $85.50 AUD Regular price ~~$102.60 AUD~~ Sale price $85.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-064-MD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Sale DS-400-064-MD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Regular price $85.50 AUD Regular price ~~$102.60 AUD~~ Sale price $85.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 4304.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-HD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $96.77 AUD Regular price ~~$116.13 AUD~~ Sale price $96.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 4304.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-HD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $96.77 AUD Regular price ~~$116.13 AUD~~ Sale price $96.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-064-HD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Sale DS-400-064-HD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Regular price $96.77 AUD Regular price ~~$116.13 AUD~~ Sale price $96.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 7792.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-EHD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $134.68 AUD Regular price ~~$161.62 AUD~~ Sale price $134.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 7792.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-400-064-EHD Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $134.68 AUD Regular price ~~$161.62 AUD~~ Sale price $134.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-064-EHD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Sale DS-400-064-EHD --- Die Springs - 40x20x64 mm Metric - Carbon Spring Steel Regular price $134.68 AUD Regular price ~~$161.62 AUD~~ Sale price $134.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 1197.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric
Part Number: DS-400-076-LD Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $77.68 AUD Regular price ~~$93.22 AUD~~ Sale price $77.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 1197.0 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric
Part Number: DS-400-076-LD Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $77.68 AUD Regular price ~~$93.22 AUD~~ Sale price $77.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-076-LD --- Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Sale DS-400-076-LD --- Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Regular price $77.68 AUD Regular price ~~$93.22 AUD~~ Sale price $77.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 2052.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric
Part Number: DS-400-076-MD Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $151.50 AUD Regular price Sale price $151.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 2052.0 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric
Part Number: DS-400-076-MD Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $151.50 AUD Regular price Sale price $151.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-076-MD --- Die Springs - 40x20x76 mm Metric - Carbon Spring Steel DS-400-076-MD --- Die Springs - 40x20x76 mm Metric - Carbon Spring Steel Regular price $151.50 AUD Regular price Sale price $151.50 AUD Unit price per Out of stock! Backorder Now
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 89.00 mm (Equiv. 3.504 in.)	Optimum Deflection 25 Percent	Optimum Deflection 22.3 mm	Load at Optimal 2022.6 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 32.9 mm Category: Springs - Die - Metric
Part Number: DS-400-089-MD Die Springs - 40x20x89 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $109.68 AUD Regular price ~~$131.62 AUD~~ Sale price $109.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 89.00 mm (Equiv. 3.504 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 22.3 mm Load at Optimal: 2022.6 N Maximum Deflection: 37 Percent Maximum Deflection: 32.9 mm Category: Springs - Die - Metric
Part Number: DS-400-089-MD Die Springs - 40x20x89 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $109.68 AUD Regular price ~~$131.62 AUD~~ Sale price $109.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-089-MD --- Die Springs - 40x20x89 mm Metric - Carbon Spring Steel Sale DS-400-089-MD --- Die Springs - 40x20x89 mm Metric - Carbon Spring Steel Regular price $109.68 AUD Regular price ~~$131.62 AUD~~ Sale price $109.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 127.00 mm (Equiv. 5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 31.8 mm	Load at Optimal 1176.6 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 47.0 mm Category: Springs - Die - Metric
Part Number: DS-400-127-LD Die Springs - 40x20x127 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $110.77 AUD Regular price ~~$132.93 AUD~~ Sale price $110.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 127.00 mm (Equiv. 5 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 31.8 mm Load at Optimal: 1176.6 N Maximum Deflection: 37 Percent Maximum Deflection: 47.0 mm Category: Springs - Die - Metric
Part Number: DS-400-127-LD Die Springs - 40x20x127 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $110.77 AUD Regular price ~~$132.93 AUD~~ Sale price $110.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-127-LD --- Die Springs - 40x20x127 mm Metric - Carbon Spring Steel Sale DS-400-127-LD --- Die Springs - 40x20x127 mm Metric - Carbon Spring Steel Regular price $110.77 AUD Regular price ~~$132.93 AUD~~ Sale price $110.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 152.00 mm (Equiv. 5.984 in.)	Optimum Deflection 25 Percent	Optimum Deflection 38.0 mm	Load at Optimal 1064.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 56.2 mm Category: Springs - Die - Metric
Part Number: DS-400-152-LD Die Springs - 40x20x152 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $133.14 AUD Regular price ~~$159.76 AUD~~ Sale price $133.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 40.00 mm (Equiv. 1.575 in.)	Rod Diameter (A) 20.00 mm (Equiv. 0.787 in.)	Length (L) 152.00 mm (Equiv. 5.984 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 38.0 mm Load at Optimal: 1064.0 N Maximum Deflection: 37 Percent Maximum Deflection: 56.2 mm Category: Springs - Die - Metric
Part Number: DS-400-152-LD Die Springs - 40x20x152 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $133.14 AUD Regular price ~~$159.76 AUD~~ Sale price $133.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-400-152-LD --- Die Springs - 40x20x152 mm Metric - Carbon Spring Steel Sale DS-400-152-LD --- Die Springs - 40x20x152 mm Metric - Carbon Spring Steel Regular price $133.14 AUD Regular price ~~$159.76 AUD~~ Sale price $133.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.00 mm (Equiv. 1.969 in.)	Rod Diameter (A) 25.00 mm (Equiv. 0.984 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 2496.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-500-064-LD Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $124.77 AUD Regular price ~~$149.73 AUD~~ Sale price $124.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.00 mm (Equiv. 1.969 in.)	Rod Diameter (A) 25.00 mm (Equiv. 0.984 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 2496.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-500-064-LD Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $124.77 AUD Regular price ~~$149.73 AUD~~ Sale price $124.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-500-064-LD --- Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Sale DS-500-064-LD --- Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Regular price $124.77 AUD Regular price ~~$149.73 AUD~~ Sale price $124.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.00 mm (Equiv. 1.969 in.)	Rod Diameter (A) 25.00 mm (Equiv. 0.984 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent	Optimum Deflection 16.0 mm	Load at Optimal 3344.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-500-064-MD Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $143.05 AUD Regular price ~~$171.65 AUD~~ Sale price $143.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.00 mm (Equiv. 1.969 in.)	Rod Diameter (A) 25.00 mm (Equiv. 0.984 in.)	Length (L) 64.00 mm (Equiv. 2.52 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 16.0 mm Load at Optimal: 3344.0 N Maximum Deflection: 37 Percent Maximum Deflection: 23.7 mm Category: Springs - Die - Metric
Part Number: DS-500-064-MD Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $143.05 AUD Regular price ~~$171.65 AUD~~ Sale price $143.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-500-064-MD --- Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Sale DS-500-064-MD --- Die Springs - 50x25x64 mm Metric - Carbon Spring Steel Regular price $143.05 AUD Regular price ~~$171.65 AUD~~ Sale price $143.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.00 mm (Equiv. 1.969 in.)	Rod Diameter (A) 25.00 mm (Equiv. 0.984 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.0 mm	Load at Optimal 2375.0 N
Material: Carbon Spring Steel Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric
Part Number: DS-500-076-LD Die Springs - 50x25x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $137.95 AUD Regular price ~~$165.55 AUD~~ Sale price $137.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.00 mm (Equiv. 1.969 in.)	Rod Diameter (A) 25.00 mm (Equiv. 0.984 in.)	Length (L) 76.00 mm (Equiv. 2.992 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.0 mm Load at Optimal: 2375.0 N Maximum Deflection: 37 Percent Maximum Deflection: 28.1 mm Category: Springs - Die - Metric
Part Number: DS-500-076-LD Die Springs - 50x25x76 mm Metric - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $137.95 AUD Regular price ~~$165.55 AUD~~ Sale price $137.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-500-076-LD --- Die Springs - 50x25x76 mm Metric - Carbon Spring Steel Sale DS-500-076-LD --- Die Springs - 50x25x76 mm Metric - Carbon Spring Steel Regular price $137.95 AUD Regular price ~~$165.55 AUD~~ Sale price $137.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 15 Percent	Optimum Deflection 9.5 mm	Load at Optimal 4183.8 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial
Part Number: DS-508-064-HDS Die Springs - 50.8x25.4x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $134.86 AUD Regular price ~~$161.84 AUD~~ Sale price $134.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 9.5 mm Load at Optimal: 4183.8 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial
Part Number: DS-508-064-HDS Die Springs - 50.8x25.4x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $134.86 AUD Regular price ~~$161.84 AUD~~ Sale price $134.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-508-064-HDS --- Die Springs - 50.8x25.4x63.5 mm Imperial - Chrome Silicon Spring Sale DS-508-064-HDS --- Die Springs - 50.8x25.4x63.5 mm Imperial - Chrome Silicon Spring Regular price $134.86 AUD Regular price ~~$161.84 AUD~~ Sale price $134.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 15.9 mm	Load at Optimal 2784.1 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial
Part Number: DS-508-064-MD Die Springs - 50.8x25.4x63.5 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $86.95 AUD Regular price ~~$104.35 AUD~~ Sale price $86.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 15.9 mm Load at Optimal: 2784.1 N Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial
Part Number: DS-508-064-MD Die Springs - 50.8x25.4x63.5 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $86.95 AUD Regular price ~~$104.35 AUD~~ Sale price $86.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-508-064-MD --- Die Springs - 50.8x25.4x63.5 mm Imperial - Carbon Spring Steel Sale DS-508-064-MD --- Die Springs - 50.8x25.4x63.5 mm Imperial - Carbon Spring Steel Regular price $86.95 AUD Regular price ~~$104.35 AUD~~ Sale price $86.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 88.900 mm (Equiv. 3.5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 22.2 mm	Load at Optimal 2635.1 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 35.6 mm Category: Springs - Die - Imperial
Part Number: DS-508-089-MDS Die Springs - 50.8x25.4x88.9 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $120.77 AUD Regular price ~~$144.93 AUD~~ Sale price $120.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 88.900 mm (Equiv. 3.5 in.)	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 22.2 mm Load at Optimal: 2635.1 N Maximum Deflection: 40 Percent Maximum Deflection: 35.6 mm Category: Springs - Die - Imperial
Part Number: DS-508-089-MDS Die Springs - 50.8x25.4x88.9 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $120.77 AUD Regular price ~~$144.93 AUD~~ Sale price $120.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-508-089-MDS --- Die Springs - 50.8x25.4x88.9 mm Imperial - Chrome Silicon Spring Sale DS-508-089-MDS --- Die Springs - 50.8x25.4x88.9 mm Imperial - Chrome Silicon Spring Regular price $120.77 AUD Regular price ~~$144.93 AUD~~ Sale price $120.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 127.000 mm (Equiv. 5 in.)	Optimum Deflection 15 Percent	Optimum Deflection 19.1 mm	Load at Optimal 3970.9 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 31.8 mm Category: Springs - Die - Imperial
Part Number: DS-508-127-HDS Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $208.77 AUD Regular price ~~$250.53 AUD~~ Sale price $208.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 127.000 mm (Equiv. 5 in.)	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 19.1 mm Load at Optimal: 3970.9 N Maximum Deflection: 25 Percent Maximum Deflection: 31.8 mm Category: Springs - Die - Imperial
Part Number: DS-508-127-HDS Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $208.77 AUD Regular price ~~$250.53 AUD~~ Sale price $208.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-508-127-HDS --- Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Sale DS-508-127-HDS --- Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Regular price $208.77 AUD Regular price ~~$250.53 AUD~~ Sale price $208.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 127.000 mm (Equiv. 5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 31.8 mm	Load at Optimal 2617.1 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 50.8 mm Category: Springs - Die - Imperial
Part Number: DS-508-127-MD Die Springs - 50.8x25.4x127 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $142.41 AUD Regular price ~~$170.89 AUD~~ Sale price $142.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 127.000 mm (Equiv. 5 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 31.8 mm Load at Optimal: 2617.1 N Maximum Deflection: 40 Percent Maximum Deflection: 50.8 mm Category: Springs - Die - Imperial

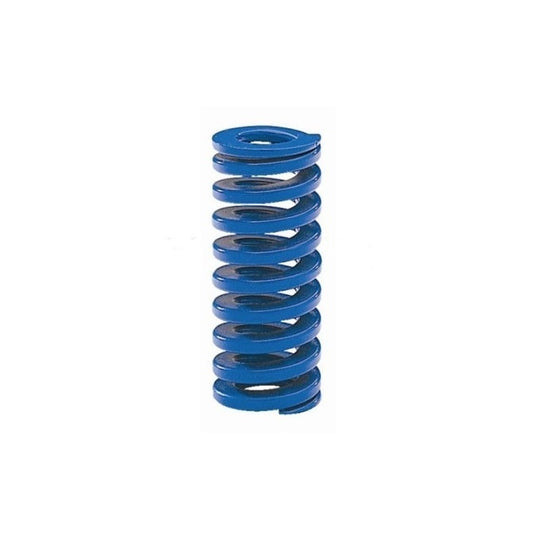

Part Number: DS-508-127-MD Die Springs - 50.8x25.4x127 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $142.41 AUD Regular price ~~$170.89 AUD~~ Sale price $142.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-508-127-MD --- Die Springs - 50.8x25.4x127 mm Imperial - Carbon Spring Steel Sale DS-508-127-MD --- Die Springs - 50.8x25.4x127 mm Imperial - Carbon Spring Steel Regular price $142.41 AUD Regular price ~~$170.89 AUD~~ Sale price $142.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 127.000 mm (Equiv. 5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 31.8 mm	Load at Optimal 2620.3 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 50.8 mm Category: Springs - Die - Imperial

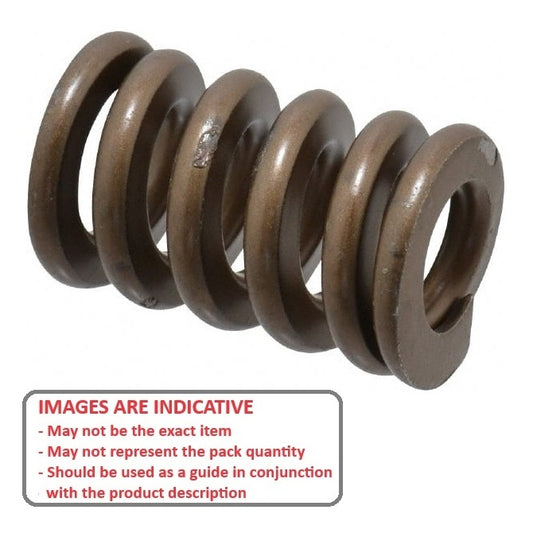

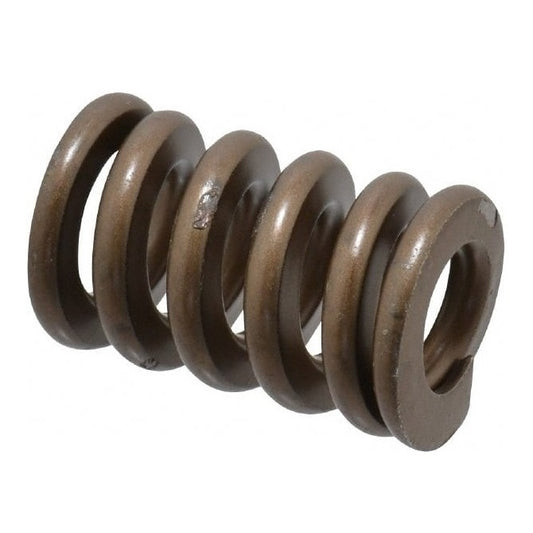

Part Number: DS-508-127-MDS Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $178.14 AUD Regular price ~~$213.76 AUD~~ Sale price $178.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 50.80 mm (Equiv. 2 in.)	Rod Diameter (A) 25.400 mm (Equiv. 1 in.)	Length (L) 127.000 mm (Equiv. 5 in.)	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 31.8 mm Load at Optimal: 2620.3 N Maximum Deflection: 40 Percent Maximum Deflection: 50.8 mm Category: Springs - Die - Imperial
Part Number: DS-508-127-MDS Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $178.14 AUD Regular price ~~$213.76 AUD~~ Sale price $178.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-508-127-MDS --- Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Sale DS-508-127-MDS --- Die Springs - 50.8x25.4x127 mm Imperial - Chrome Silicon Spring Regular price $178.14 AUD Regular price ~~$213.76 AUD~~ Sale price $178.14 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Springs - Die

Filter

Filter

Subscribe to our emails
