Springs - Die - Imperial– Page2 – Miniature Bearings Australia - MBA Minibearings - Online, Pick-Up, Retail, Distributors, Wholesale

Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Optimum Deflection	Load at Optimal
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 15 Percent	Optimum Deflection 9.5 mm	Load at Optimal 83.6 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-095-064-HDS Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $20.23 AUD Regular price ~~$24.27 AUD~~ Sale price $20.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B)	Rod Diameter (A)	Length (L)	Optimum Deflection	Indicative Image
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 9.5 mm Load at Optimal: 83.6 N Maximum Deflection: 25 Percent Maximum Deflection: 15.9 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-095-064-HDS Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $20.23 AUD Regular price ~~$24.27 AUD~~ Sale price $20.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-064-HDS --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Sale DS-095-064-HDS --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Regular price $20.23 AUD Regular price ~~$24.27 AUD~~ Sale price $20.23 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 15.9 mm	Load at Optimal 73.1 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-064-MD Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $9.68 AUD Regular price ~~$11.62 AUD~~ Sale price $9.68 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 15.9 mm Load at Optimal: 73.1 N Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-064-MD Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel 3 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $9.68 AUD Regular price ~~$11.62 AUD~~ Sale price $9.68 AUD Unit price per Each Quantity Required 3 Available Now. Backorder if more than 3.
DS-095-064-MD --- Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel Sale DS-095-064-MD --- Die Springs - 9.53x4.763x63.5 mm Imperial - Carbon Spring Steel Regular price $9.68 AUD Regular price ~~$11.62 AUD~~ Sale price $9.68 AUD Unit price per 3 Available Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 20 Percent	Optimum Deflection 12.7 mm	Load at Optimal 82.6 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-095-064-MHDS Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 12.7 mm Load at Optimal: 82.6 N Maximum Deflection: 30 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-095-064-MHDS Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-064-MHDS --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Sale DS-095-064-MHDS --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Regular price $19.50 AUD Regular price ~~$23.40 AUD~~ Sale price $19.50 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 15 Percent	Optimum Deflection 11.4 mm	Load at Optimal 82.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-095-076-HD Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 11.4 mm Load at Optimal: 82.1 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-095-076-HD Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-076-HD --- Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Sale DS-095-076-HD --- Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 15.9 mm	Load at Optimal 73.1 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-064-MDS Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $17.77 AUD Regular price ~~$21.33 AUD~~ Sale price $17.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 63.500 mm (Equiv. 2.5 in.)	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 15.9 mm Load at Optimal: 73.1 N Maximum Deflection: 40 Percent Maximum Deflection: 25.4 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-064-MDS Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $17.77 AUD Regular price ~~$21.33 AUD~~ Sale price $17.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-064-MDS --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Sale DS-095-064-MDS --- Die Springs - 9.53x4.763x63.5 mm Imperial - Chrome Silicon Spring Regular price $17.77 AUD Regular price ~~$21.33 AUD~~ Sale price $17.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 15 Percent	Optimum Deflection 11.4 mm	Load at Optimal 82.1 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-095-076-HDS Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $23.86 AUD Regular price ~~$28.64 AUD~~ Sale price $23.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 11.4 mm Load at Optimal: 82.1 N Maximum Deflection: 25 Percent Maximum Deflection: 19.1 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-095-076-HDS Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $23.86 AUD Regular price ~~$28.64 AUD~~ Sale price $23.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-076-HDS --- Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Sale DS-095-076-HDS --- Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Regular price $23.86 AUD Regular price ~~$28.64 AUD~~ Sale price $23.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.1 mm	Load at Optimal 70.7 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-076-MD Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 19.1 mm Load at Optimal: 70.7 N Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-076-MD Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-076-MD --- Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Sale DS-095-076-MD --- Die Springs - 9.53x4.763x76.2 mm Imperial - Carbon Spring Steel Regular price $13.68 AUD Regular price ~~$16.42 AUD~~ Sale price $13.68 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 304.800 mm (Equiv. 12 in.)	Optimum Deflection 25 Percent	Optimum Deflection 76.2 mm	Load at Optimal 83.8 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 121.9 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-305-MD Die Springs - 9.53x4.763x304.8 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $50.41 AUD Regular price ~~$60.49 AUD~~ Sale price $50.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 304.800 mm (Equiv. 12 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 76.2 mm Load at Optimal: 83.8 N Maximum Deflection: 40 Percent Maximum Deflection: 121.9 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-305-MD Die Springs - 9.53x4.763x304.8 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $50.41 AUD Regular price ~~$60.49 AUD~~ Sale price $50.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-305-MD --- Die Springs - 9.53x4.763x304.8 mm Imperial - Carbon Spring Steel Sale DS-095-305-MD --- Die Springs - 9.53x4.763x304.8 mm Imperial - Carbon Spring Steel Regular price $50.41 AUD Regular price ~~$60.49 AUD~~ Sale price $50.41 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 25 Percent	Optimum Deflection 19.1 mm	Load at Optimal 70.7 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-076-MDS Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $20.77 AUD Regular price ~~$24.93 AUD~~ Sale price $20.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 9.53 mm (Equiv. 0.375 in.)	Rod Diameter (A) 4.763 mm (Equiv. 0.188 in.)	Length (L) 76.200 mm (Equiv. 3 in.)	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 19.1 mm Load at Optimal: 70.7 N Maximum Deflection: 40 Percent Maximum Deflection: 30.5 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-095-076-MDS Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $20.77 AUD Regular price ~~$24.93 AUD~~ Sale price $20.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-095-076-MDS --- Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Sale DS-095-076-MDS --- Die Springs - 9.53x4.763x76.2 mm Imperial - Chrome Silicon Spring Regular price $20.77 AUD Regular price ~~$24.93 AUD~~ Sale price $20.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.4 mm	Load at Optimal 123.5 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-025-MDS Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 123.5 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-025-MDS Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-025-MDS --- Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Sale DS-127-025-MDS --- Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Regular price $13.05 AUD Regular price ~~$15.65 AUD~~ Sale price $13.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 149.7 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-025-HD Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 149.7 N Maximum Deflection: 25 Percent Maximum Deflection: 6.4 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-025-HD Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-025-HD --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Sale DS-127-025-HD --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Regular price $10.77 AUD Regular price ~~$12.93 AUD~~ Sale price $10.77 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 15 Percent	Optimum Deflection 3.8 mm	Load at Optimal 206.3 N
Material: Carbon Spring Steel Maximum Deflection: 20 Percent Maximum Deflection: 5.1 mm Category: Springs - Die - Imperial - Extra Heavy Duty
Part Number: DS-127-025-EHD Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 3.8 mm Load at Optimal: 206.3 N Maximum Deflection: 20 Percent Maximum Deflection: 5.1 mm Category: Springs - Die - Imperial - Extra Heavy Duty
Part Number: DS-127-025-EHD Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-025-EHD --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Sale DS-127-025-EHD --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Regular price $11.59 AUD Regular price ~~$13.91 AUD~~ Sale price $11.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 20 Percent	Optimum Deflection 5.1 mm	Load at Optimal 138.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-127-025-MHDS Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 5.1 mm Load at Optimal: 138.7 N Maximum Deflection: 30 Percent Maximum Deflection: 7.6 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-127-025-MHDS Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-025-MHDS --- Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Sale DS-127-025-MHDS --- Die Springs - 12.7x7.144x25.4 mm Imperial - Chrome Silicon Spring Regular price $12.59 AUD Regular price ~~$15.11 AUD~~ Sale price $12.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 25 Percent	Optimum Deflection 6.4 mm	Load at Optimal 123.5 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-025-MD Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 25.400 mm (Equiv. 1 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 123.5 N Maximum Deflection: 40 Percent Maximum Deflection: 10.2 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-025-MD Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-025-MD --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Sale DS-127-025-MD --- Die Springs - 12.7x7.144x25.4 mm Imperial - Carbon Spring Steel Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 15 Percent	Optimum Deflection 4.8 mm	Load at Optimal 153.1 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-032-HD Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 4.8 mm Load at Optimal: 153.1 N Maximum Deflection: 25 Percent Maximum Deflection: 7.9 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-032-HD Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-032-HD --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Sale DS-127-032-HD --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Regular price $12.86 AUD Regular price ~~$15.44 AUD~~ Sale price $12.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 137.0 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Medium-Heavy Duty
Part Number: DS-127-032-MHD Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 6.4 mm Load at Optimal: 137.0 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Medium-Heavy Duty
Part Number: DS-127-032-MHD Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-032-MHD --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Sale DS-127-032-MHD --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Regular price $11.86 AUD Regular price ~~$14.24 AUD~~ Sale price $11.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 20 Percent	Optimum Deflection 6.4 mm	Load at Optimal 137.0 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-127-032-MHDS Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 6.4 mm Load at Optimal: 137.0 N Maximum Deflection: 30 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-127-032-MHDS Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-032-MHDS --- Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Sale DS-127-032-MHDS --- Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Regular price $22.59 AUD Regular price ~~$27.11 AUD~~ Sale price $22.59 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 25 Percent	Optimum Deflection 7.9 mm	Load at Optimal 113.8 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-032-MD Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.9 mm Load at Optimal: 113.8 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-032-MD Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-032-MD --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Sale DS-127-032-MD --- Die Springs - 12.7x7.144x31.75 mm Imperial - Carbon Spring Steel Regular price $10.14 AUD Regular price ~~$12.16 AUD~~ Sale price $10.14 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 147.6 N
Material: Carbon Spring Steel Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-038-HD Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 15 Percent
Material: Carbon Spring Steel Optimum Deflection: 5.7 mm Load at Optimal: 147.6 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-038-HD Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-038-HD --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Sale DS-127-038-HD --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Regular price $11.32 AUD Regular price ~~$13.58 AUD~~ Sale price $11.32 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 25 Percent	Optimum Deflection 7.9 mm	Load at Optimal 113.8 N
Material: Chrome Silicon Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-032-MDS Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 31.750 mm (Equiv. 1.25 in.)	Optimum Deflection 25 Percent
Material: Chrome Silicon Optimum Deflection: 7.9 mm Load at Optimal: 113.8 N Maximum Deflection: 40 Percent Maximum Deflection: 12.7 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-032-MDS Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-032-MDS --- Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Sale DS-127-032-MDS --- Die Springs - 12.7x7.144x31.75 mm Imperial - Chrome Silicon Spring Regular price $13.86 AUD Regular price ~~$16.64 AUD~~ Sale price $13.86 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 15 Percent	Optimum Deflection 5.7 mm	Load at Optimal 147.6 N
Material: Chrome Silicon Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-038-HDS Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring 2 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 15 Percent
Material: Chrome Silicon Optimum Deflection: 5.7 mm Load at Optimal: 147.6 N Maximum Deflection: 25 Percent Maximum Deflection: 9.5 mm Category: Springs - Die - Imperial - Heavy Duty
Part Number: DS-127-038-HDS Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring 2 Available Now \| Further orders can be expected around Thu, Sep 18, 2025 Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per Each Quantity Required 2 Available Now. Backorder if more than 2.
DS-127-038-HDS --- Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring DS-127-038-HDS --- Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring Regular price $18.23 AUD Regular price Sale price $18.23 AUD Unit price per 2 Available Now
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 130.7 N
Material: Carbon Spring Steel Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial - Medium-Heavy Duty
Part Number: DS-127-038-MHD Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 20 Percent
Material: Carbon Spring Steel Optimum Deflection: 7.6 mm Load at Optimal: 130.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial - Medium-Heavy Duty
Part Number: DS-127-038-MHD Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-038-MHD --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Sale DS-127-038-MHD --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Regular price $10.95 AUD Regular price ~~$13.15 AUD~~ Sale price $10.95 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 25 Percent	Optimum Deflection 9.5 mm	Load at Optimal 113.1 N
Material: Carbon Spring Steel Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial - Medium Duty
Part Number: DS-127-038-MD Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 25 Percent
Material: Carbon Spring Steel Optimum Deflection: 9.5 mm Load at Optimal: 113.1 N Maximum Deflection: 40 Percent Maximum Deflection: 15.2 mm Category: Springs - Die - Imperial - Medium Duty

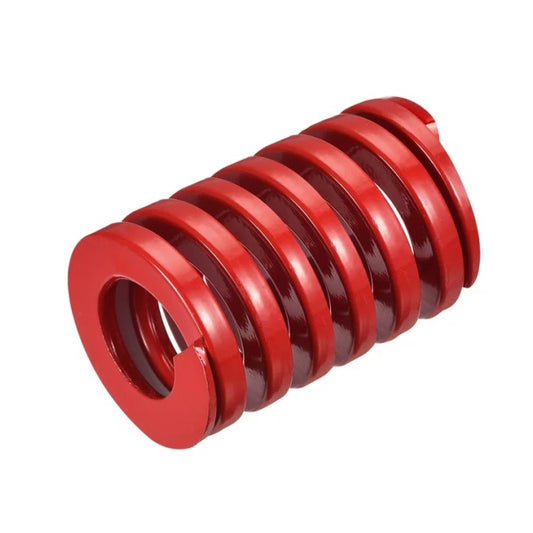

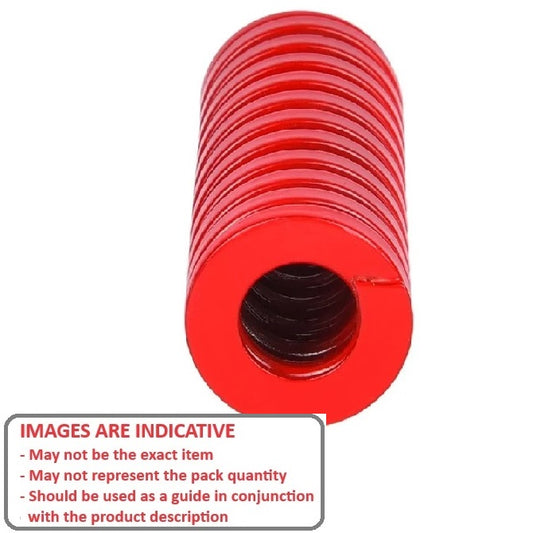

Part Number: DS-127-038-MD Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-038-MD --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Sale DS-127-038-MD --- Die Springs - 12.7x7.144x38.1 mm Imperial - Carbon Spring Steel Regular price $10.05 AUD Regular price ~~$12.05 AUD~~ Sale price $10.05 AUD Unit price per Out of stock! Backorder Now Sale
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 20 Percent	Optimum Deflection 7.6 mm	Load at Optimal 130.7 N
Material: Chrome Silicon Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-127-038-MHDS Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Hole Diameter (B) 12.70 mm (Equiv. 0.5 in.)	Rod Diameter (A) 7.144 mm (Equiv. 0.281 in.)	Length (L) 38.100 mm (Equiv. 1.5 in.)	Optimum Deflection 20 Percent
Material: Chrome Silicon Optimum Deflection: 7.6 mm Load at Optimal: 130.7 N Maximum Deflection: 30 Percent Maximum Deflection: 11.4 mm Category: Springs - Die - Imperial - Medium Heavy Duty
Part Number: DS-127-038-MHDS Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
DS-127-038-MHDS --- Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring Sale DS-127-038-MHDS --- Die Springs - 12.7x7.144x38.1 mm Imperial - Chrome Silicon Spring Regular price $16.14 AUD Regular price ~~$19.36 AUD~~ Sale price $16.14 AUD Unit price per Out of stock! Backorder Now Sale

Country/region

Collection: Springs - Die - Imperial

Filter

Filter

Subscribe to our emails
