Collection: Socket Set Screws - Half Dog Point

Socket Set Screws -> Half Dog Point

There are 24 products in the sub-categories of Socket Set Screws - Half Dog Point. Scroll down or follow the link to Socket Set Screws - Half Dog Point in the products table to see all these items combined into a handy table with filters.

This product group is not included in our range. Try the full range at Minibearings instead.

Category Details

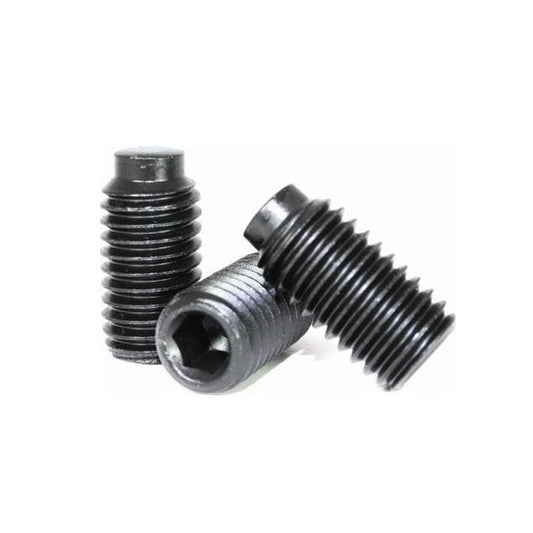

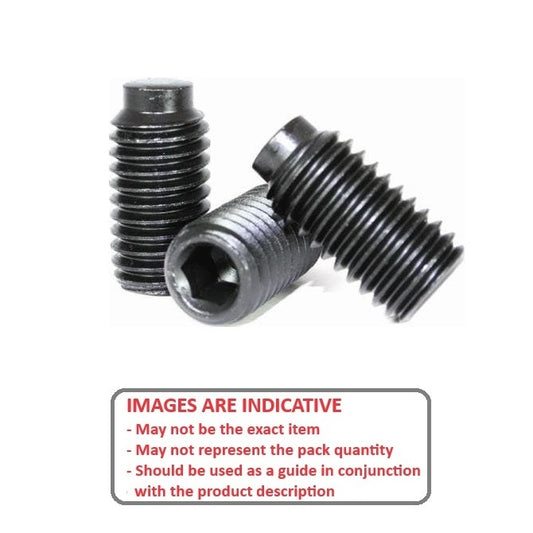

A selection of Half Dog Point Socket Set Screws. Half Dog Point grub screws

Socket drive grub screws with a half dog point tip.
Set screw with a cylindrical, unthreaded "dog" tip that fits into a pre-drilled hole, slot, or milled flat in a second part to permanently locate and secure two components together.
Commonly used in machinery to prevent movement, such as locking a gear onto a shaft.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Socket Set Screws Master PDF

A more concise listing may be found in the Socket Set Screws - Half Dog Point category on the Small Parts & Bearings online store.

Thread Size	Thread Length (L)	Type	Overall Length (L + L1)	Tip Diameter (d)	Tip Length (L1)
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 3.8 mm (Equiv. 0.15 in.)	Type Half Dog Point	Overall Length (L + L1) 4.8 mm	Tip Diameter (d) 2.6 - 2.8 mm	Tip Length (L1) 1.0 mm
Material: Carbon Steel Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0048-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 3.8 mm - Carbon Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
Thread Size	Thread Length (L)	Type	Overall Length (L + L1)	Indicative Image
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 3.8 mm (Equiv. 0.15 in.)	Type Half Dog Point	Overall Length (L + L1) 4.8 mm
Material: Carbon Steel Tip Diameter (d): 2.6 - 2.8 mm Tip Length (L1): 1.0 mm Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0048-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 3.8 mm - Carbon Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
SS042C-0048-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 3.8 mm - Carbon Steel Screw SS042C-0048-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 3.8 mm - Carbon Steel Screw Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 20 Available Now
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 5.4 mm (Equiv. 0.213 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm	Tip Diameter (d) 2.6 - 2.8 mm	Tip Length (L1) 1.0 mm
Material: Carbon Steel Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0064-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 5.4 mm - Carbon Steel Screw 19 units (95 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 5.4 mm (Equiv. 0.213 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm
Material: Carbon Steel Tip Diameter (d): 2.6 - 2.8 mm Tip Length (L1): 1.0 mm Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0064-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 5.4 mm - Carbon Steel Screw 19 units (95 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
SS042C-0064-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 5.4 mm - Carbon Steel Screw SS042C-0064-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 5.4 mm - Carbon Steel Screw Regular price $2.59 AUD Regular price Sale price $2.59 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 19 Available Now
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 6.9 mm (Equiv. 0.272 in.)	Type Half Dog Point	Overall Length (L + L1) 7.9 mm	Tip Diameter (d) 2.6 - 2.8 mm	Tip Length (L1) 1.0 mm
Material: Carbon Steel Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0079-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 6.9 mm - Carbon Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 6.9 mm (Equiv. 0.272 in.)	Type Half Dog Point	Overall Length (L + L1) 7.9 mm
Material: Carbon Steel Tip Diameter (d): 2.6 - 2.8 mm Tip Length (L1): 1.0 mm Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0079-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 6.9 mm - Carbon Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
SS042C-0079-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 6.9 mm - Carbon Steel Screw SS042C-0079-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 6.9 mm - Carbon Steel Screw Regular price $5.14 AUD Regular price Sale price $5.14 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 20 Available Now
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 8.5 mm (Equiv. 0.335 in.)	Type Half Dog Point	Overall Length (L + L1) 9.5 mm	Tip Diameter (d) 2.6 - 2.8 mm	Tip Length (L1) 1.0 mm
Material: Carbon Steel Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0095-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 8.5 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 8.5 mm (Equiv. 0.335 in.)	Type Half Dog Point	Overall Length (L + L1) 9.5 mm
Material: Carbon Steel Tip Diameter (d): 2.6 - 2.8 mm Tip Length (L1): 1.0 mm Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0095-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 8.5 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS042C-0095-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 8.5 mm - Carbon Steel Screw Sale SS042C-0095-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 8.5 mm - Carbon Steel Screw Regular price $36.50 AUD Regular price ~~$43.80 AUD~~ Sale price $36.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 11.7 mm (Equiv. 0.461 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm	Tip Diameter (d) 2.6 - 2.8 mm	Tip Length (L1) 1.0 mm
Material: Carbon Steel Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0127-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 11.7 mm - Carbon Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
Thread Size 8-32 UNC (4.17mm)	Thread Length (L) 11.7 mm (Equiv. 0.461 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm
Material: Carbon Steel Tip Diameter (d): 2.6 - 2.8 mm Tip Length (L1): 1.0 mm Hex Key Size: 1.98 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS042C-0127-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 11.7 mm - Carbon Steel Screw 20 units (100 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 20 units (100 pcs) Available Now. Backorder if more than 20.
SS042C-0127-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 11.7 mm - Carbon Steel Screw SS042C-0127-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 8-32 UNC - 4.17mm - 11.7 mm - Carbon Steel Screw Regular price $5.68 AUD Regular price Sale price $5.68 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 20 Available Now
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 3.7 mm (Equiv. 0.146 in.)	Type Half Dog Point	Overall Length (L + L1) 4.8 mm	Tip Diameter (d) 3.1 - 3.2 mm	Tip Length (L1) 1.1 mm
Material: Carbon Steel Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0048-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 3.7 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $30.05 AUD Regular price ~~$36.05 AUD~~ Sale price $30.05 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 3.7 mm (Equiv. 0.146 in.)	Type Half Dog Point	Overall Length (L + L1) 4.8 mm
Material: Carbon Steel Tip Diameter (d): 3.1 - 3.2 mm Tip Length (L1): 1.1 mm Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0048-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 3.7 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $30.05 AUD Regular price ~~$36.05 AUD~~ Sale price $30.05 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS048C-0048-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 3.7 mm - Carbon Steel Screw Sale SS048C-0048-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 3.7 mm - Carbon Steel Screw Regular price $30.05 AUD Regular price ~~$36.05 AUD~~ Sale price $30.05 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 5.3 mm (Equiv. 0.209 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm	Tip Diameter (d) 3.1 - 3.2 mm	Tip Length (L1) 1.1 mm
Material: Carbon Steel Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0064-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 5.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 5.3 mm (Equiv. 0.209 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm
Material: Carbon Steel Tip Diameter (d): 3.1 - 3.2 mm Tip Length (L1): 1.1 mm Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0064-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 5.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS048C-0064-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 5.3 mm - Carbon Steel Screw Sale SS048C-0064-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 5.3 mm - Carbon Steel Screw Regular price $35.59 AUD Regular price ~~$42.71 AUD~~ Sale price $35.59 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 6.8 mm (Equiv. 0.268 in.)	Type Half Dog Point	Overall Length (L + L1) 7.9 mm	Tip Diameter (d) 3.1 - 3.2 mm	Tip Length (L1) 1.1 mm
Material: Carbon Steel Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0079-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 6.8 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $33.77 AUD Regular price ~~$40.53 AUD~~ Sale price $33.77 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 6.8 mm (Equiv. 0.268 in.)	Type Half Dog Point	Overall Length (L + L1) 7.9 mm
Material: Carbon Steel Tip Diameter (d): 3.1 - 3.2 mm Tip Length (L1): 1.1 mm Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0079-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 6.8 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $33.77 AUD Regular price ~~$40.53 AUD~~ Sale price $33.77 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS048C-0079-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 6.8 mm - Carbon Steel Screw Sale SS048C-0079-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 6.8 mm - Carbon Steel Screw Regular price $33.77 AUD Regular price ~~$40.53 AUD~~ Sale price $33.77 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 8.4 mm (Equiv. 0.331 in.)	Type Half Dog Point	Overall Length (L + L1) 9.5 mm	Tip Diameter (d) 3.1 - 3.2 mm	Tip Length (L1) 1.1 mm
Material: Carbon Steel Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0095-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 8.4 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $37.50 AUD Regular price ~~$45.00 AUD~~ Sale price $37.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 8.4 mm (Equiv. 0.331 in.)	Type Half Dog Point	Overall Length (L + L1) 9.5 mm
Material: Carbon Steel Tip Diameter (d): 3.1 - 3.2 mm Tip Length (L1): 1.1 mm Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0095-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 8.4 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $37.50 AUD Regular price ~~$45.00 AUD~~ Sale price $37.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS048C-0095-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 8.4 mm - Carbon Steel Screw Sale SS048C-0095-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 8.4 mm - Carbon Steel Screw Regular price $37.50 AUD Regular price ~~$45.00 AUD~~ Sale price $37.50 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 11.6 mm (Equiv. 0.457 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm	Tip Diameter (d) 3.1 - 3.2 mm	Tip Length (L1) 1.1 mm
Material: Carbon Steel Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0127-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 11.6 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $41.68 AUD Regular price ~~$50.02 AUD~~ Sale price $41.68 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 10-24 UNC (4.76mm)	Thread Length (L) 11.6 mm (Equiv. 0.457 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm
Material: Carbon Steel Tip Diameter (d): 3.1 - 3.2 mm Tip Length (L1): 1.1 mm Hex Key Size: 2.38 Pitch: 1.058 mm Threads Per Inch: 24 TPI
Part Number: SS048C-0127-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 11.6 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $41.68 AUD Regular price ~~$50.02 AUD~~ Sale price $41.68 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS048C-0127-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 11.6 mm - Carbon Steel Screw Sale SS048C-0127-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 10-24 UNC - 4.76mm - 11.6 mm - Carbon Steel Screw Regular price $41.68 AUD Regular price ~~$50.02 AUD~~ Sale price $41.68 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 10-32 UNF (4.76mm)	Thread Length (L) 5.3 mm (Equiv. 0.209 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm	Tip Diameter (d) 3.1 - 3.2 mm	Tip Length (L1) 1.1 mm
Material: Carbon Steel Hex Key Size: 2.38 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS048F-0064-AS-HDP (100 Pcs) Half Dog Point Socket Set Screws - 10-32 UNF - 4.76mm - 5.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 10-32 UNF (4.76mm)	Thread Length (L) 5.3 mm (Equiv. 0.209 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm
Material: Carbon Steel Tip Diameter (d): 3.1 - 3.2 mm Tip Length (L1): 1.1 mm Hex Key Size: 2.38 Pitch: 0.794 mm Threads Per Inch: 32 TPI
Part Number: SS048F-0064-AS-HDP (100 Pcs) Half Dog Point Socket Set Screws - 10-32 UNF - 4.76mm - 5.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS048F-0064-AS-HDP (100 Pcs) --- Half Dog Point Socket Set Screws - 10-32 UNF - 4.76mm - 5.3 mm - Carbon Steel Screw Sale SS048F-0064-AS-HDP (100 Pcs) --- Half Dog Point Socket Set Screws - 10-32 UNF - 4.76mm - 5.3 mm - Carbon Steel Screw Regular price $15.32 AUD Regular price ~~$18.38 AUD~~ Sale price $15.32 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 4.8 mm (Equiv. 0.189 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm	Tip Diameter (d) 3.8 - 3.9 mm	Tip Length (L1) 1.6 mm
Material: Carbon Steel Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0064-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 4.8 mm - Carbon Steel Screw 39 units (195 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 39 units (195 pcs) Available Now. Backorder if more than 39.
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 4.8 mm (Equiv. 0.189 in.)	Type Half Dog Point	Overall Length (L + L1) 6.4 mm
Material: Carbon Steel Tip Diameter (d): 3.8 - 3.9 mm Tip Length (L1): 1.6 mm Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0064-AS-HDP (5 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 4.8 mm - Carbon Steel Screw 39 units (195 pcs) Available Now \| Further orders can be expected around Thu, Oct 09, 2025 Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 39 units (195 pcs) Available Now. Backorder if more than 39.
SS064C-0064-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 4.8 mm - Carbon Steel Screw SS064C-0064-AS-HDP (5 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 4.8 mm - Carbon Steel Screw Regular price $2.95 AUD Regular price Sale price $2.95 AUD Unit price per 5 Per Sell Unit Excludes GST and overseas Taxes & Duties 39 Available Now
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 6.3 mm (Equiv. 0.248 in.)	Type Half Dog Point	Overall Length (L + L1) 7.9 mm	Tip Diameter (d) 3.8 - 3.9 mm	Tip Length (L1) 1.6 mm
Material: Carbon Steel Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0079-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 6.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $35.41 AUD Regular price ~~$42.49 AUD~~ Sale price $35.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 6.3 mm (Equiv. 0.248 in.)	Type Half Dog Point	Overall Length (L + L1) 7.9 mm
Material: Carbon Steel Tip Diameter (d): 3.8 - 3.9 mm Tip Length (L1): 1.6 mm Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0079-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 6.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $35.41 AUD Regular price ~~$42.49 AUD~~ Sale price $35.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS064C-0079-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 6.3 mm - Carbon Steel Screw Sale SS064C-0079-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 6.3 mm - Carbon Steel Screw Regular price $35.41 AUD Regular price ~~$42.49 AUD~~ Sale price $35.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 7.9 mm (Equiv. 0.311 in.)	Type Half Dog Point	Overall Length (L + L1) 9.5 mm	Tip Diameter (d) 3.8 - 3.9 mm	Tip Length (L1) 1.6 mm
Material: Carbon Steel Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0095-AS-HDP (100 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 7.9 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 7.9 mm (Equiv. 0.311 in.)	Type Half Dog Point	Overall Length (L + L1) 9.5 mm
Material: Carbon Steel Tip Diameter (d): 3.8 - 3.9 mm Tip Length (L1): 1.6 mm Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0095-AS-HDP (100 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 7.9 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS064C-0095-AS-HDP (100 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 7.9 mm - Carbon Steel Screw Sale SS064C-0095-AS-HDP (100 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 7.9 mm - Carbon Steel Screw Regular price $24.68 AUD Regular price ~~$29.62 AUD~~ Sale price $24.68 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 11.1 mm (Equiv. 0.437 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm	Tip Diameter (d) 3.8 - 3.9 mm	Tip Length (L1) 1.6 mm
Material: Carbon Steel Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0127-AS-HDP (100 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 11.1 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 11.1 mm (Equiv. 0.437 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm
Material: Carbon Steel Tip Diameter (d): 3.8 - 3.9 mm Tip Length (L1): 1.6 mm Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0127-AS-HDP (100 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 11.1 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS064C-0127-AS-HDP (100 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 11.1 mm - Carbon Steel Screw Sale SS064C-0127-AS-HDP (100 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 11.1 mm - Carbon Steel Screw Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per 100 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 14.3 mm (Equiv. 0.563 in.)	Type Half Dog Point	Overall Length (L + L1) 15.9 mm	Tip Diameter (d) 3.8 - 3.9 mm	Tip Length (L1) 1.6 mm
Material: Carbon Steel Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0159-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 14.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 14.3 mm (Equiv. 0.563 in.)	Type Half Dog Point	Overall Length (L + L1) 15.9 mm
Material: Carbon Steel Tip Diameter (d): 3.8 - 3.9 mm Tip Length (L1): 1.6 mm Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0159-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 14.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS064C-0159-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 14.3 mm - Carbon Steel Screw Sale SS064C-0159-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 14.3 mm - Carbon Steel Screw Regular price $28.32 AUD Regular price ~~$33.98 AUD~~ Sale price $28.32 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 17.5 mm (Equiv. 0.689 in.)	Type Half Dog Point	Overall Length (L + L1) 19.1 mm	Tip Diameter (d) 3.8 - 3.9 mm	Tip Length (L1) 1.6 mm
Material: Carbon Steel Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0191-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 17.5 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 17.5 mm (Equiv. 0.689 in.)	Type Half Dog Point	Overall Length (L + L1) 19.1 mm
Material: Carbon Steel Tip Diameter (d): 3.8 - 3.9 mm Tip Length (L1): 1.6 mm Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0191-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 17.5 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS064C-0191-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 17.5 mm - Carbon Steel Screw Sale SS064C-0191-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 17.5 mm - Carbon Steel Screw Regular price $18.41 AUD Regular price ~~$22.09 AUD~~ Sale price $18.41 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 23.8 mm (Equiv. 0.937 in.)	Type Half Dog Point	Overall Length (L + L1) 25.4 mm	Tip Diameter (d) 3.8 - 3.9 mm	Tip Length (L1) 1.6 mm
Material: Carbon Steel Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0254-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 23.8 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 1/4-20 UNC (6.35mm)	Thread Length (L) 23.8 mm (Equiv. 0.937 in.)	Type Half Dog Point	Overall Length (L + L1) 25.4 mm
Material: Carbon Steel Tip Diameter (d): 3.8 - 3.9 mm Tip Length (L1): 1.6 mm Pitch: 1.270 mm Threads Per Inch: 20 TPI
Part Number: SS064C-0254-AS-HDP (50 Pcs) Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 23.8 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 18, 2025 Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS064C-0254-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 23.8 mm - Carbon Steel Screw Sale SS064C-0254-AS-HDP (50 Pcs) --- Half Dog Point Socket Set Screws - 1/4-20 UNC - 6.35mm - 23.8 mm - Carbon Steel Screw Regular price $29.05 AUD Regular price ~~$34.85 AUD~~ Sale price $29.05 AUD Unit price per 50 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 5/16-18 UNC (7.94mm)	Thread Length (L) 10.9 mm (Equiv. 0.429 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm	Tip Diameter (d) 5.2 - 5.5 mm	Tip Length (L1) 1.8 mm
Material: Carbon Steel Pitch: 1.411 mm Threads Per Inch: 18 TPI
Part Number: SS079C-0127-AS-HDP (10 Pcs) Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 10.9 mm - Carbon Steel Screw 19 units (190 pcs) Available Now \| Further orders can be expected around Sat, Oct 18, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 19 units (190 pcs) Available Now. Backorder if more than 19.
Thread Size 5/16-18 UNC (7.94mm)	Thread Length (L) 10.9 mm (Equiv. 0.429 in.)	Type Half Dog Point	Overall Length (L + L1) 12.7 mm
Material: Carbon Steel Tip Diameter (d): 5.2 - 5.5 mm Tip Length (L1): 1.8 mm Pitch: 1.411 mm Threads Per Inch: 18 TPI
Part Number: SS079C-0127-AS-HDP (10 Pcs) Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 10.9 mm - Carbon Steel Screw 19 units (190 pcs) Available Now \| Further orders can be expected around Sat, Oct 18, 2025 Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required 19 units (190 pcs) Available Now. Backorder if more than 19.
SS079C-0127-AS-HDP (10 Pcs) --- Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 10.9 mm - Carbon Steel Screw SS079C-0127-AS-HDP (10 Pcs) --- Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 10.9 mm - Carbon Steel Screw Regular price $6.77 AUD Regular price Sale price $6.77 AUD Unit price per 10 Per Sell Unit Excludes GST and overseas Taxes & Duties 19 Available Now
Thread Size 5/16-18 UNC (7.94mm)	Thread Length (L) 23.6 mm (Equiv. 0.929 in.)	Type Half Dog Point	Overall Length (L + L1) 25.4 mm	Tip Diameter (d) 5.2 - 5.5 mm	Tip Length (L1) 1.8 mm
Material: Carbon Steel Pitch: 1.411 mm Threads Per Inch: 18 TPI
Part Number: SS079C-0254-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 23.6 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $34.32 AUD Regular price ~~$41.18 AUD~~ Sale price $34.32 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 5/16-18 UNC (7.94mm)	Thread Length (L) 23.6 mm (Equiv. 0.929 in.)	Type Half Dog Point	Overall Length (L + L1) 25.4 mm
Material: Carbon Steel Tip Diameter (d): 5.2 - 5.5 mm Tip Length (L1): 1.8 mm Pitch: 1.411 mm Threads Per Inch: 18 TPI
Part Number: SS079C-0254-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 23.6 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $34.32 AUD Regular price ~~$41.18 AUD~~ Sale price $34.32 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS079C-0254-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 23.6 mm - Carbon Steel Screw Sale SS079C-0254-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 5/16-18 UNC - 7.94mm - 23.6 mm - Carbon Steel Screw Regular price $34.32 AUD Regular price ~~$41.18 AUD~~ Sale price $34.32 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 10.6 mm (Equiv. 0.417 in.)	Type Half Dog Point		Tip Diameter (d) 6.6 - 7.0 mm	Tip Length (L1) 2.1 mm
Material: Carbon Steel Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0127-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 10.6 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 10.6 mm (Equiv. 0.417 in.)	Type Half Dog Point
Material: Carbon Steel Tip Diameter (d): 6.6 - 7.0 mm Tip Length (L1): 2.1 mm Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0127-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 10.6 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS095C-0127-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 10.6 mm - Carbon Steel Screw Sale SS095C-0127-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 10.6 mm - Carbon Steel Screw Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 17.0 mm (Equiv. 0.669 in.)	Type Half Dog Point		Tip Diameter (d) 6.6 - 7.0 mm	Tip Length (L1) 2.1 mm
Material: Carbon Steel Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0191-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 17 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 17.0 mm (Equiv. 0.669 in.)	Type Half Dog Point
Material: Carbon Steel Tip Diameter (d): 6.6 - 7.0 mm Tip Length (L1): 2.1 mm Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0191-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 17 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS095C-0191-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 17 mm - Carbon Steel Screw Sale SS095C-0191-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 17 mm - Carbon Steel Screw Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 23.3 mm (Equiv. 0.917 in.)	Type Half Dog Point		Tip Diameter (d) 6.6 - 7.0 mm	Tip Length (L1) 2.1 mm
Material: Carbon Steel Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0254-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 23.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $41.05 AUD Regular price ~~$49.25 AUD~~ Sale price $41.05 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 23.3 mm (Equiv. 0.917 in.)	Type Half Dog Point
Material: Carbon Steel Tip Diameter (d): 6.6 - 7.0 mm Tip Length (L1): 2.1 mm Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0254-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 23.3 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $41.05 AUD Regular price ~~$49.25 AUD~~ Sale price $41.05 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS095C-0254-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 23.3 mm - Carbon Steel Screw Sale SS095C-0254-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 23.3 mm - Carbon Steel Screw Regular price $41.05 AUD Regular price ~~$49.25 AUD~~ Sale price $41.05 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 29.7 mm (Equiv. 1.169 in.)	Type Half Dog Point		Tip Diameter (d) 6.6 - 7.0 mm	Tip Length (L1) 2.1 mm
Material: Carbon Steel Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0318-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 29.7 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $50.86 AUD Regular price ~~$61.04 AUD~~ Sale price $50.86 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Thread Size 3/8-16 UNC (9.53mm)	Thread Length (L) 29.7 mm (Equiv. 1.169 in.)	Type Half Dog Point
Material: Carbon Steel Tip Diameter (d): 6.6 - 7.0 mm Tip Length (L1): 2.1 mm Pitch: 1.588 mm Threads Per Inch: 16 TPI
Part Number: SS095C-0318-AS-HDP (25 Pcs) Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 29.7 mm - Carbon Steel Screw Out of Stock \| Backorder Now \| Orders can be expected around Mon, Nov 03, 2025 Regular price $50.86 AUD Regular price ~~$61.04 AUD~~ Sale price $50.86 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
SS095C-0318-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 29.7 mm - Carbon Steel Screw Sale SS095C-0318-AS-HDP (25 Pcs) --- Half Dog Point Socket Set Screws - 3/8-16 UNC - 9.53mm - 29.7 mm - Carbon Steel Screw Regular price $50.86 AUD Regular price ~~$61.04 AUD~~ Sale price $50.86 AUD Unit price per 25 Per Sell Unit Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Socket Set Screws - Half Dog Point

Category Details

Filter

Filter

Subscribe to our emails
